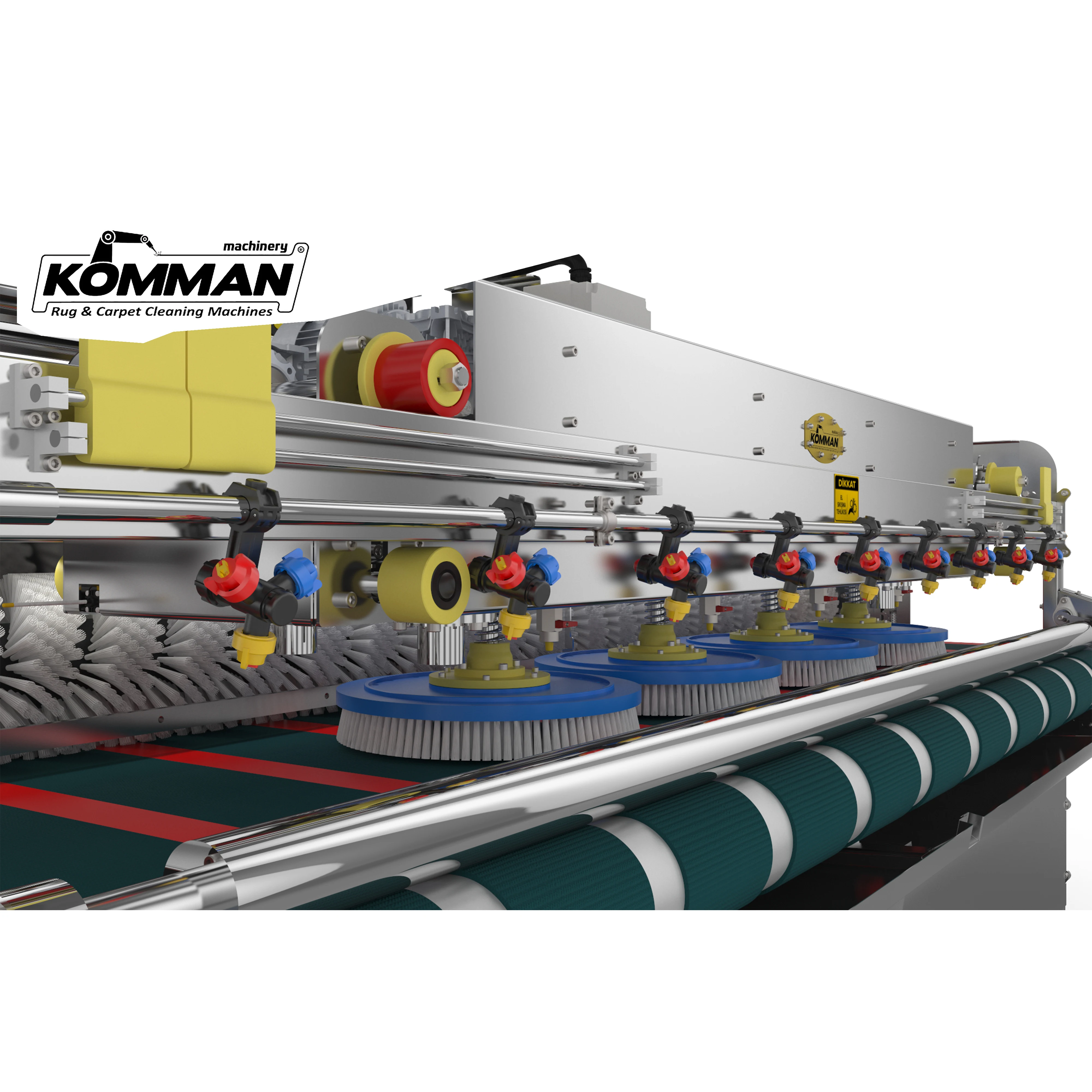

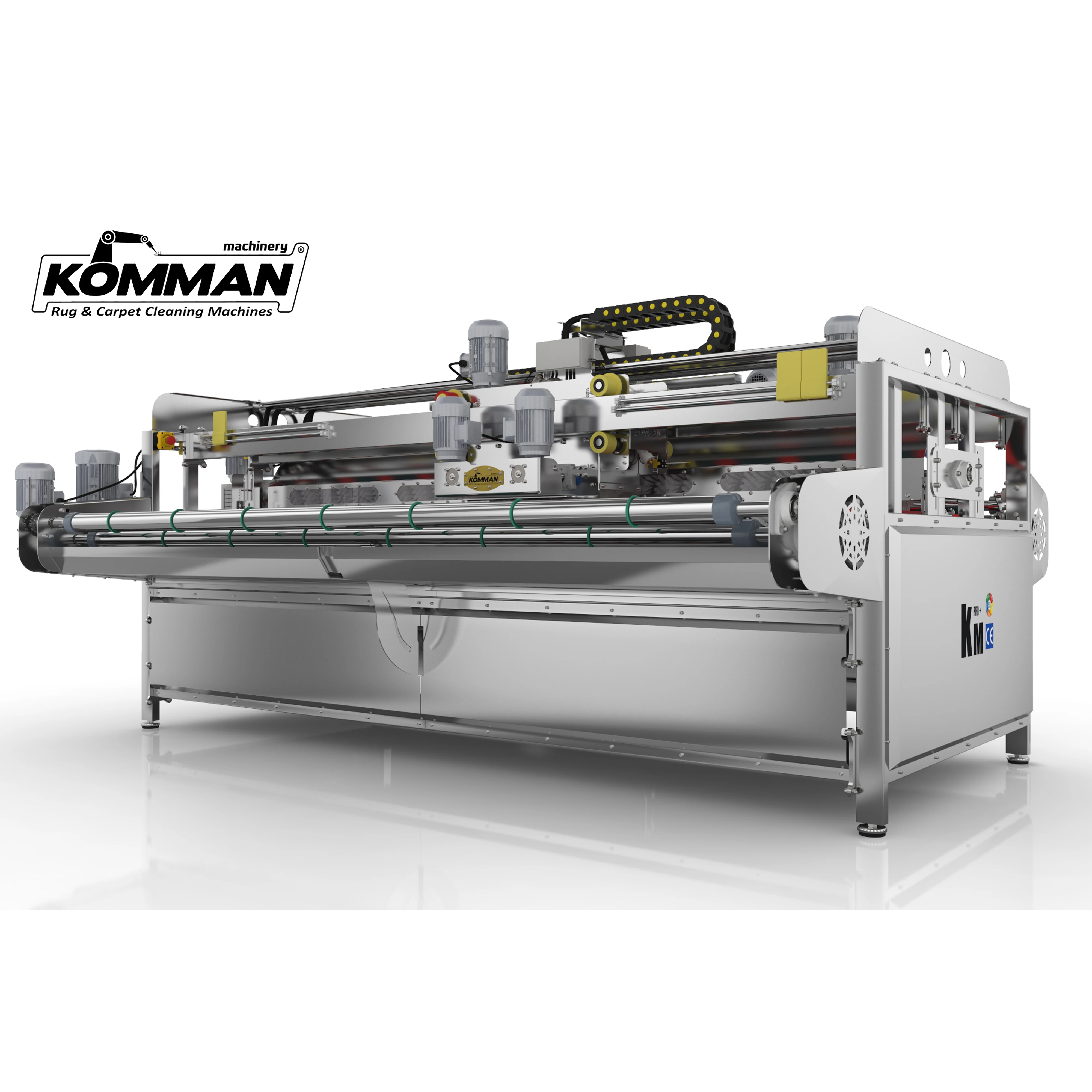

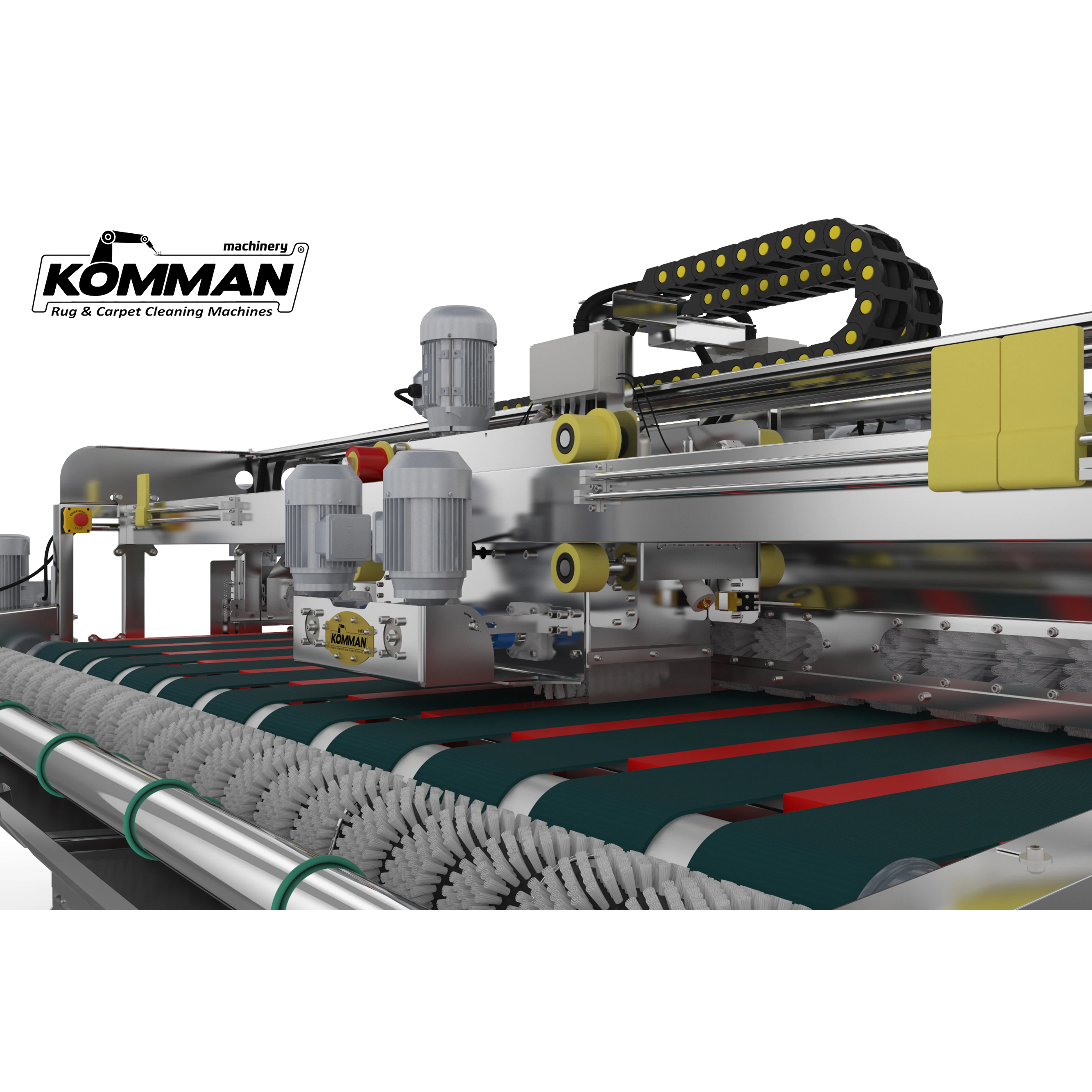

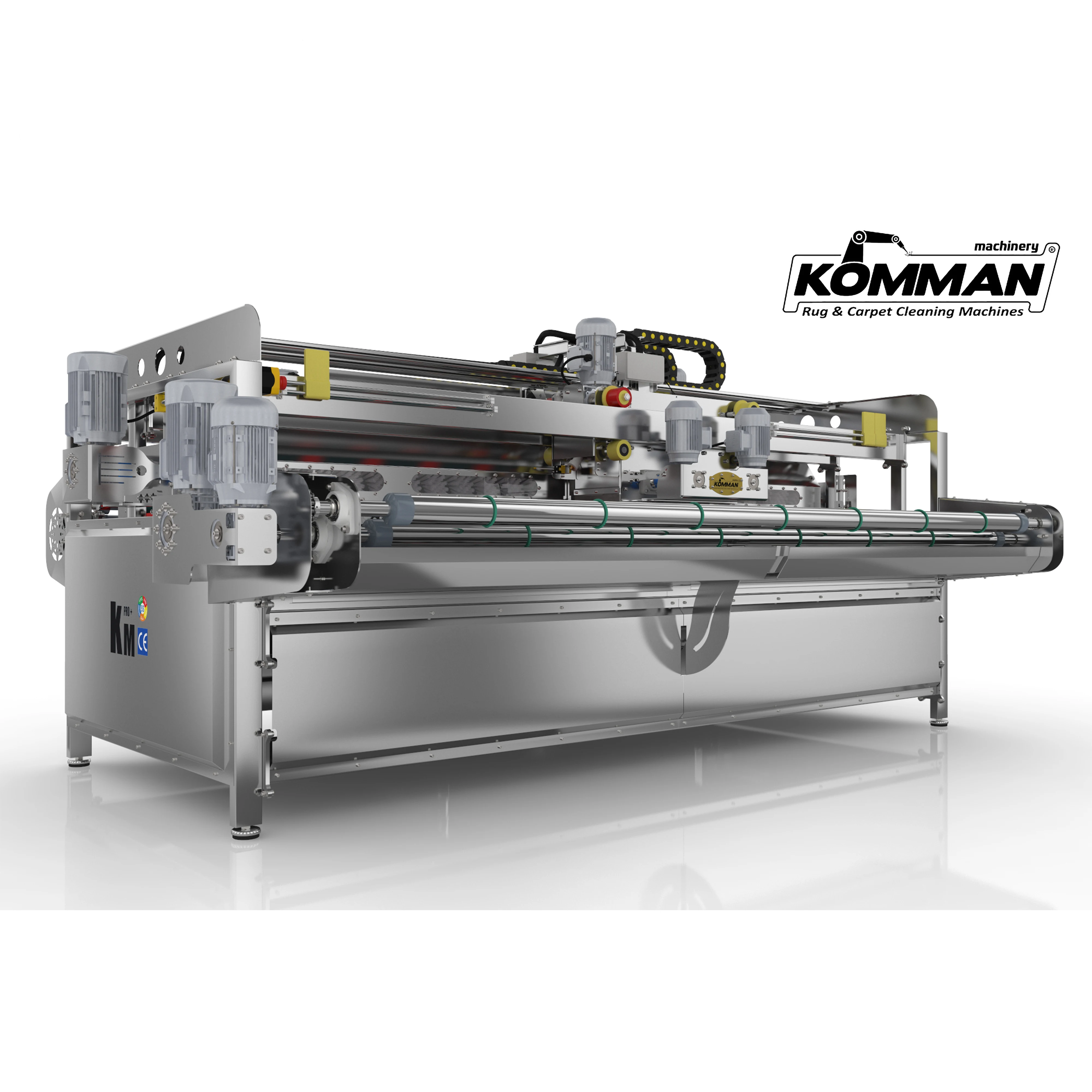

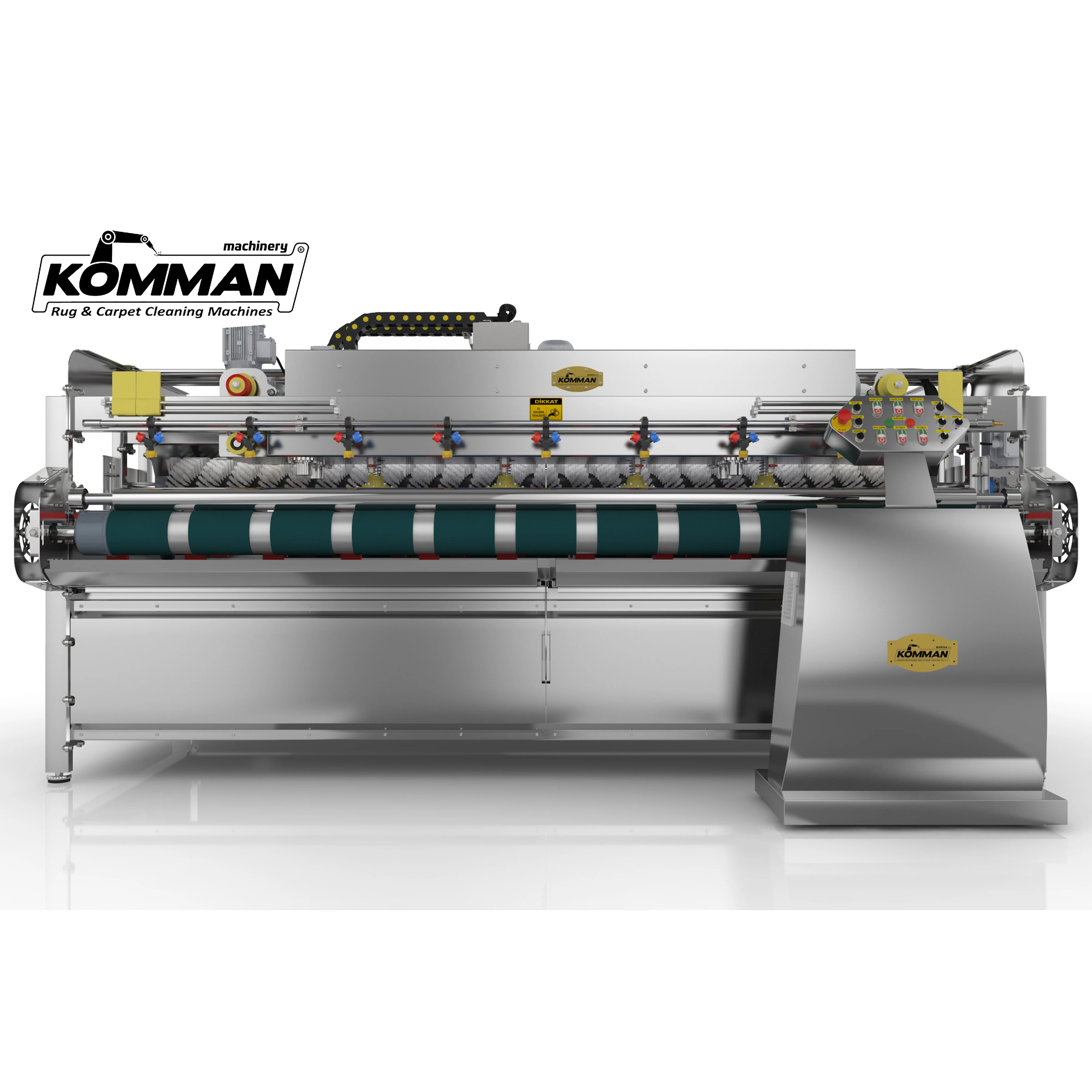

Automatic Industrial Carpet/Rug Cleaning Machine Commercial Rug Washer. 3 meters conveyor surface ALTAY RAKE 3000
- Category: Other Cleaning Equipment >>>
- Supplier: KOMMAN MAKINA MEKATRONIK HAVA VE KARA TASITLARI ANONIM SIRKETI
Share on (62009108705):
Product Overview
Description
In Total of 8 Compact Brushes ALTAY RAKE 3000
* 4 Disk brushes (1st class high quality heavy duty reducers were used)
* 3 mm thickness, high strenght inox main body frame.
* High strength conveyor drums with a diameter of 139.7 mm and a thickness of 5 mm
* Heavy duty, adjustable Vargel type carpet pressure system. (The most successful linear system of the German lathe type, capable of applying stable pressure.)
* Spring pressure system for homogeneous pressure(Equal pressure to every disk brushes)
* Reverse roller rake brush system
* Roller Rake system with the opposing directional roller brushing(The Most Successful System)
* Opposing directional brushing system for rinsing(The Most Successful System)
* Adjustable water rinsing system
* Roller brush system for cleaning the bottom surface.
* Carpet folding system
* Capable of cleaning/washing all sorts of carpets.
* First class compact infinite conveyor bands(Resistant to Chemicals)
* Socketed split band system with adjustable tension.
* Versatile easy to use automation and control system.
* Optimum operation of the machine with horizontal movement control according to carpet widths.
* Possibility to control the speed of all the units manually due to the AC drivers of the infrastructure of the automation
system.
* Grid system that prevents carpet fringes from wrapping to the middle and lower washing brushes in fringed carpets.
* Conical and honing ball bearing system that withstands the pressure of brushes
* Safety switches for machine safety.
* The machines are compactly designed with a mass production model, and manufacturing and workmanship errors are drawn to the automotive industry level.
* Manufactured according to the minimum fault level and the principle of working in the heaviest conditions.
* Pre-wetting system 1st class 3 water spraying nozzles and high efficiency are obtained even with a small amount of water.
* Our machines are designed to achieve the maximum level of results with a small consumption of energy and water
* 3 meters band width - Compact pin conveyor belt
* Total 8 brushes.
* Voltage : 380-50 / V-Hz
* Engine power of the disc brush :0,75 KW
* Brushing units: 4 Disc Brushes, 2 Roller Brushes, 2 Rake and Rinse Brushes
* Total Power: 12 KW
* Engine RPM: 1400 rpm
* Brush Diameter: 420 mm
* Diameter of the Roller Rake Brush: 280mm
* Brushing speed: 200/m
* Capable of washing 720 square meter carpets in just 8 hours.
* Capable of washing 6 square meter carpet in around 4 minutes
* Carpet washing speed per minute: 1,5 min
* Electricity consumption in 1 hour: 9KWh
* Dimensions (LxWxH): 3660x2230x1760 mm
Related Products

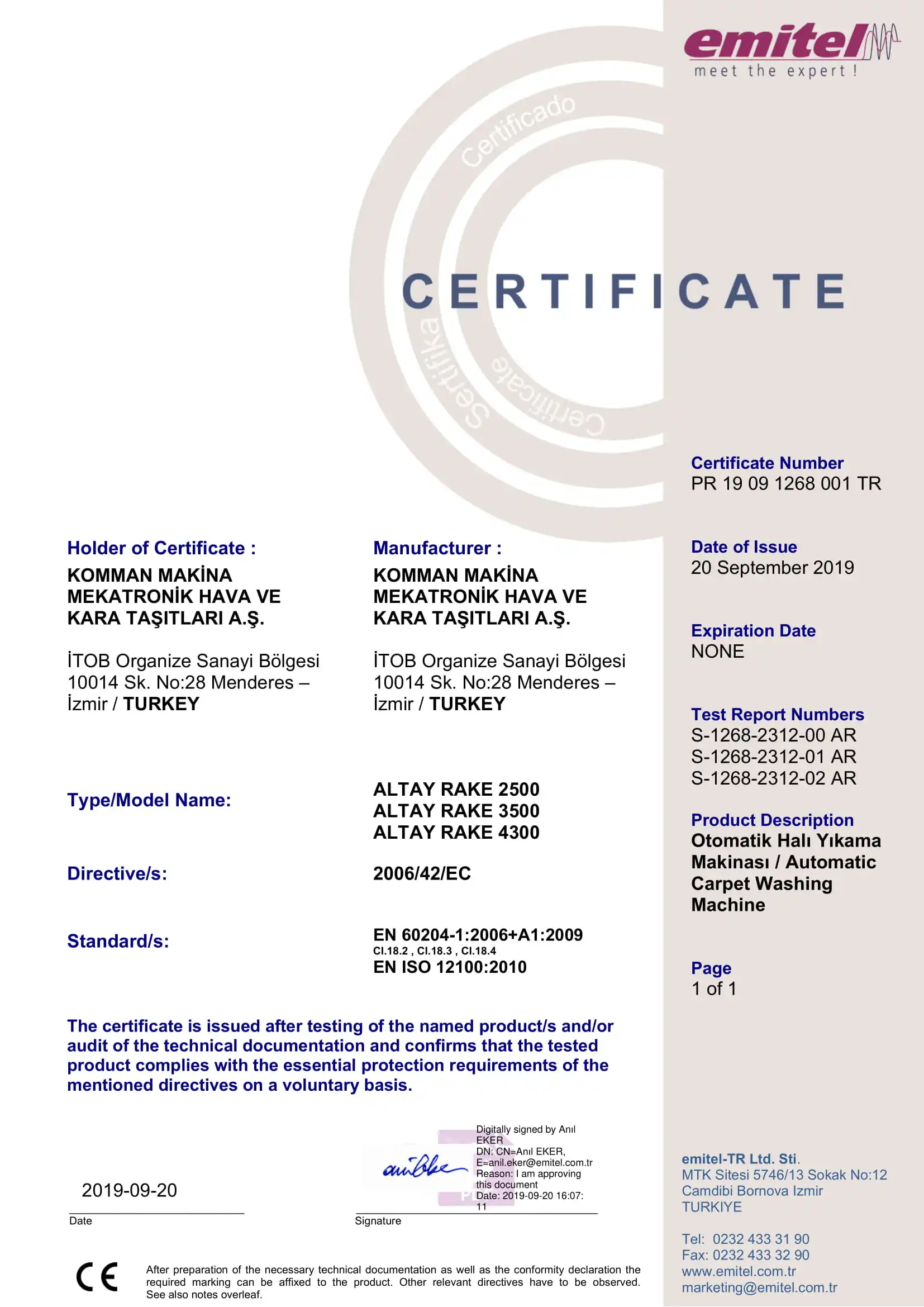

Certifications
Packing & Delivery
DIMENSIONS: | 3660x2230x1760 MM |
WEIGHT: | 2050 KG |
