EMC Lead Frame 1W 130LM 150lm SMD 3030 LED White6000K
- Category: High Power LED >>>
- Supplier: Shenzhen Trillion Auspicious Lighting Co. Ltd.
Share on (62009220659):
Product Overview
Description
luminous diameter:3.0*3.0*0.62mm
Forward Voltage:2.8-3.4V
Forward current:350ma
Power:1w
Color Temperation: white:5000-6500K ,warm white:2700-3500K,natural white:3800-4500K,Cool white9000-12000K
Viewing Angle:120
luminous flux:100-140LM
Optical Attenua:0.03
Color Rendering Index:CRI:80
storage tempe:-40-85
operating tem:-20-60
packing:5000pcs/roll
3030(1W 3V)

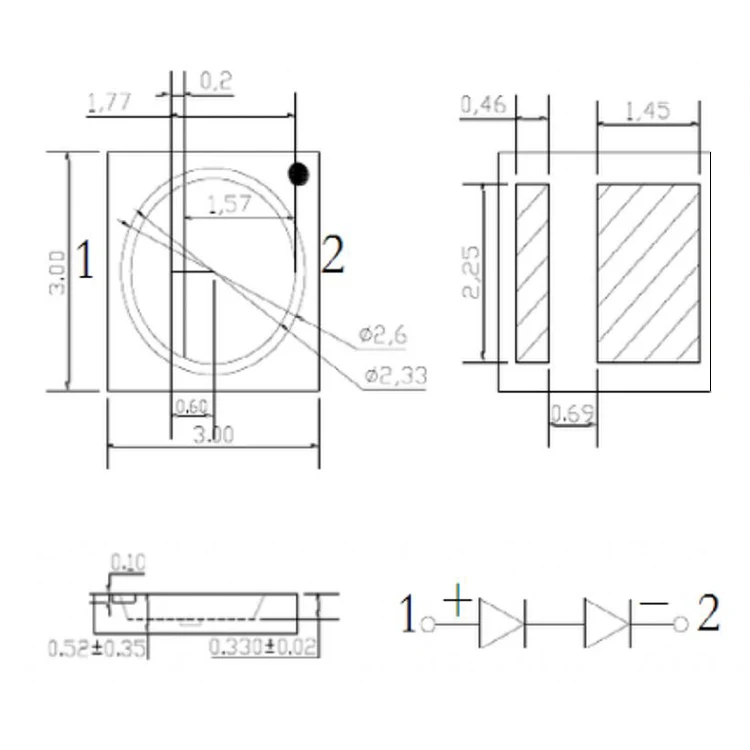

Dimension | 3.0x3.0x0.62mm |
Power Consumption | 1W |
Color Temperature | 2700K-12000K |
Efficiency | 100 -150 lm/W(CW) |
Voltage | 2.8-3.4V |
CRI | 70-80 |
Application | Downlight / Bay / Linear Fixture |
The 3030 is a compact size and high lumen design concept. It is one of RZXLED’s new 1W packages that can be clustered in small arrays for high lumen density applications, paired with invidivual optics for directional lamps, or spread out evenly on a board for diffused applications. It is a very adaptable LED for multiple high lifetime applications.
Packaging Details:reel and tape in carton
