Lab Battery Grade Graphite Sheet Price
US $5.00-$15.00

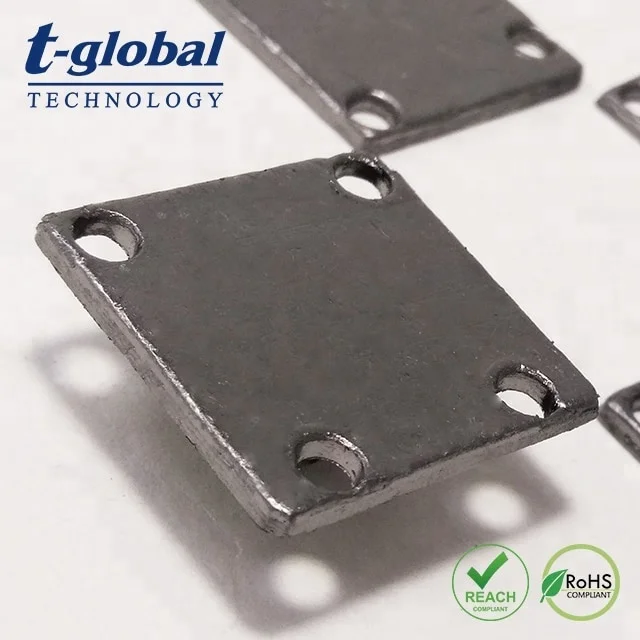

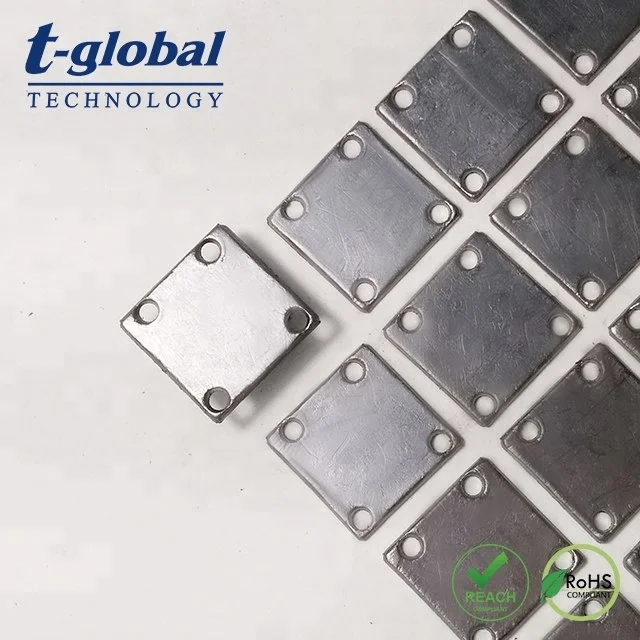

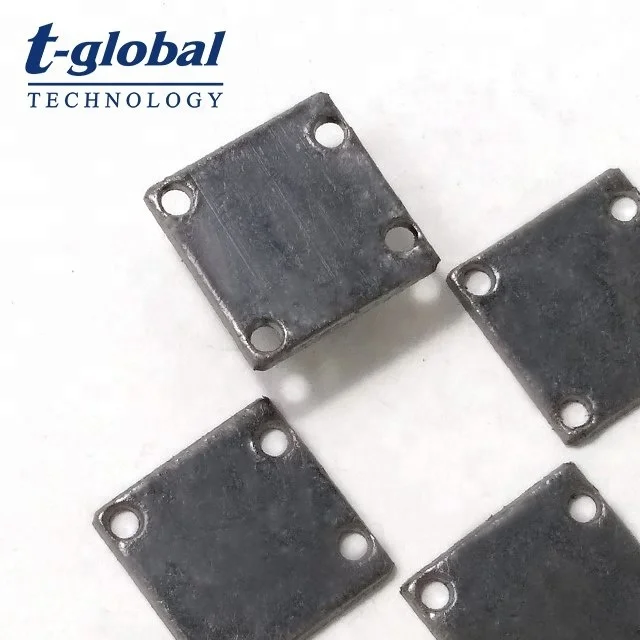

pyrolytic graphite sheet for CPU and cellphone
- Category: Graphite Sheets >>>
- Supplier: T-GLOBAL TECHNOLOGY CO. LTD.
Share on (62009424831):
Product Overview
Description
Features
Ultra high thermal conductivity
Easy to assemble
Low mass decrreases space
EMI reduction
Configurations
Size:
100X100/ 150X150/ 300X300
Thickness:
0.13/ 0.16/ 0.20 mm
Application
Best for low power applications
Electronic components:
IC, CPU, MOS, LED, Mother Board, Power Supply, Heat Sink,
LCD-TV, Notebook, PC, Telecom Device, Wireless Hub,
DDR ll Module, DVD Applications, Hand-set applications etc.
Physical properties | T62 | T62-1 | T62-2 | Unit | Tolerance | Test Method | ||
Thermal conductivity | X-Y, 400 | X-Y, 400 | X-Y, 400 | W/mK | - | AC calorimeter | ||
Z, 20 | Z, 15 | Z, 5 | W/mK | ±10% | Laser flash | |||
Thickness | 0.13 | 0.16 | 0.2 | mm | ±0.03 | Micrometer | ||
0.0051 | 0.0063 | 0.0079 | inch | - | - | |||
Color | Black | - | - | Visual | ||||
Type | Graphite | Graphite + Adhessive | PET + Graphite + Adhessive | - | - | - | ||
Density | 1.5 | 1.5~1.8 | g/cm3 | ±0.05 | - | |||
Graphite Contained | >98 | >98 | >98 | % | - | - | ||
Working Temperature | -30~100 | -30~100 | °C | - | - | |||
Recommend Products
Which product is more suitable to apply with my design?
Follow the tutorials step by step so layman can choose suitable products easily by yourself!
Finished our brief introduction, you must be itching to choose it!
It's your turn!
Thermal Pad | ||||||||
T-Global Pad Series | Thermal conductivity | Thickness | Dielectric Breakdown Voltage | Hardness | ||||
2.2 W/mk | 0.5~2.0 mm | 5 KV / mm | 15 Shore 00 | |||||
3.5 W/mk | 0.5~8.0 mm | 6 KV / mm | 30 Shore 00 | |||||
4.5 W/mk | 0.5~8.0 mm | 6 KV / mm | 50 Shore 00 | |||||
6.2 W/mk | 0.5~8.0 mm | 6 KV / mm | 50 Shore 00 | |||||
12.5 W/mk | 0.5~8.0 mm | 6.5 KV / mm | 50 Shore 00 | |||||
14.5 W/mk | 0.5~2.0 mm | 4 KV / mm | 60 Shore 00 | |||||
16.6 W/mk | 0.5~2.0 mm | 5 KV / mm | 65 Shore 00 | |||||
17.8 W/mk | 0.5~2.0 mm | 4 KV / mm | 65 Shore 00 | |||||
Thermal Grease | ||||||||
T-Global Grease Series | ||||||||
Thermal conductivity | 1.1 | 5 | 8 | 9 | ||||
Working temperature | -40~+200°C | -40~+180°C | -40~+200°C | -40~+200°C | ||||
Package | 1KG/1.5G/5G/12G/30G/40G (*Syringes need MOQ) | |||||||
1KG/30G/50G for Cans | ||||||||
Material | Silicone | Silicone | Silicone | Non-Silicone | ||||
Heat pipe
Size:Customized
Vapor Chamber
Size:Customized
Heat Sink
Size:Customized
You Deserve the Best
Application
Certifications
Our Company
T-Global Technology is dedicated to developing composite thermal solution and manufacturing superior thermal module for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with NO MOQ, customized products, full product line and flexible production which makes us be the best and reliable partner of you. Let's make your design more perfect!
Due to the increasing expansion of the industrial chain and difficulty to understand the heat source, T-global Technology offers a range of services and products. We using thermal simulation method to provide thermal design consultation, and offers customized products from the early prototyping stage to the post-production product improvement stage.We are accompanying customers to solve all thermal engineering problems.
Logistics System
FAQ
Q: How do I place an order?
1. Click the "Contact Supplier" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase request.
3. Click the "Send" button when you are finished to complete the process and send your message to us and retrieve any
responses to your message in your Alibaba Message Center Inbox.
Q: How do I pay for my purchase?
A: We accept PayPal or T/T for online orders.
Q: How do I request customized samples?
A: To request samples, you must be registered in Alibaba. Click the "Contact Supplier" button to continue with the process. Fill out the message form by entering a subject line, and message to us. This message should include any questions you might have about the products as well as your sample request. We are pleased to provide free product, order processing, but we are not able to include shipping fee, so please kindly provide your courier account in the message.
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
