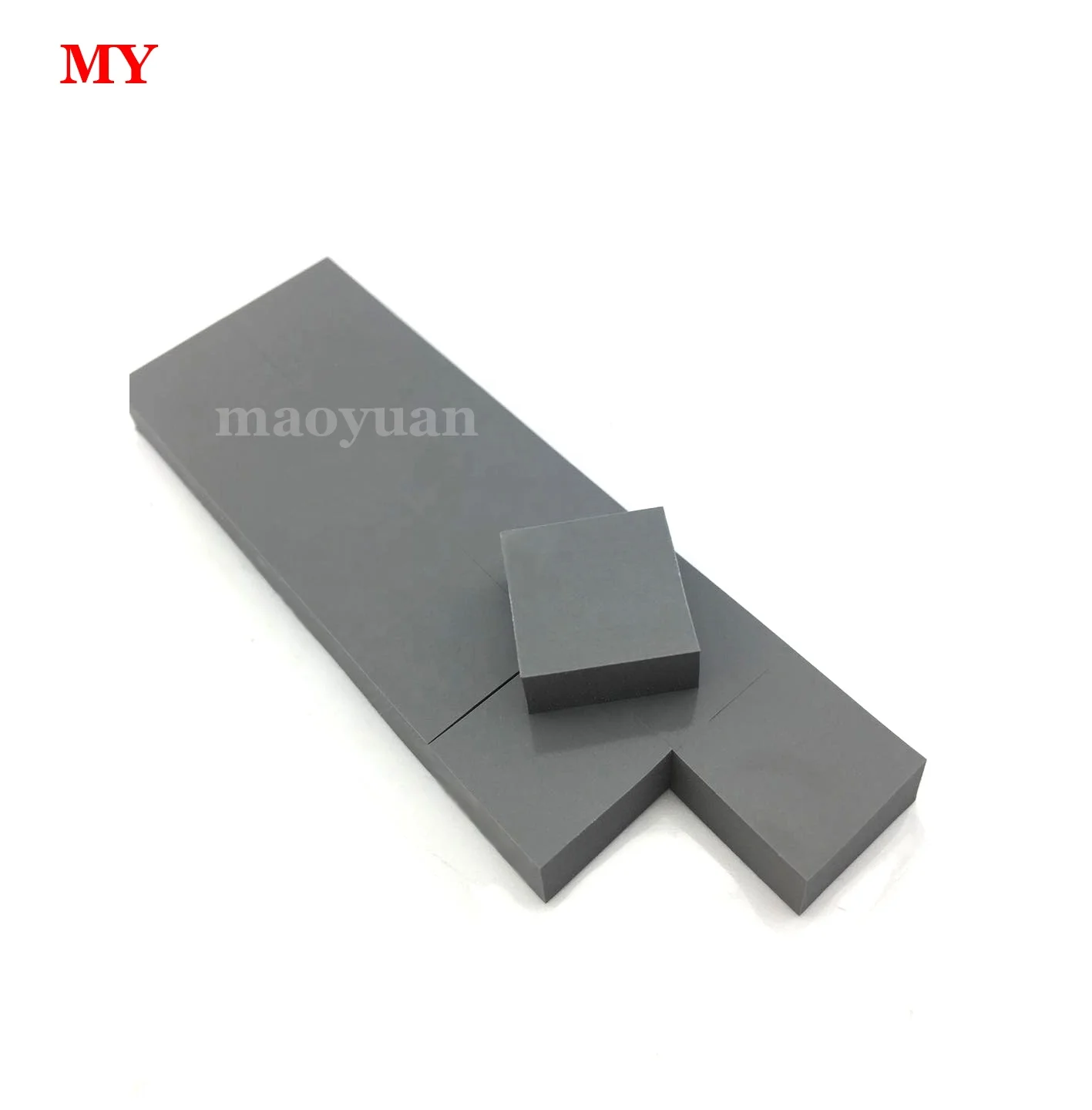

13W/mk 15W/mk thermal silicone pad Insulation Silicone Heat Electrical Cooler Material Heat Resistant Thermal Pad for GPU CPU

13W/mk 15W/mk thermal silicone pad Insulation Silicone Heat Electrical Cooler Material Heat Resistant Thermal Pad for GPU CPU

Category: Insulation Materials & Elements >>>
Supplier: Shenzhen Maoyuan Electronic Material Co. Ltd.

Price:$0.20 - $0.77

Quantity:

Product Overview

Description

Product Parameters

Test Item	Test Value	Test Item	Test Value
Color	White/Blue/Gray/Pink/Black	Thickness	0.2~20.0 mm
Specific Gravity	1.8±0.1g/cc	Hardness	18±5~40±5 Shore C
Tensile Strength	8 kg/cm2	Continuous use Temp	-40~+220 ℃
Tensile Strength		5.88*10⁹Pa	Volume Resistivity	1.0*10¹¹ Ω-CM
Voltage Endurance	6 KV/mm	Flame retardant	Yes
Thermal Conductivity	1W/mk-10W/mk	Thermal Resistance	0.758 ℃-in2/w
Thermal Impedance	≤0.53 ℃.in2/W	Elongation	100 %
Size	Cutting into any size	OEM$ODM	Yes
Advantage	Thermal/insulation/self-adhesive	Application	PCB/IC/LED, CPU

Product Advantages

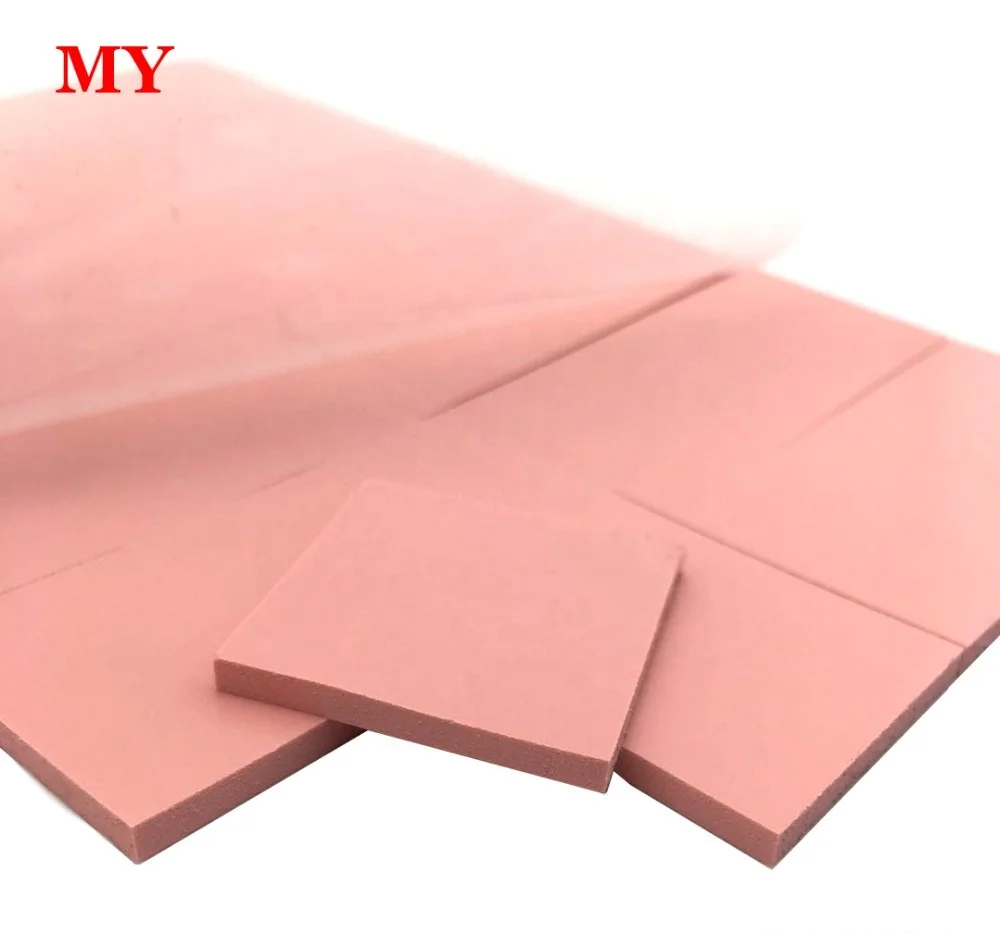

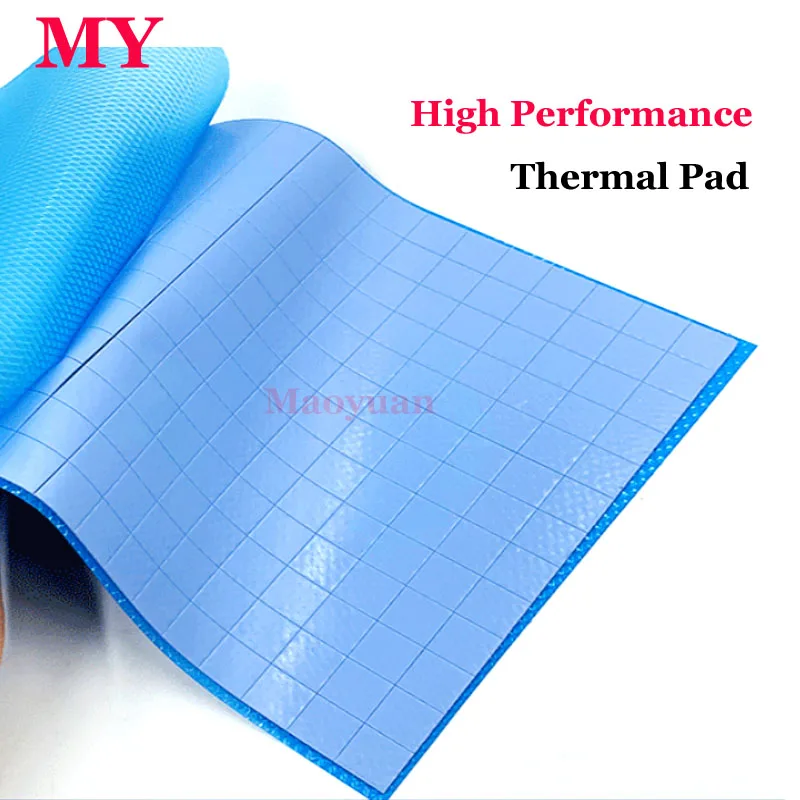

Maoyuan Factory MY series thermal conductive silicon pad is high-performance, thermal conductive gap filling materials, mainly for the transmission interface between the electronic equipment and heat sink or product outer covering. Nice stickiness, flexibility, good compression performance and excellent heat conductivity are designed for MY200 series,which make the products can discharge gas from the electronic original and heat sink, to achieve fully conforming and obviously cooling effect.

The Thermal pad support customization and wholesale, large quantity with preferential treatment

Feature:

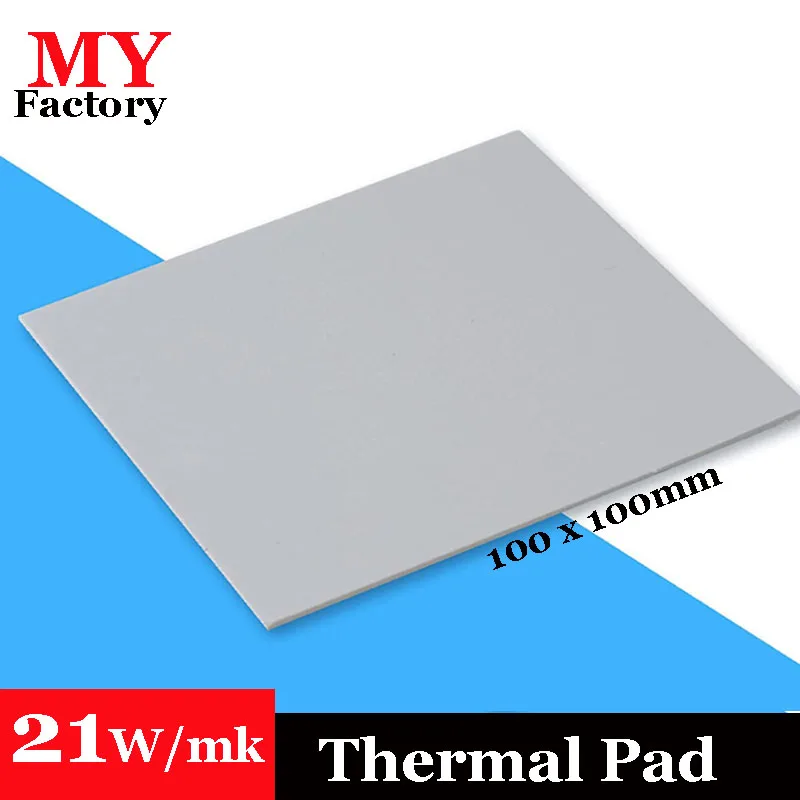

1. Super high thermal conductivity(1W-22W/mk)
2. Durable, insulating and non-conductive. Non-corrosive, non-curing and non-toxic.

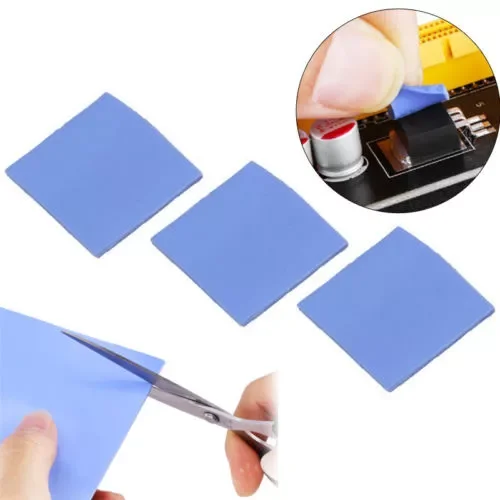

3. Easy to use, no need to apply silicone grease, just tear off the protective film on both sides to use.

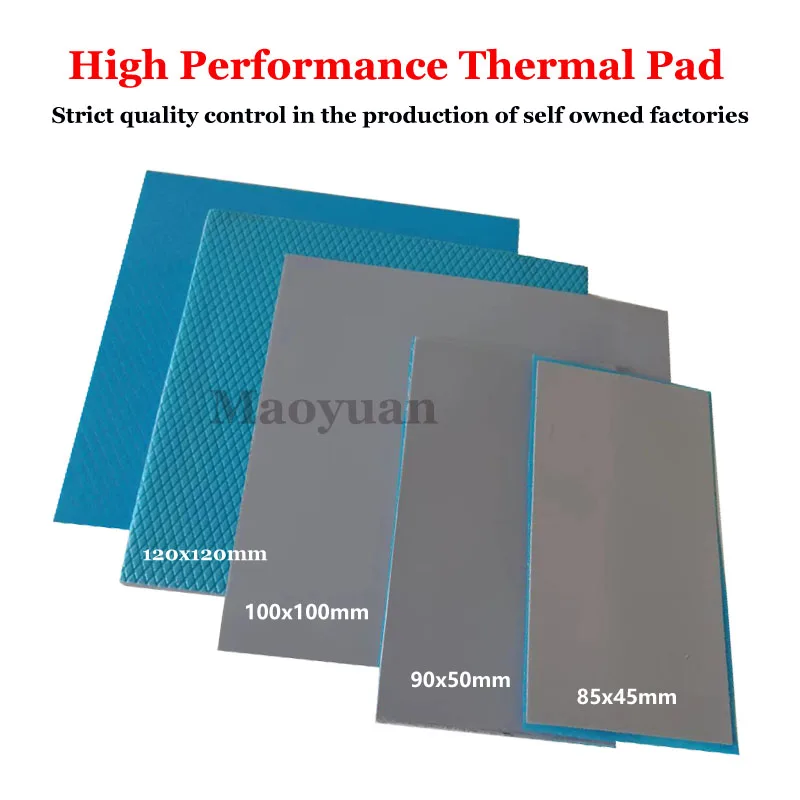

4. Various Thicknesses and Wide Application

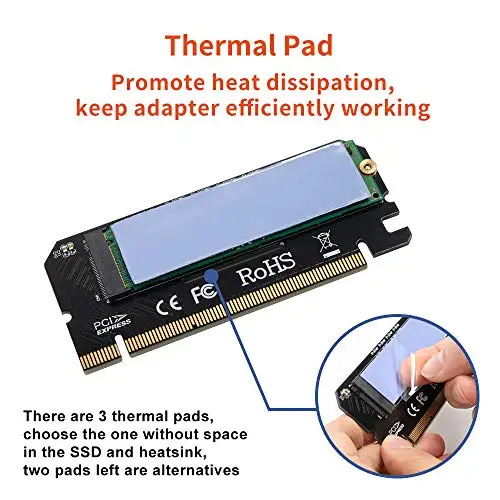

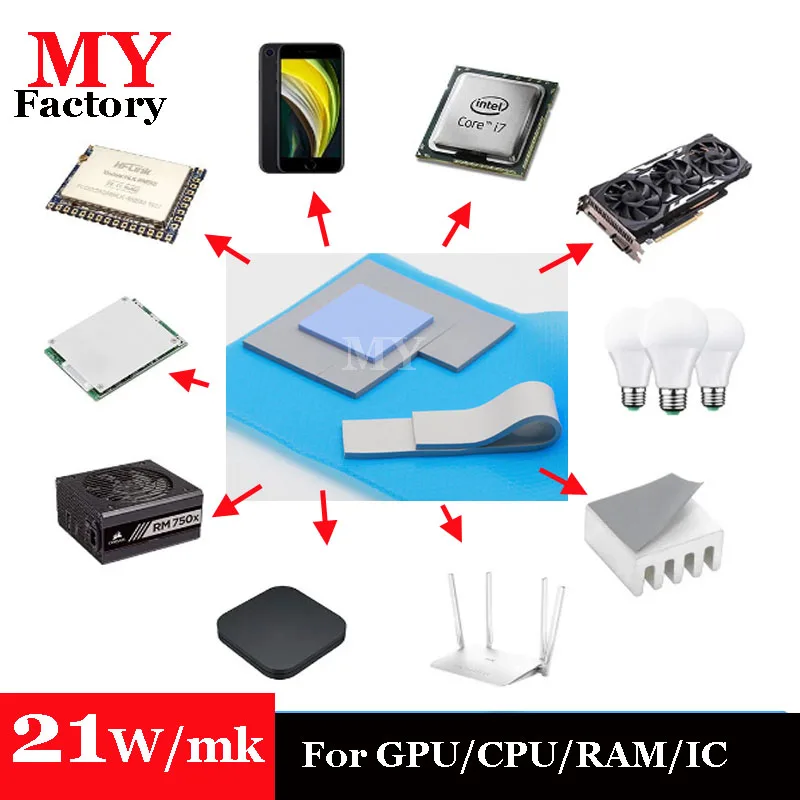

(It can be used for heating elements such as CPU, GPU, graphics card, memory, mining machine, SSD solid state drive, notebook computer, game equipment, LED, server, household appliances, radiator, capacitor and resistor.)

5. High Quality.

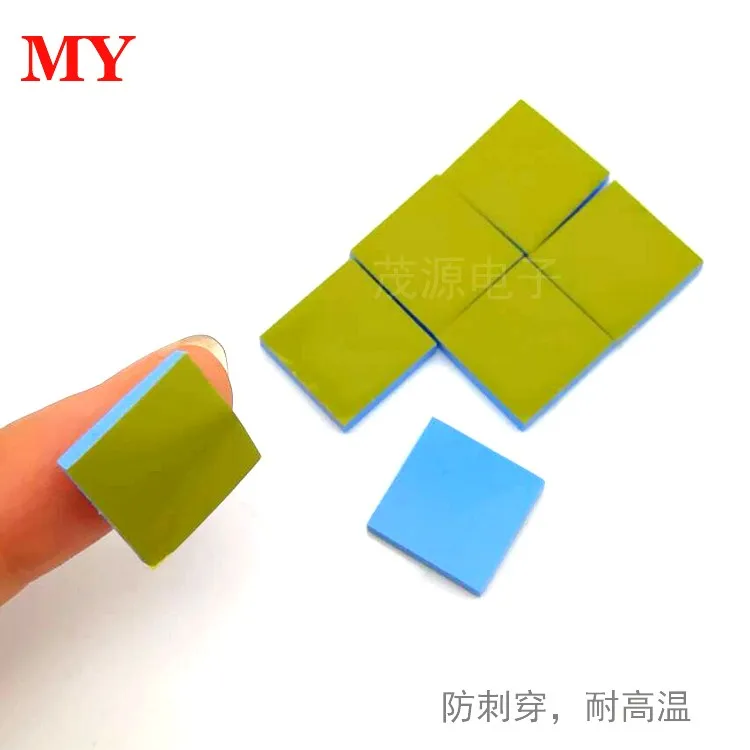

Support to customize: size/thickness/color/shape/thermal conductivity

Features & Benefits

●\tHigh reliability & High thermal conductivity
●\tHigh compressibility, soft and flexible
●\tHigh conductivity
●\tNatural tacky for both sides, no need adhesive
●\tMeet with the environmental requirements of Reach

Application Mode

●\tThe filling between PCB and heat sink

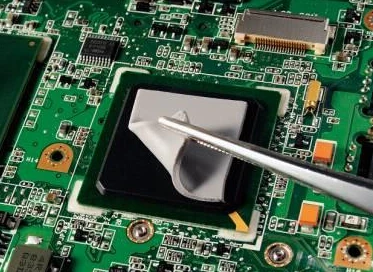

●\tThe filling between IC and heat sink or product outer covering

●\tThe filling between IC and heat sink or product outer covering

Typical Applications:

●\tCommunication equipment
●\tLED Light
●\tSwitching power supply
●\tBack light model
●\tMedical equipment
●\tMobile equipment
●\tVideo equipment
●\tNetworking equipment
●\tHousehold appliances
●\tNote books

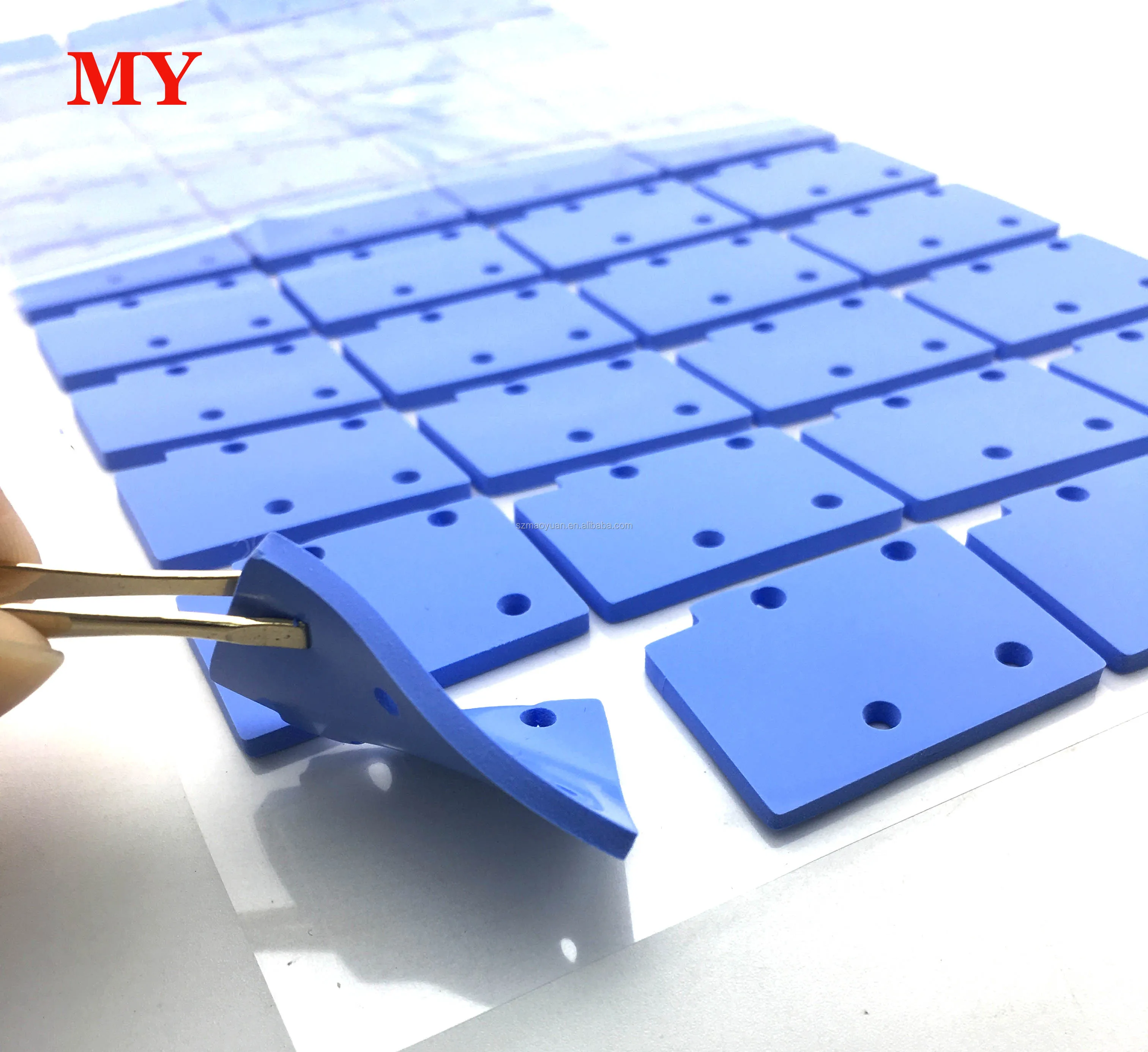

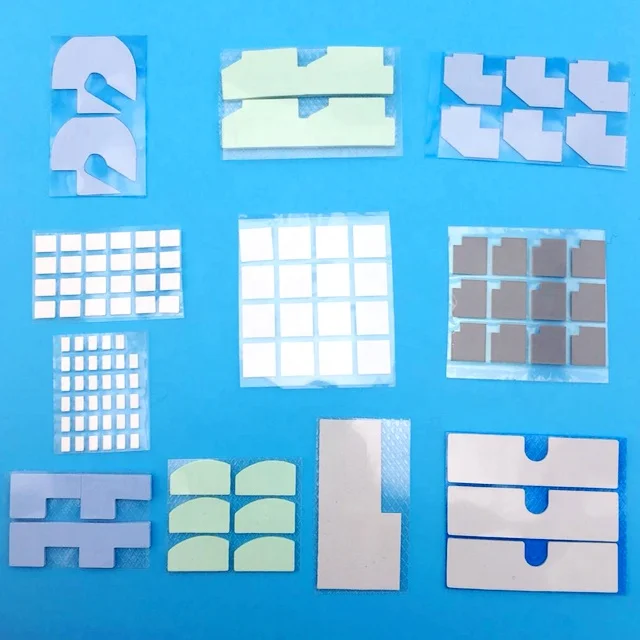

Custom size, easy to use(Thermal Gap pad)

The size of the thermal silicone gasket can be cut according to the customer's requirements, and the special size can be die-cut. Easy to install. The manufacturer is convenient for mass production and the delivery period is stable.
