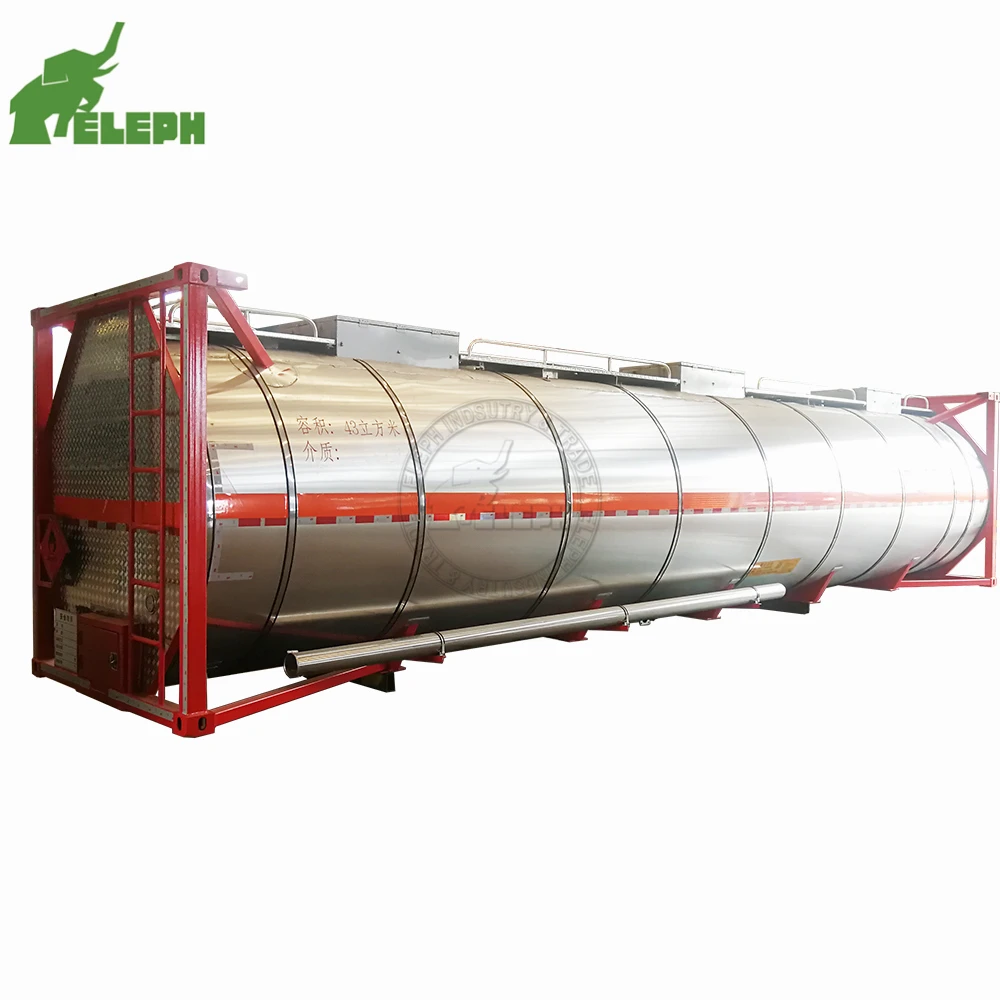

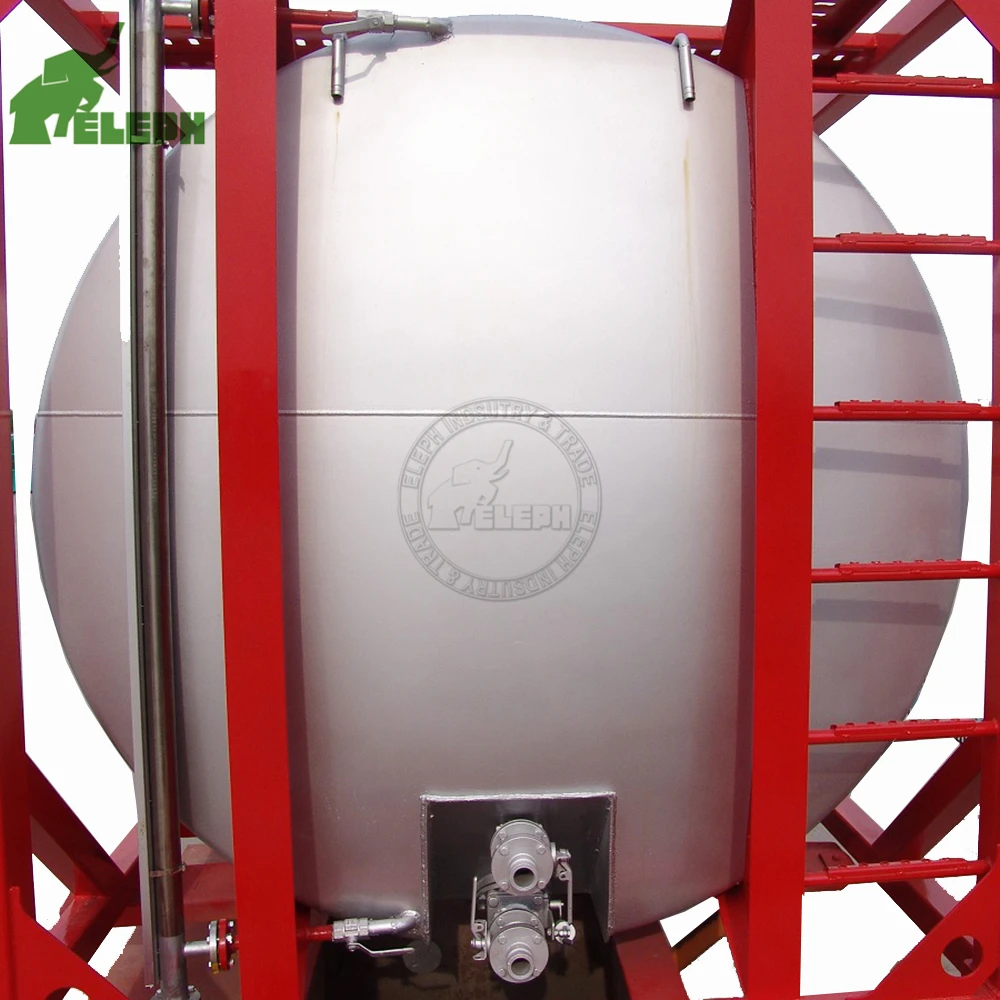

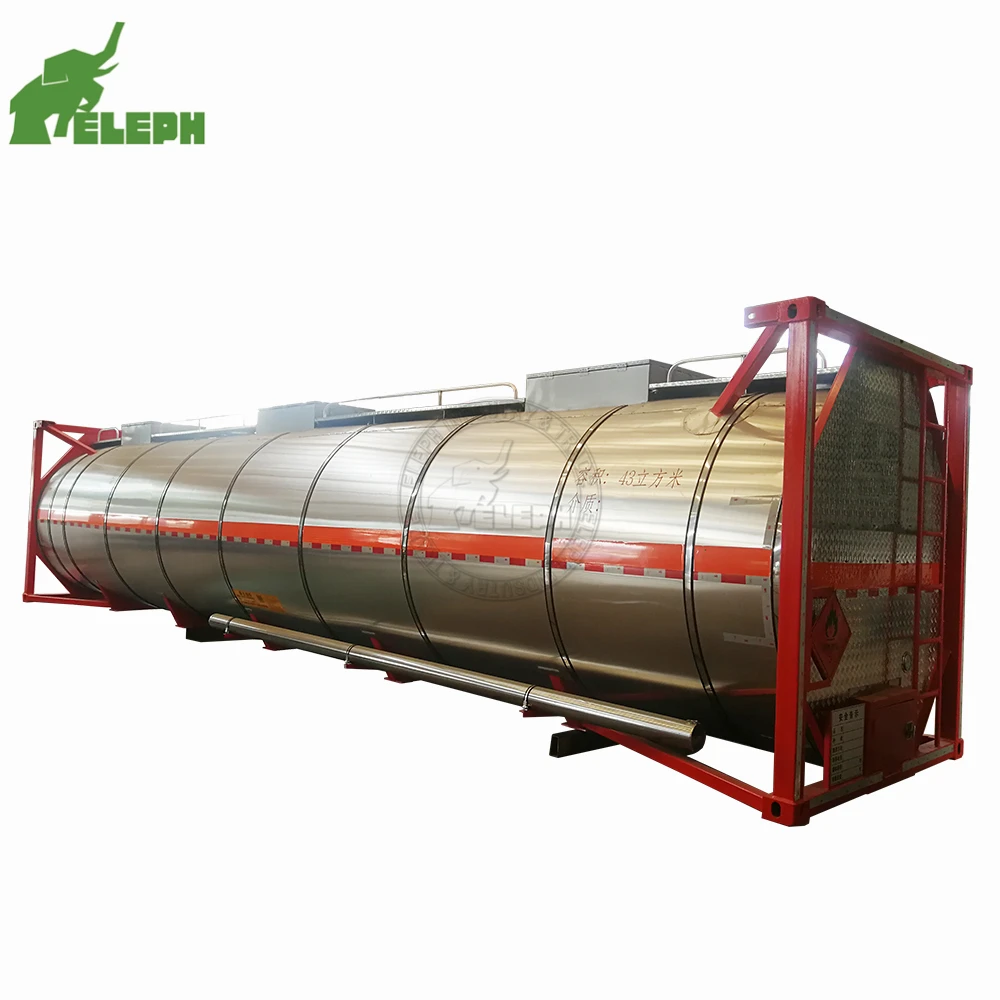

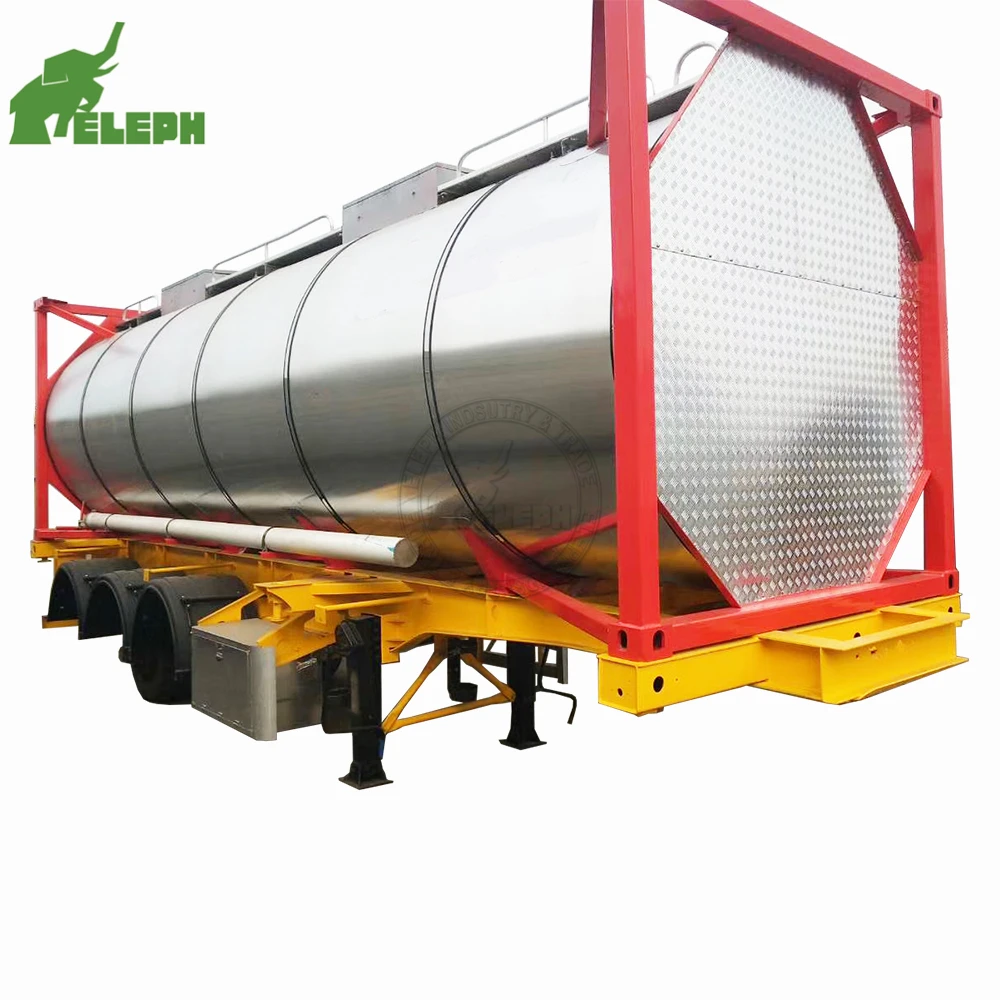

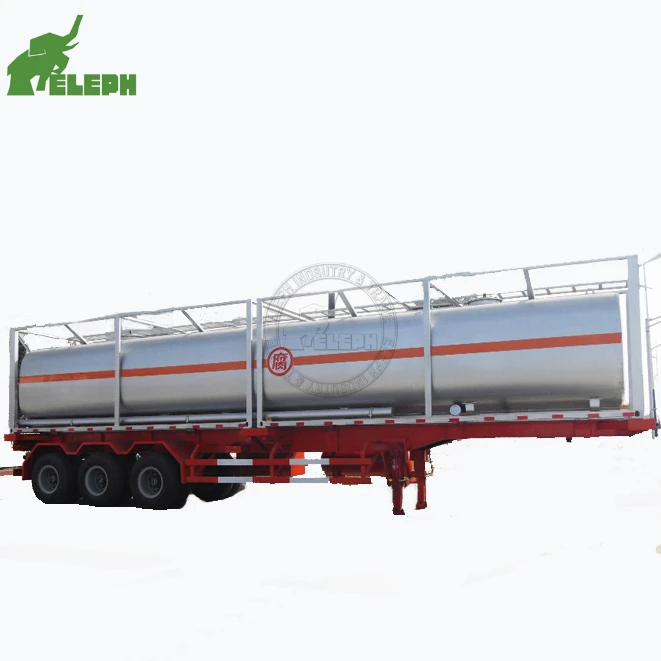

50 M3 Insulated Fuel Tank Semi Trailer Aluminum Alloy Tank Container
- Category: >>>
- Supplier: Qingdao Eleph Industry & Trade Co. Ltd.
Share on (62010024558):
Product Overview
Description
Product Description
20FT 40FT ISO TANK CONTAINER | |
Manufacture | Eeleph Industry |
Model No | ALP9540FT |
Loading Medium | Fuel & Water (Loading LPG/LNG/BITUMEN/CNG contact supplier for more information ) |
Size | 20ft/40ft (Other size can be made by need) |
Compartment | 1 |
Loading& Discharging | Manhole Loading, bottom valve discharging |
Working Temperature ℃ | -20℃-80℃ |
Water Testing Pressure Mpa | 0.6/0.9 |
Capacity | 40m³ |
Tank Body Material | Q235B carbon steel (Stainless Steel/Aluminum) |
Thickness of Tank Body | 5mm |
Sealing End | 5mm |
Conner Post Material | 16Mn |
Manhole | 500mm φ, Domestic brand |
Tank Size | 40ft *2289*2300mm (40ft) |
Overall Size | 12200*2309*2379mm |
Tare Weight | ≤7000kgs |
Painting | Anti-corrosion process |
Color | By need |
Ladder | 1set |
Discharging Valve | 3’φ |
Container Lock | Can be locked on ISO standard sized Container Trailers for transportation |
