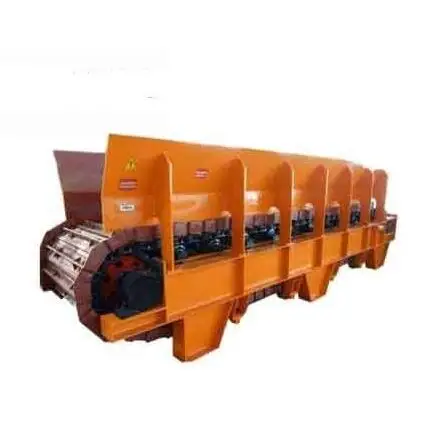

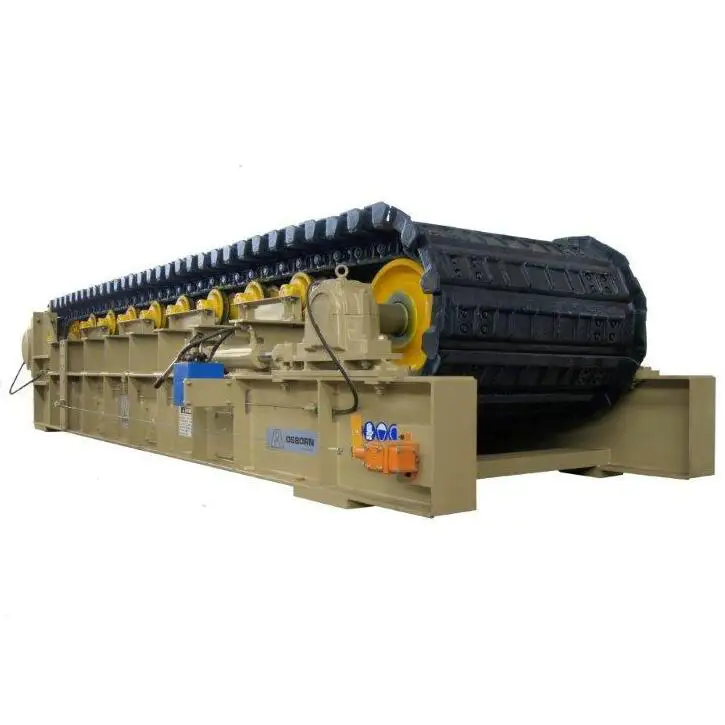

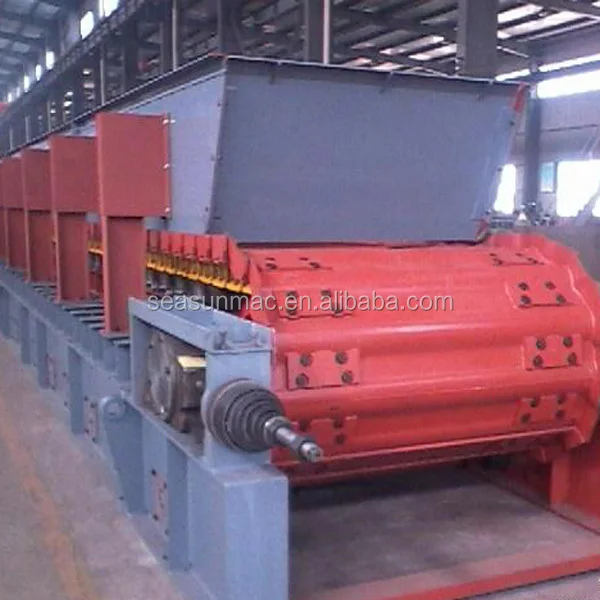

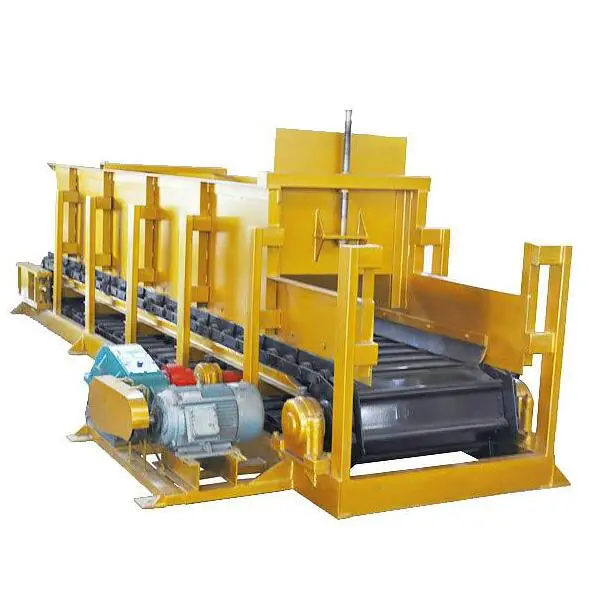

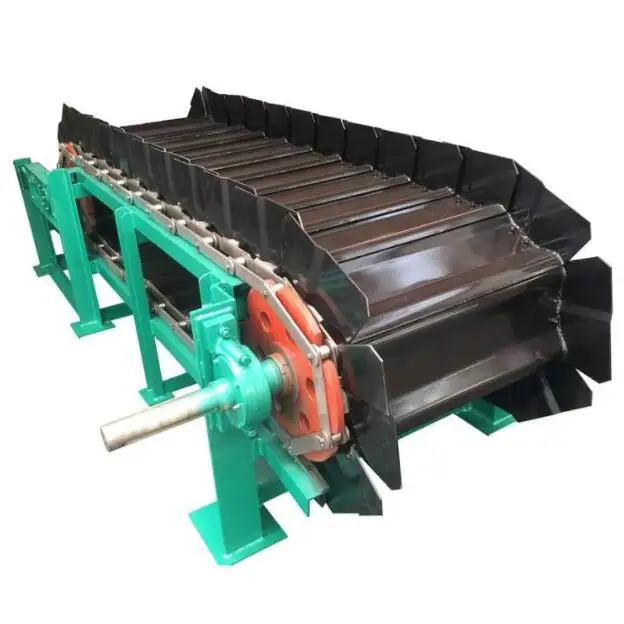

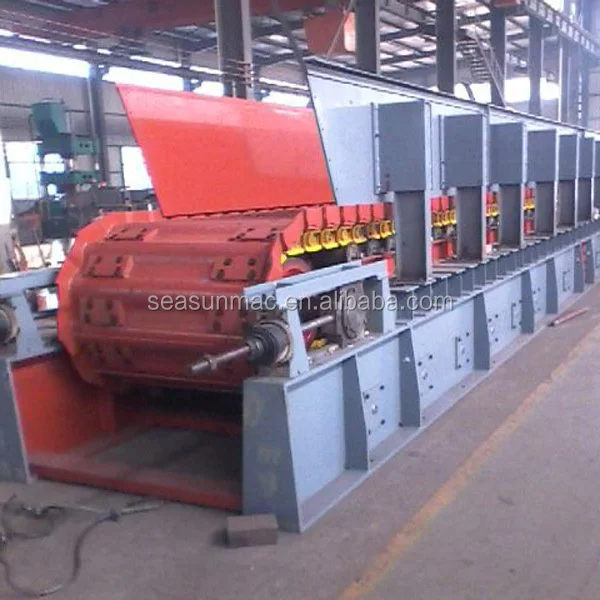

Material Chain Plate Heavy Equipment Apron Feeder For Sale
Material Chain Plate Heavy Equipment Apron Feeder is a kind of material conveying equipement,the intermittent feeding into continuous feeding.Our company on the introduction of foreign advanced technology to develope new type BW,BZ type plate feeding machine,have the advantages of big traction,low material leakage,smooth operation,long service life and conventient maintenanBW type and BZ type apron feeder is a kind of material conveying equipement,the intermittent feeding into continuous feeding.Our company on the introduction of foreign advanced technology to develope new type BW,BZ type plate feeding machine,have the advantages of big traction,low material leakage,smooth operation,long service life and conventient maintenan.

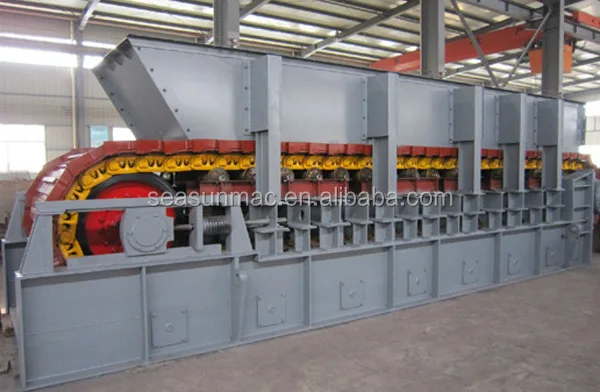

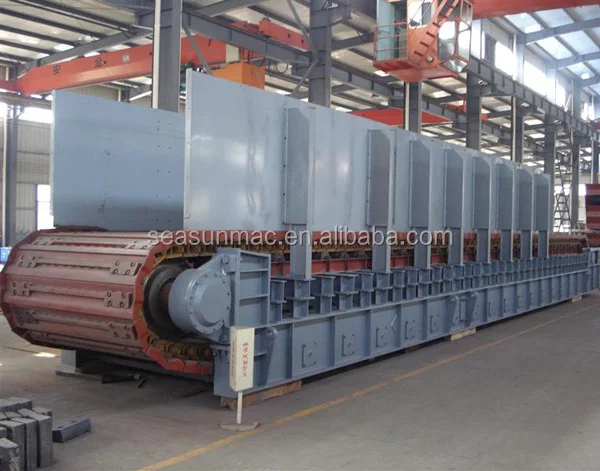

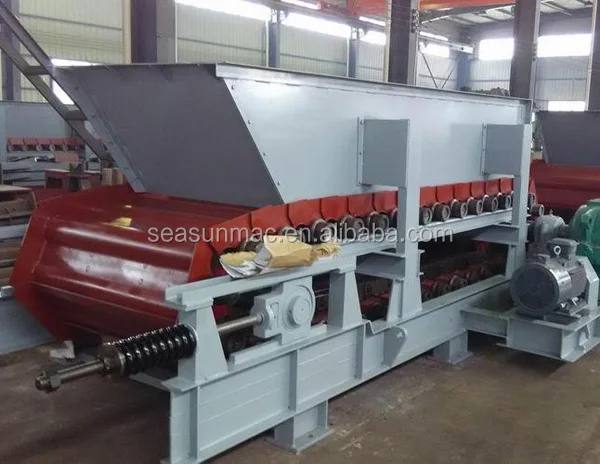

Detailed Images
Model | Width of trough plate(mm) | Center distance(m) | Discharging size(mm) | Capacity(t/h) | Motor power(kw) |
BW80-L | 800 | 3-15 | ≤350 | 35-75 | 2.2 |
BW100-L | 1000 | 3-18 | ≤600 | 18-350 | 5.5-18.5 |
BW120-L | 1200 | 4-20 | ≤600 | 30-220 | 11-18.5 |
BW125-L | 1250 | 4-20 | ≤800 | 40-250 | 11 |
BW140-L | 1400 | 5-20 | ≤900 | 20-200 | 22 |
BW150-L | 1500 | 5-20 | ≤900 | 40-300 | 22-30 |
BW160-L | 1600 | 6-20 | ≤900 | 45-300 | 22 |
BW180-L | 1800 | 6-20 | ≤970 | 60-350 | 22-55 |
BW200-L | 2000 | 8-20 | ≤1500 | 300-800 | 45 |
BW220-L | 2200 | 8-20 | ≤1500 | 150-820 | 45 |
BW230-L | 2300 | 8-20 | ≤1500 | 200-600 | 45 |
BW240-L | 2400 | 8-20 | ≤1500 | 220-680 | 45 |
BW250-L | 2500 | 10-20 | ≤1500 | 1250 | 45 |
Main Technical Parameters:
* Heavy duty, robust design to handle heavy shock loads
* Deep profile, cast manganese pans with integral sidewalls for bolting directly to track chain and wear pads for high impact loading
* Fabricated/formed steel pans where impact is not a factor
* Deep profile, cast manganese pans with integral sidewalls for bolting directly to track chain and wear pads for high impact loading
* Fabricated/formed steel pans where impact is not a factor
Main Technical Parameters:
* Crawler tractor-type, pressure lubricated chain with seals used on all models; does not require re-lubrication
* Sealed for life, tractor-type carrying and return rollers, and tail wheel arrangement
* Sealed for life, tractor-type carrying and return rollers, and tail wheel arrangement
* Variable speed mechanical or hydraulic drives
Main Technical Parameters:
* Drive sprockets are segmented, hardened steel cast alloy allowing change out
without removing chain, pans, skirts or material on the feeder
* Impact rails limit pan deflection under high impact conditions
* Parts are readily available
without removing chain, pans, skirts or material on the feeder
* Impact rails limit pan deflection under high impact conditions
* Parts are readily available
Company Profile
Henan Seasun Heavy Industry Machinery Co., Ltd. is a large group enterprise mainly manufacturing heavy mining machinery, and integrate scientific research, production and sale as one. Seasun company is located in Mazhai industrial park, Erqi District.
There are more than 200 sets of various large and mediumsized machining, rivet weld and assembly equipment. Among more than 960 staff, there are over 120 middle and senior title management staff, engineers and technicians. Our company has introduced advanced technology from America, Germany, Japan, Australia etc., and established the international advanced production line and firstclass modern detection and also have sand stone machine, grinding machine and beneficiation equipment research labs. With scientific management method.
There are more than 200 sets of various large and mediumsized machining, rivet weld and assembly equipment. Among more than 960 staff, there are over 120 middle and senior title management staff, engineers and technicians. Our company has introduced advanced technology from America, Germany, Japan, Australia etc., and established the international advanced production line and firstclass modern detection and also have sand stone machine, grinding machine and beneficiation equipment research labs. With scientific management method.

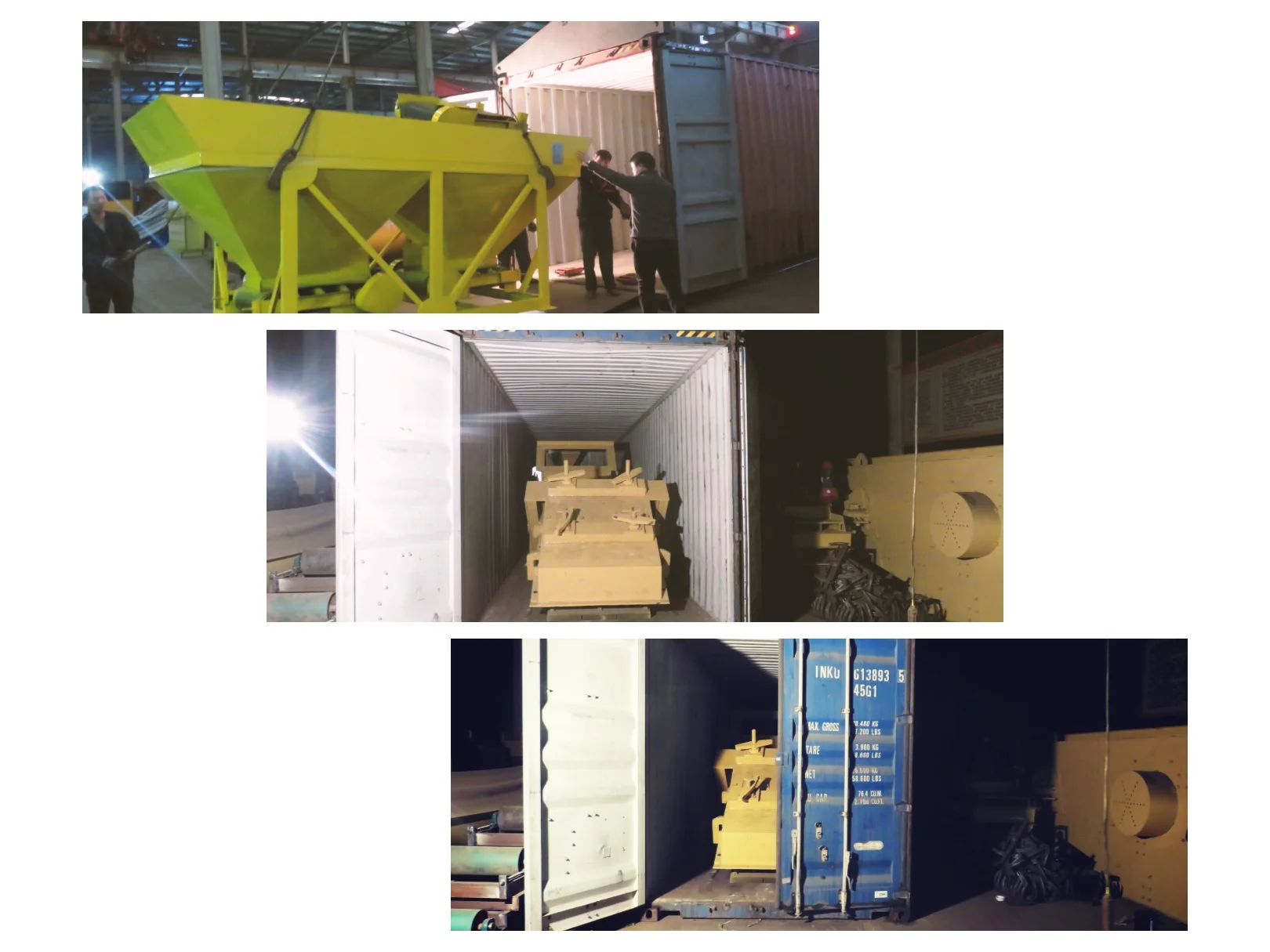

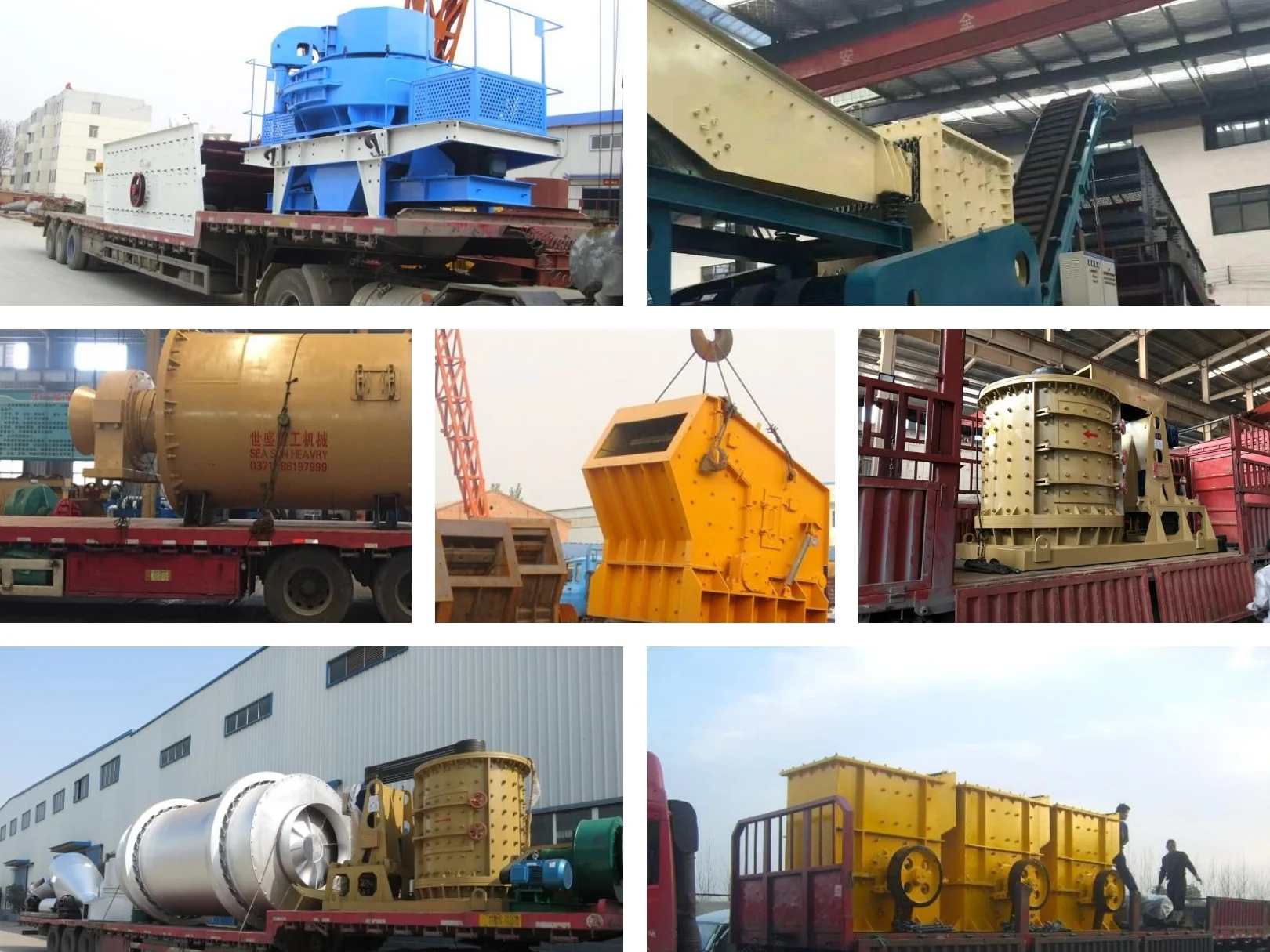

Packing & Delivery
Packaging Details：
1.International export standard packing of xxx
2.Small parts are woodened box package
3.Main engine nude,container,or customer'requirement
Port：Qingdao or the nearest port
1.International export standard packing of xxx
2.Small parts are woodened box package
3.Main engine nude,container,or customer'requirement
Port：Qingdao or the nearest port
Lead Time :Shipped in 20 days after payment
Our Service
1.Skilled technicians and experienced after-sales service team provide professional services .
2.Please log in to //www.seasunmachine.com
to communicate with us anytime,anywhere.
3.Apowerful internet technology platform provides you with new product information and technical services.
4.Our team of engineers for solutiongs of products.
5.Stock of spare parts.
6.Strict inspection before delivery.
Pre-sale
(1)Instruct customers to choose scientific and reasonable equipment models.
(2)Send engineering and technical personnel to the site to plan the site, design process and plan for the user.
(3)The products can be designed and manufactured according to the special requirements of customers.
(2)Send engineering and technical personnel to the site to plan the site, design process and plan for the user.
(3)The products can be designed and manufactured according to the special requirements of customers.
For sale
(2)Shipping delivery will be based on the contract
After sale
(1)Sand professional afer-sale service technician to customer site for installation.
(2)Be responsible for equipment adjustment and trial operation.
(3)Provide customer training program
(2)Be responsible for equipment adjustment and trial operation.
(3)Provide customer training program
(4)Regular afer-sales service tracks the problems encountered in the customer's production process.Our company's service personnel guarantee a clear solution within 24 hours.
Our Certificate
FAQ
FAQ
1.Are you a manufacture or a trader?
We are manufacture for this machine;
we can offer you the high quality machine and heart and soul service;
2.How many sets put into a 20'GP?
2-3 sets in disassembling;
3.Will you arrange the technicians to install and train our workers?
Yes, we will send 1-2 persons accordingly.
We are manufacture for this machine;
we can offer you the high quality machine and heart and soul service;
2.How many sets put into a 20'GP?
2-3 sets in disassembling;
3.Will you arrange the technicians to install and train our workers?
Yes, we will send 1-2 persons accordingly.
