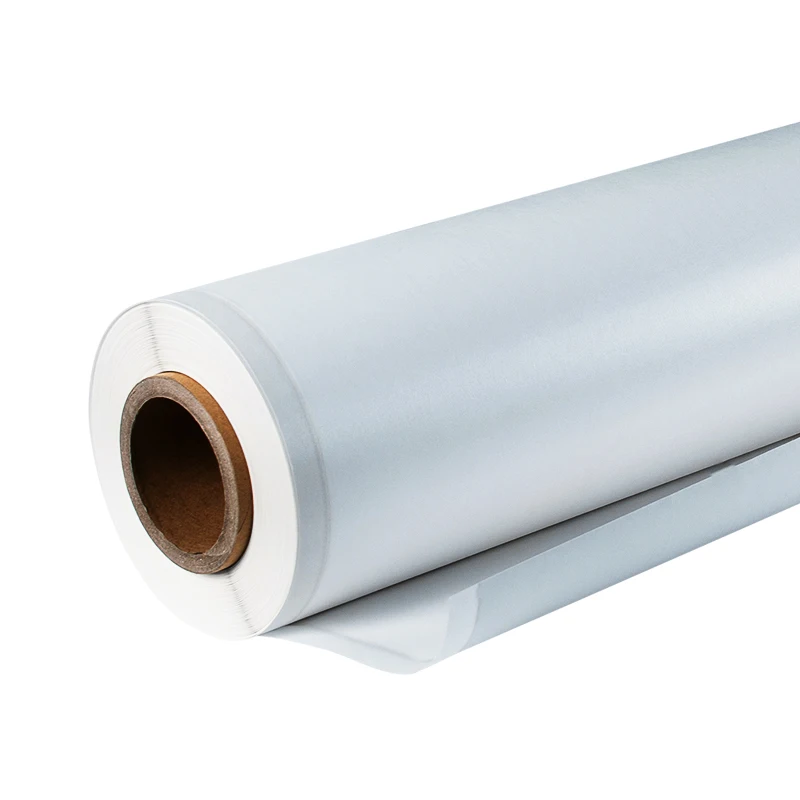

Flat Sheet TFC 50 600Gpd Residential Reverse Osmosis RO Membrane
- Category: Water Treatment Machinery >>>
- Supplier: Ningbo Rxhl Technology Co. Ltd.
Share on (62010987121):
Product Overview
Description
Company Info
Ningbo RXHL Technology Co.,Ltd.
Is an ISO9001 Certified Productive Enterprise, With The Head Office In Ningbo, Specialized In Designing & Manufacturing Reverse Osmosis(RO) Membrane Sheet And RO Elements Since 2016, Own Brand RTL.
Over 35000 Sqm Workshop, 2 Lines Of Automatic Membrane Sheet Produce Line, 10 Lines Of Membrane Rolling, Daily Capacity can reach 5,000 Pcs.
Product Description
Applications
Restaurants
Aquariums
Whole House
Office
Institutions
Hotels
Hospitals
Spot Free Rinse/Car Wash
Labs
Pharmaceutical
Humidification
Misting
Manufacturing
Rinse Water
Bottled Water
Beverage
Food Processing
Ice Makers
Commercial Water Treatment
Wide Variety of Other Applications
Series | Model No. | Permeate Flow (GPD) | Minimum Rejection % | Stabilized Rejection % | Test Pressure Psi |
RH | 1812-50 | 60 | 95 | 96 | 72 |
1812-75 | 90 | 95 | 96 | 72 | |
2012-100 | 120 | 95 | 96 | 72 | |
2012-150 | 170 | 95 | 96 | 72 | |
3012-400 | 400 | 93 | 95 | 90 | |
3013-400 | 400 | 93 | 95 | 90 | |
3013-600 | 600 | 93 | 95 | 90 | |
RHD | 1812-50 | 50 | 97 | 98.5 | 72 |
1812-75 | 75 | 97 | 98.5 | 72 | |
2012-100 | 100 | 97 | 98.5 | 72 | |
2012-150 | 150 | 97 | 98.5 | 72 | |
3012-400 | 400 | 96 | 97 | 90 | |
3013-400 | 400 | 96 | 97 | 90 |
The Stated performance is for the initial data taken after 30 minutes of operation, based on the following testing conditions:
250 ppm Nacl Solution
35% Permeate Recovery
25℃ Operating Temperture
6.0 - 8.0 PH Range
Application Limits:
Maximum Opreating Temperture: 45℃
Maximum Opreating Pressure: 150psi(1.03Mpa)
PH Range, Continuous Opreation: 3-10
PH Range, Short-Term Cleaning: 2-12
Maximum Feed Silt Density Index(SDI) : 5
Free Chlorine Tolerance: <0.1 ppm
Model | A Inch (mm) | B Inch (mm) | C Inch (mm) | D Inch (mm) |
1812 | 11.7(298) | 0.82(21) | 0.68(17) | 1.8(44.5) |
2012 | 11.7(298) | 0.82(21) | 0.68(17) | 2.0(48.2) |
3012 | 11.7(298) | 0.82(21) | 0.68(17) | 3.0(76.2) |
3013 | 12.9(328) | 0.75(19) | 0.68(17) | 2.7(68) |
RO MEMBRANE ELEMENT REVERSE OSMOSIS SYSTEM FOR WATER PURIFIER AND FILTER FOR RESIDENTIAL
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
RO MEMBRANE ELEMENT REVERSE OSMOSIS SYSTEM FOR WATER PURIFIER AND FILTER FOR RESIDENTIAL
FAQ
WHAT IS THE EXPECTED LIFE OF THE MEMBRANES?
Generally, the life of the membranes depends on the water quality but in normal cases or under standard parameters, you can expect 1.5 to 2 years for domestic and approximately, 3 years for commercial and industrial elements.
HOW TO PROCURE YOUR MEMBRANE?
We have different channel partners and worldwide set up of our dealer network but we suggest you to contact our direct representatives to guide you to the proper channel, to have you find your value procurement.
WHAT ARE THE DIFFERENT SIZES MANUFACTURED BY HI-TECH?
We manufacture every range of wet and dry membrane elements flow rate from 50-600 GPD for residential.
HOW IS RTL MEMBRANE DIFFERENT FROM OTHERS?
We offer value against your money, prices which are comparatively lower, performance equivalent to best membranes available and with higher longevity.
