Taidacent 10Hz-450KHz Pluse Function Generator Pulse and Square Generator Sine Triangular Waveform ICl8038 Signal Generator

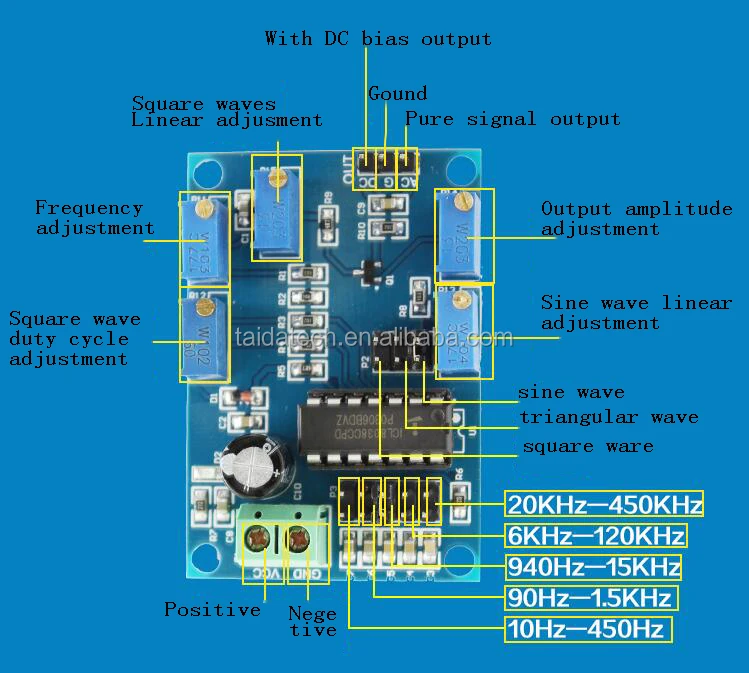

The ICL8038 module is designed for common frequency ranges and is adjustable in five gear positions. It can generate low distortion triangular waves, rectangular waves and sine waves from 10Hz to 450KHz. Sine waves can be used for test signals, drive signals, carrier frequency signals, etc. Square waves can be used for switching signals, trigger signals, etc. Triangle waves are mainly used for scanning signals.



Parameter

Working voltage12V~15V
Frequency range10HZ~450kHz

Can output triangular wave, rectangular wave and sine wave;
Low loss of true sine wave: 1%;
Duty cycle range: 2%~98%;
Low temperature drift: 50ppm/C;
Triangle wave output linearity: 0.1%;
Working temperature: 0~70°C;
