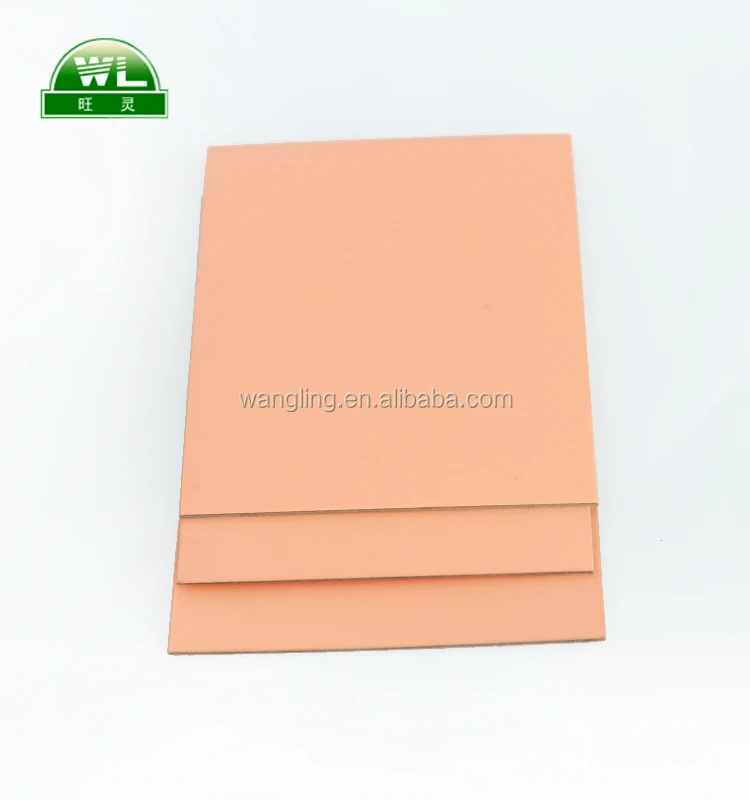

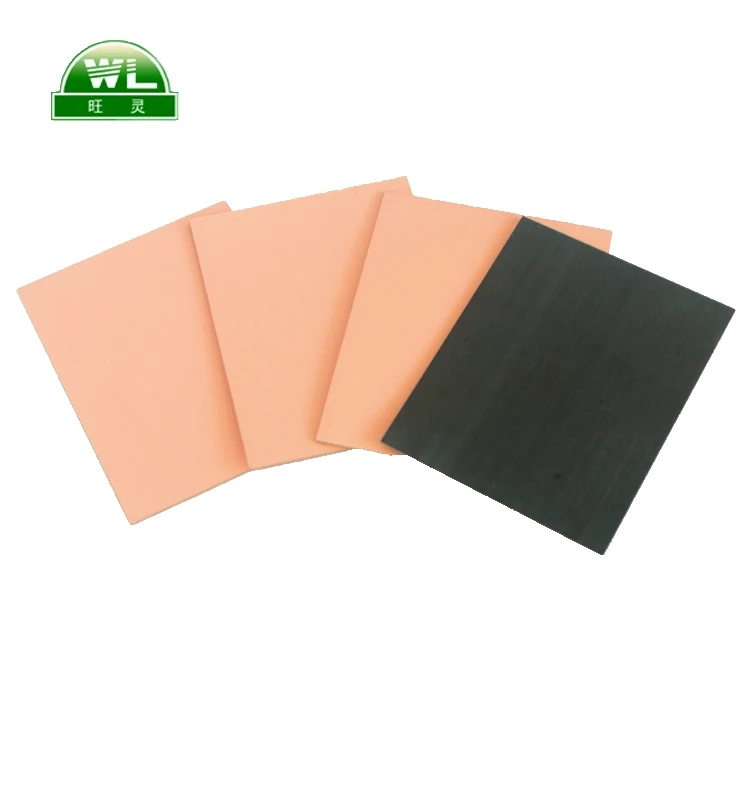

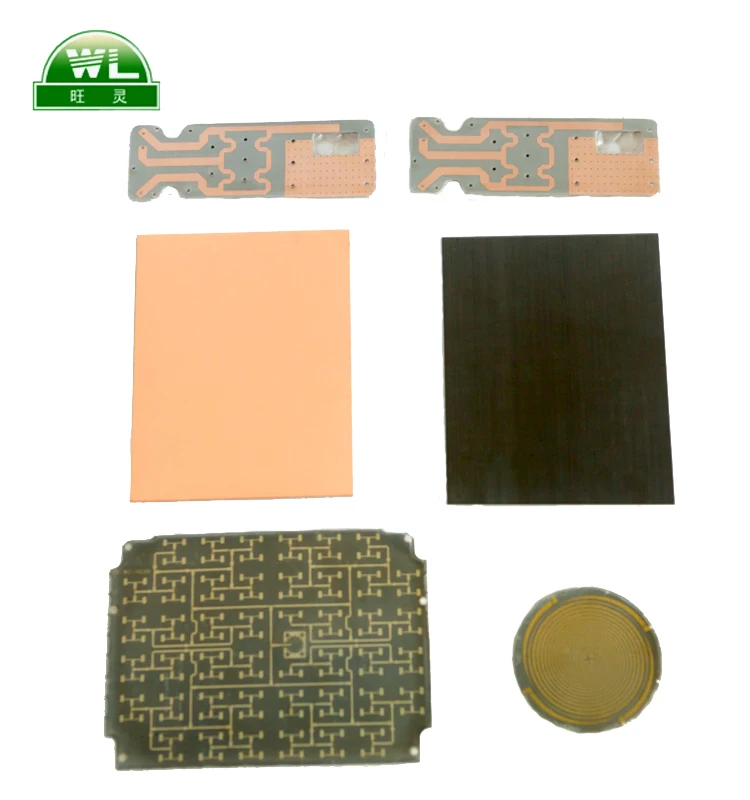

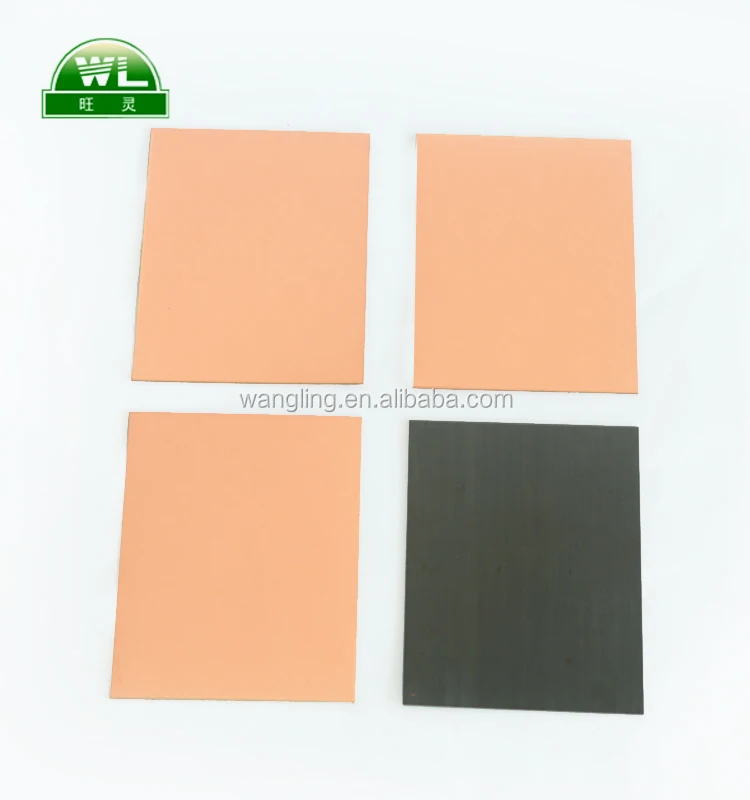

High frequency ptfe copper clad 0.8mm laminate sheet with RTF for circuit board, CCL suppliers,CCL for PCB(F4BME265)
- Category: Insulation Materials & Elements >>>
- Supplier: Taizhou Wangling Insulating Materials Factory [Jiangsu China]Taizhou
Share on (62011176686):
Product Overview
Description
PTFE woven glass fabric copper-clad laminates with high permittivity(F4BME265)
1.Description:
F4BME-1/2 is laminated by laying up of the glass fiber cloth with Ptfe resin and Polytetrafluoroethylene film,according to the scientific formulation and strict technology process. This product takes some advantages in the electrical performance and the passive intermodulation indicators increased.
Product code des
2.Specifications:
Types | Double side |
Dimensions (mm) | 300X250(11.8''X9.84''), 350X380(13.78''X14.96''), 440X550(17.32X21.65''), 460X610(18''X24''), 500X500(19.68''X19.68''), 500X600(19.68''X23.62'') |
Special dimension can be customized according to customer’s requirement. | |
Dielectric constant (@10GHZ) | 2.65±0.05 |
Thickness and Tolerance (mm) | 0.8±0.05 |
Thickness≥5.0mm,dimension is not more than 600X500. | |
| For special dimensions,customized lamination is available. | |
RTF Copper thickness of RTF(OZ) | 0.5 or 1.0 |
Dissipation factor (@ 10GHz) | Less than or equal to 0.0015 |
Copper peel strength (1oz copper) | 16N/cm |
PIMD (@2.5GHZ) | £ -158dbc |
Surface Resistivity (M·Ω) | Condition: Normal state (500V DC) ≥1×105 |
| Volume Resistivity (MΩ.cm) | Condition: Normal state ≥6×106 |
| Coefficient of thermal expansion(ppm/℃) X Axis Y Axis Z Axis |
Condition: -55℃ to 288℃ 16 21 173 |
Workshop
3.Technical index:

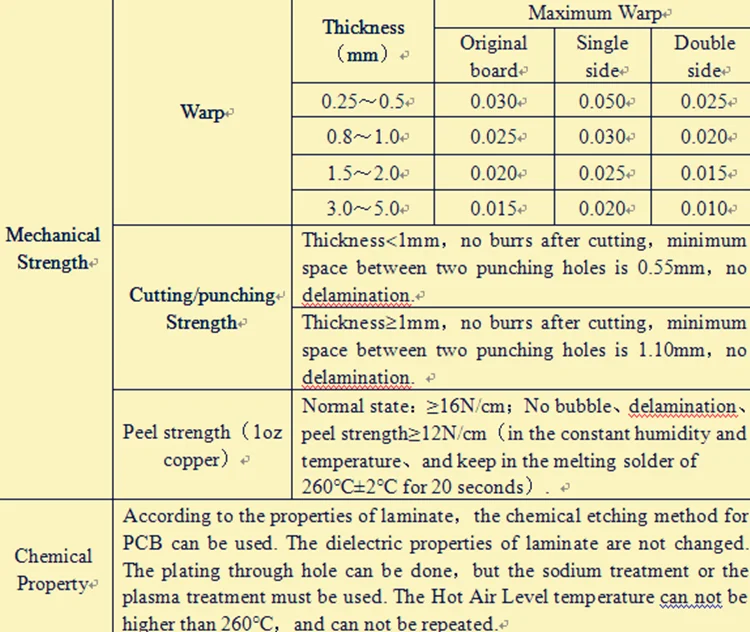

3.1 Mechanical strength & Chemical property

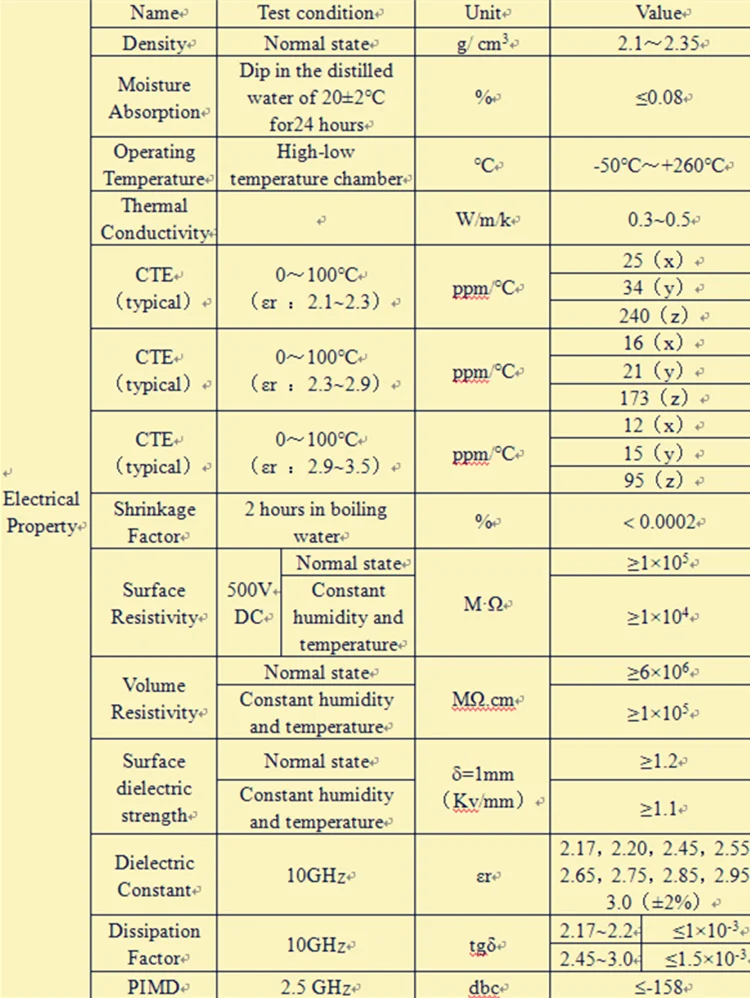

3.2 Electrical property
