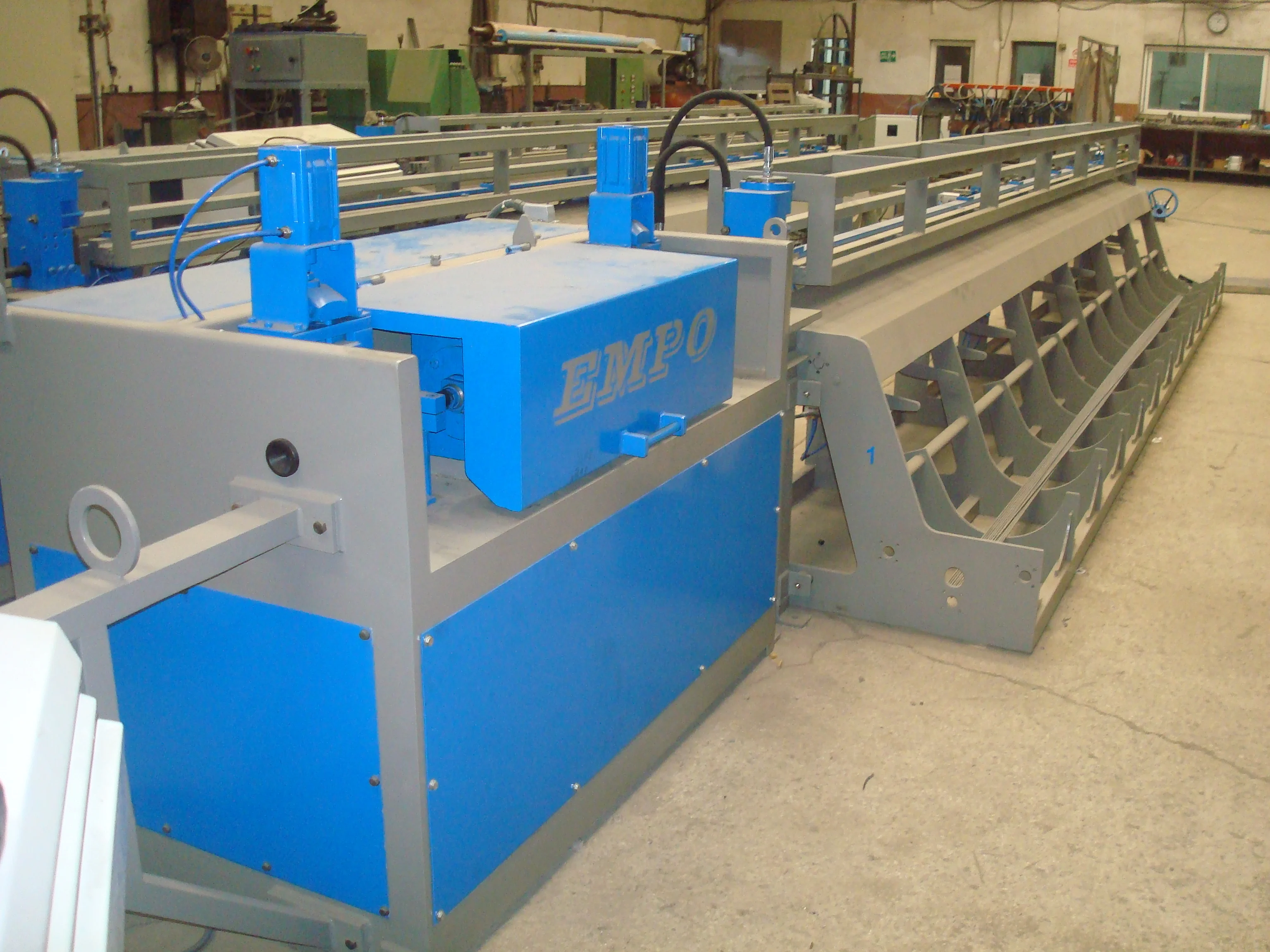

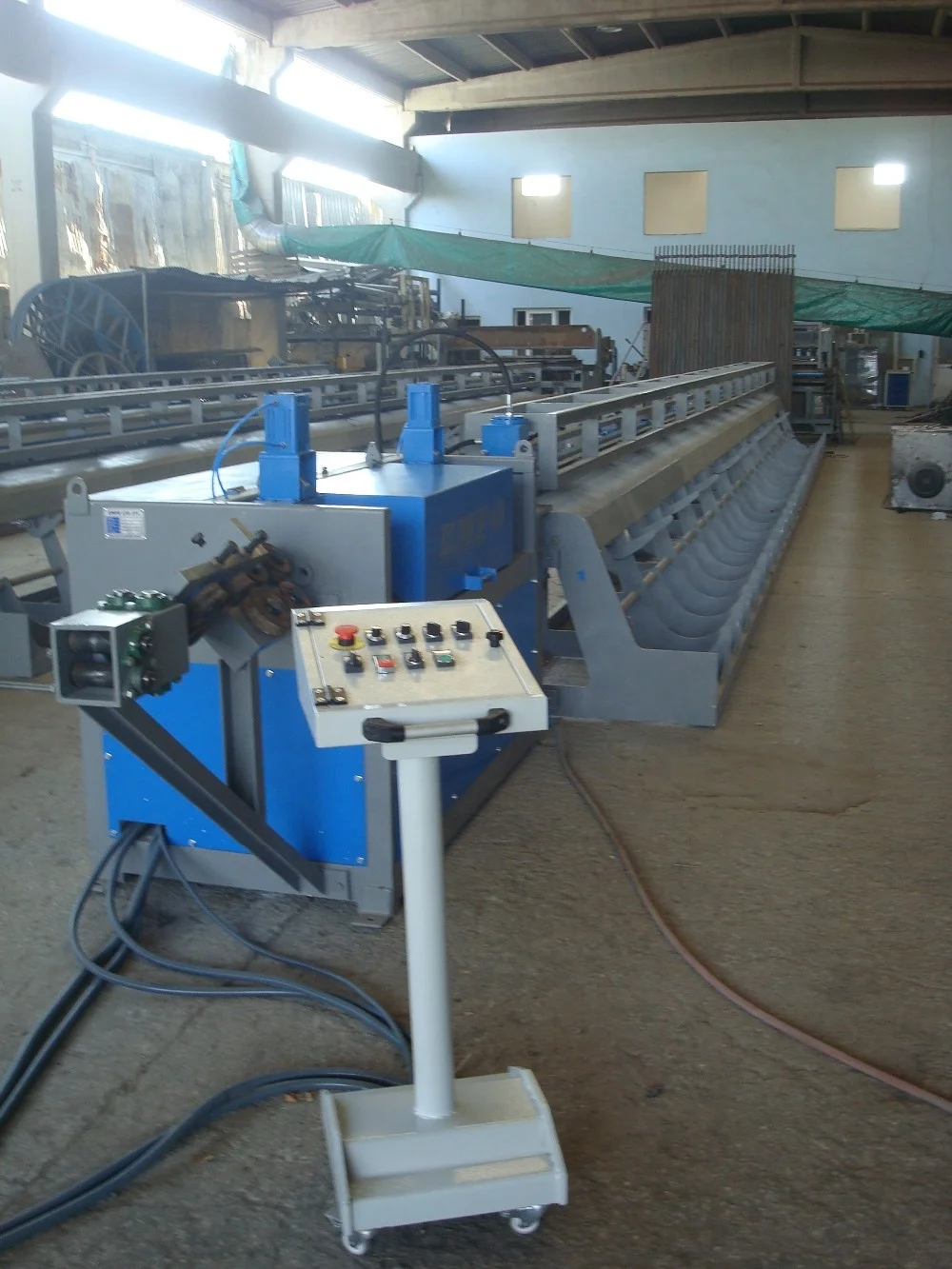

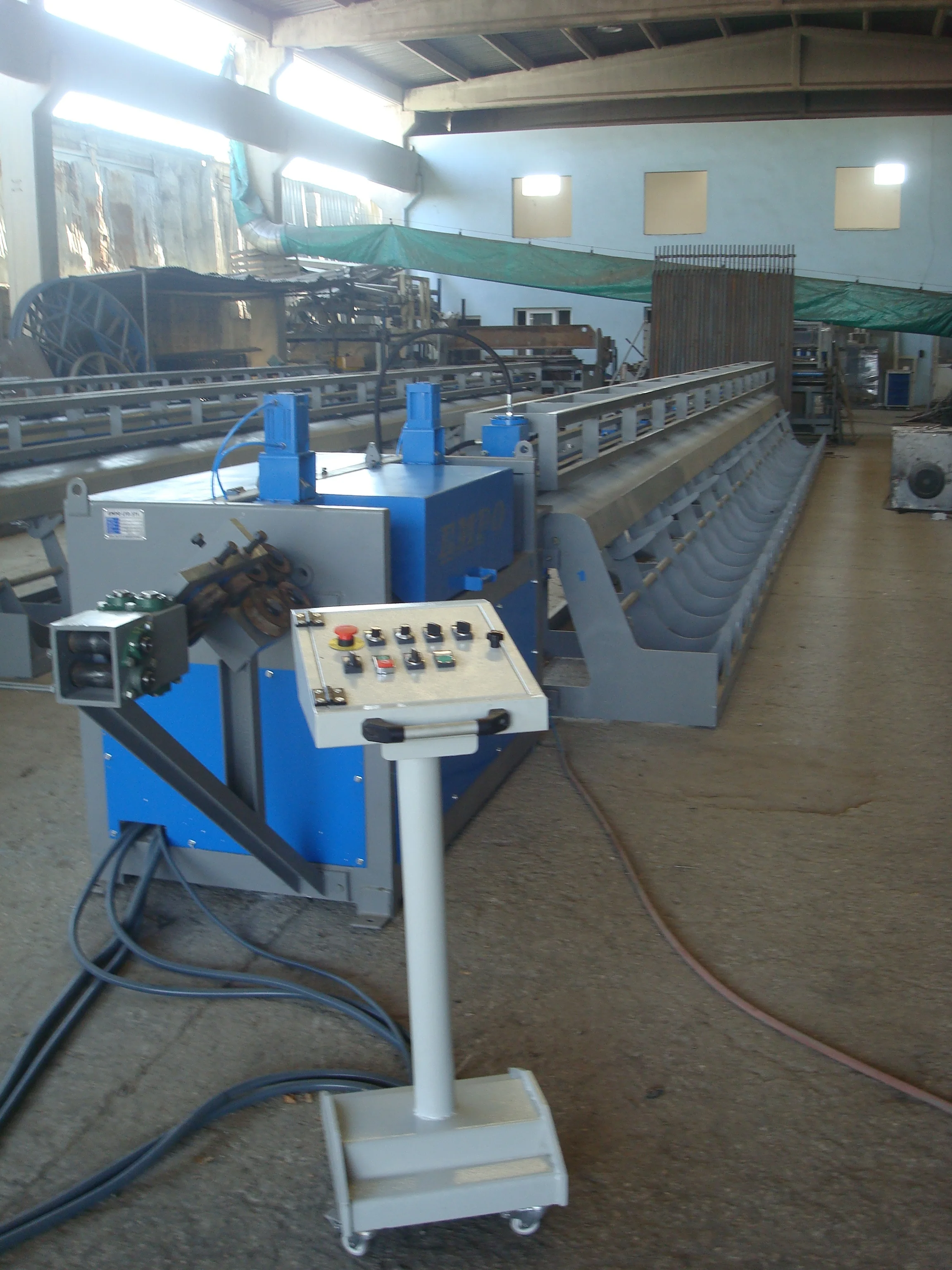

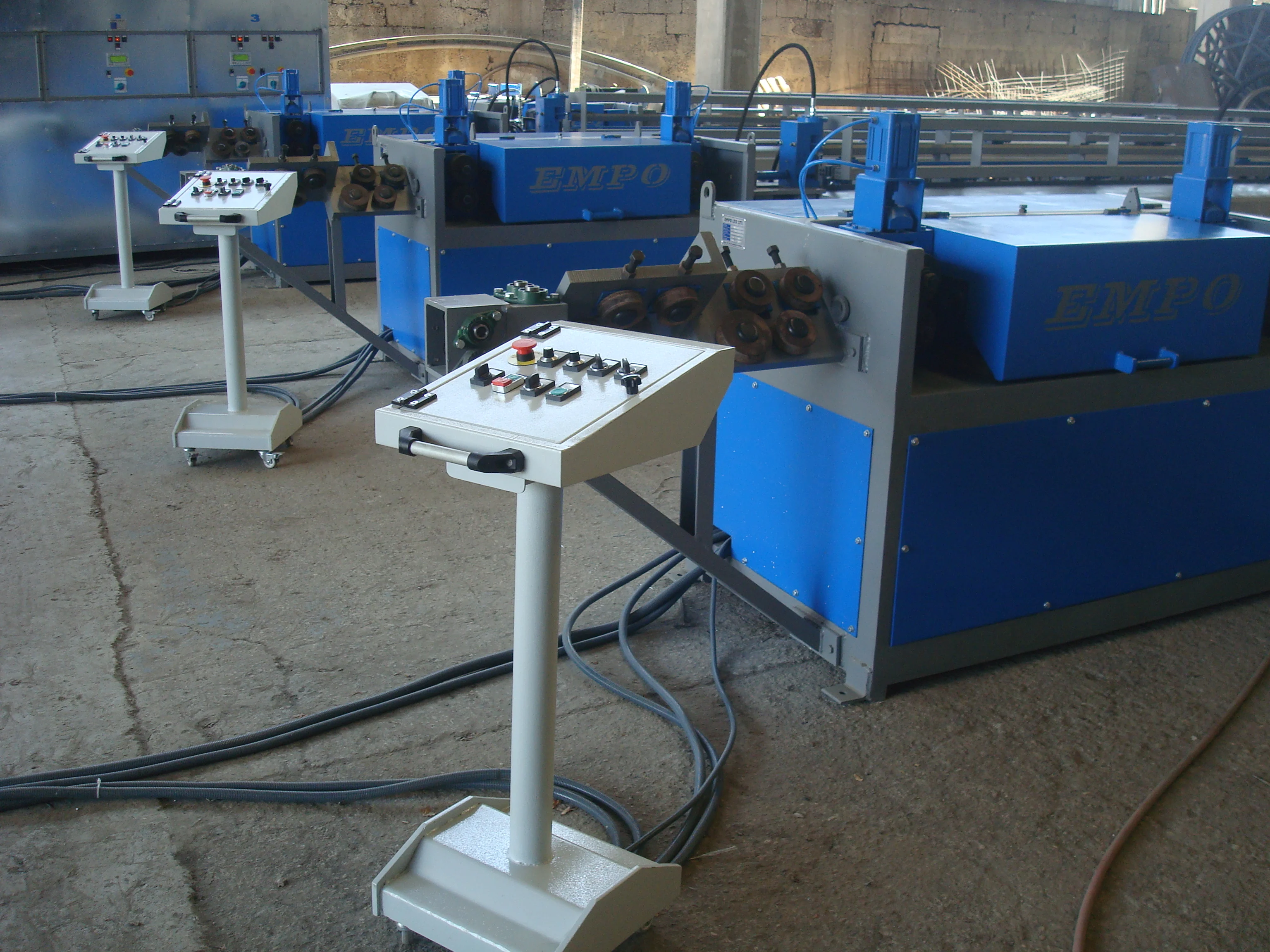

Steel Wire Straightening Cutting Machine

1-Technical Details
Model GM-8
Works with Raw Metarial Coil
Type of Wire Hot Rolled Wire, Cold Drawn Wire Ribbed & Smooth Grade 60 & Cold Drawn Wire
Production Capacity 4mm-6mm-8mm
Machine Speed Min. 50 m/min. - Max. 100 m/min.
Driving Opportunity Manual Forward and Bacward
Rated power 2 motor 15Kw+4Kw
Main (Rotor) motor 15Kw with inverter control
Driving Gear Box Motor Power 4Kw with inverter control
Straightening Technic Hyperbolic Rotor
Measurement Technic Limit Switched
Max.&Min. Cutting Length 1m-12m
Length Arrangement Adjustable with operator
Length tolerance ±2mm /12m

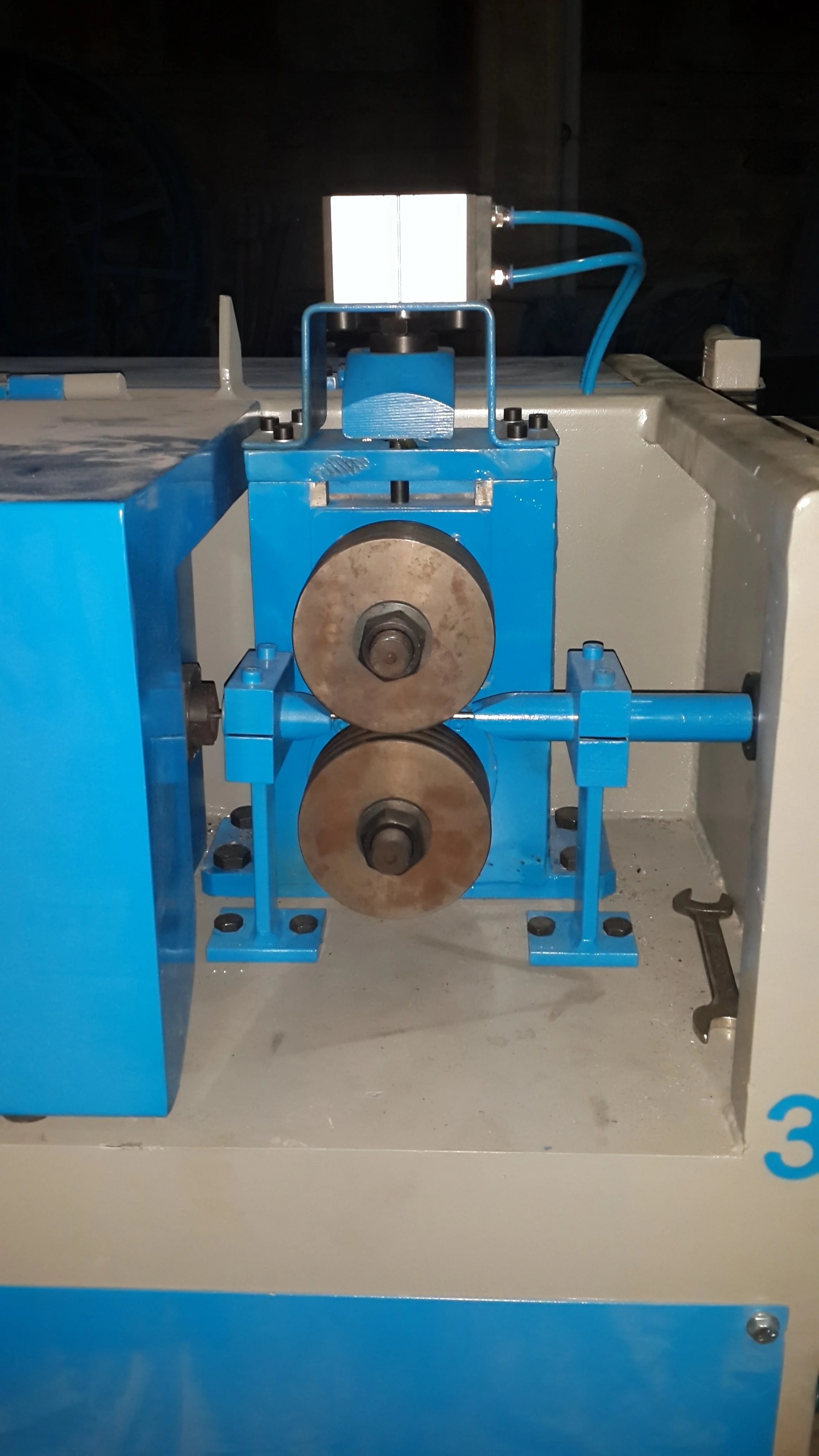

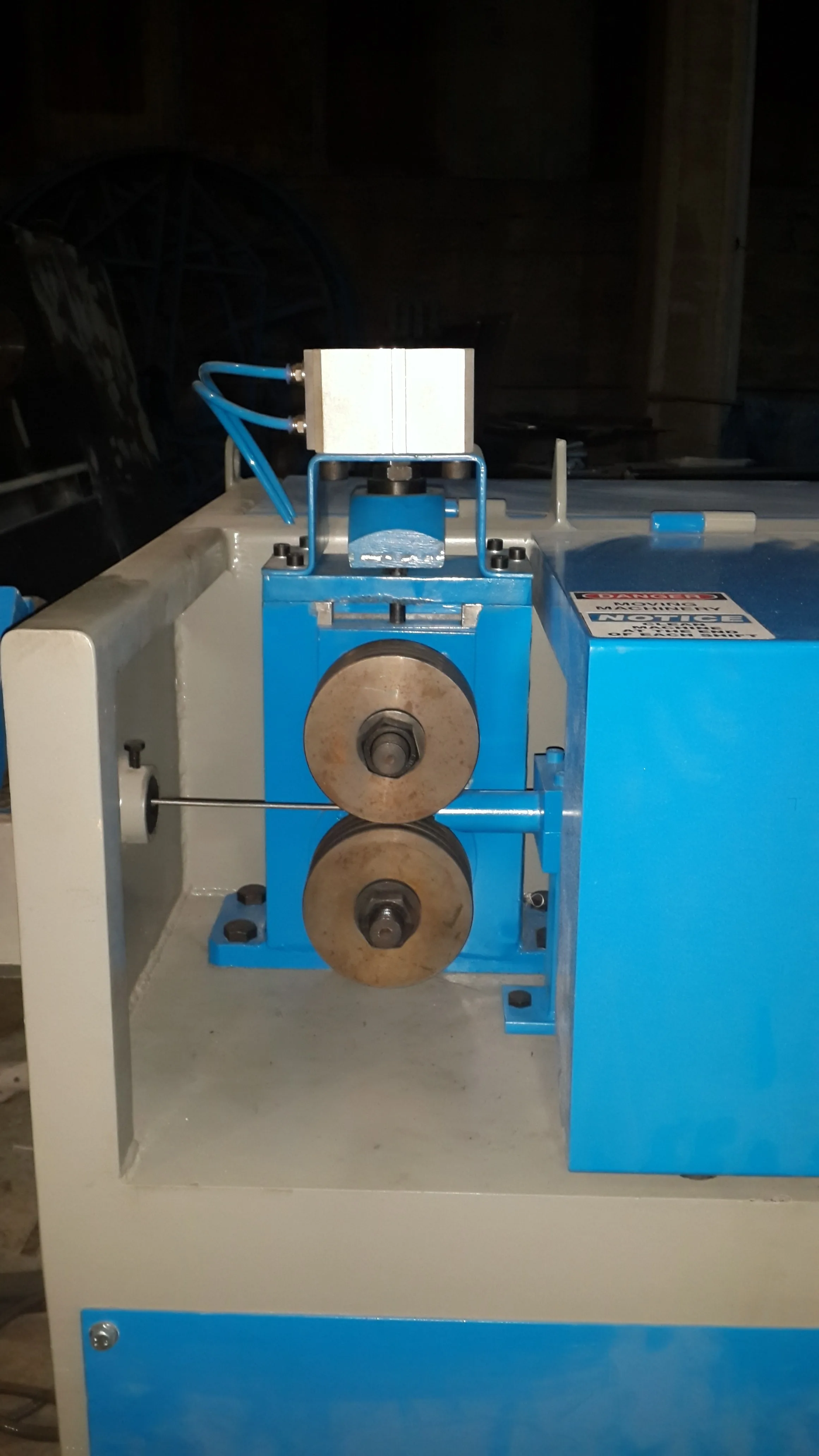

Pre-Straightening unit X and Y axis with rollers

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certification CE ISO

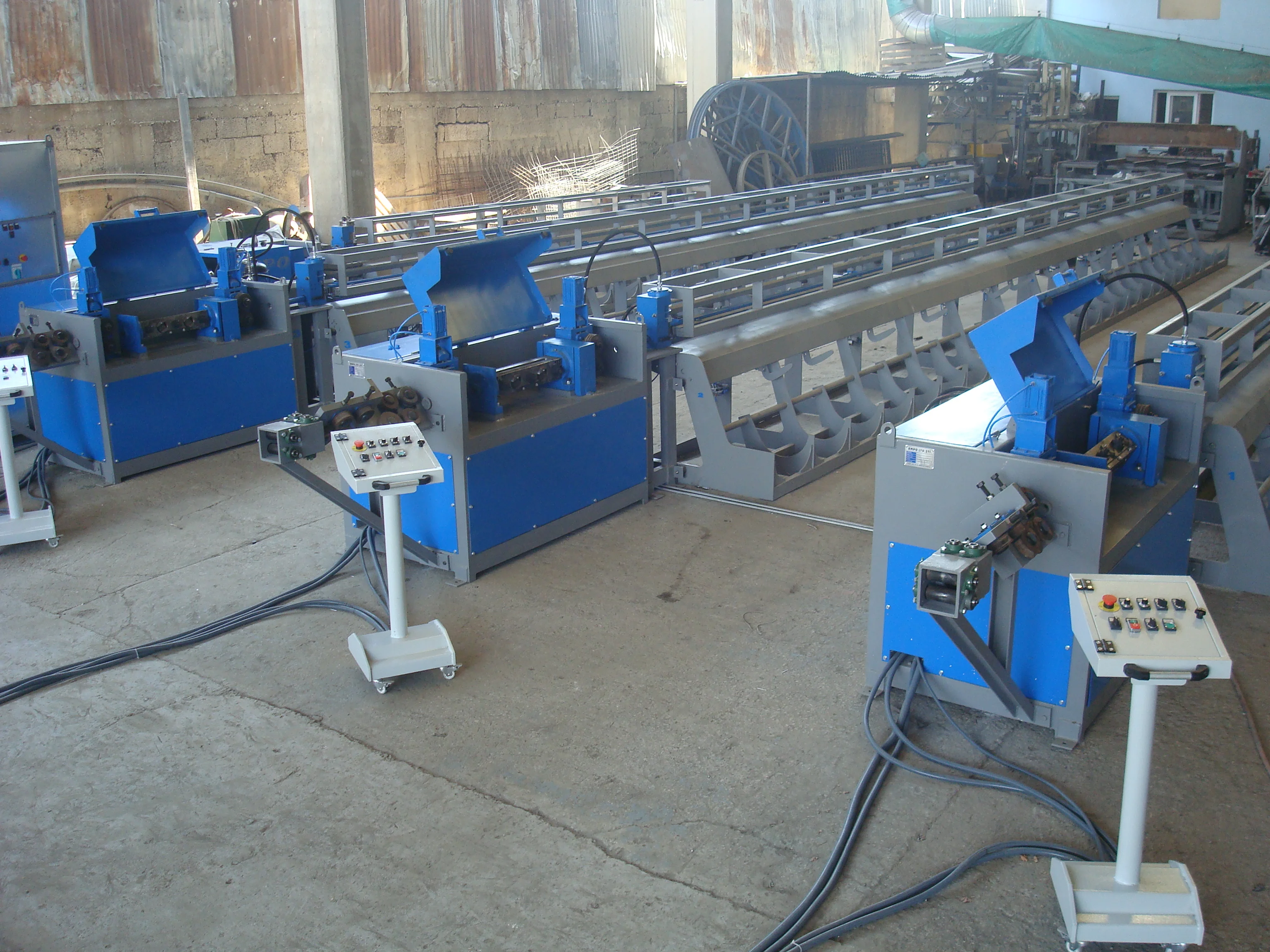

Detailed Images

Machine Parts

Name: PNEUMATICS

Brand: FESTO

Original: Germany

Main Features

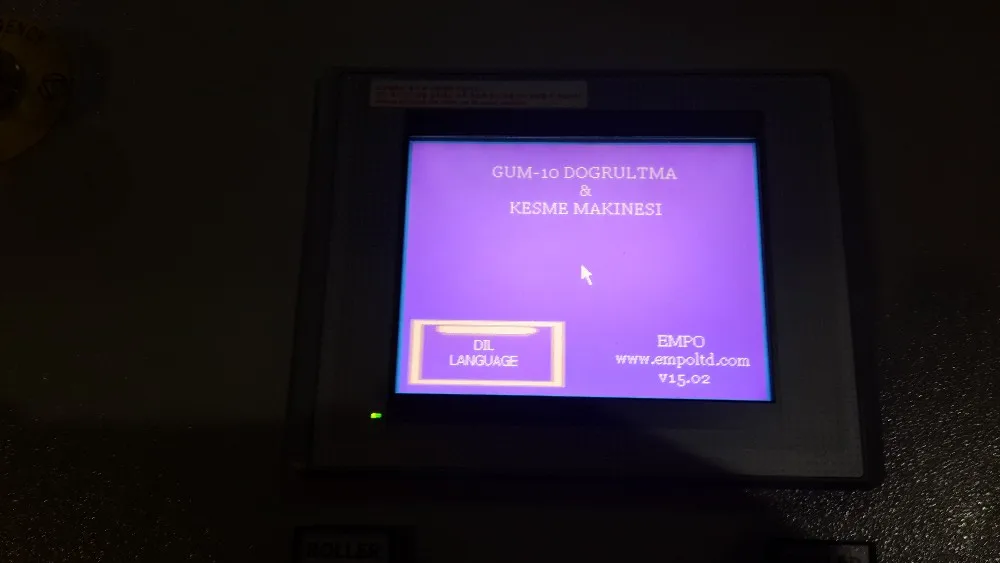

Name: CONTROL
Brand: LENZE
Original: Germany

Machine Parts

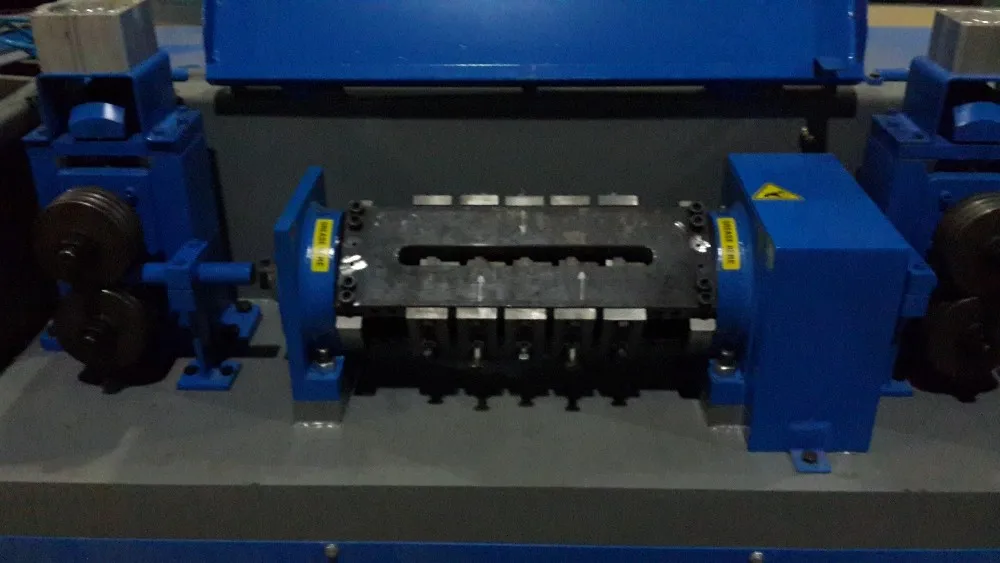

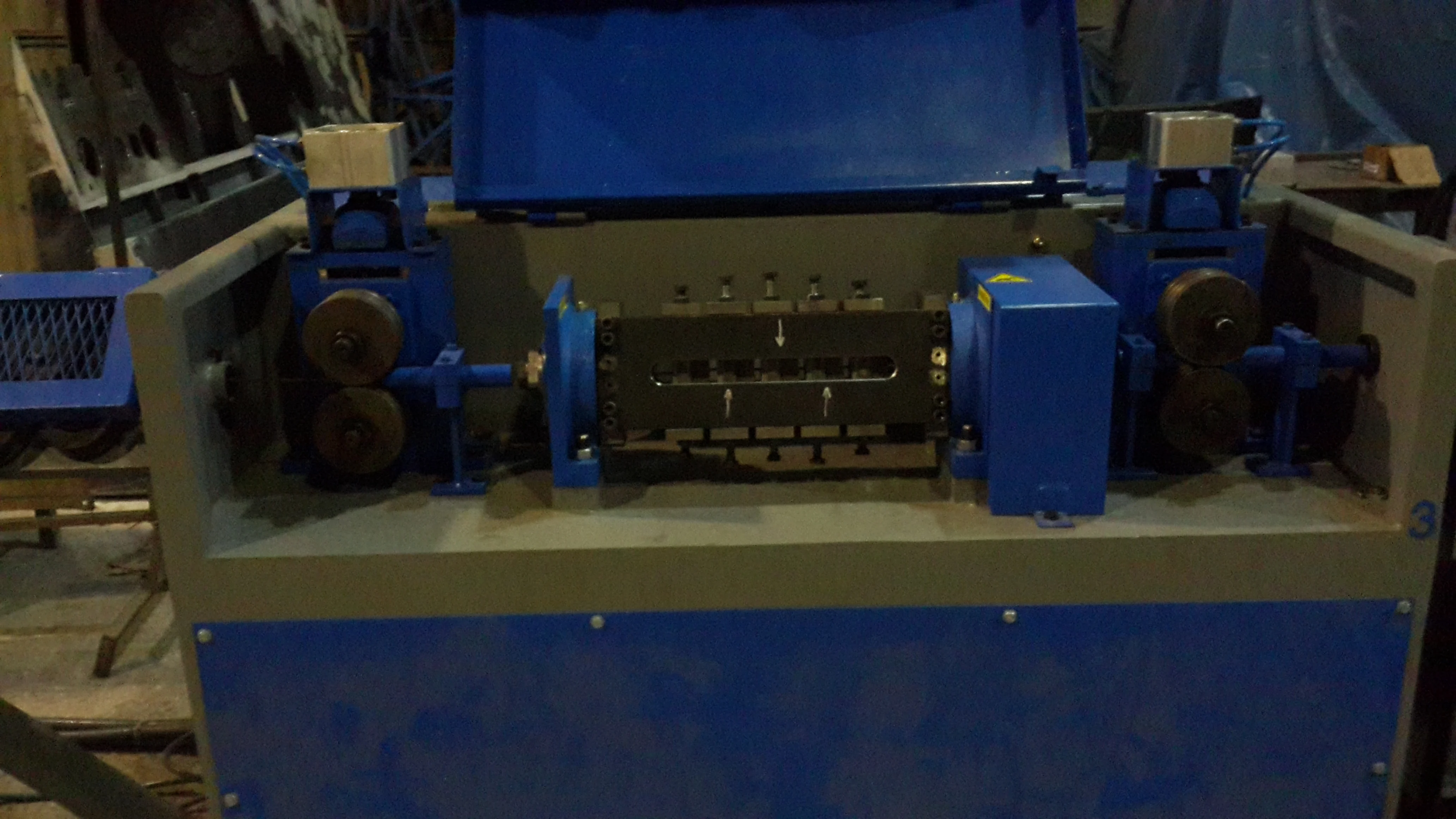

Name: ROTOR
Brand: EMPO
Original: TURKEY

Main Features

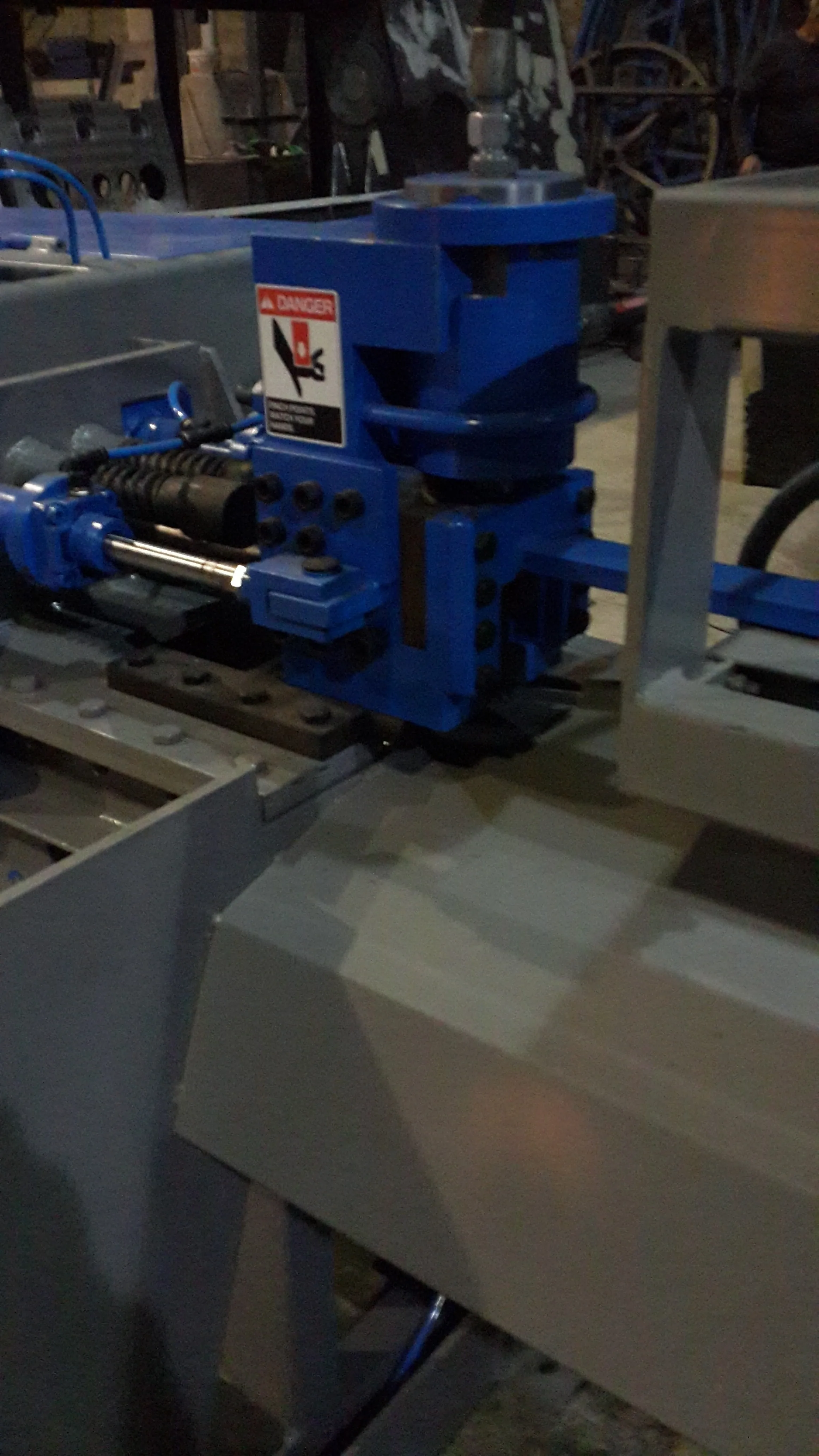

Name: MECHANICAL
Brand: EMPO
Original: TURKEY

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1523 (L) * 14560 (W) * 1789 (D)
Weight	2.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1523 (L) * 1456 (W) * 1789 (D)
Weight	2.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
