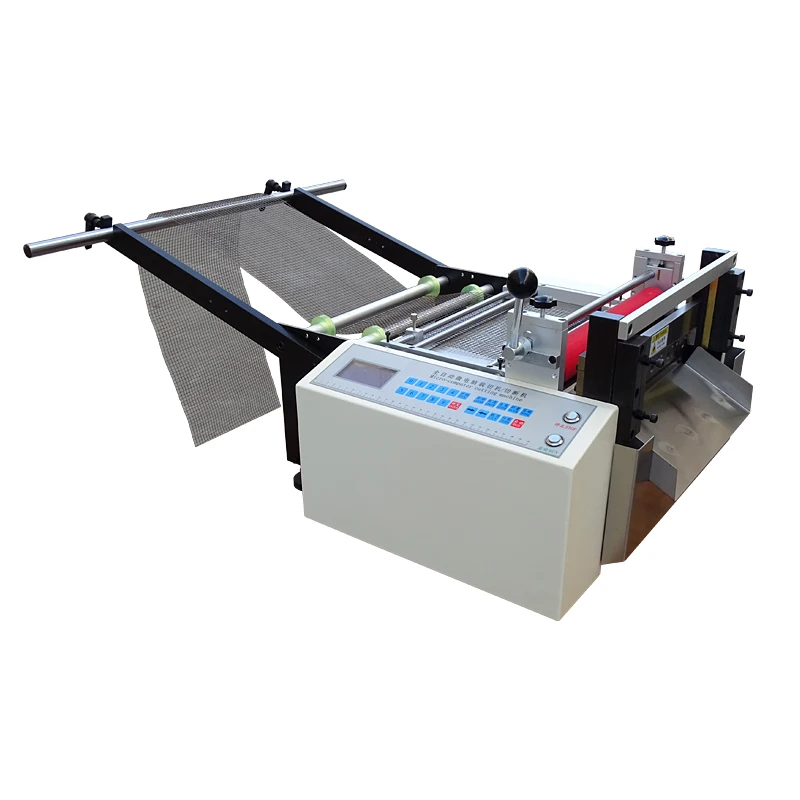

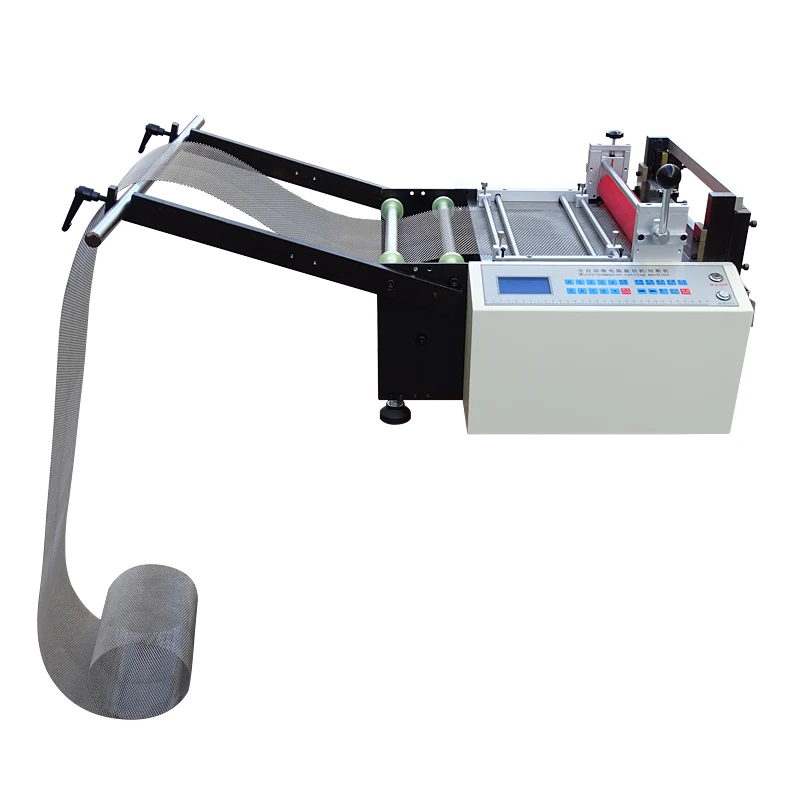

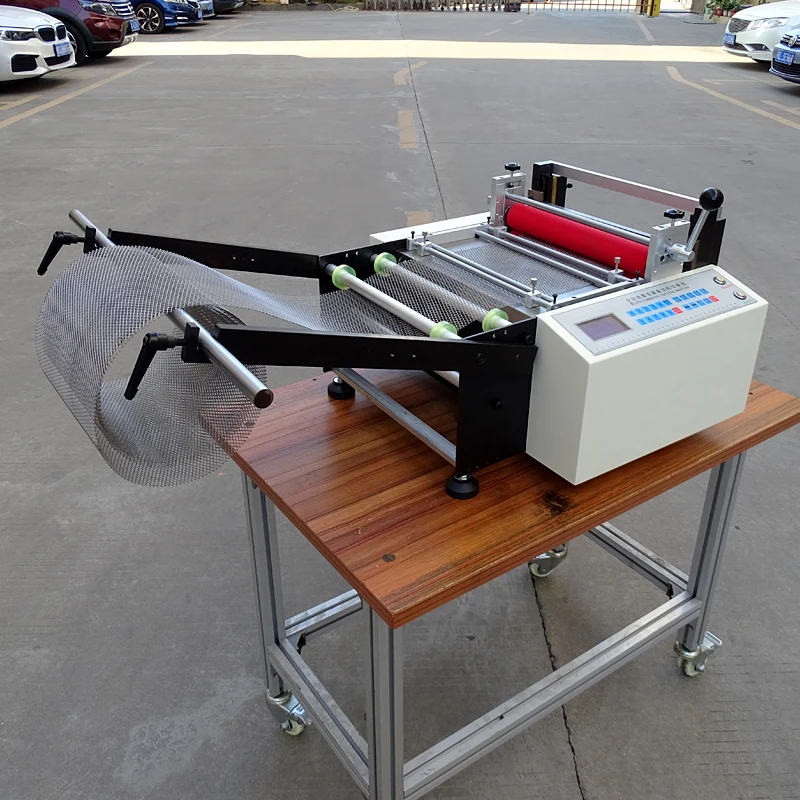

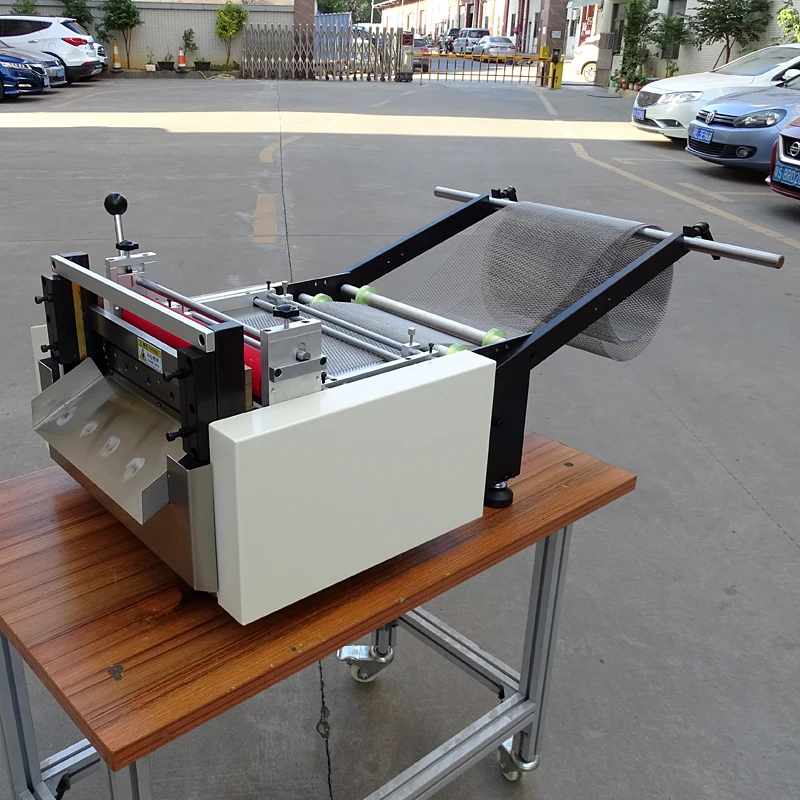

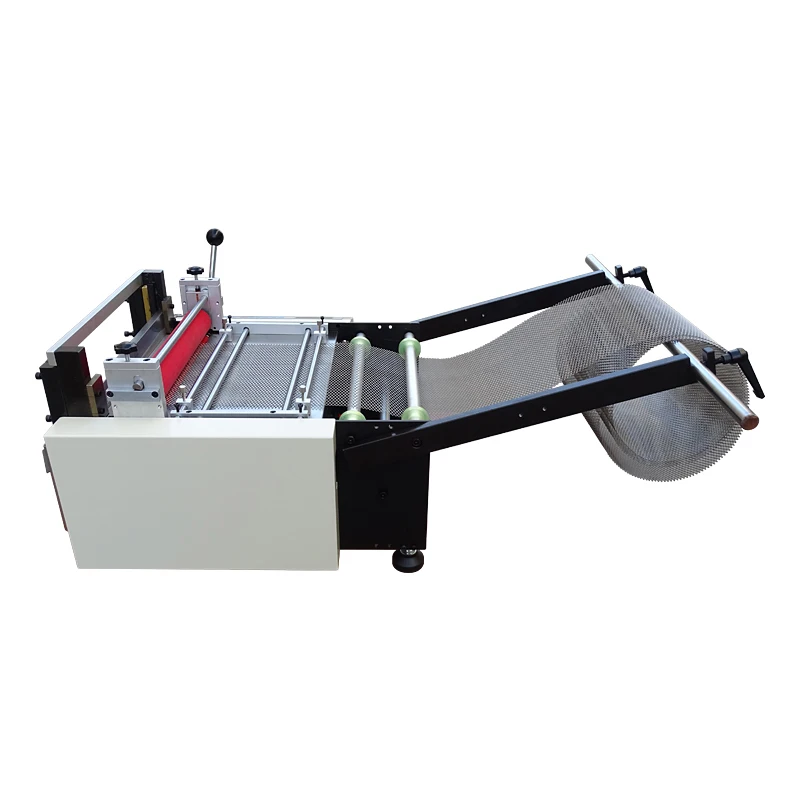

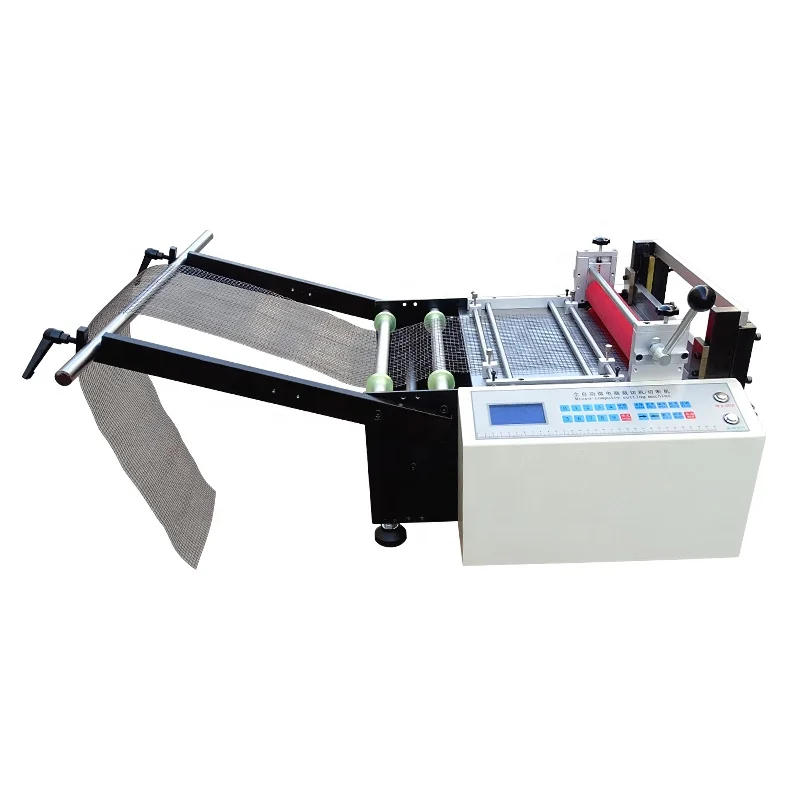

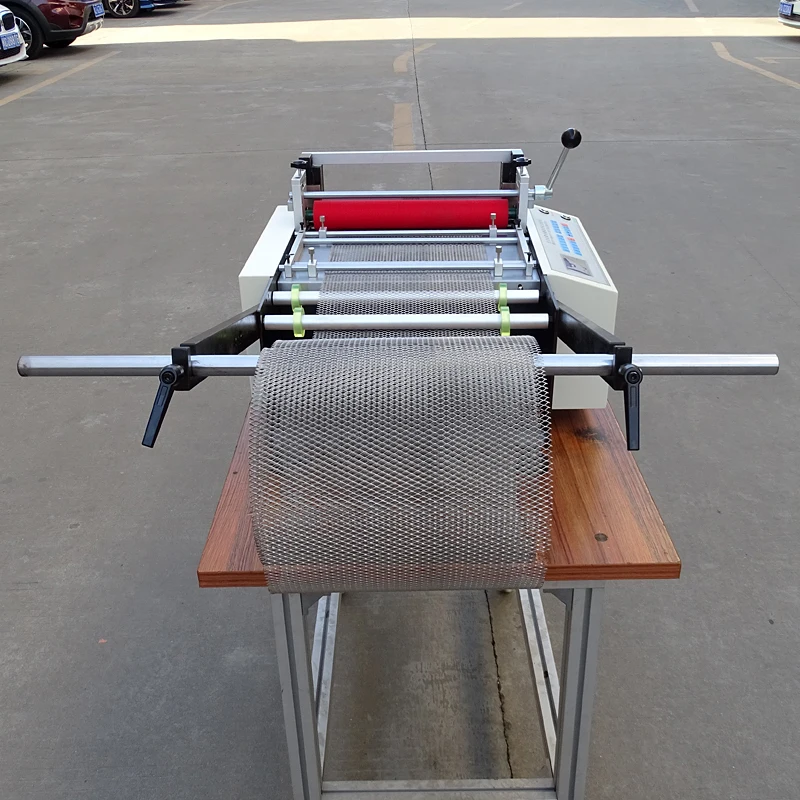

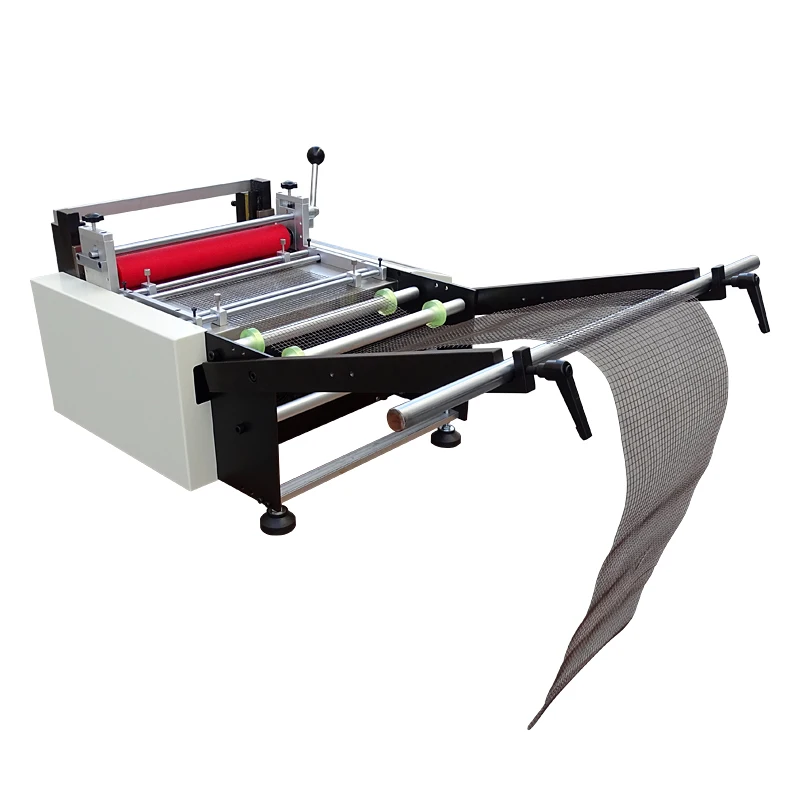

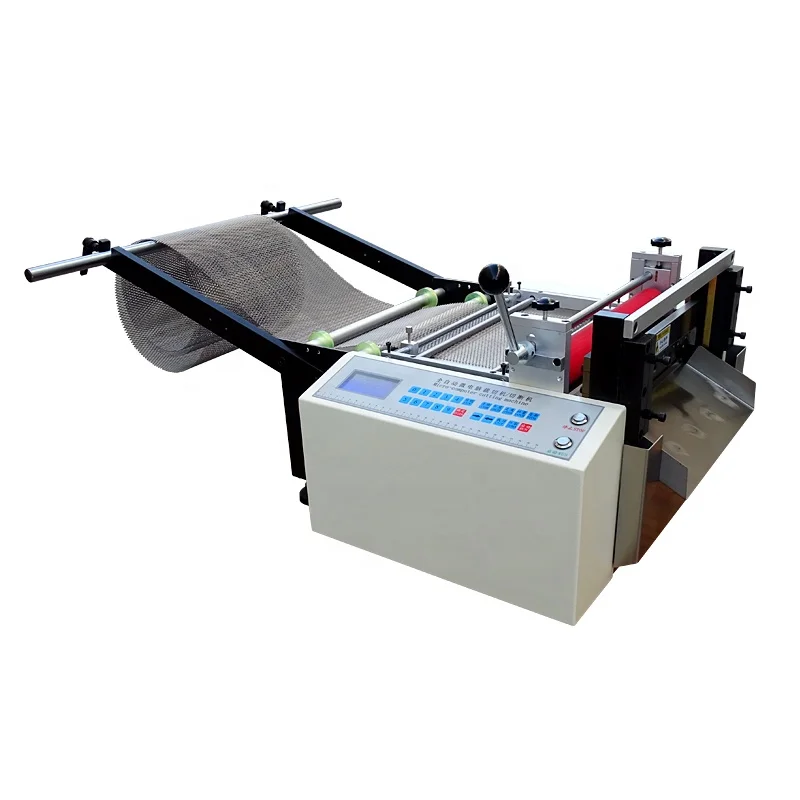

Автоматическая машина для резки проволоки, Настольный станок для резки ленточного экрана из нержавеющей стали, машина для резки листового металла, машина для производства

Features:

1. Controlled by microcomputer, the length, speed and quantity can be adjusted.

2. The overall structural design is reasonable and durable.

3. The operation is simple, and one machine equals to 3 to 5 works instead of manual work.

4. The application scope is wide, and all kinds of materials and other roll materials can be cut.

5. The blade with inlaid steel has higher hardness, wear resistance and long service life.

Material application

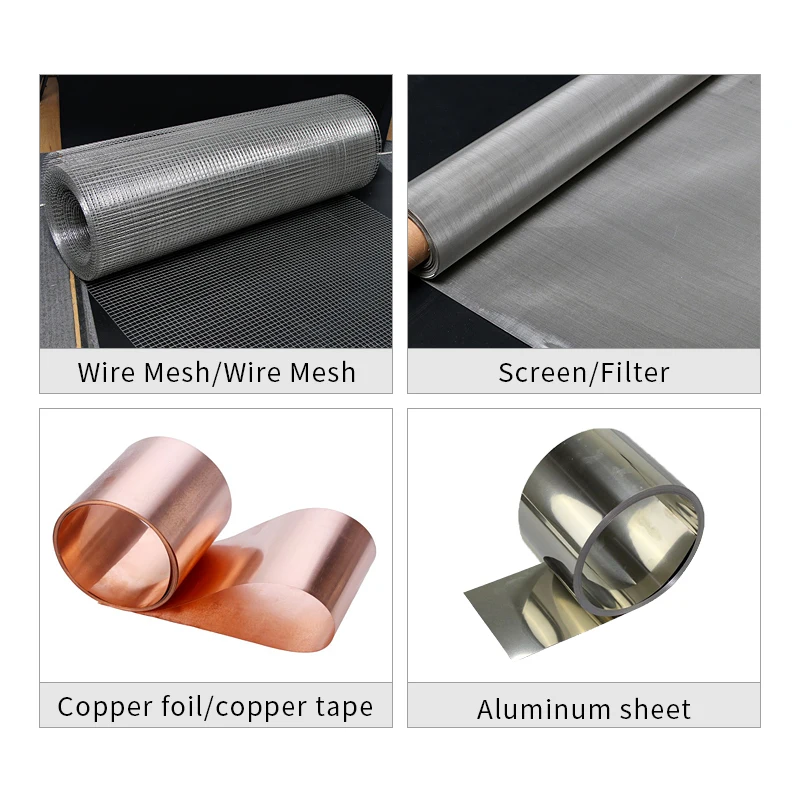

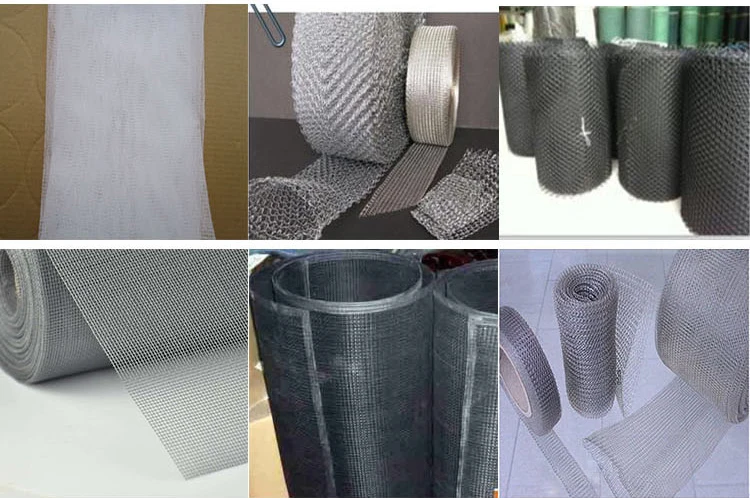

Suitable for cutting all kinds of steel wire mesh, wire mesh, aluminum foil, aluminum sheet, aluminum tape, aluminum foil paper, aluminum foil tape, copper foil, copper sheet, copper tape, copper foil tape, copper foil paper, metal flakes, stainless steel tape, nickel tape, Iron sheet, iron sheet, lace iron bar, filter, screen, window screen, foaming net, foaming net, plastic net, protection net, net cover, mesh cloth, tin foil, PET/PVC/PE/OPP/BOPP/ ITO/OCA film, protective film, plastic film, electrostatic film, heat shrinkable film, hot melt adhesive film, thermoplastic film, heat transfer film, reflective film, release film, non-woven fabric, melt blown cloth, flocking cloth , Non-woven fabric, knitted fabric, kraft paper, clean cloth, spunlace cloth, fiber cloth, conductive cloth, grinding gauze cloth, laundry sheet, self-adhesive, roll paper, insulating paper, highland barley paper, fast paper, release paper, Kraft paper, wrapping paper, heat transfer paper, filter paper, silicone oil paper, glitter paper, reflective paper, double-sided tape, plastic film, EVA foam, sponge, zipper, Velcro, elastic band, webbing, cloth strip, pu Reel materials such as leather and pearl cotton

technical parameter

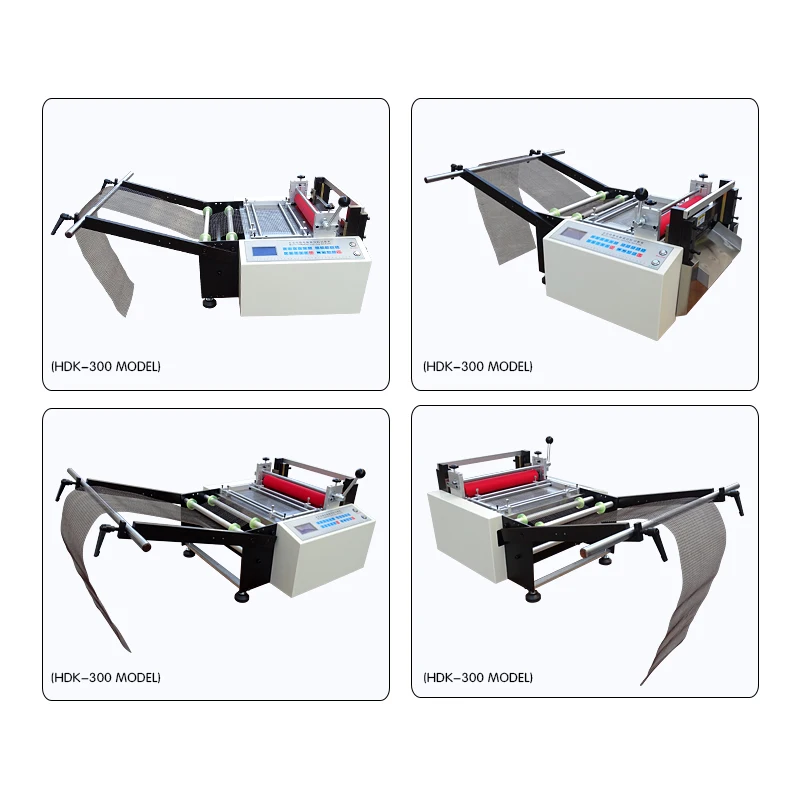

Product model: HDK-100D, HDK-200D, HDK-300D, HDK-400D, HDK-500D, HDK-600D
Cutting knife material: front steel
Product power supply: 220V 50/60Hz
Cutting length: 0.1-9999.9mm
Cutting speed: 30-120pcs/min
Feeding width: 1-100mm
Cutting accuracy: 0.1mm
Product size: 450*340*360mm, 540*440*370mm, 580*560*370mmm, 580*660*370mm, 580*760*370mm, 580*860*370mm
Machine weight: 33kg, 47kg, 64kg, 69kg, 81kg, 87kg
Feeding motor: stepper motor
Cutter motor: AC motor

Product principle:

1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set

3. There are various manual operations for debugging
4. Can automatically cut all kinds of strips, sheets, plastic tubes and other materials
5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and speed
7. Cutting time protection; total setting; sub-setting; adjustable timeout
8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the slit and the length
11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick materials, high cutting precision and straight cut

Company Profile

Dongguan Haidike Automation Equipment Co., Ltd. is located in Dongguan, the world's factory. It is a high-tech enterprise specializing in the development and production of automation equipment, the design and development of non-standard automation, and the design and production of automation engineering.

Since its establishment, the company has been adhering to the corporate philosophy of "creating value for customers" and is committed to providing customers with safe, stable and efficient automation equipment. At present, the company’s main products are microcomputer automatic cutting machines, slicers, tape cutting machines, Pipe cutting machine, label cutting machine, cutting machine, cutting machine, cross-cutting machine and other automation equipment, and undertake the design and production of non-standard automation equipment.

The company has a professional R&D, production, and sales team, and constantly absorbs domestic and foreign industry development experience to introduce new ones. At present, the products are exported to foreign countries and are well recognized by people from all walks of life. The cooperative industries include electronics, clothing, packaging, textiles, luggage, printing, printing, clothing, gifts, handbags, plastics and other industries. Friends from all walks of life are welcome to visit, guide and negotiate business, develop together, and share the fruits of technology!

Welcome to send the materials to try the machine for free, we will shoot the video for you to see the material after the test, please rest assured to buy. Address: 2nd Floor, Building B, Sinotech Science and Technology Park, No.118, Xiniubeitangdu Road, Dalang Town, Dongguan City, Guangdong Province ---Hidike Automation Equipment Co., Ltd.
