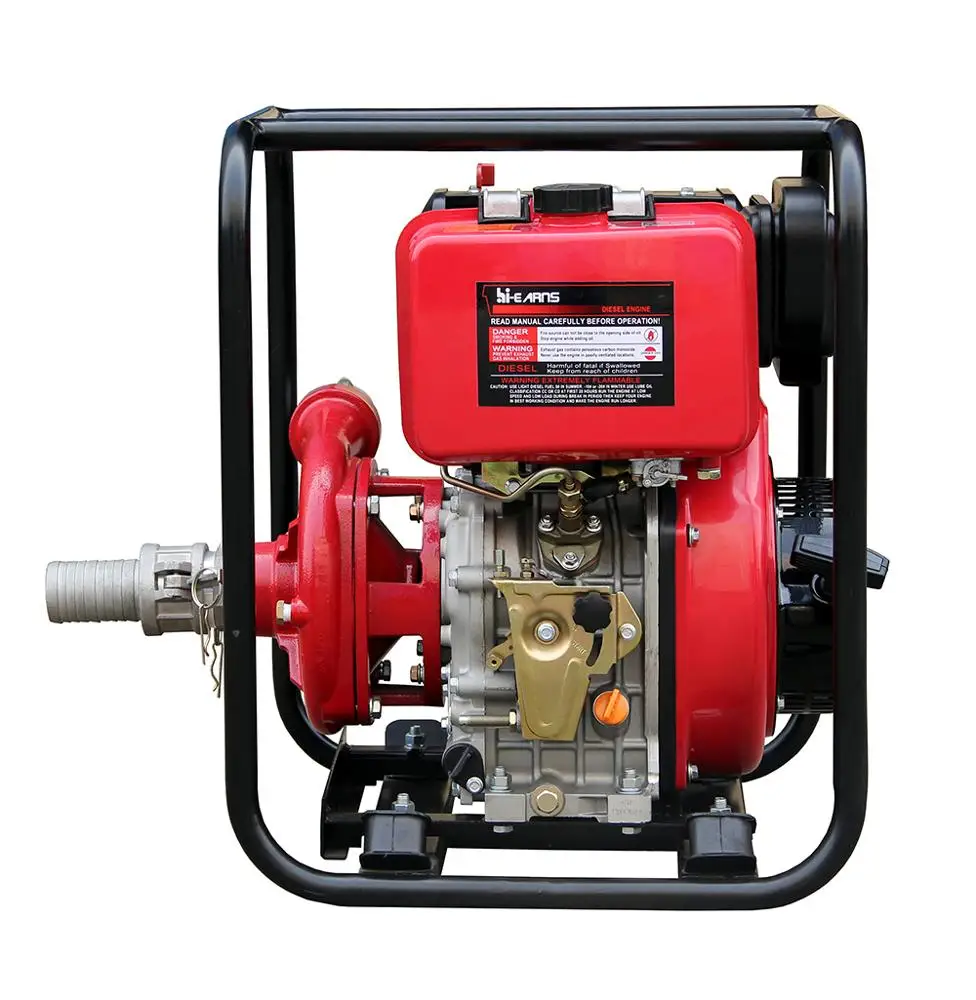

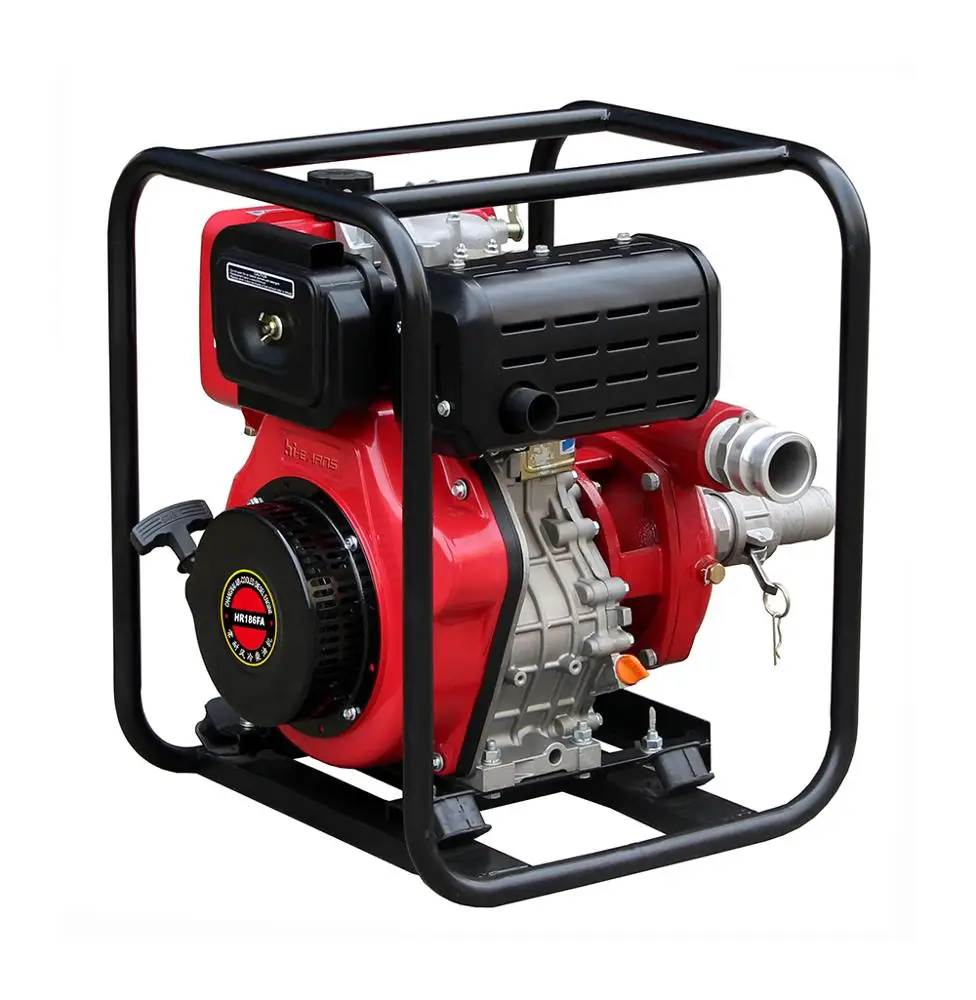

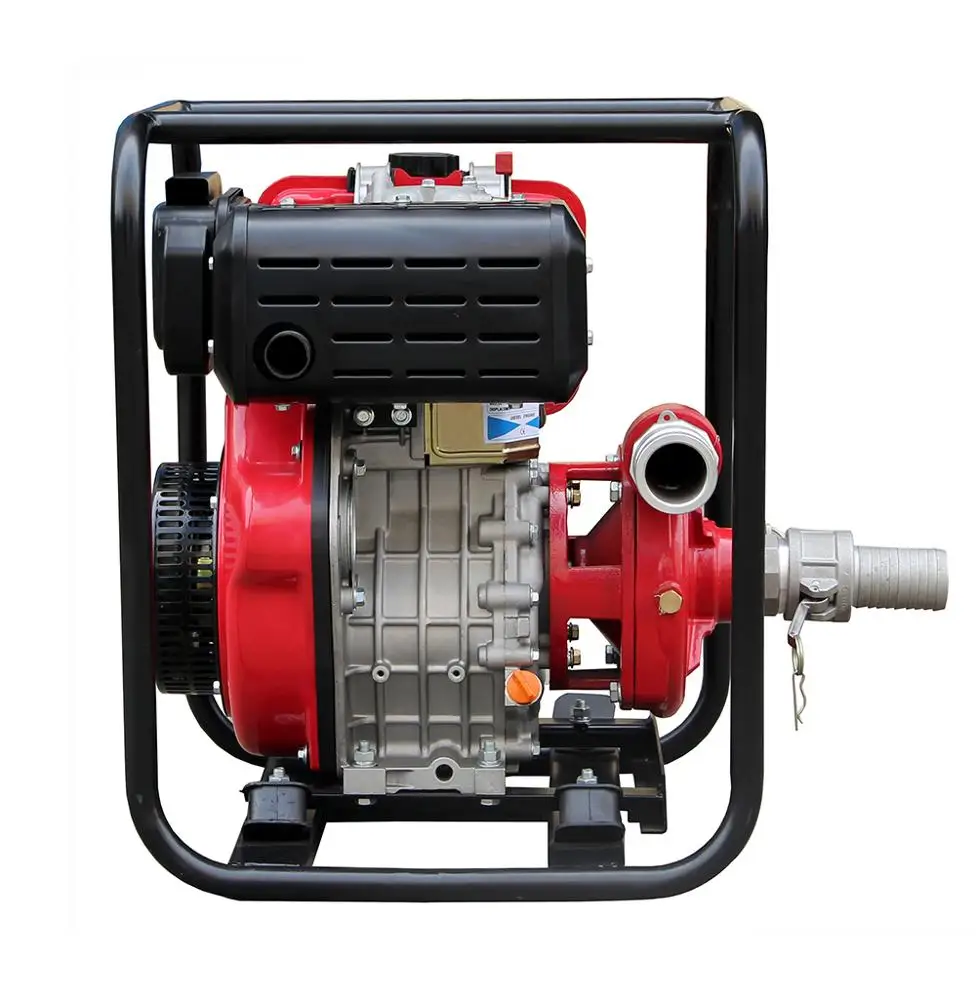

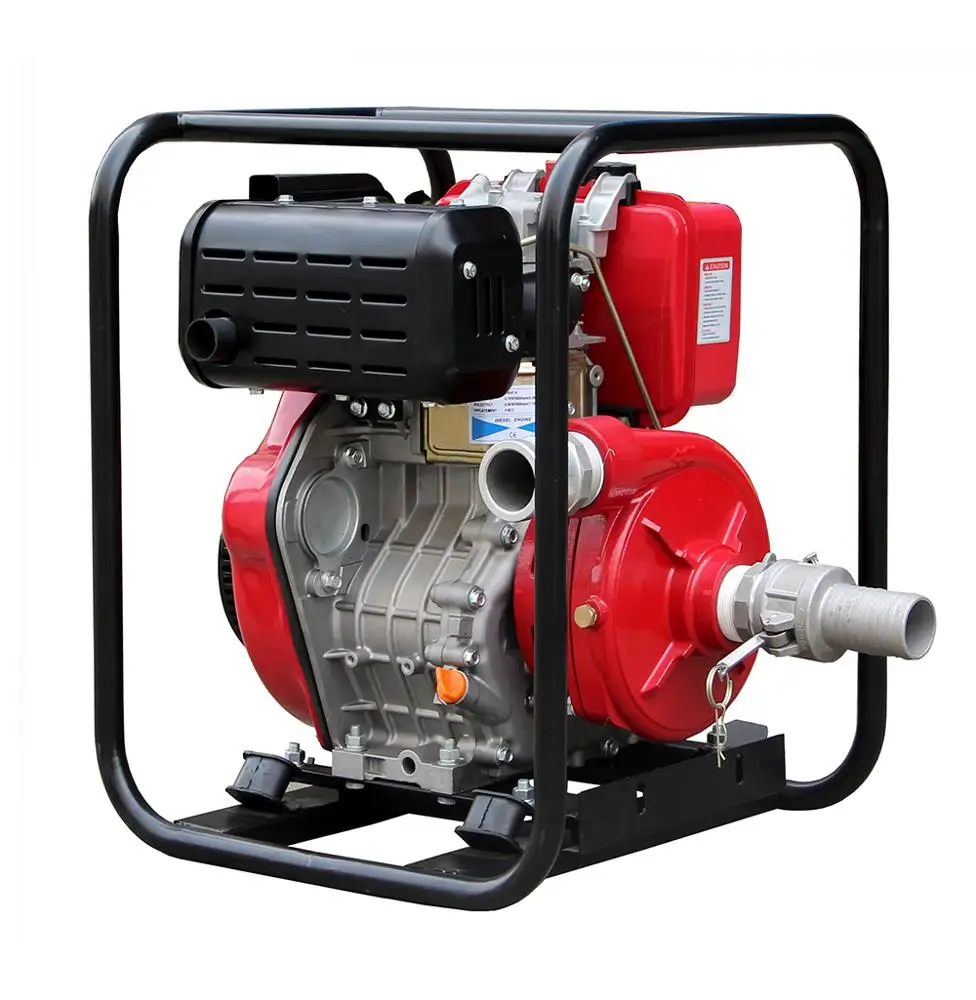

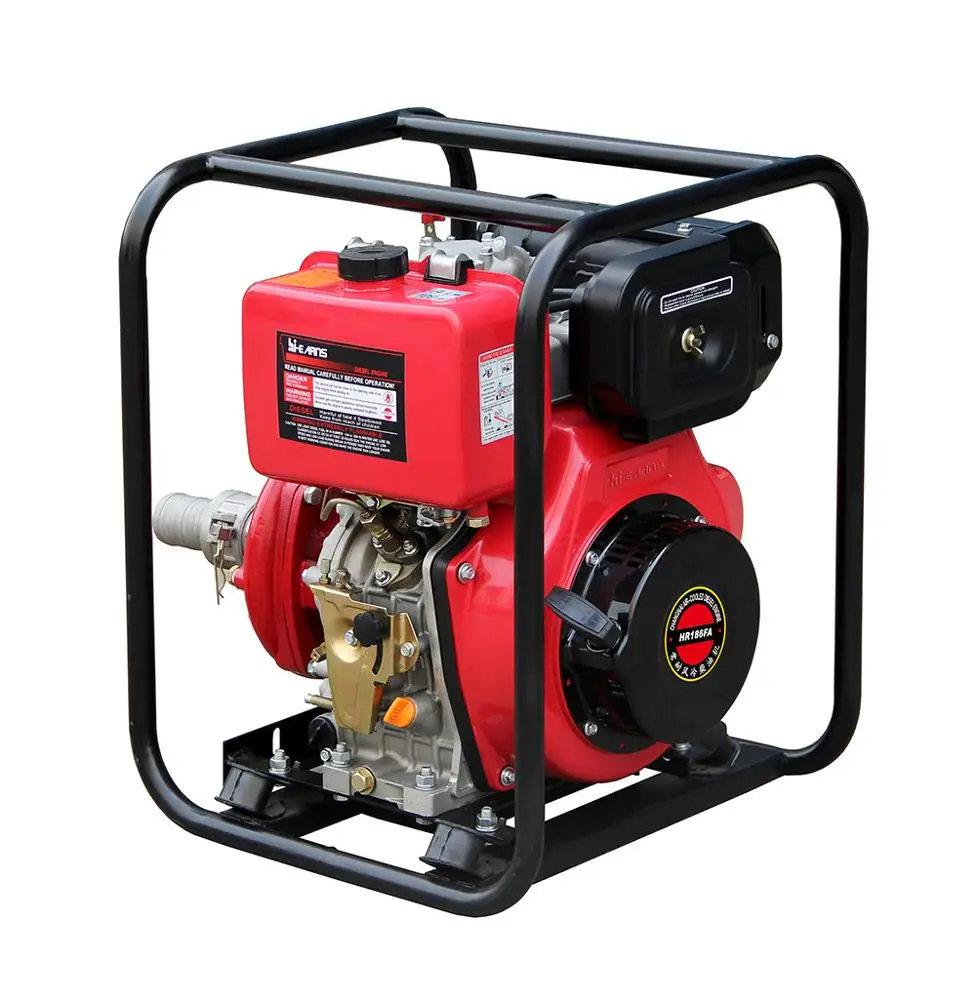

2 inch Air cooled high pressure cast iron water pump with 10HP 186FA diesel engine

WATER PUMP

Model

DP20HCI

Suction, discharge port diameter[mm(in)]

50(2")

Cont.head(m)

90

Self-priming time(s/4m)

30

Max suction head(m)

8

Cont.capacity(m³/hr)

35

ENGINE

Engine model

HR186FA

Speed(rpm)

3600

Type

Single-cylinder,vertical,4-stroke air-cooled diesel engine

Displacement(cc)

418

Bore*stroke(mm)

86 × 72

Starting system

Recoil

Fuel tank capacity(L)

5.5

STANDARD FEATURES

Oil alert

yes

Connector of infall,

Connecto of outfall

yes

Filter

yes

Seal ring

yes

Hoop

yes

DIMENSIONS

Dimension(L× W× H)(mm)

550×560×680

Gross  weight(kg)

63
