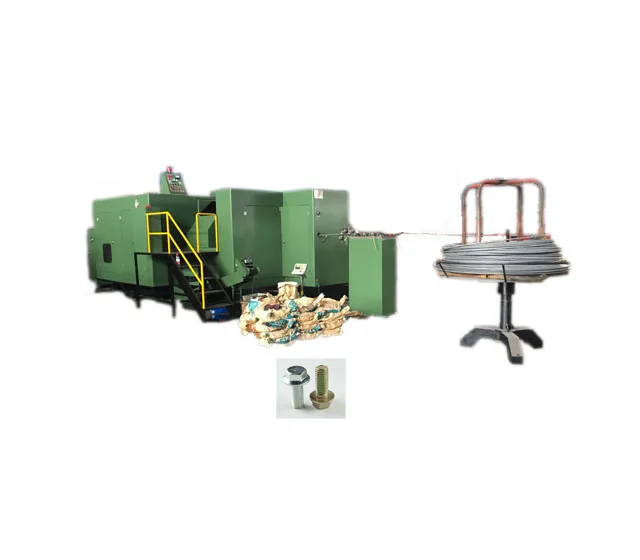

30B 3S 3 Station 20mm Bolt Screw Making Automatic Cold Heading Machine

Product Overview

Description

1.      Being equipped with air clutch.
2.      Swing type pneumatic gripping mechanism, the gripping capacity is adjustable and clamping power is stable even at high working speed.
3.      Pressing and feeding wire, there are two overdrive clutches fixed in the feeding course.
4.      Wire cutting part is actuated by strong link-block system
5.      Each station of rear knock out device can be adjusted individually, and the last station can realize the action of knocking out trimmed product via adjusting the location of cam or changing different cam.
6.      Front knock out part moves simultaneously with the retreat movement of the main ram.
7.      Either front knock out device or rear knock out device is fixed a safety pin with the function of pressure check-up.
8.      There is imported converter available in electrical system.
9.      Both main and auxiliary rams, all are made of abrasion resistant alloy, and the inside plates of the formers are made of imported quench alloy.
10.  The principal parts such as body frame, main ram, main link lever etc. all are made of high-strength material.
11.  Main components for each part and all cams all are machined by numerically-controlled machine tools, for guaranteeing precision and the curve smooth and sliding.
12.  Touch screen and man-machine dialogue numerical control system are optional for meeting customer’s requirement.







A two-stage gearing system is used on our machine which improves the transmission efficiency and driving torque. Besides, the pneumatic clutch-brake could greatly lower motor power consumption.







\

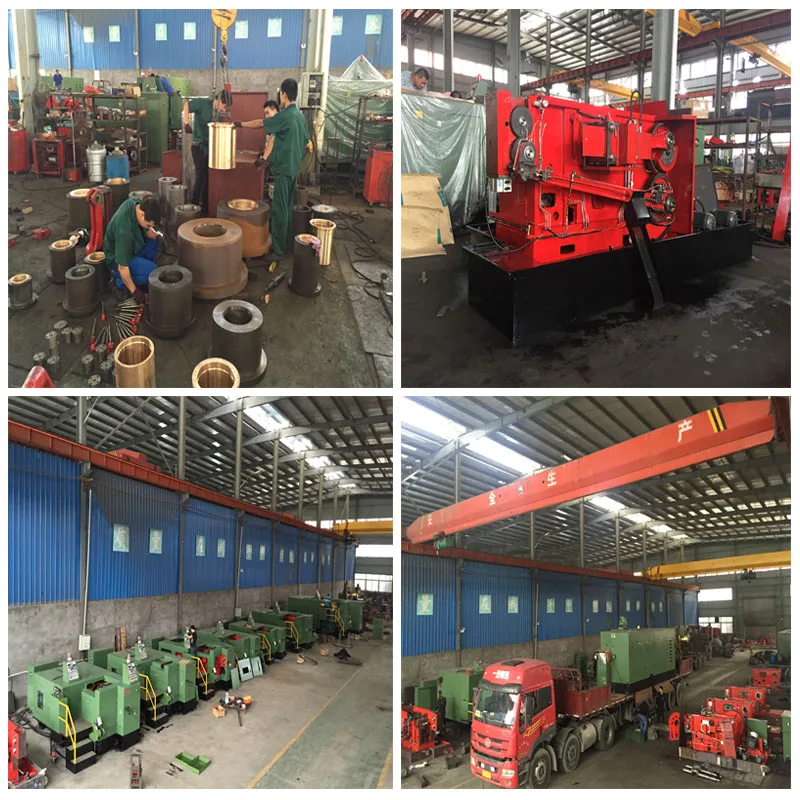

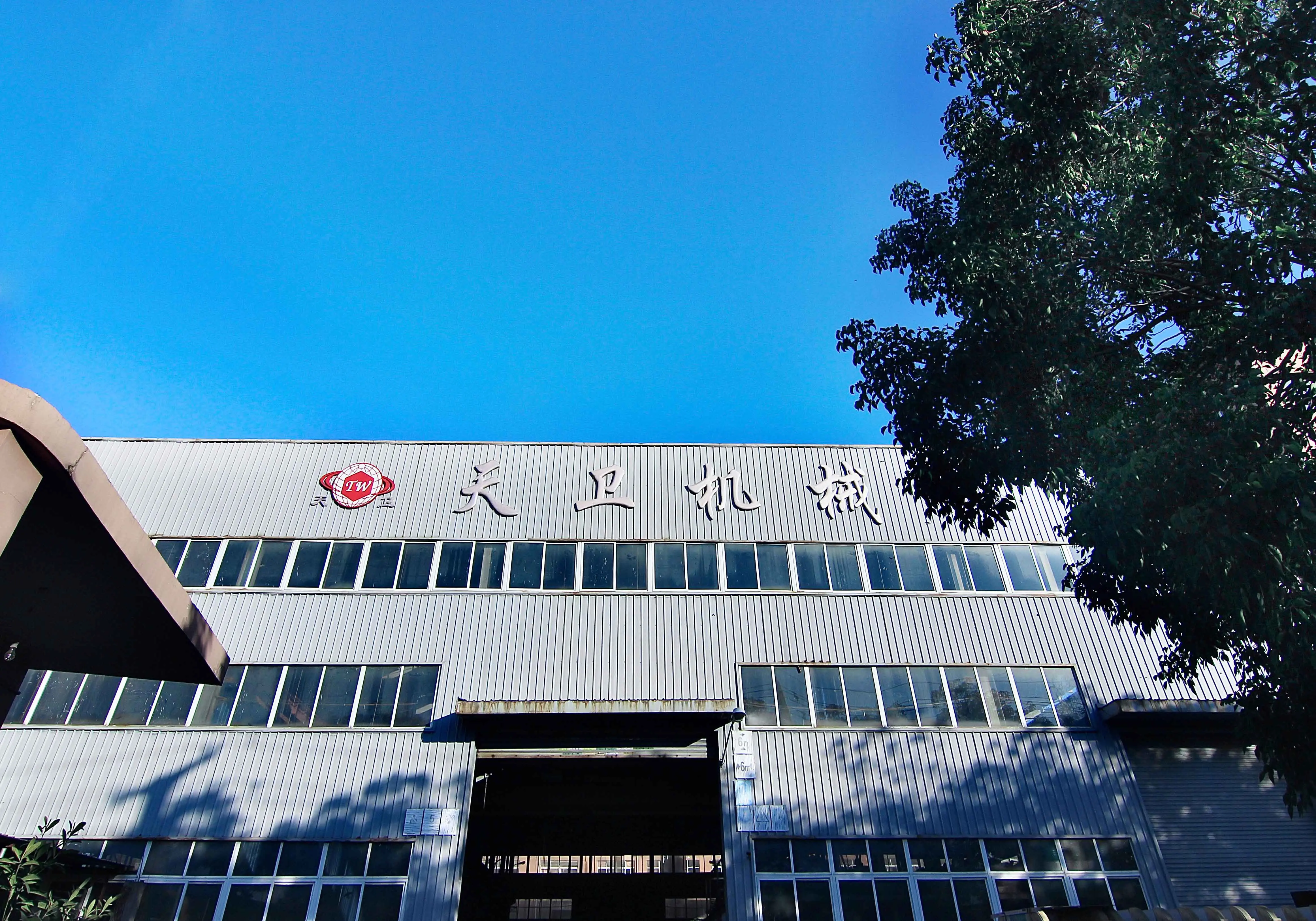

Established in 2010, Wenzhou Tianwei Machinery Co., Ltd. specializes in providing high-quality industrial machinery and parts for automobiles, fasteners, and steel processing industries. With international export markets in Asia and the Middle East, we are recognized as a trustworthy supplier for bolt and screw formers. Under the leadership of the current president Mr. Dai Jianguang, we insist on the "Living by high quality; Developing by excellent service". We provide a FREE consultation for new production lines installation and equipment upgrades.



Q: Why there are so many models of your machines?

A: All clients have their specific requirements for the product that they want to make. The more models we have, the more likely they can find the most suitable and economical machine for themselves.

Q: Can your machine makes self-drilling screws?

A: Yes. Our machines can make almost all standard screws unless the size of the screw is too small.

Q: I'm going to run a new plant for making screws. What equipments do I need to start?

A: Depending on what kind of screws you want to make, the types of equipment may be different. But basically, you will need at least a cold forming machine and a thread rolling machine. In addition, you may need a wire drawing machine. And if you want your products to be galvanized, you may need to look for local galvanizing factories.
