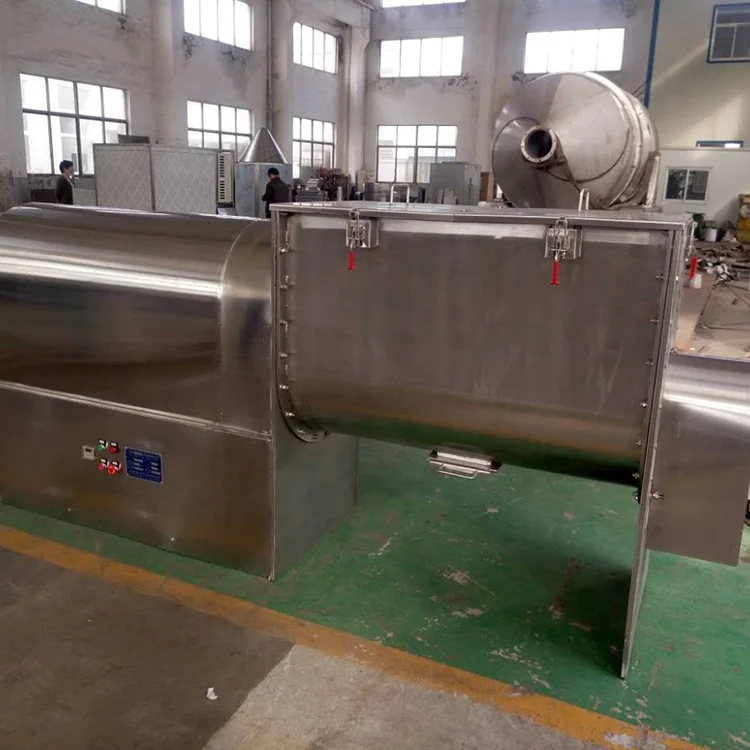

Professional industrial equipment food mixing horizontal ribbon mixer
specification
WDH-0.3
WDH-0.5
WDH-1
WDH-2
WDH-3
WDH-4
WDH-5
WDH-6
WDH-8
WDH-10
working capacity
(m³)
0.18
0.3
0.6
1.2
1.8
2.4
3
3.6
4.8
6
working capacity
(kg)
200
300
600
1200
1800
2500
3000
3600
4800
6000
speed (r/min)
62
62
49
33
33
27
27
27
22
14
power(kw)
5.5
7.5
11
15
18.5
22
30
37
45
55
weight
600
900
1200
2000
2500
3500
4000
4500
5000
6000
Length
2280
2670
3140
3860
4460
4950
5280
5530
5100
5610
width
680
780
980
1200
1300
1400
1550
1560
1720
1750
Height
880
1240
1400
1650
1700
2000
2100
2200
2500
2650

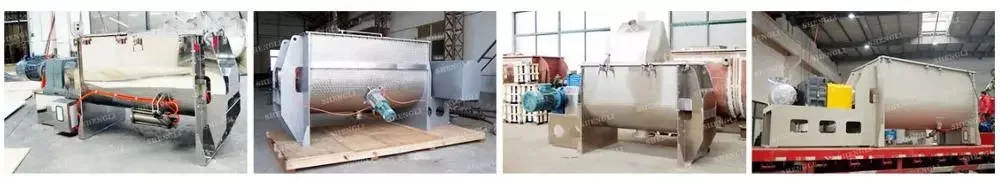

1. Different material selection
Material can be carbon steel, manganese steel, SUS304, SUS316L and SUS321; besides, different
material can also be used in combination. Surface treatment for stainless steel include sandblasting, wire-drawing, polishing, mirror polishing, all can be used in different parts of a mixer

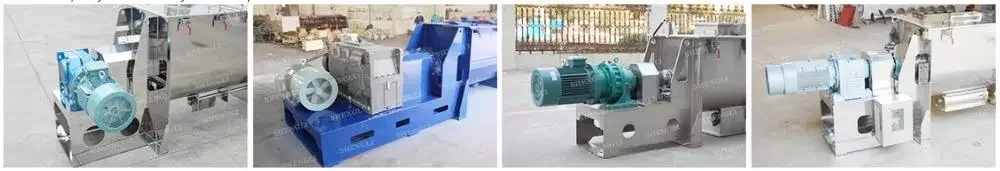

2. Different driving motor
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.
Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

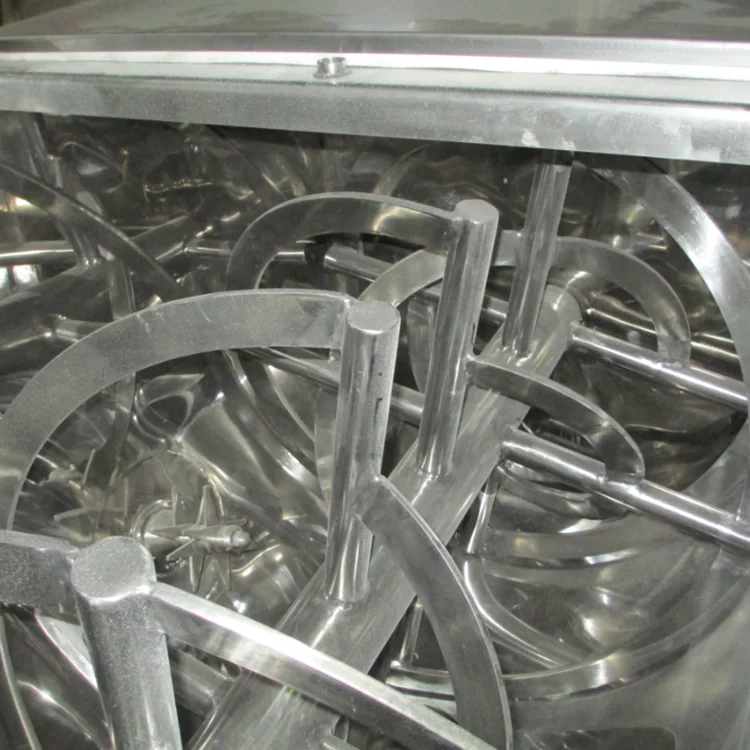

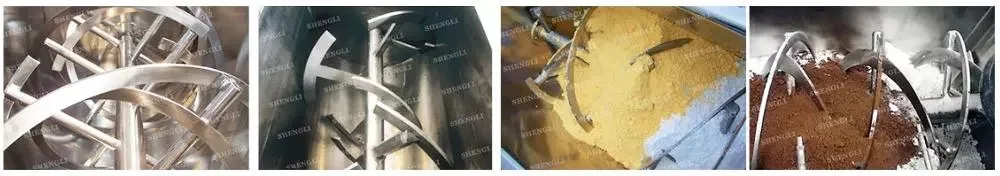

3. Different mixing device Different main shaft agitators can be equipped according to the properties of raw materials. The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

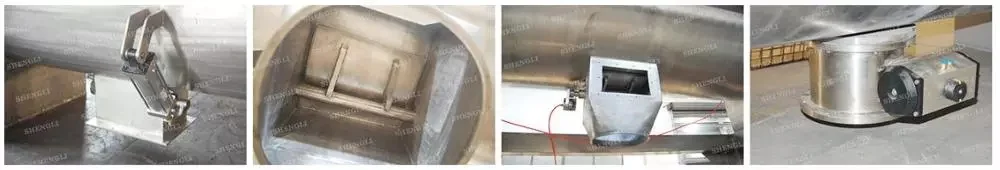

4. Different discharging device The drive types of valve are Manual, pneumatic, and electric. Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.
Company Information
Product
Certifications
FAQ
Q: Can I visit your factory? A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai. Q: What’s the quality of your products? A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely. Q: What to do if the machine has a problem? A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment? A: Our warranty period is one year generally. Q: What is your payment term? A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement. Q: Does your price include freight? A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
