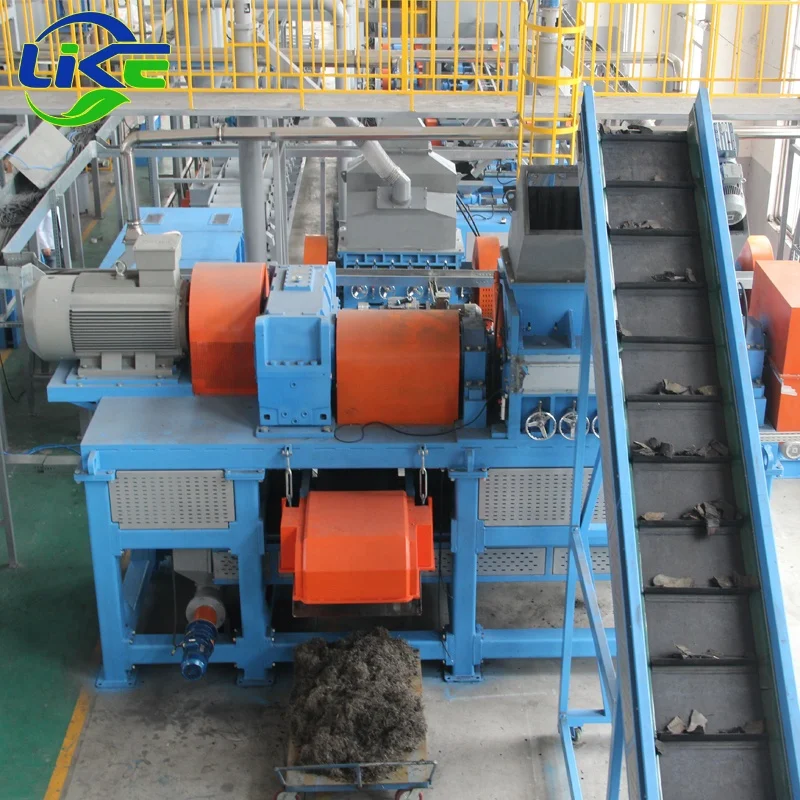

Automatic rubber powder making production line for waste tire recycling machine price

Automatic rubber powder making production line for waste tire recycling machine price.

the first step is TS series tire shredder machine,  is used to shred the whole tire into TDF rubber chips in 50*50mm.

the second step is HVST-R series tire rasper machine, is used to make the rubber mulch in 10-30mm. it can be colored rubber mulch as filler of lawn or garden.

the Third step is LK-G series tire granulator,  is used to make the crumb rubber or rubber granules without wire and nylon. it is third step in whole tire recycling production line.

the car tires, truck tires, trailer tires, OTR tires upto 4000mm can be shredded by our tire shredder;

whatever the frozen tires or not clean tires both can be processed by our machines.

Model	LK-M3000	LK-M2000	LK-M1000
Output size	30-120mesh	30-120mesh	30-120mesh
capacity	3000kgs/h	2000kgs/h	1000kgs/h
motor power	1033kw	680kw	347kw

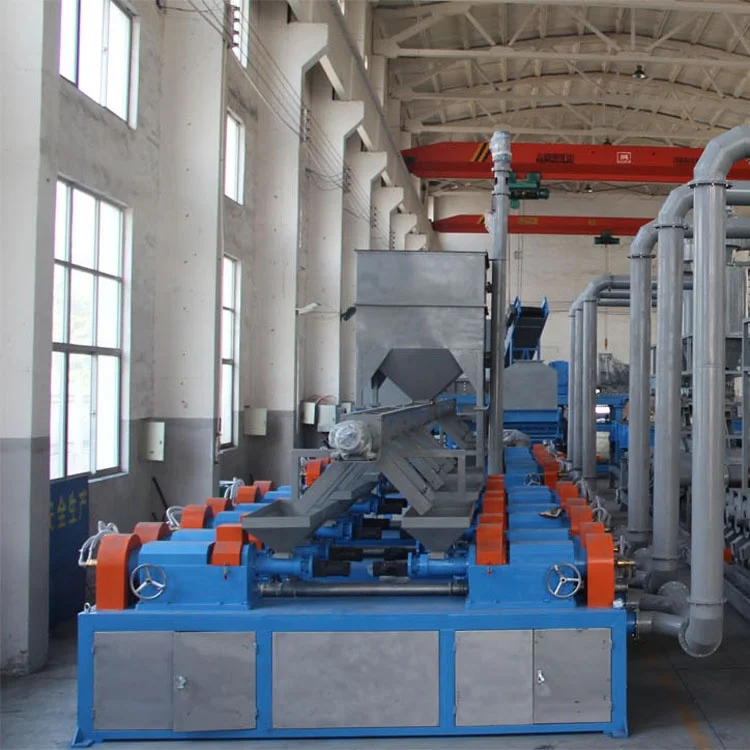

Detailed Images

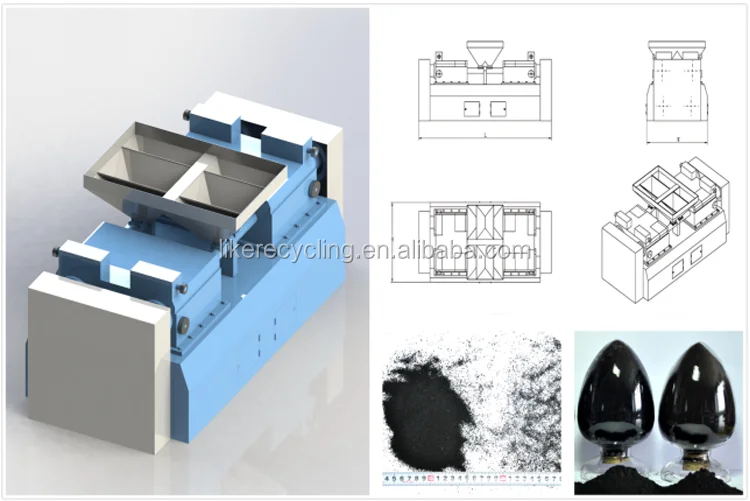

SPECIFICATIONS FOR TIRE GRANULATOR MACHINE
Model	LK-G90	LK-G45	LK-G37
Input size	30mm	30mm	30mm
Output size	1-7mm	1-7mm	1-7mm
Capacity	1-1.5tons/hour	0.5-1tons/hour	0.3-0.5tons/hour
Dimension	2150*2250*2950mm	1765*1900*2435mm	1765*1600*2435mm
Weight	5.6T	3.3T	3.0T

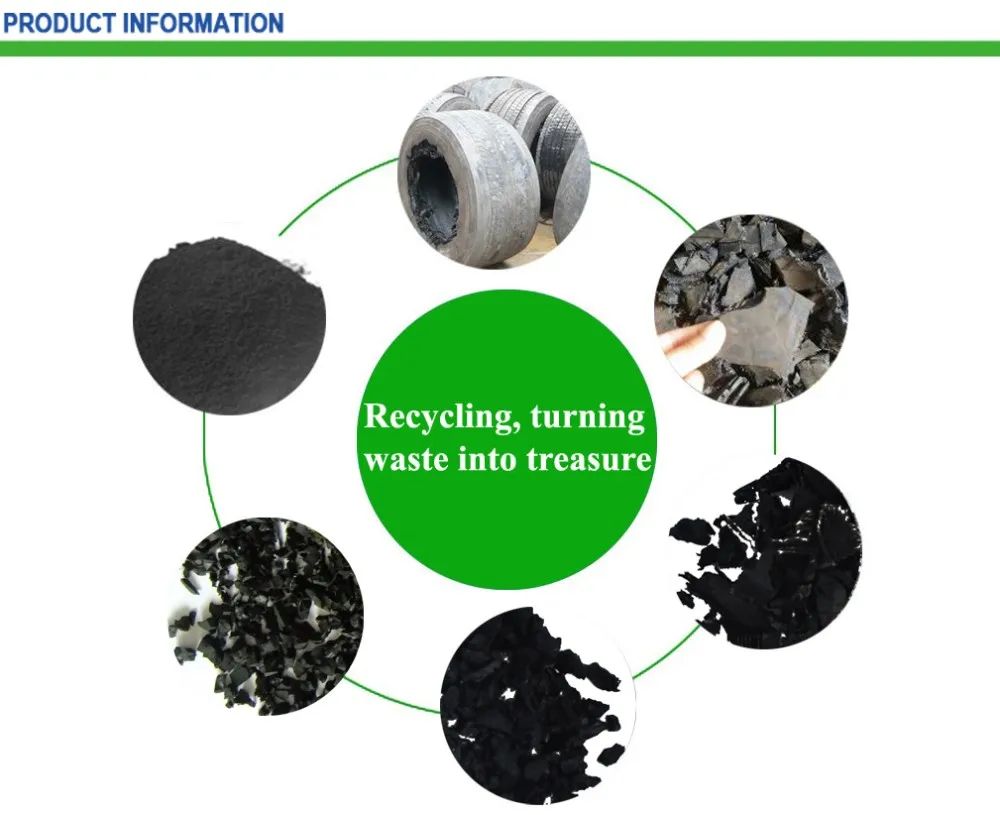

Usages

the rubber powder in 30-120mesh

10-30mm colored rubber mulch.

most colored rubber mulch will be used in garden, floor or yard as filler, if used in rector to make fuel oil, then not only protect the rector, but also higher the capacity.

1-7mm rubber granules.

mainly used in running track and playground after making rubber tiles.
