Humidity And Temperature Sensor Probe
US $35.00-$48.00

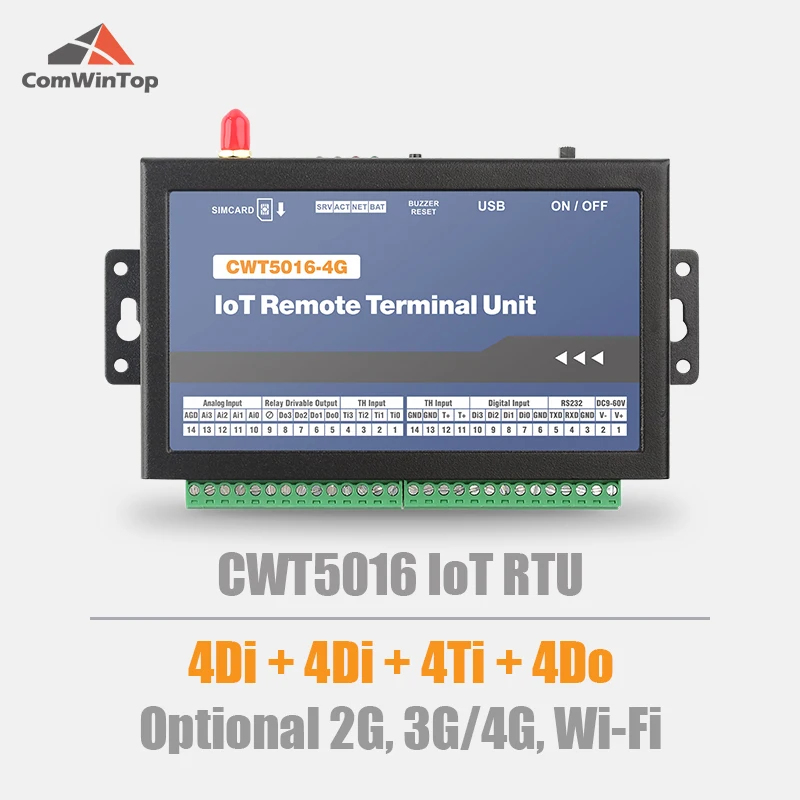

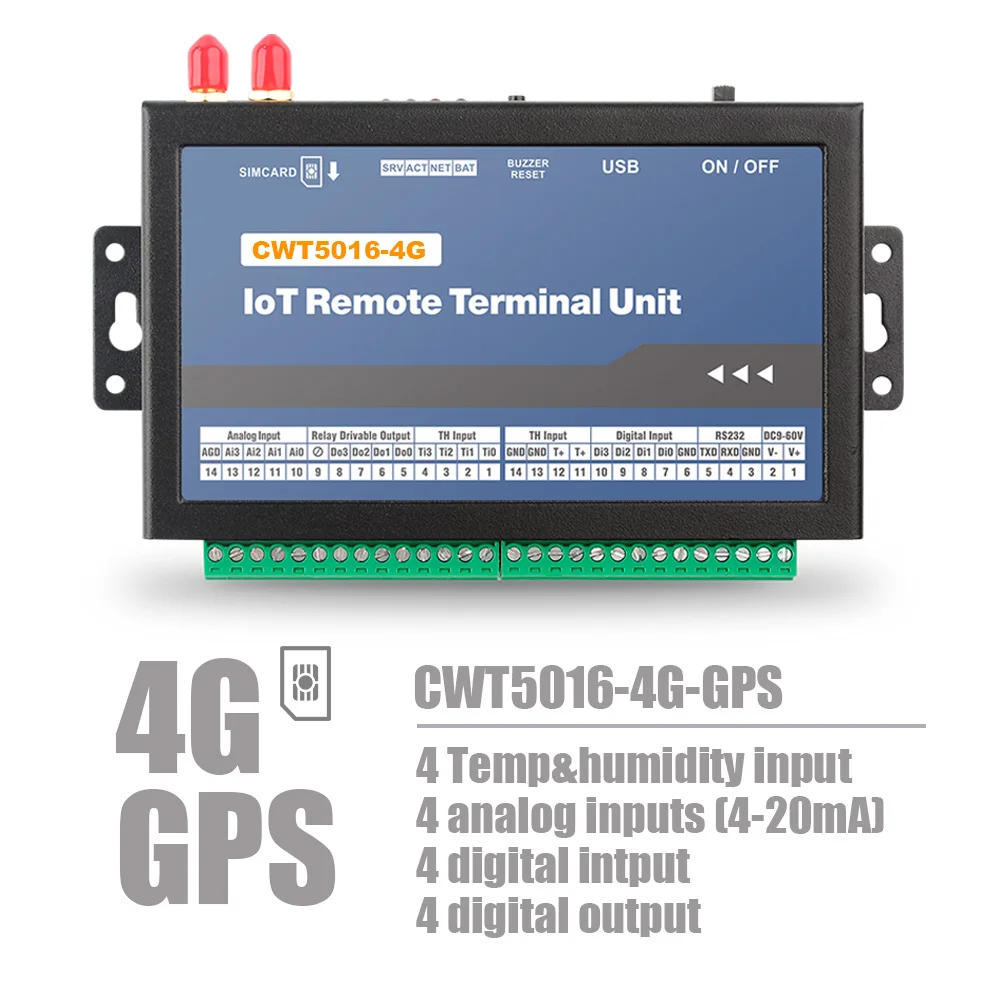

4 канальный контроллер для мониторинга температуры и влажности в холодной комнате CWT5016 4g Wifi Sms Gsm с датчиком температуры DS18B20 PT100
- Category: Temperature Instruments >>>
- Supplier: CWT CO. LIMITED
Share on (62013501804):
Product Overview
Description
Overview

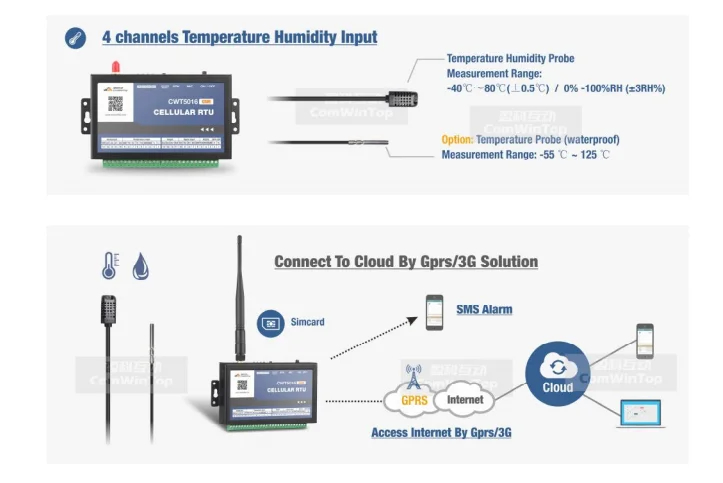

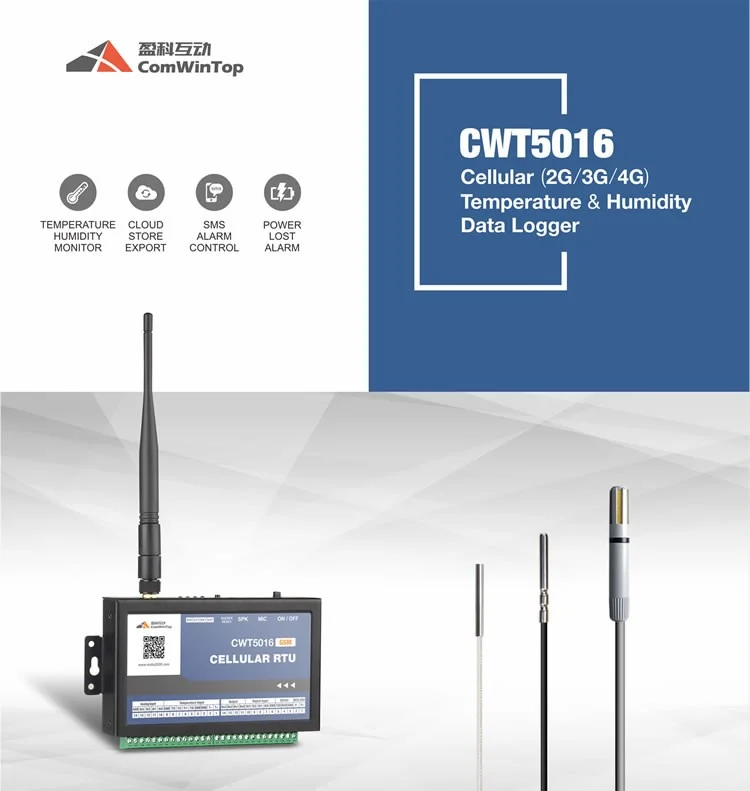

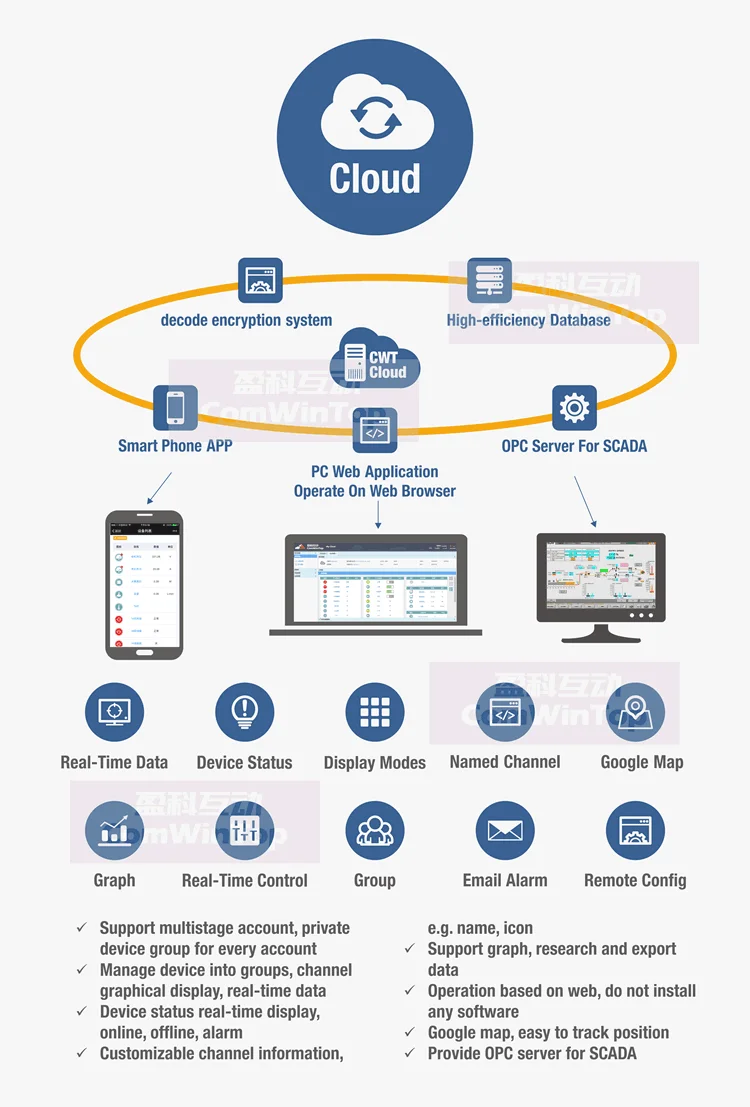

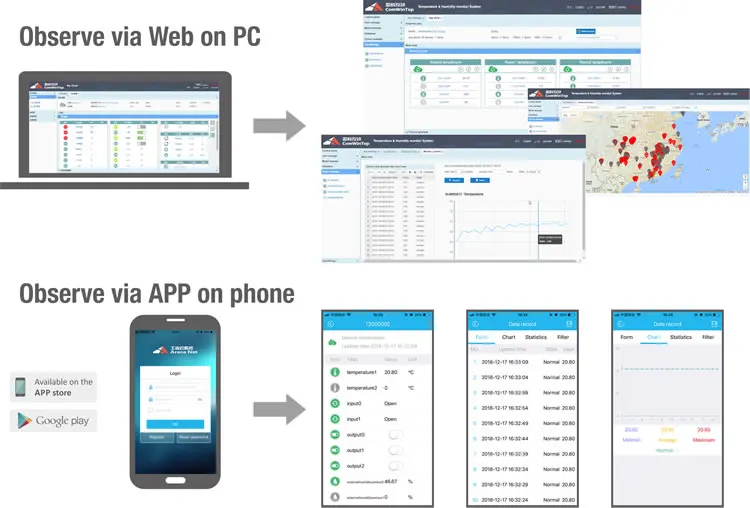

CWT5016 is designed for temperature humidity data logger, monitoring, alarm and control. It can connect Max 4 T&H probe, and send data to Cloud (server) by GPRS/3G or Wi-Fi Just login Cloud by web on PC or cell phone, you can observe real-time data, graph, history record Receive alarm by sms or email. With outputs, it support temperature control by remote or local
CWT5016 Features | ||

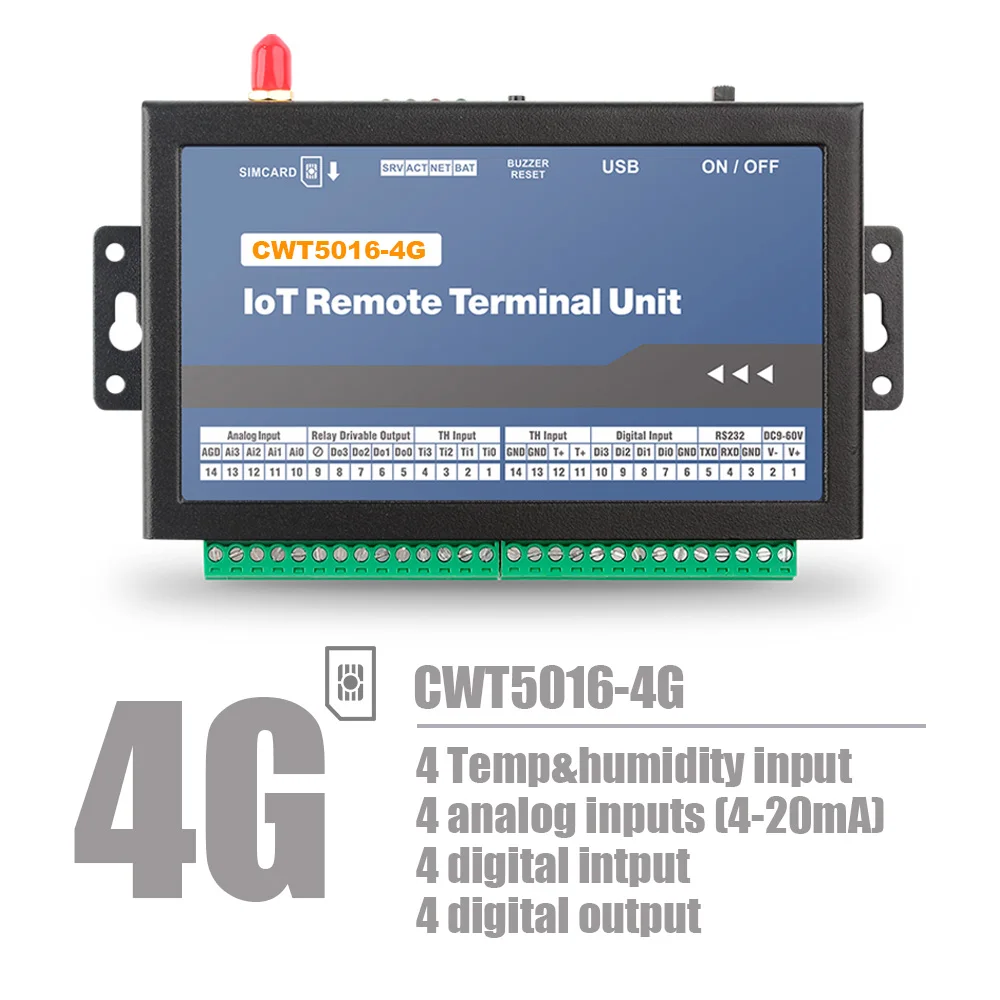

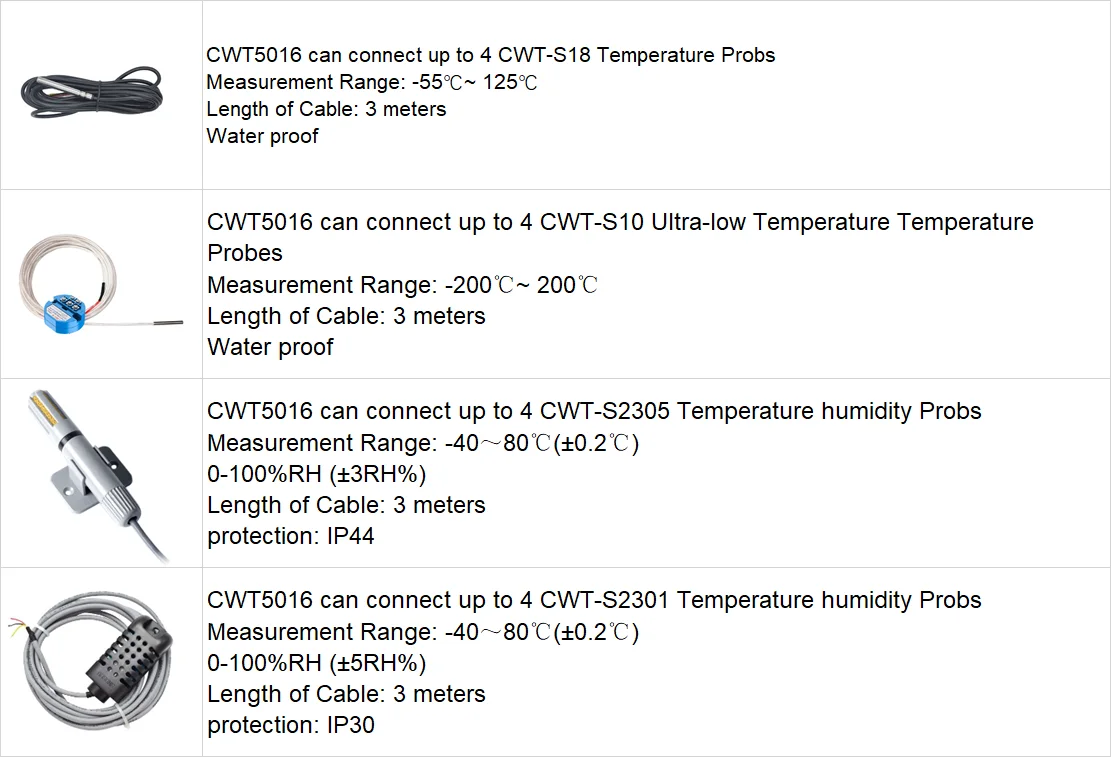

Interface | •4 temperature or temperature & humidity probe inputs • 4 outputs, can linkage with temperature alarm (e.g. siren, relay, switch) • 4 digital inputs to receive others signal • 4 analog inputs, read sensors (e.g. voltage, current, level sensor ) • 1 RS232 for configuration | |

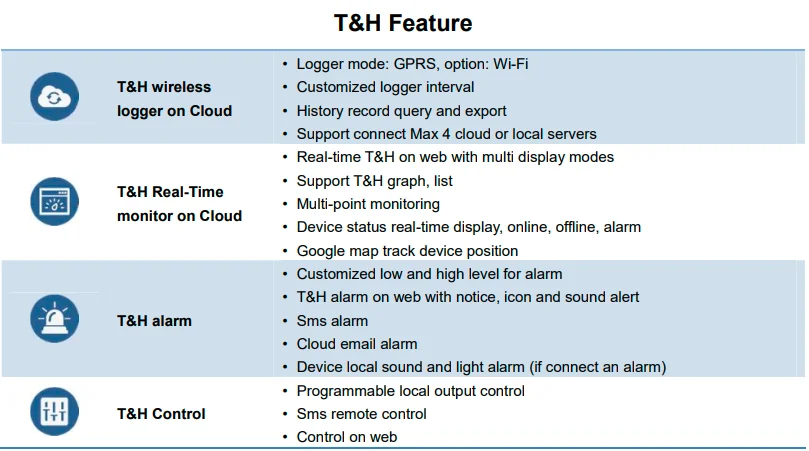

Data logger | •Cloud Data logger •Customized logger interval •Support connect Max 4 cloud or local servers | |

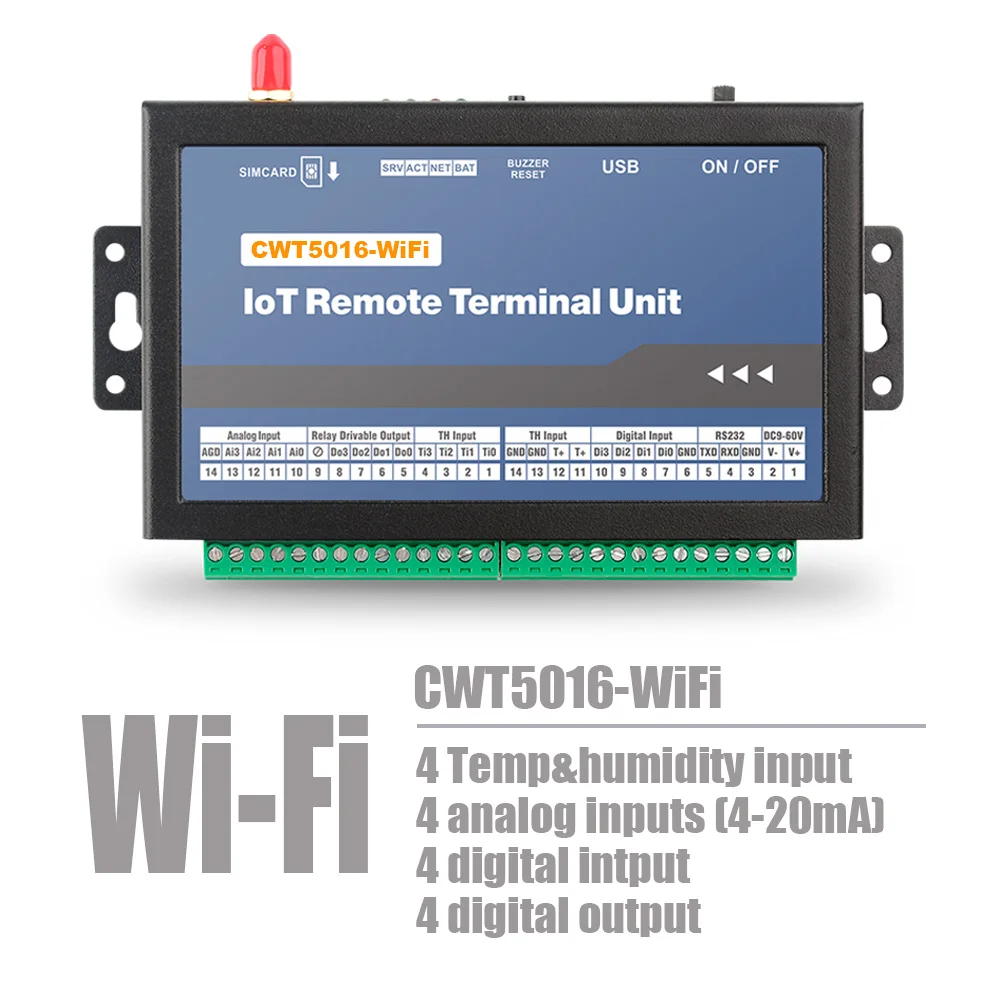

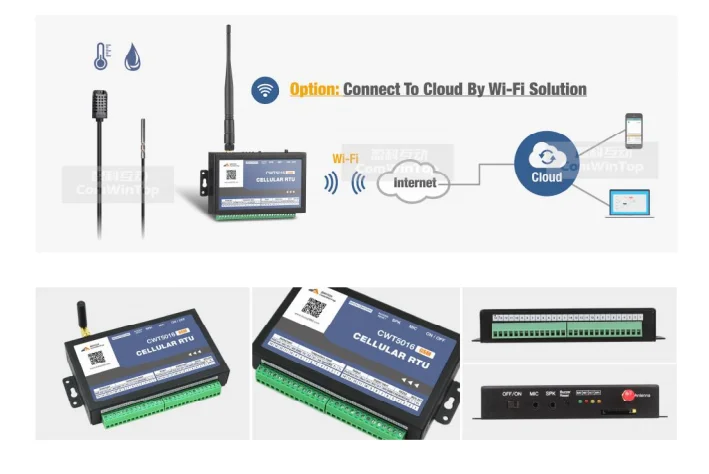

Wireless Network | •Either GPRS (option: 3G/4G, need Simcard) or Wi-Fi (Not need simcard) •To communicate with server with CWT_IO or Modbus TCP protocol | |
SMS (available for GSM/3g/4G version) | •SMS alarm when high and low •Editable SMS alarm texts •Query current value via SMS command •SMS report on schedule •Power failure SMS alarm (need add inside battery) •Can preset 10 cell phone numbers •Can query SIM card balance, SMS forward •Remote config via SMS | |
Technical Feature | •Network-reconnect and retransmission to ensure sms and data accurately transmit •Inside watch dog to assures 7*24 hours working •Optional inside 1000mA battery, life 8-20 hours •With immediacy and reliability of the system •GPS module optional •Free configure software | |
CWT5016 SPECIFICATIONS | ||
MCU | Cortex M3 32-bit ARM | |
Power supply | 9-28V DC (Standard adapter: DC 12V/1.5A) | |
Consumption | 12V input Max. 150mA/Average 50mA | |

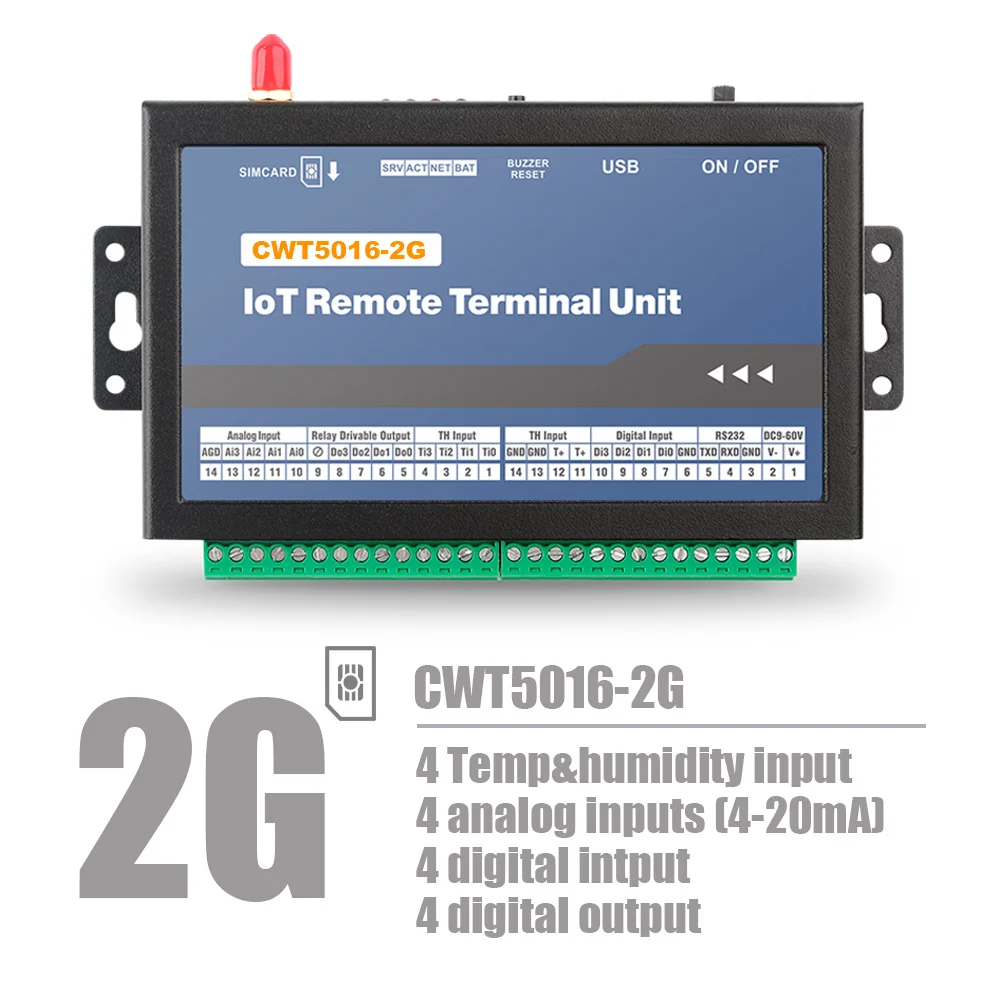

Wireless Network | Either GPRS (option: 3G/4G, need simcard) or Wi-Fi (Not need simcard) GSM/GPRS (4 band 850/900/1800/1900Mhz) Option: WCDMA (3G), FDD LTE(4G) module Wi-Fi, 802.11 b/g security WEP/WPA/WPA2 | |
GPS module | Optional | |
SIM/UIM | Standard user card interface | |
Terminals | 2×14pin 3.81mm spacing, pluggable | |
Working temperature | -30℃～+70℃ | |
Battery | lithium-polymer, 500mAh/3.7V，life:8-20 hours | |
Dimension | 130×80×25mm | |
Housing | providing IP30 protection | |
Antenna | Standard SMA female interface (50Ω) | |
Working humidity | Relative humidity 95% | |
Weight | 390g | |
