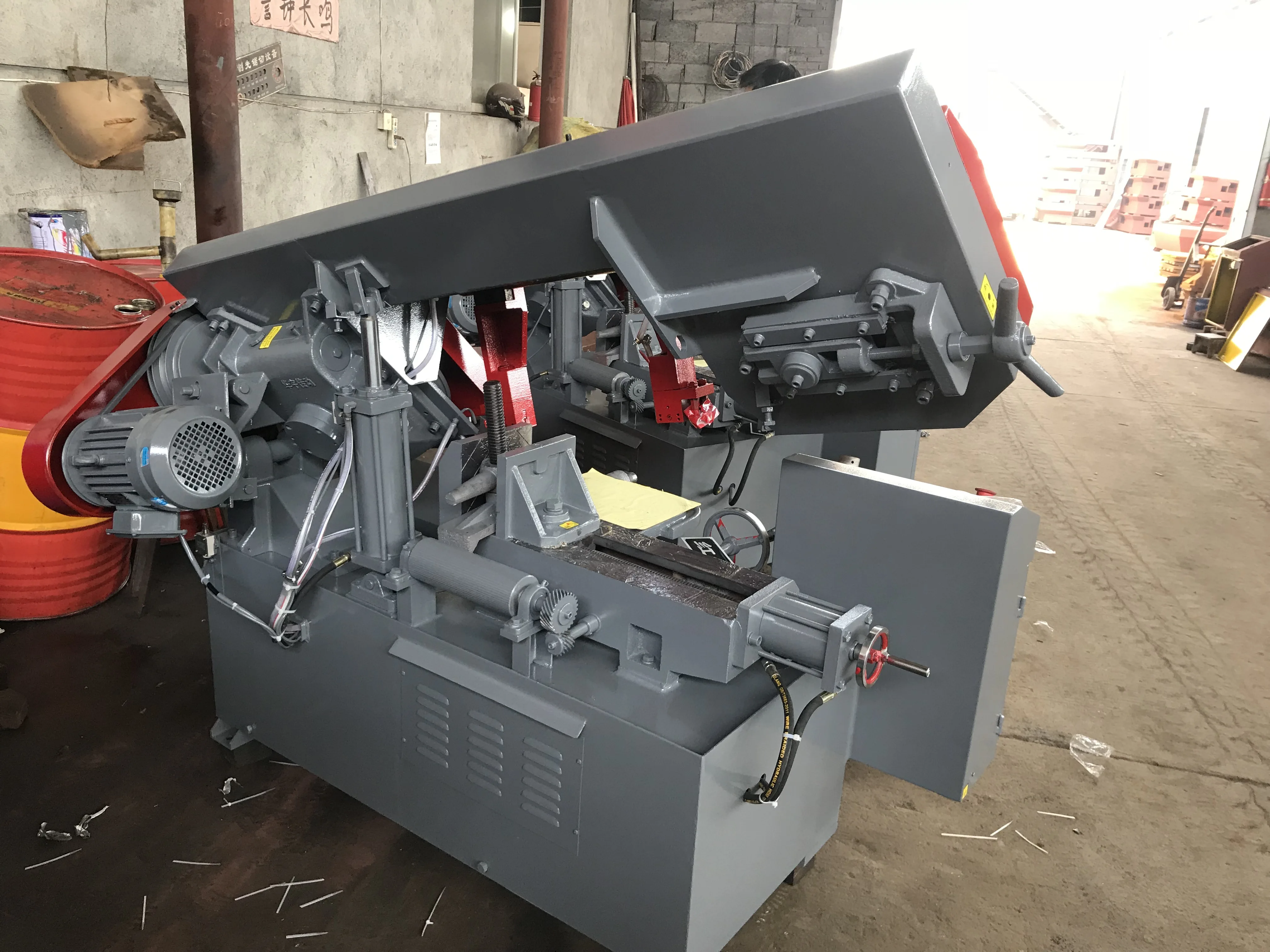

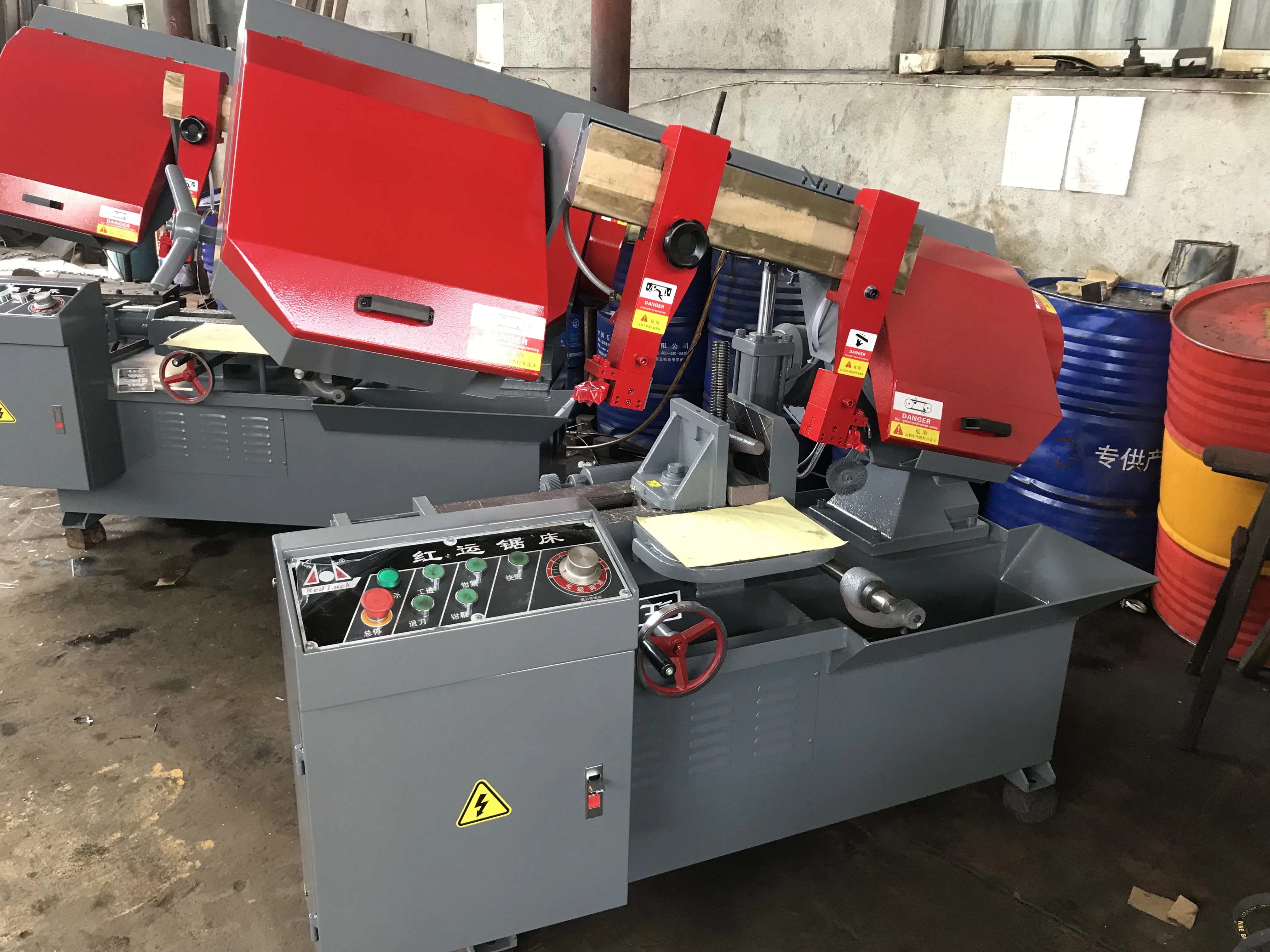

Horizontal Metal cutting Band saw machine

Model

G4028

Max. Cutting Diameter

Round: 280

mm

Plate: 190*400

mm

Blade Speed

25.46.79

m/min

Blade Size

0.9*27*3505

mm

Motor Output

2.2

kw

Hydraulic Pressure

0.37

kw

Coolant Pump

0.04

kw

Table height

600

mm

Machine Size(L*W*H)

1800*800*1230

mm

Net Weight

800

kg

Vice clamping

Hydraulic

Blade tensioning form

Maunal

Feeding cut adjust way

Hydraulic stepless

Feeding way

Manual

Hydraulic cooling way

Wind cooling

Chip conveyor way

Manual

Voltage

380V 50HZ 3Phase
