Diesel forklift 20/40 feet container handler price
- Category: >>>
- Supplier: Xiamen Runtx Machinery Co. Ltd.
Share on (62014692088):
Product Overview
Description
Products Description

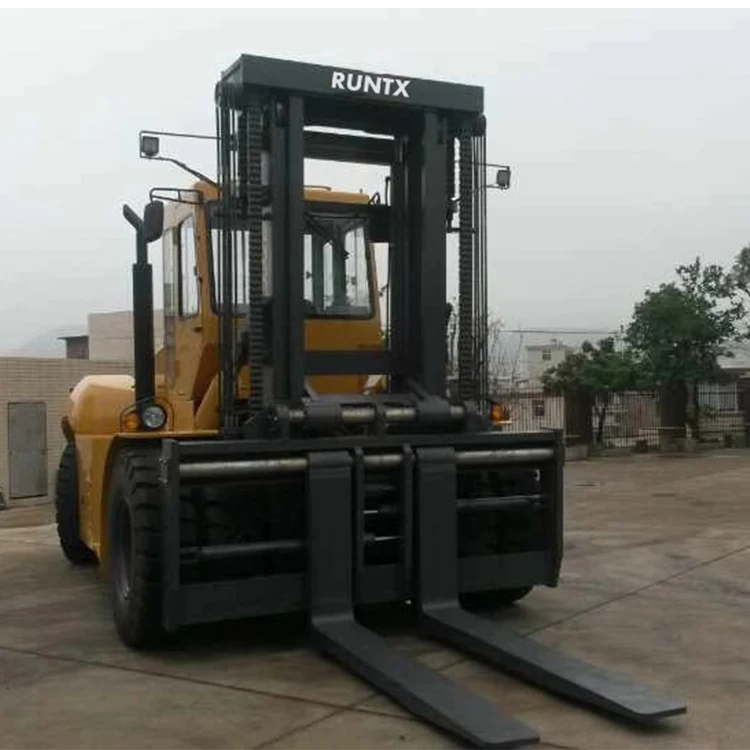

diesel forklift 20/40 feet container handler price
Item | Description | Unit | CPCD200 | CPCD250 | CPCD300 | CPCD320 | CPCD350 |
Features | Rated load | kg | 20000 | 25000 | 30000 | 32000 | 35000 |
Load centre | mm | 1250 | 1250 | 1250 | 1250 | 1250 | |
Wheelbase | mm | 4000 | 4000 | 4800 | 4800 | 4800 | |
Weight | Weight | kg | 26000 | 33500 | 38000 | 40000 | 42000 |
Chassis | Tire Speas:Front | 14.00-24-20PR | 14.00-24 | 14.00-24-32PR | 14.00-24-32PR | 16.00-25 | |
Tire Speas:Rear | 14.00-24-20PR | 14.00-24 | 14.00-24-32PR | 14.00-24-32PR | 16.00-25 | ||
Tire Qty,front/rear (X-drive wheels) | 4/2 | 4/2 | 4/2 | 4/2 | 4/2 | ||
Wheel tread:front | mm | 2200 | 2200 | 2430 | 2430 | 2430 | |
Wheel tread:raed | mm | 2130 | 2130 | 2230 | 2230 | 2230 | |
Dimensions | Mast/carriage tilt angle (front/rear) | Deg | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
Mast height (fork lowering) | mm | 3500 | 3970 | 4150 | 4150 | 4150 | |
Mast lifting height | mm | 3500 | 4000 | 4000 | 4000 | 4000 | |
Max.height | mm | 5220 | 5940 | 6120 | 6120 | 6120 | |
height to head guard(height to cab) | mm | 3300 | 3440 | 3460 | 3460 | 3460 | |
Overall height （with forks) | mm | 8000 | 8950 | 9760 | 9760 | 9760 | |
Fork front verticaal sueface to the rear end of the vehicle | mm | 6000 | 6550 | 7360 | 7360 | 7360 | |
Overall width | mm | 2930 | 3060 | 3360 | 3360 | 3360 | |
Fork dimension | mm | 2200*220*100 | 2400*300*100 | 2400*320*120 | 2400*320*120 | 2400*320*120 | |
Fork carriage width | mm | 2500 | 20800 | 3000 | 3000 | 3000 | |
Mast min ground (with load) | mm | 270 | 350 | 400 | 400 | 400 | |
Wheelbase center min ground(with load) | mm | 350 | 420 | 460 | 460 | 460 | |
Min.turning Radius | mm | 5600 | 6160 | 6900 | 6900 | 6900 | |
Travel speed(with load/without load) | km/h | 26/30 | 25/230 | 25/28 | 25/28 | 25/28 | |
Performanc | Max.lifting speed(with load/without load) | mm/s | 260/270 | 260/270 | 260/280 | 260/280 | 260/280 |
tractionn | kn | 140 | 160 | 200 | 200 | 200 | |
gradeability(with load/without load) | 20/22 | 20/22 | 20/20 | 20/20 | 20/20 | ||
Driving brake | % | Hydraulic clamp disc | Hydraulic clamp disc | Hydraulic clamp disc | Hydraulic clamp disc | Hydraulic clamp disc | |
Engine | Engine brand/model | emission 111 | Weichai Engine | Weichai Engine | Weichai Engine | Weichai Engine | Weichai Engine |
WP10G220E343 | WP10G220E343 | WP10G220E341 | WP10G220E341 | WP10G220E341 | |||
emission 11 | Dongfeng cummins | Dongfeng cummins | Dongfeng cummins | Dongfeng cummins | Dongfeng cummins | ||
6CTA8.3-C215 | 6CTA8.3-C215 | 6CTA8.3-C260 | 6CTA8.3-C260 | 6CTA8.3-C260 | |||
emission 111 | Dongfeng cummins | Dongfeng cummins | Dongfeng cummins | Dongfeng cummins | Dongfeng cummins | ||
QSC8.3-C215 | QSC8.3-C215 | QSC8.3-C260 | QSC8.3-C260 | QSC8.3-C260 | |||
Cylinder No. | 6 | 6 | 6 | 6 | 6 | ||
Others | Transmission gears(Front/rear) | 2/2 | 2/2 | 2/1 | 2/1 | 2/1 |
Details
1.The cabin tipping operation is convenient for maintenance and inspection of the forklift
2. Reliable structure design, through finite element analysis, kinematics, dynamics simulation calculation and harsh fatigue, vibration and other tests, to ensure that the structure of the whole forklift is reliable and durable
3. Reliable power system, using Yuchai, Weichai, Cummins, VOLVO and other well-known brands of engines, reliable quality, strong power, combined with advanced power matching and control technology, power performance has been greatly optimized
4. Quick-couple technology of attachments to realize efficient operation under different working conditions
5. Comfortable operating environment, wide field of vision, and all operator-centered human-computer interaction environments can effectively relieve fatigue
6. The pilot valve is used to control the distribution valve and the oil circuit of the working device, and the operation is light and flexible
7. Standard cast iron counterbalanced weight
2. Reliable structure design, through finite element analysis, kinematics, dynamics simulation calculation and harsh fatigue, vibration and other tests, to ensure that the structure of the whole forklift is reliable and durable
3. Reliable power system, using Yuchai, Weichai, Cummins, VOLVO and other well-known brands of engines, reliable quality, strong power, combined with advanced power matching and control technology, power performance has been greatly optimized
4. Quick-couple technology of attachments to realize efficient operation under different working conditions
5. Comfortable operating environment, wide field of vision, and all operator-centered human-computer interaction environments can effectively relieve fatigue
6. The pilot valve is used to control the distribution valve and the oil circuit of the working device, and the operation is light and flexible
7. Standard cast iron counterbalanced weight
Special Customized Service
The counterbalanced forklift independently developed by RUNTX is stable, reliable, safe and efficient. It has developed a series of products with different load capacity from 10 tons to 35 tons, and provides a variety of attachments and various mast frames. Customers are free to choose and strive to meet customer needs.
We provide the following products, which can be freely matched, and can also be customized for customers
Mast
Duplex stage full free mast
Duplex stage full free mast
Duplex stage full free mast
Triplex stage full free mast
Attachment
Container handler attachment
Container handler attachment
Roll prong attachment
Grab clamp attachment
Bucket
Test before delivery
After the assembly is completed, our engineers will conduct test operations to ensure that our equipment meets the standards and is perfect

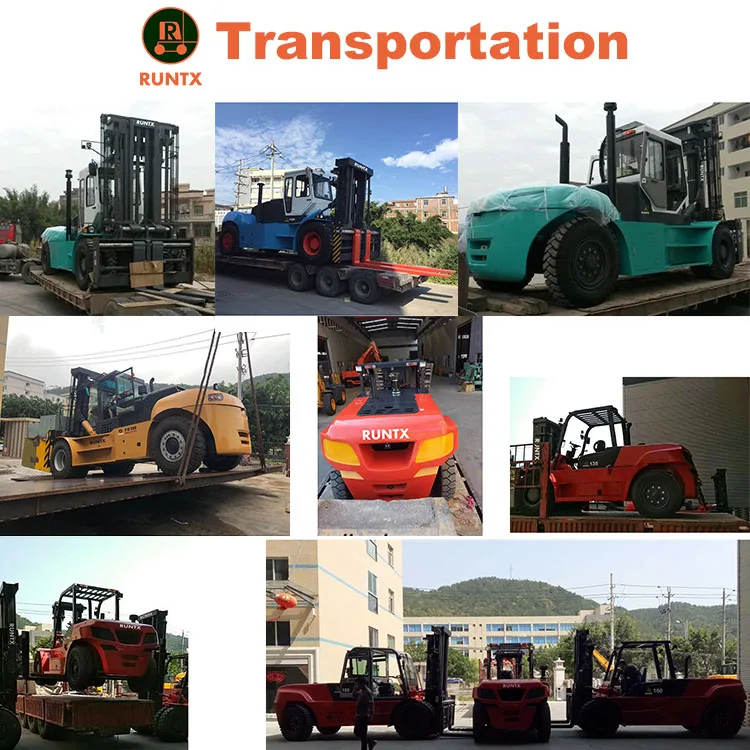

Packaging and Shipping
Production Workshop
Company Profile
RUNTX Machinery Group was established in 2006. We have small tonnage forklifts, heavy duty forklifts, port equipments, warehouse equipments factories in China. Which are specialized in the manufacturing, sale, after sales service and R&D of construction and engineering machinery.
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
Company history
The permit of sale: June, 2006
The date of conerstone:July, 2006
The permit of completion:October, 2006
The permit of manufacturing:December, 2006
ISO9001:2008 Quality Management System Certificate: March, 2007
