Air Cylinder Driving Force(Air Pressure at 0.49MPa)

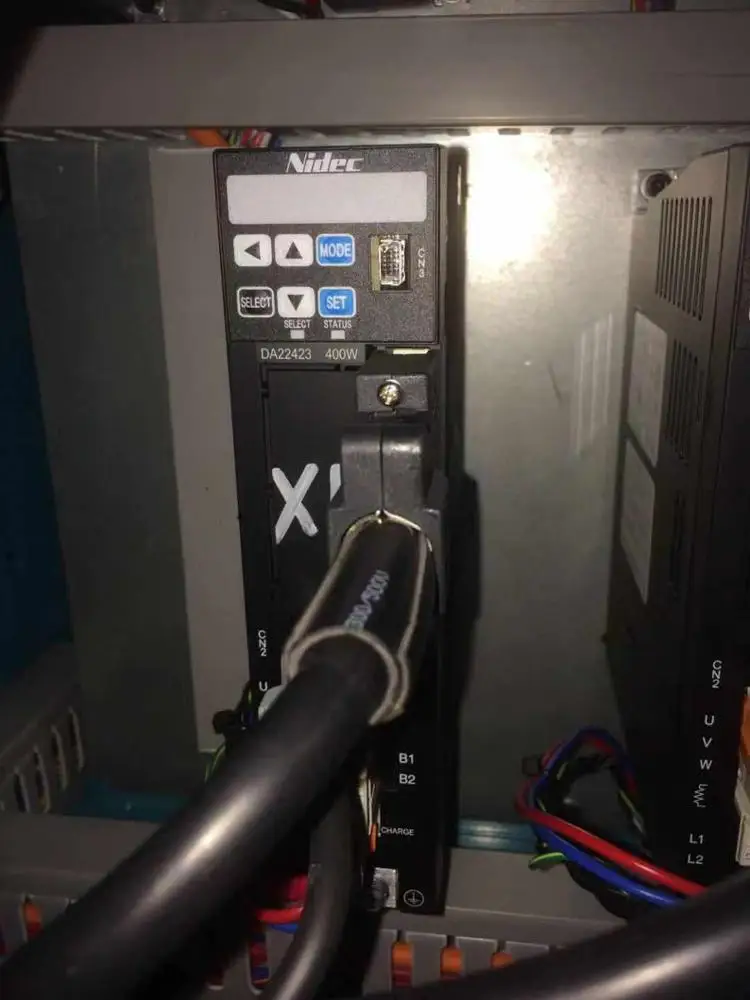

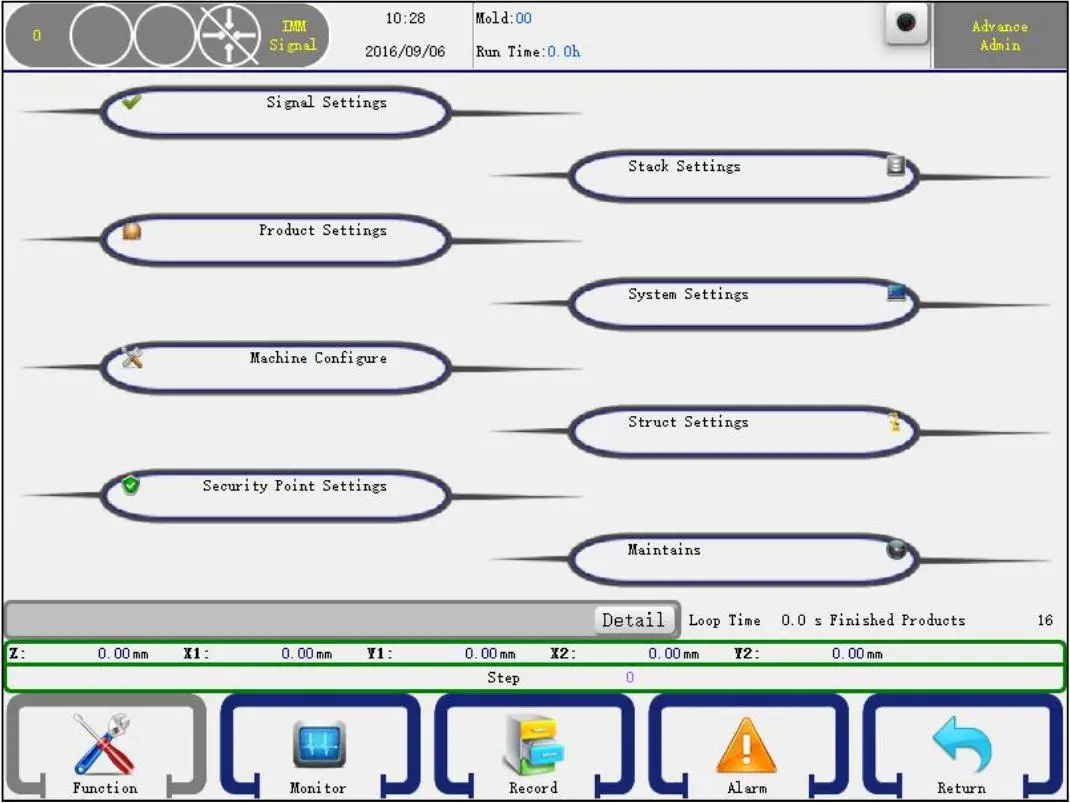

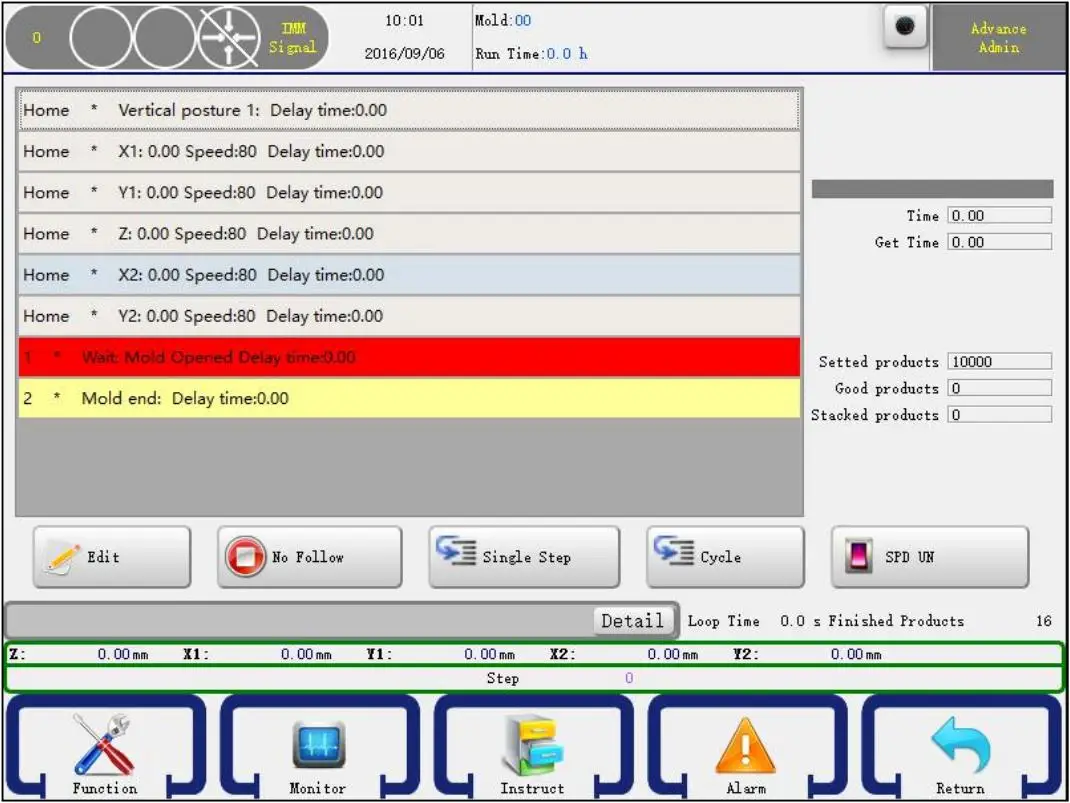

Control Box
Max Load,lncl.Chuck Weight
Posture Torque
AC220V±10% 50/60Hz
0.49MPa
AC Servo Motor
90°
5Kg
4.97N-m
SPEC-FA1
GENERAL SPECIFICATIONS
Model
Stroke(mm)
Electric Consumption(KVA)
Max Power Consumption(KW)
Net Weight(Kg)
Air Consumption
(NL/cycle)
(1)Vertical
(2)Vertical
(1)Crosswise
Traverse
Main Body

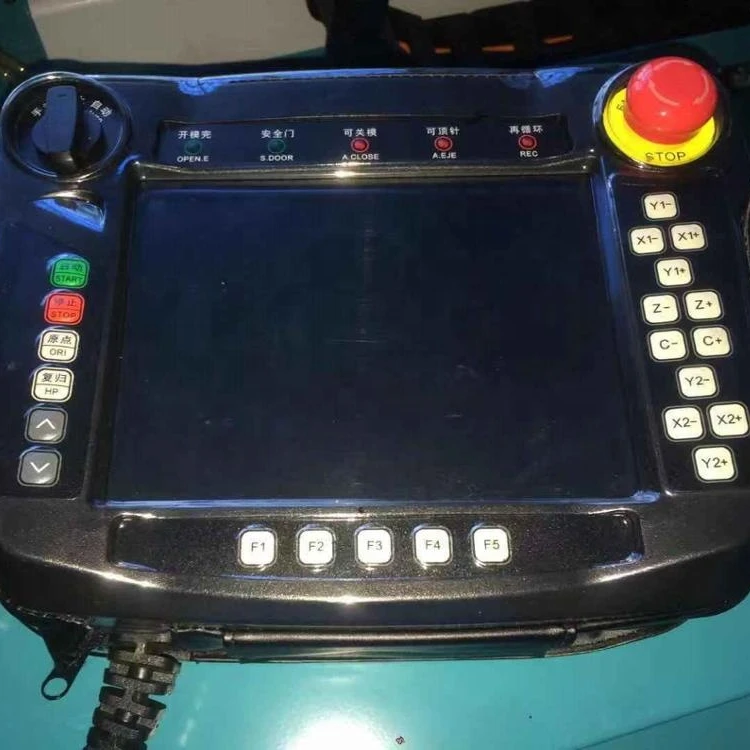

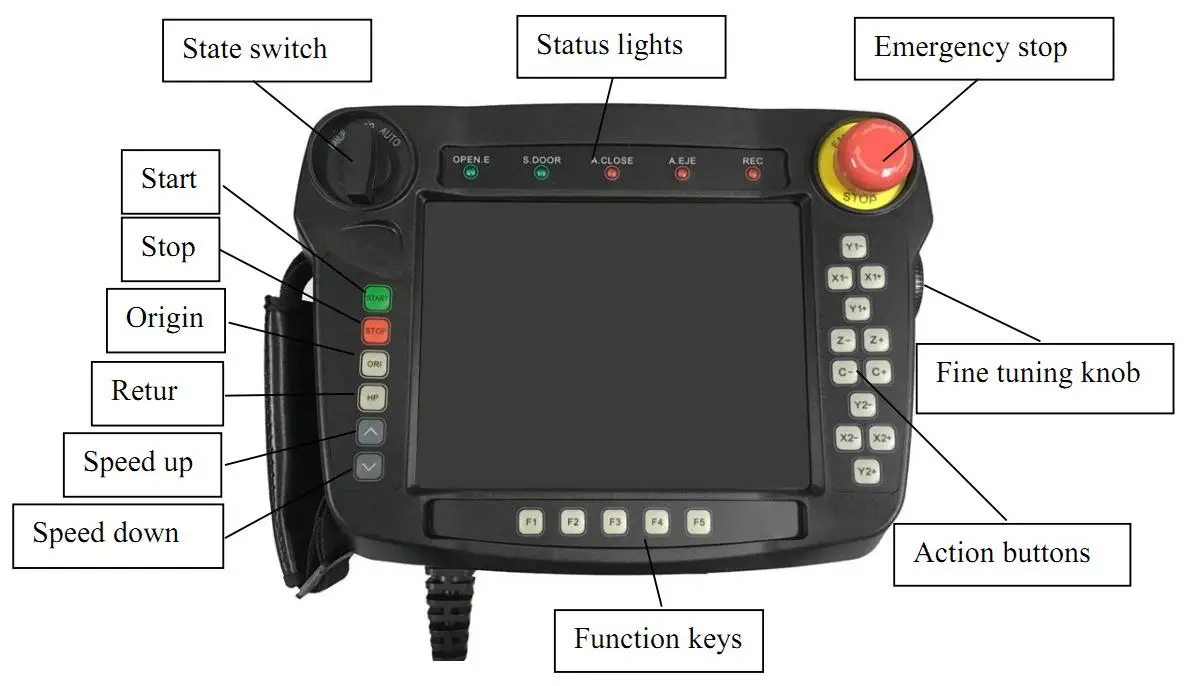

Pendant
KM-700
700
-
(1)275-800 (2)175-700
1400 (1200) <1600>
2.00
1.00
252
1.68
2.93
KM-700S
750
3.20
1.70
297
KM-800
800
-
2.00
1.00
253
KM-800S
850
3.20
1.70
298
KM-900
900
-
2.00
1.00
254
KM-900S
950
3.20
1.70
299
Figure in () <> shows option stroke.
Net weight includes the weight of interlock box and drive box.
In the column of stroke, (1)stands for product side arm and (2)stands for runner side arm.
As per setting of parameter,max.load may be over 5kg

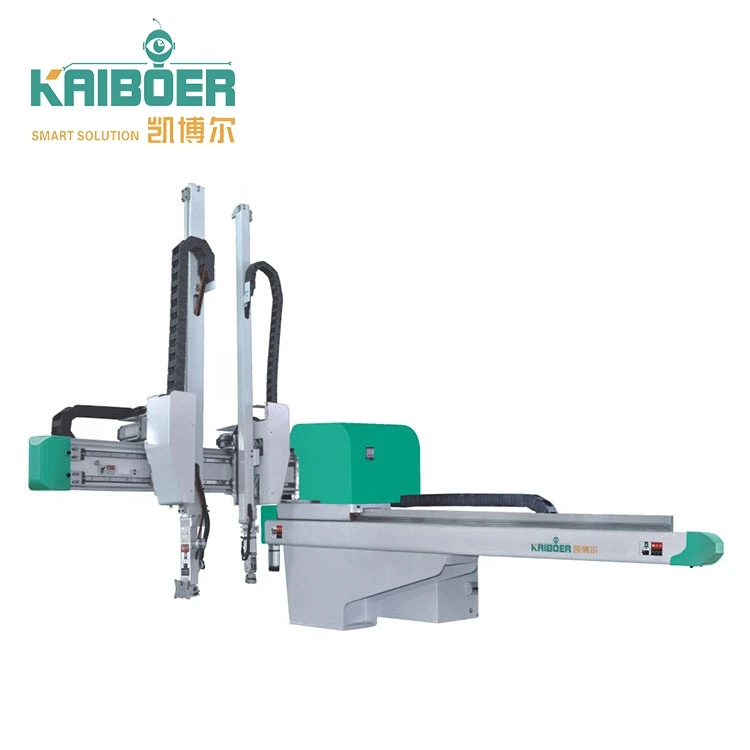

Product features
Precision
Traverse movement is driven by heavy duty servo motor with cooperation of precise linear guide rails and high power V belts; Fast,silent, and precise. Wrist mechanism employs pneumatic driven rack and pinion system, which accomplishes smooth, stable and precise flipping motion. Vertical arm(s) with telescopic design efficiently minimizes the cycle time and height of the robot.
Safety
High efficient shock absorbers allow fast and precise pneumatic driven motion. Drop proof locking mechanism prevents accidences due to malfunction of pneumatic source. Position limit sensors and blocks effectively prevent mechanical and electrical malfunctions. Control board is designed to CE EMC test with short circuit and noise proof functions.
Convenience
Vertical and kick displacements can be adjusted simply by changing the position limit blocks in easy directions. Control board fixtures are designed with flyer structure which provides benefit to maintenance. Cable drag chains help with cable management and ease for maintenance.
