Taidacent Exercise Posture Correction Multi point Pressure Sensor Insole Plantar Pressure Measurement FSR Gait Analysis Sensor
- Category: Sensors >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (62014962020):
Product Overview
Description

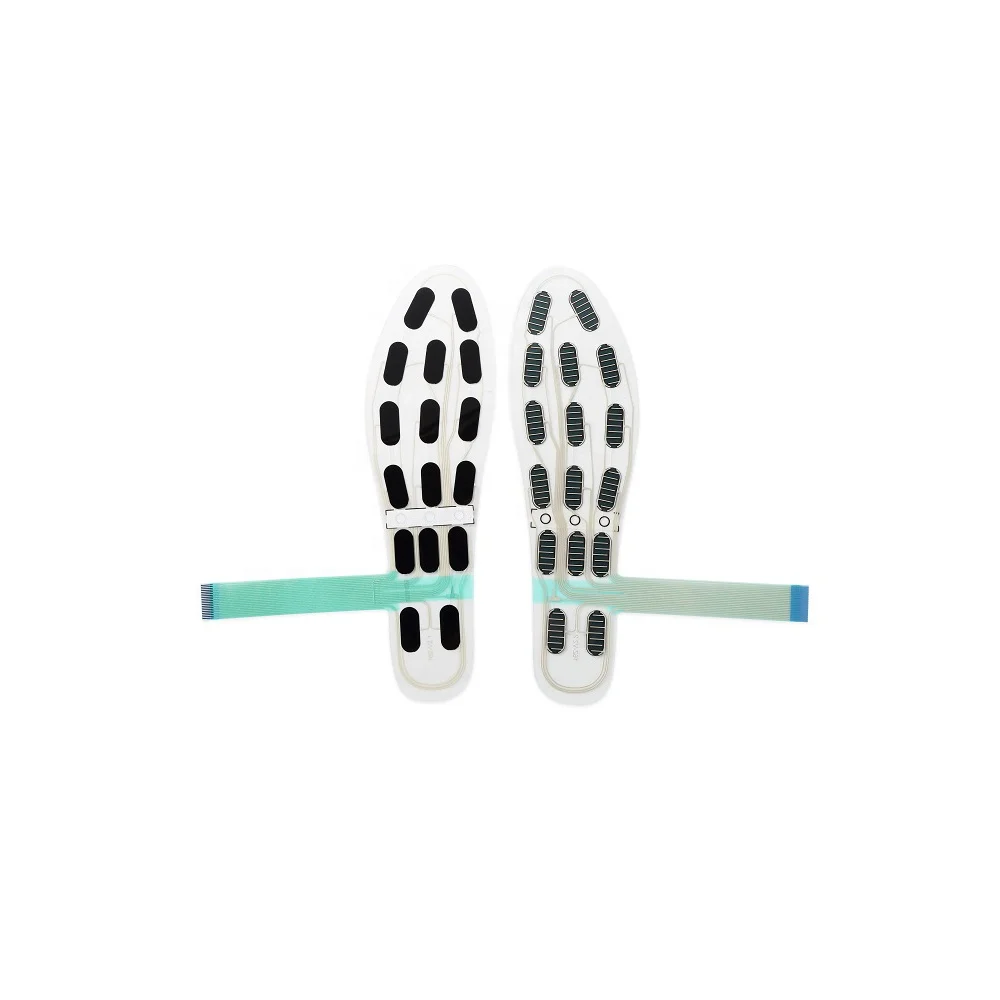

Taidacent Exercise Posture Correction Multi-point Pressure Sensor Insole Plantar Pressure Measurement FSR Gait Analysis Sensor
Products Description

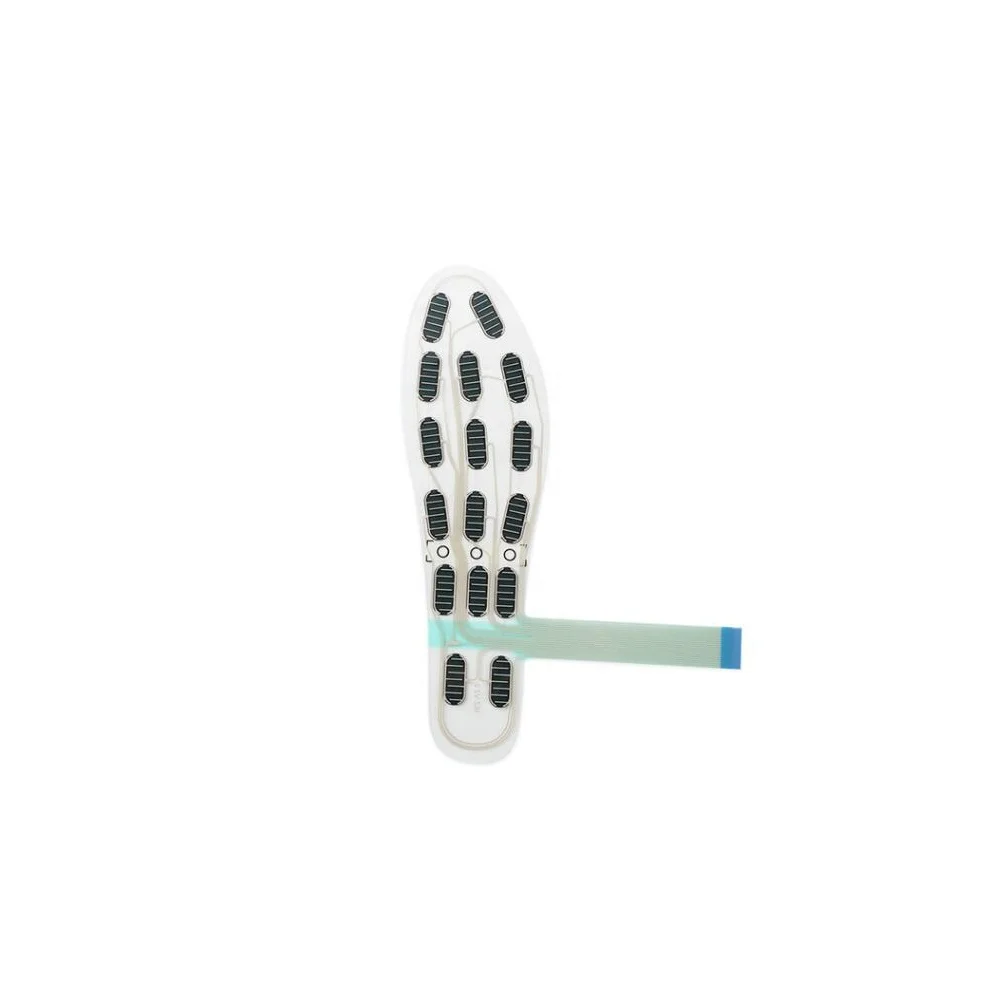

The plantar pressure sensor is a flexible membrane pressure sensor with 16 independent sensing areas, and the output resistance of the sensing area changes with the external pressure.

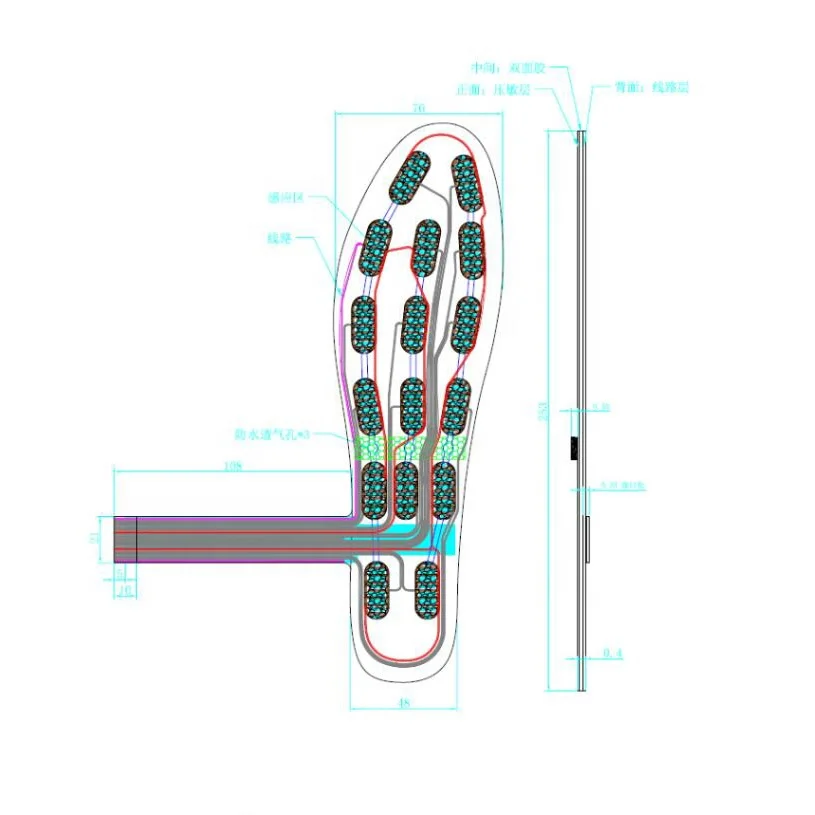

Reasonable layout of the sensing area, the interface has a total of 20 interface leads. The interface leads use a 1mm pitch, 10Pin, 0.3mm thickness plug interface. There are 2 common lines, 16 independent leads in the sensing area, and 2 vacant lines.
The plantar pressure sensor is composed of a polyester film with excellent comprehensive mechanical properties, a highly conductive material and a nano-scale pressure-sensitive material. The bottom layer is the flexible film and the conductive layer laminated on it, and the top layer is the flexible film and the pressure-sensitive material laminated on it. The two are bonded with double-sided tape and isolate the sensing area of the upper and lower layers. When the sensing area is under pressure, the lines separated from each other by the bottom layer are turned on, and the output resistance of the metal port changes accordingly with the pressure.
The sensor has excellent waterproof function, waterproof grade IP67.
Reasonable layout of the sensing area, the interface has a total of 20 interface leads. The interface leads use a 1mm pitch, 10Pin, 0.3mm thickness plug interface. There are 2 common lines, 16 independent leads in the sensing area, and 2 vacant lines.
The plantar pressure sensor is composed of a polyester film with excellent comprehensive mechanical properties, a highly conductive material and a nano-scale pressure-sensitive material. The bottom layer is the flexible film and the conductive layer laminated on it, and the top layer is the flexible film and the pressure-sensitive material laminated on it. The two are bonded with double-sided tape and isolate the sensing area of the upper and lower layers. When the sensing area is under pressure, the lines separated from each other by the bottom layer are turned on, and the output resistance of the metal port changes accordingly with the pressure.
The sensor has excellent waterproof function, waterproof grade IP67.
Product Paramenters
Thickness | 0.4mm |
Style | thin, flexible |
Trigger force | 500g |
Pressure range | 0.5Kg~10kg, soft head |
Pressure action mode | Soft touch and press |
Resistance when not triggered | Resistance when not triggered |
Activation time | Less than 10mS |
Operating temperature | -20℃~+65C |
Durability | more than 1 million times (daily walking, under normal use) |
The use range of resistance | about 50K~150K ohm, |
Response time | <10ms |
Whether waterproof | IP67 |
Drift | IP67 |
Electromagnetic interference EMI | No |
Electrostatic discharge | EDS is not sensitive |

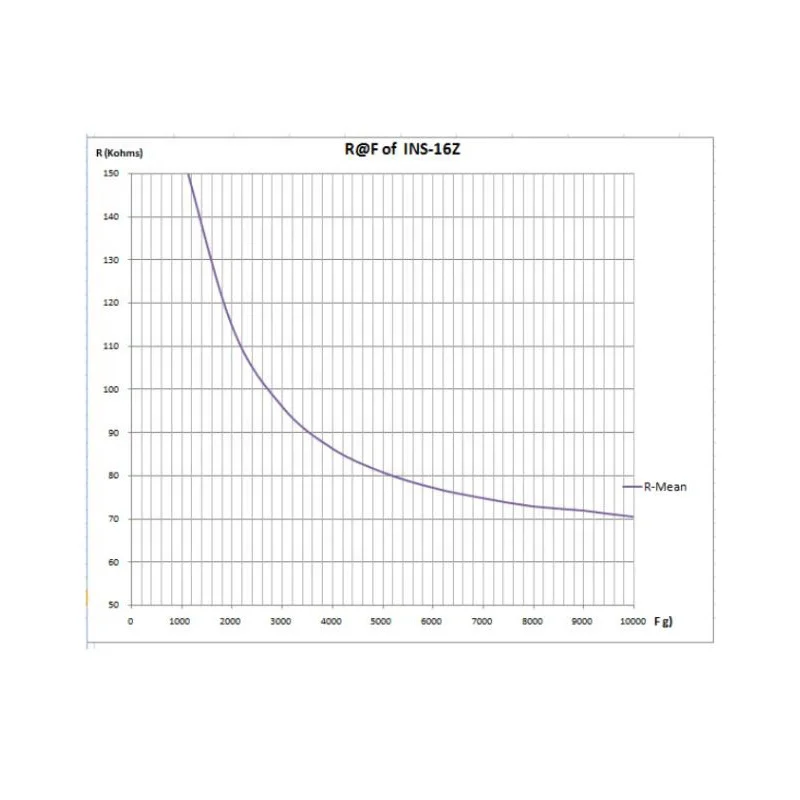

Product pressure resistance characteristics
*Note: The test data is obtained under specfic test conditions and is for reference only. When the sensor is used, the user must make corresponding adjustments according to the specific use and environment.

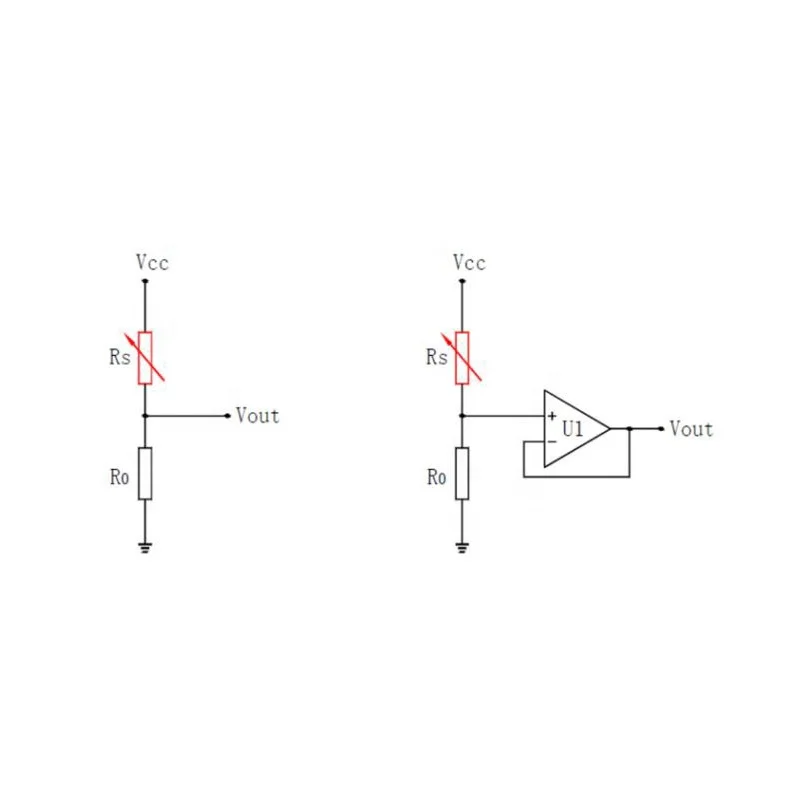

Application circuit description
Sensor output information can be obtained by connecting fixed resistors of about 3K~5KOHM in series and capturing the voltage changes across the fixed resistors.
NOte:
The above information is considered correct and is intended for professional end users who have the ability to correctly evaluate and use these data.Details Images
