High frequency curved plywood bending foam press machine can be used for bending all kinds of plywood, MDF, HDF boards, such as office chair, desk, sofa arm, bed slats, panel furniture, bed heads, cabinet door face, musical instruments as well as other plywood elements. For solid wood bending is only suitable for big radius of curvature products, such as chair banks, chair legs, bed heads or musical instrument pieces.

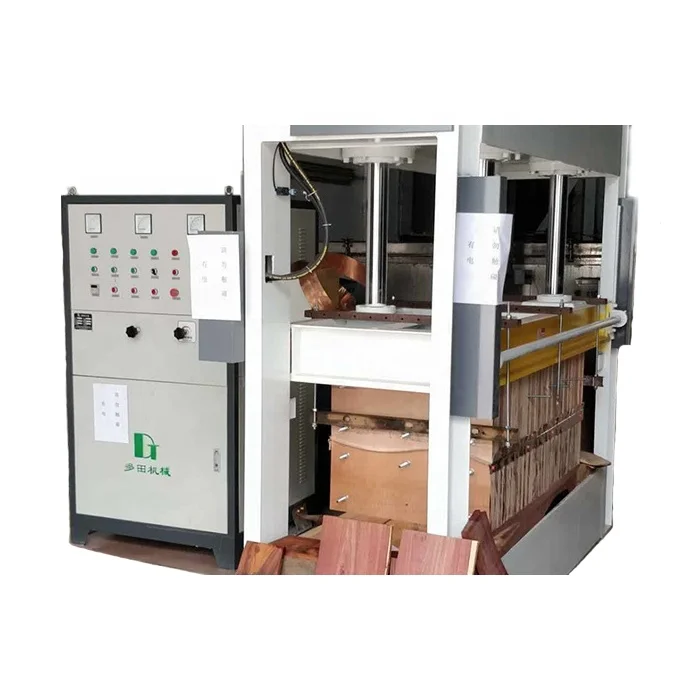

Pictures - High frequency curved plywood bending foam press machine
Features
High frequency dielectric heating fast & uniform, curing glue in 2 to 3 minutes;
Wooden molds saving costs, less heat loss, easy operation and changing;
After bending, stable shape and keep shape;

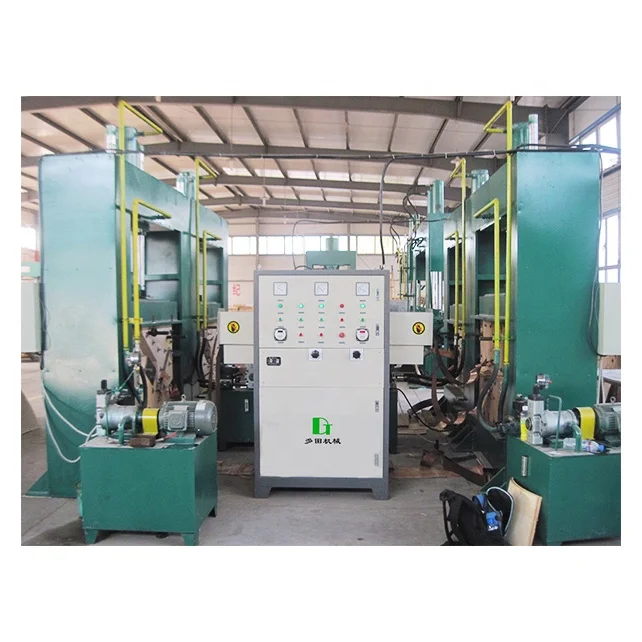

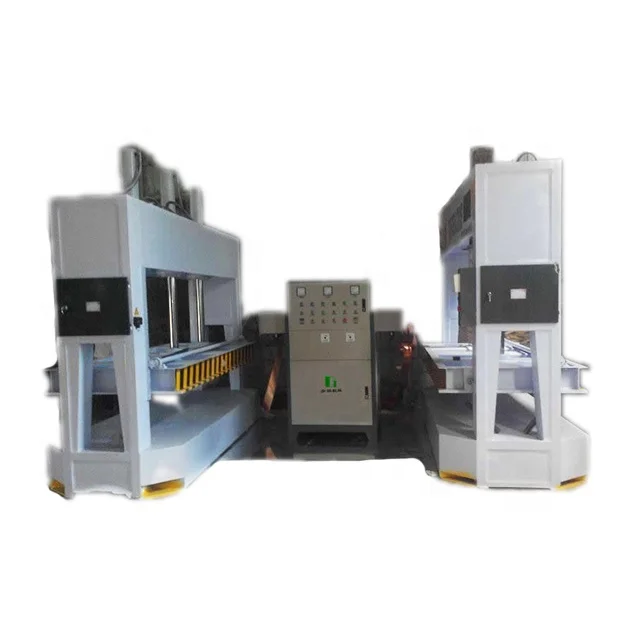

2 sets of presses shift to work. While one is working, the other one is ready to loading. High efficiency;
Environmental friendly, no pollution;
10 years of production experience, multiple safeties & protections.
Finished products
1 way high frequency curved plywood bending form press machine
Model
GYJ-60-DT
GYJ-80-DT
GYJ-120-DT
GYJ-150-DT
HF Frequency
6.78MHz
HF Power
20kw
20kw
30kw
50kw
Worktable
1200*600mm
1600*800mm
2000*1000mm
2500*1250mm
Pressure
60T
80T
120T
150T
Outputs
2 outputs, shift to work
Protections
Filament 2 grades warming up, over current, air pressure, over heating, door switch protections
3 ways high frequency curved plywood bending form press machine
Model
GYJ-116-DT
GYJ-140-DT
HF Frequency
6.78MHz
HF Power
20kw
30kw
Worktable
1600*800mm
1600*800mm
Vertical Pressure
100T
80T
Side Pressure
2*8T
2*30T
Outputs
2 outputs, shift to work
Protections
Filament 2 grades warming up, over current, air pressure, over heating, door switch protections
Company Profile
Shijiazhuang Duotian Machinery Co., Ltd. is a professional manufacture specialized in developing, designing and producing high frequency dielectric heating and hydraulic pneumatic equipment. The main products are: HF generator, HF wood bending press machine, HF hot press machine, HF precision frame assembly machine, HF wood angle jointing machine, HF board jointing machine, HF board and frame assembly machine, HF musical instrument gluing equipment , HF vacuum wood dryer, and other special HF heating equipments.
