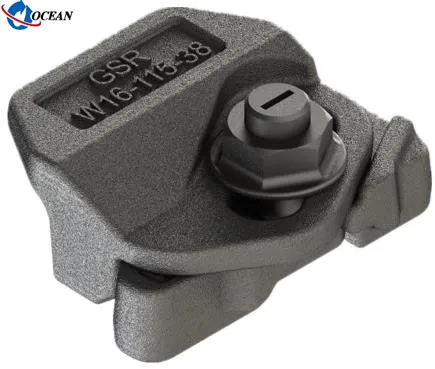

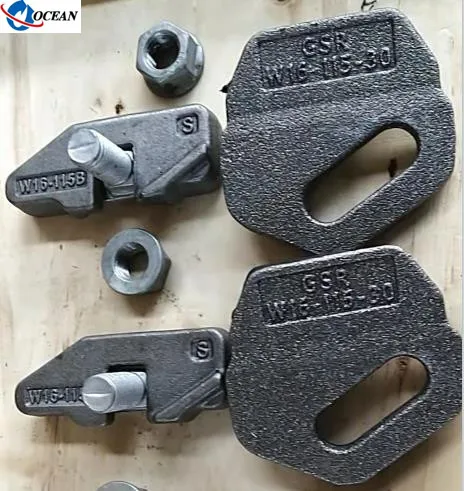

GSR W16 115 Crane Rail Clip
- Category: Railway Parts & Accessories >>>
- Supplier: Tianjin Ocean Mechanical & Electrical Equipment Co. Ltd.
Share on (62015216630):
Product Overview
Description
Product Description

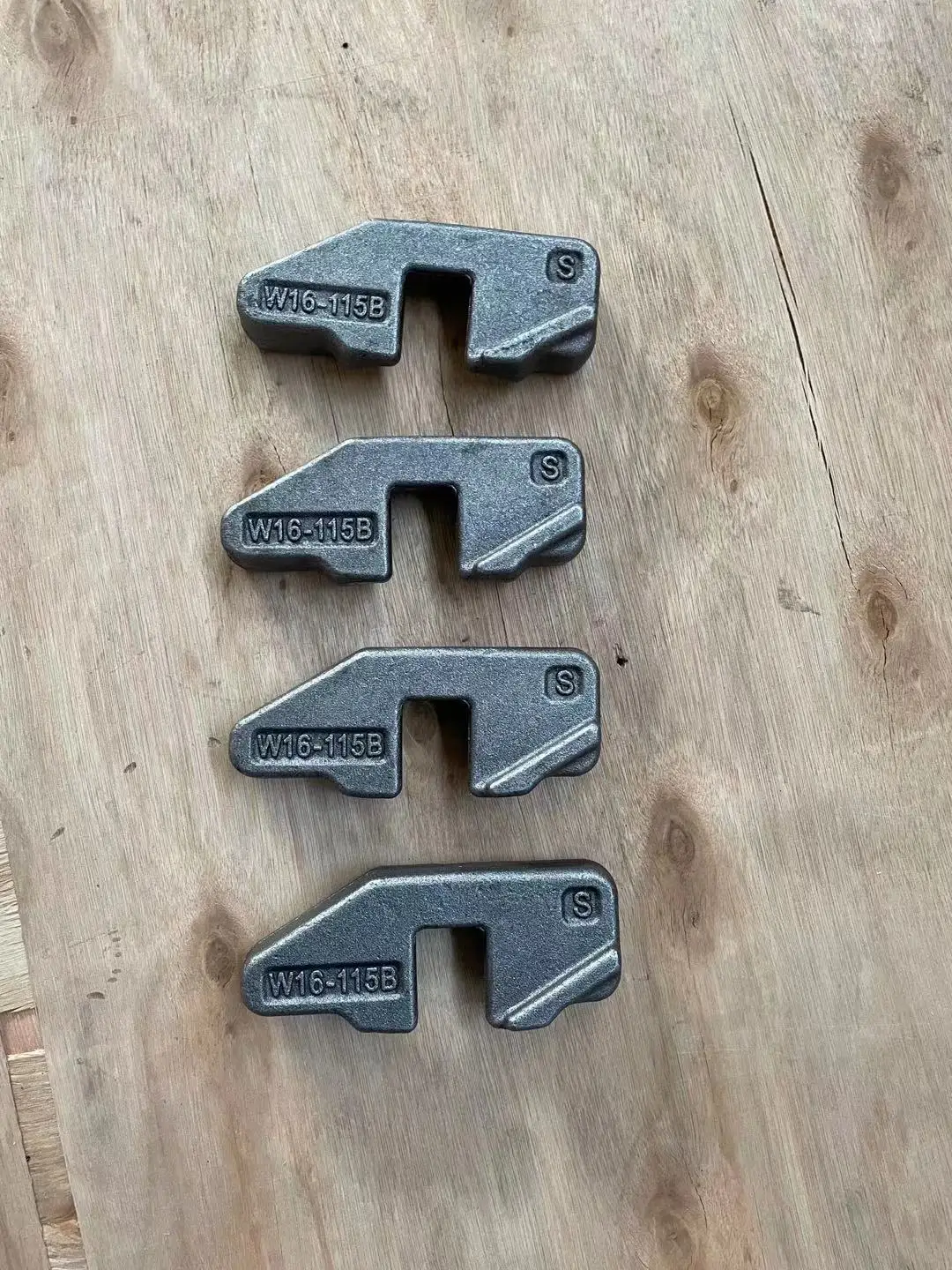

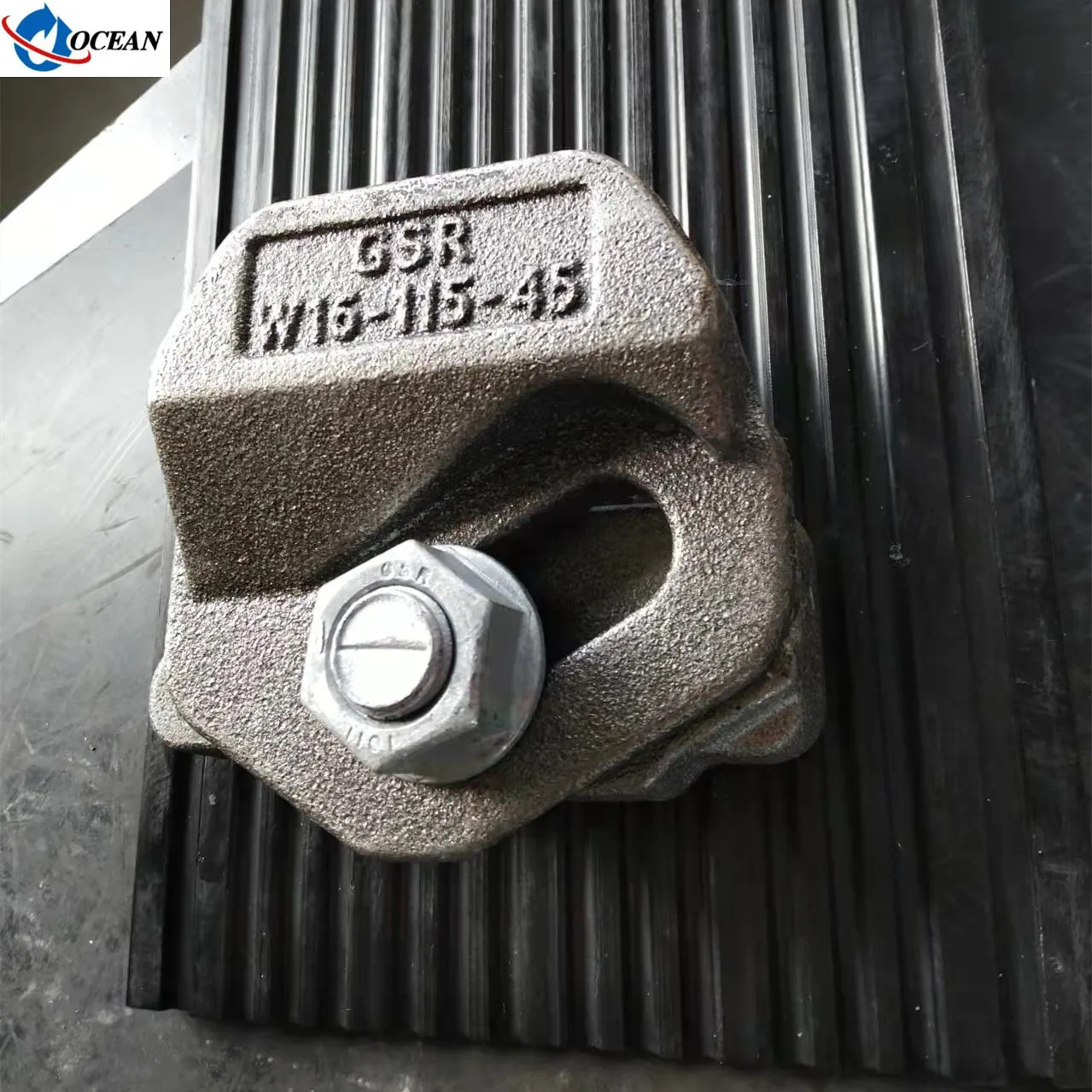

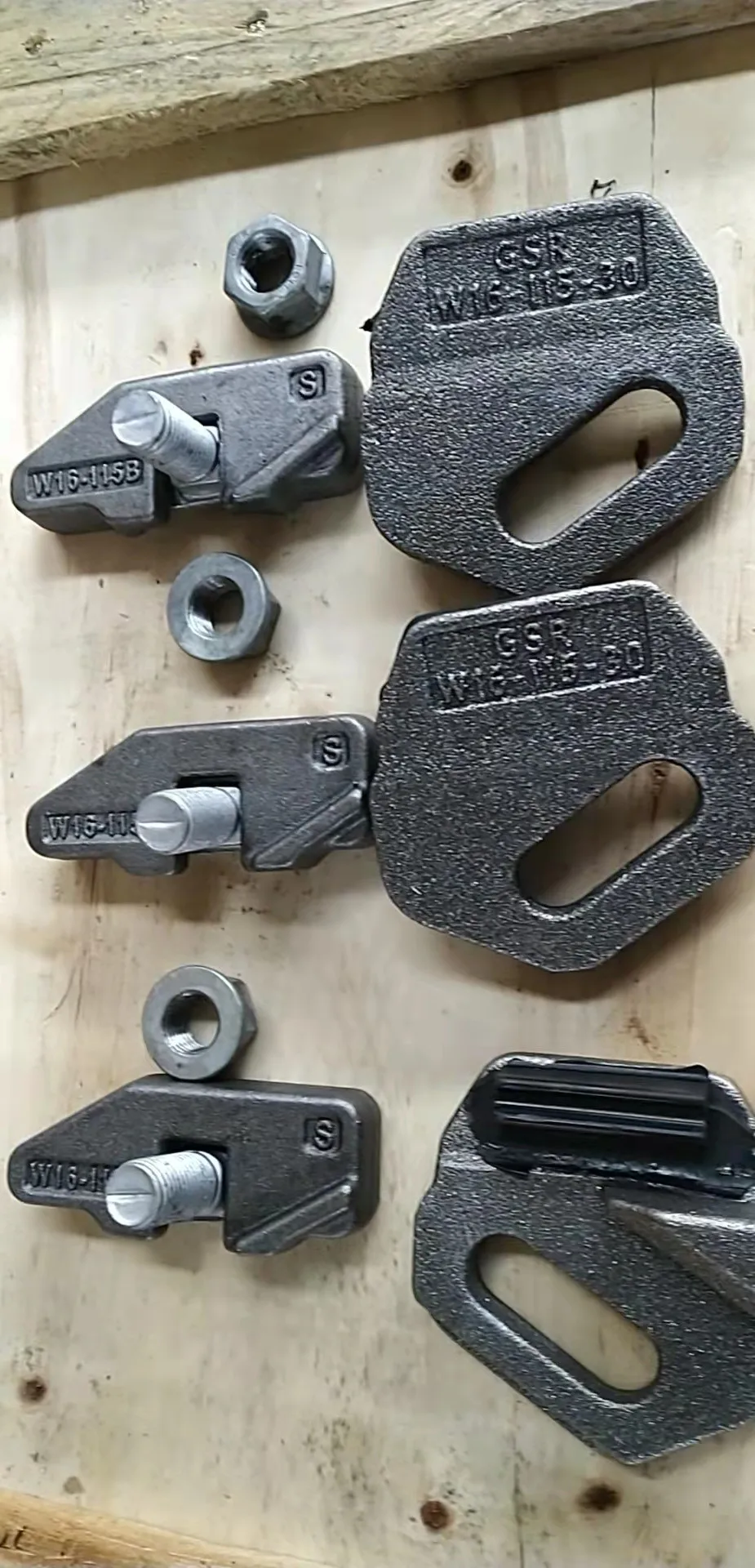

W16-115
GSR Welded Base Fixing
The GSR W16-115 adjustable crane rail clip is designed to fix heavy rails, on narrow steel plate, in the most arduous applications. It can withstand a horizontal force from the rail of 125kN. GSR Welded Base Fixing
Its low profile allows it to be used with cranes that are fitted with guide rollers.
Specification
Max side load : 125kN
Horizontal rail adjustment : 15mm
TIGHTENING TORQUE 220Nm

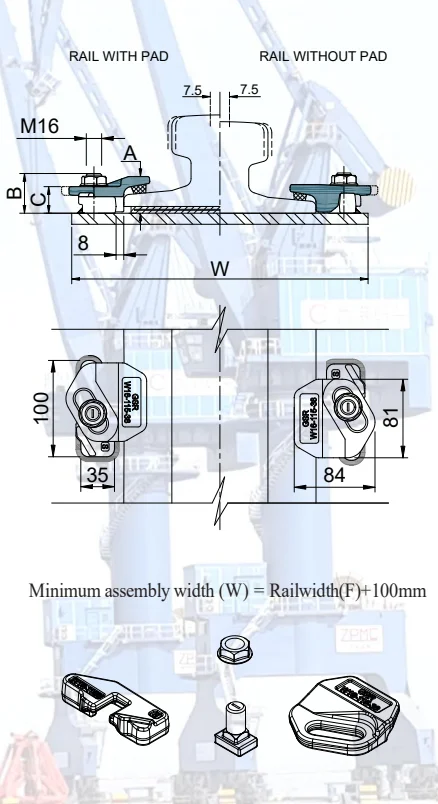

DIMENSIONS (mm):
REF NO. | A | B | C | WEIGHT(KG) |
W16-115-30 | 30 | 47 | 29 | 0.85 |
W16-115-38 | 38 | 47 | 29 | 0.92 |
W16-115-45 | 45 | 47 | 29 | 0.98 |

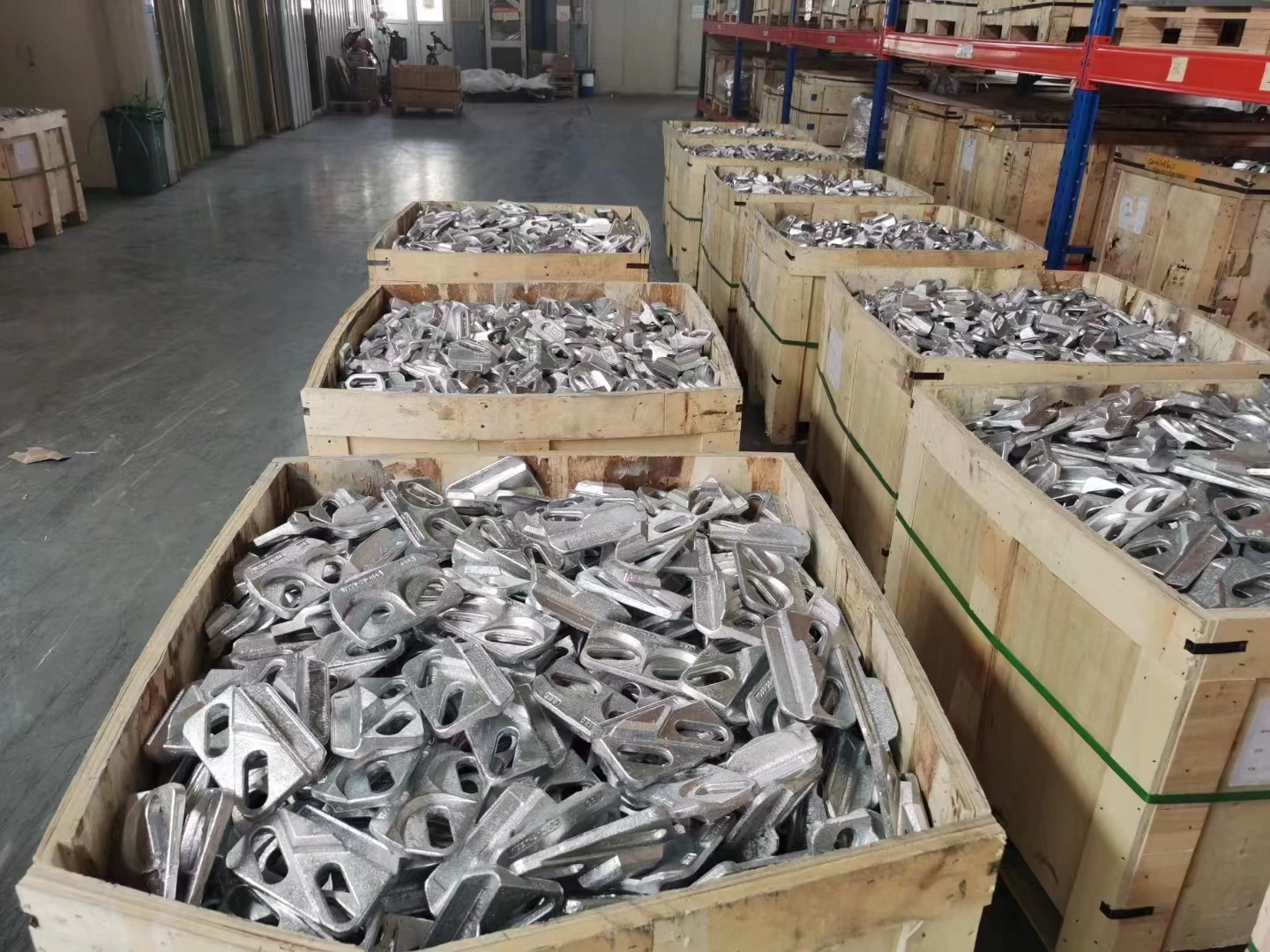

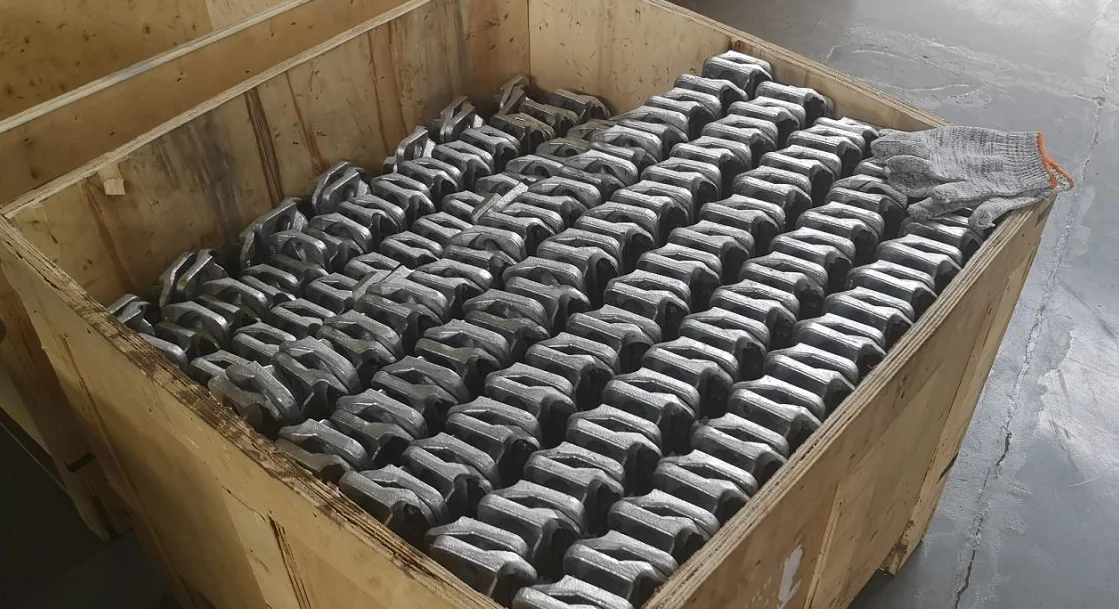

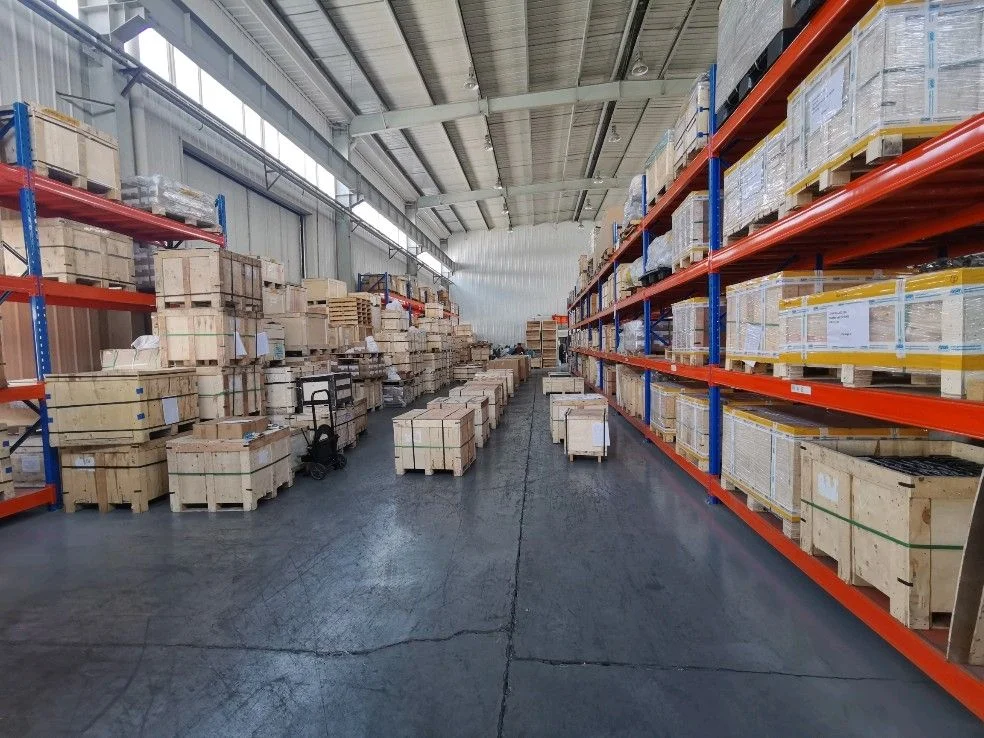

Packing & Delivery
Company Profile
Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Major Projects

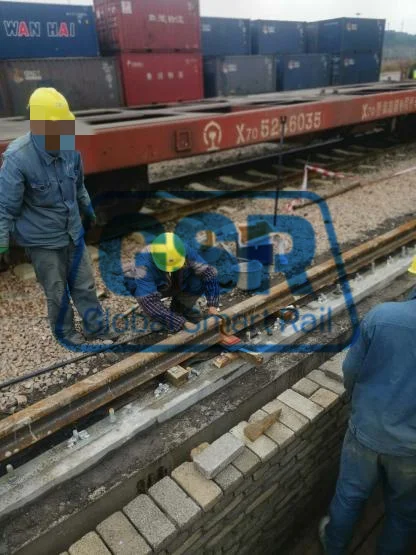

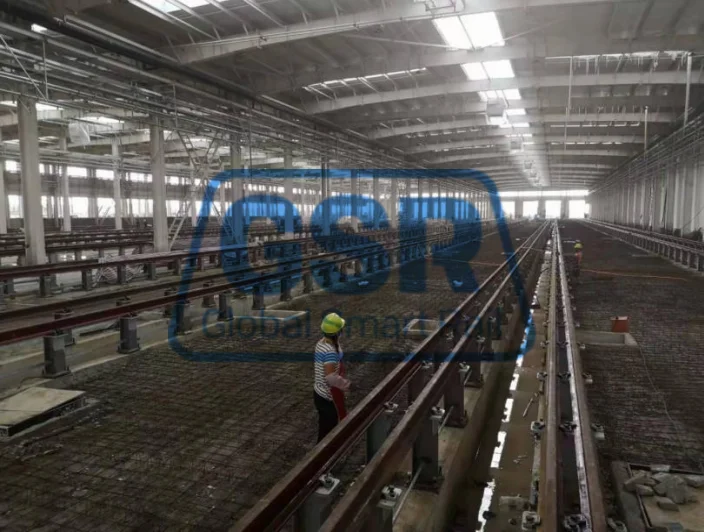

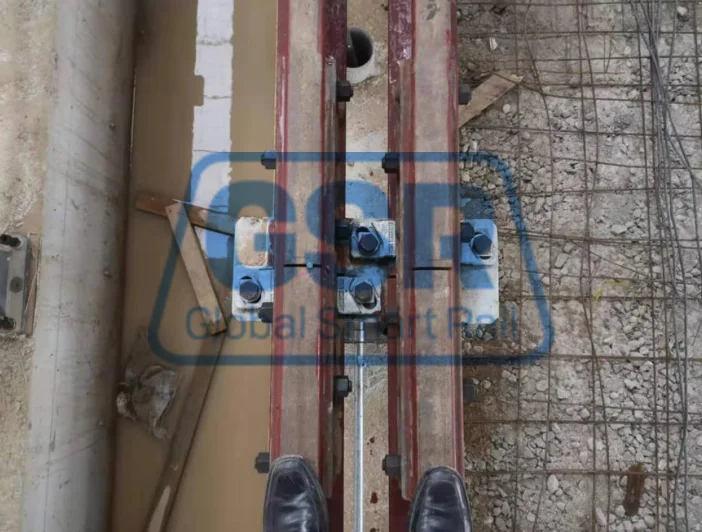

High Speed Railway Project
The GSR rail system product has been successfully applied in the high speed railway maintenance station. The project will promote our GSR products in the railway system.
The GSR rail system product has been successfully applied in the high speed railway maintenance station. The project will promote our GSR products in the railway system.
Supply: 508 meters of QU80 rail adopted GSR clips, pads and grout.
