best hvlp automatic paint gun for auto painting
- Category: >>>
- Supplier: PROWIN TOOLS COMPANY
Share on (62015588232):
Product Overview
Description
Product Description

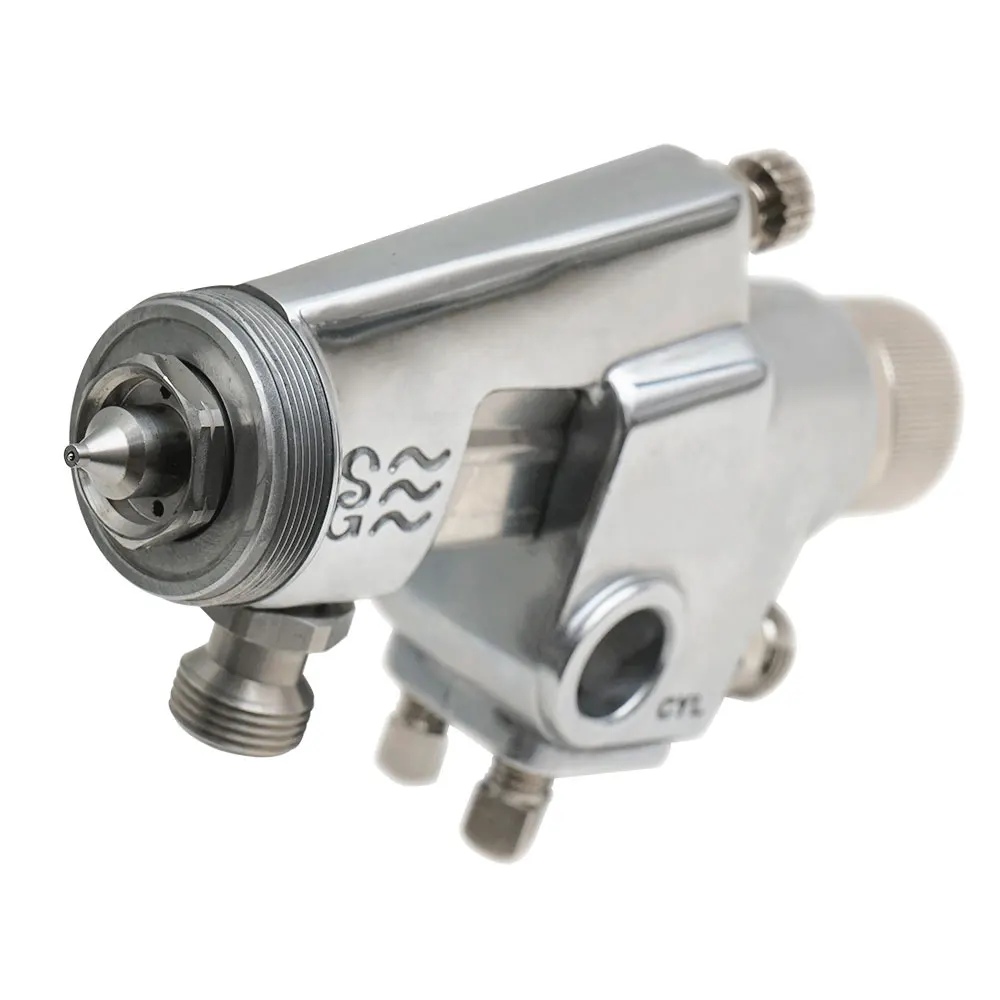

Best hvlp automatic paint gun
for auto painting
Automatic spray gun with excellent atomization, suitable for industrial, car refinishing and various professional painting.
KA-100 is conventional automatic spray gun, has great painting performance with pattern width 220~270mm, suitable for finishing and surface coating.
KA-200 is conventional automatic spray gun, offer wider spraying pattern width with 330~370mm.
KH-200 is a HVLP automatic spray gun, has up to 80% great transfer efficiency. It’s suitable for finishing and surface coating.

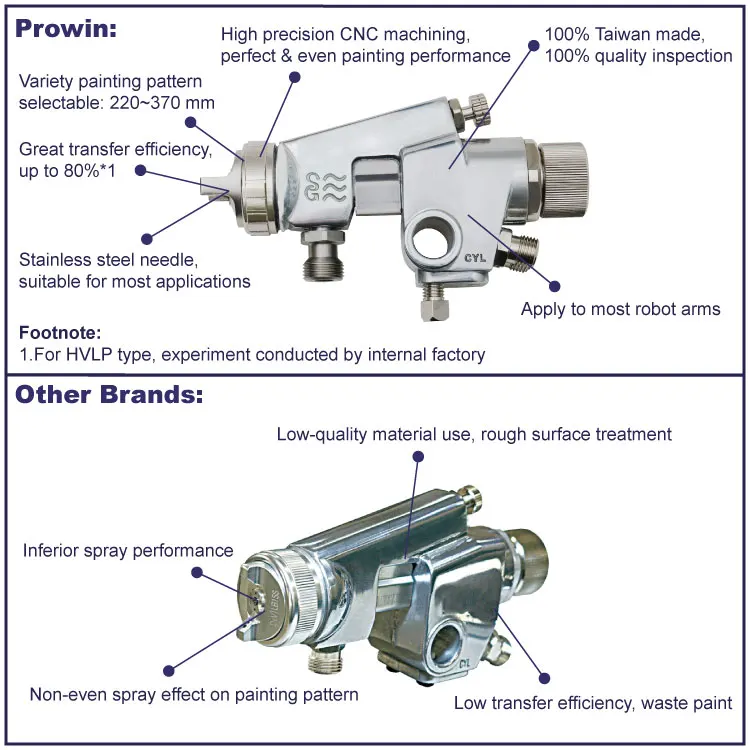

Why choose our Automatic Spray Gun?
l100% Taiwan made, 100% quality inspection
lHigh precision CNC machining, perfect & even painting performance
lVariety painting pattern selectable: 220~370 mm
lGreat transfer efficiency, up to 80%*1
lApply to most robot arms
lStainless steel needle, suitable for most applications
Footnote:
1. For HVLP type, experiment conducted by internal factory
Detailed Images
Product Description

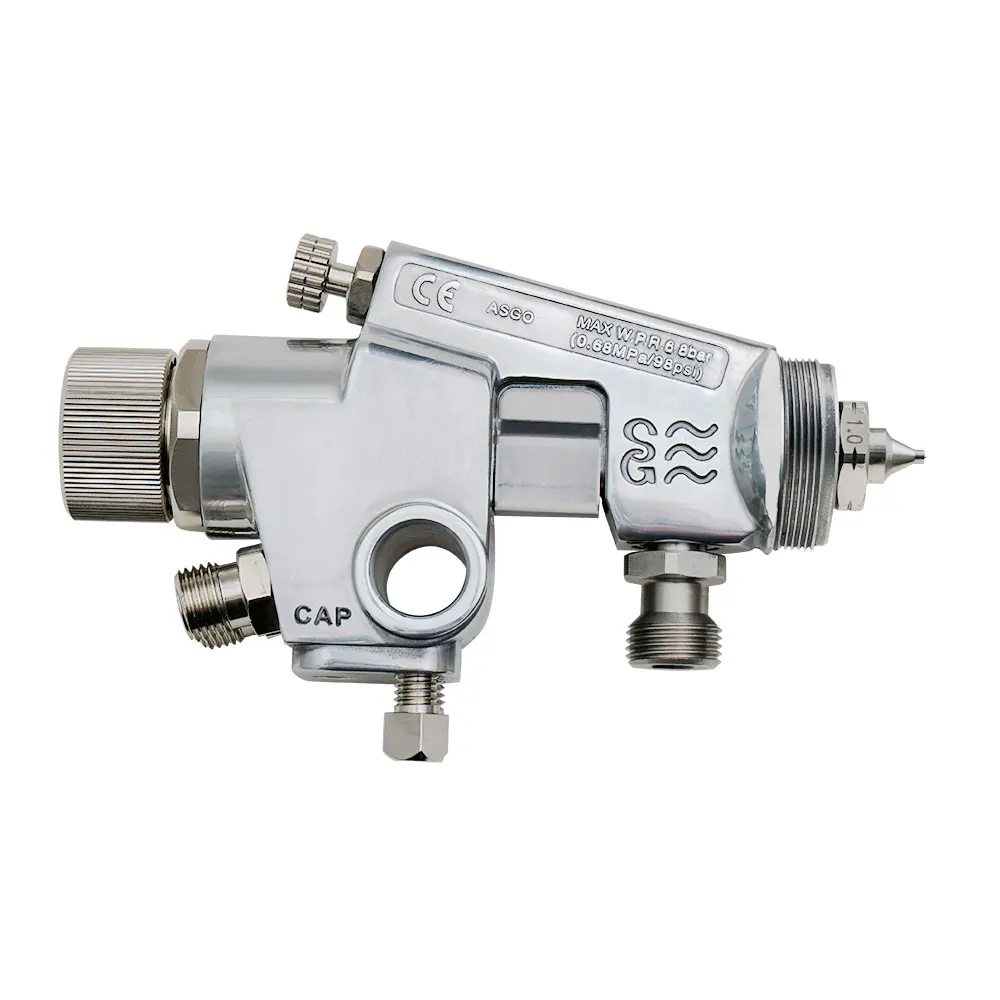

Front view

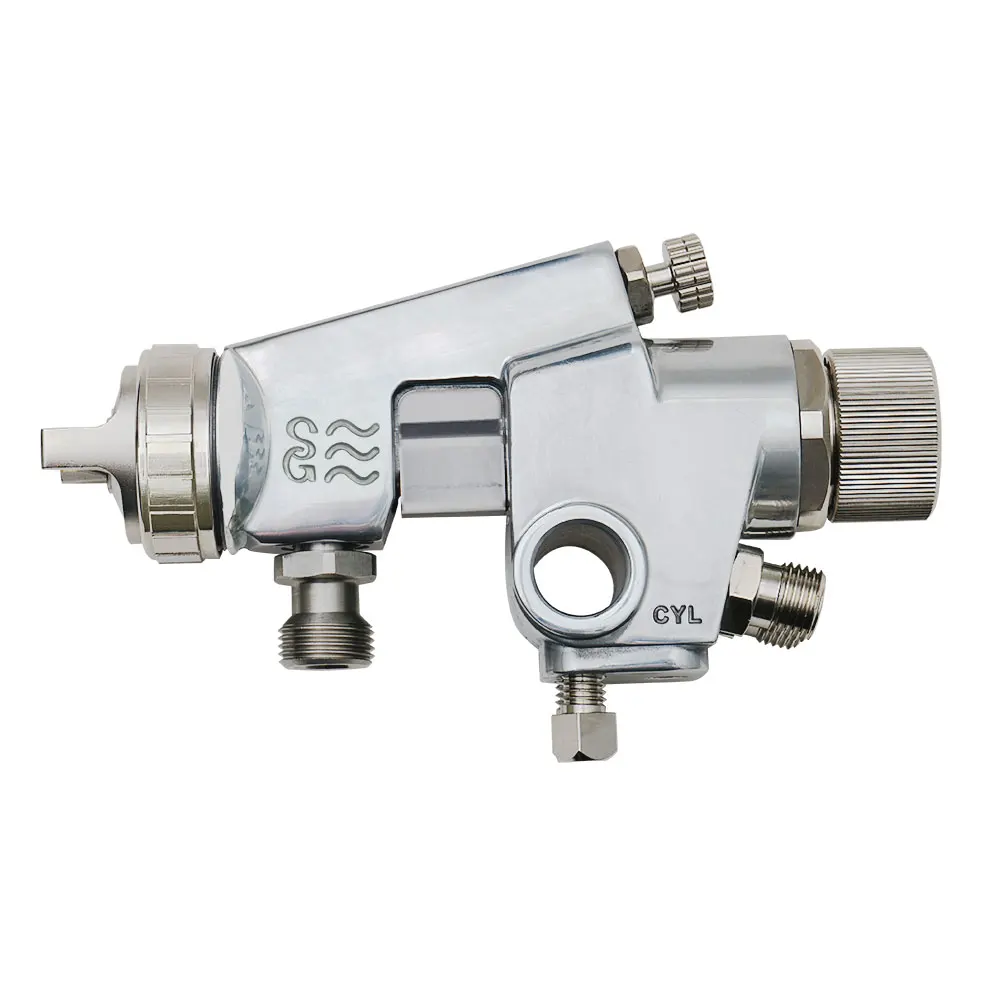

Back view

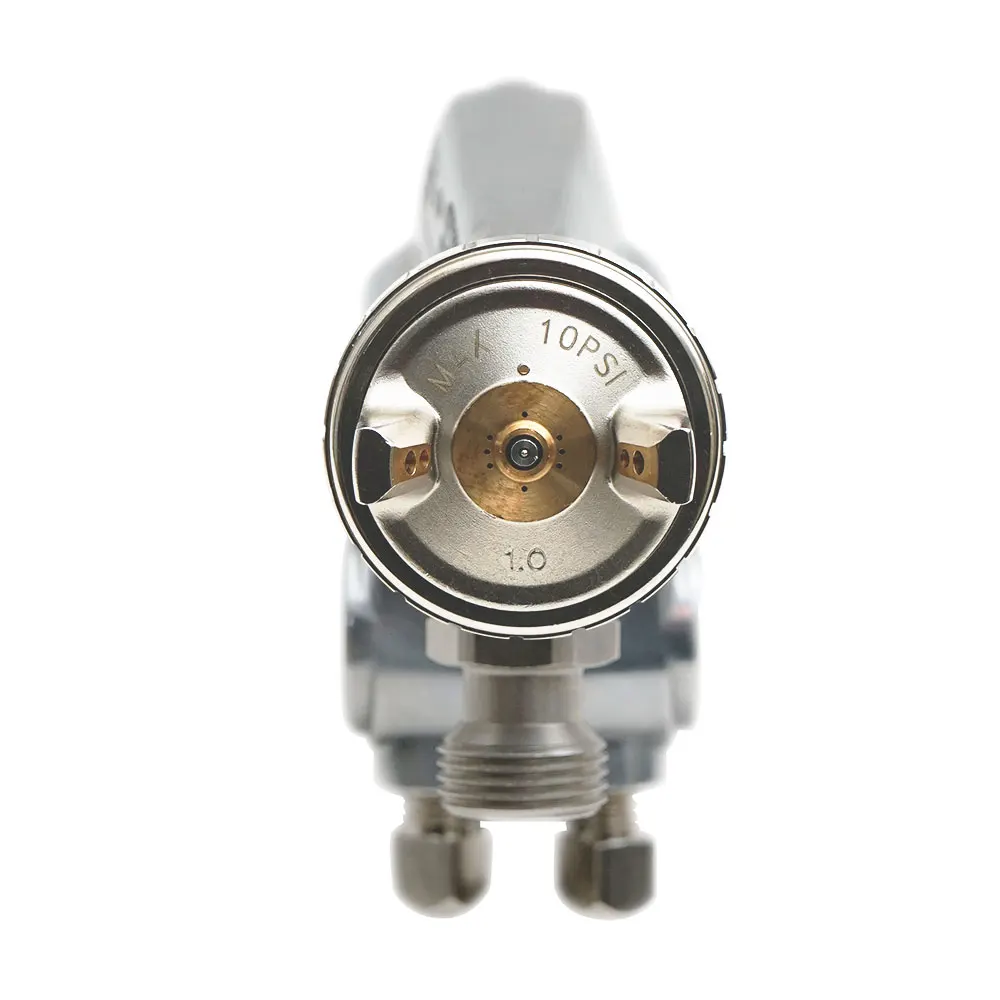

Nozzle view
Precision CNC machining, consistent and high transfer performance
Specification
KA-100 (WA-101)
Specification | Turn - up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
KA-100-08 | 0.8 mm | 170ml | 220 mm | 270 l/min | SG008-100A-08 | 0.8 mm |
KA-100-10 | 1.0 mm | 190 ml | 250 mm | 270 l/min | SG008-100A-10 | 1.0 mm |
KA-100-13 | 1.3 mm | 220 ml | 260 mm | 270 l/min | SG008-100A-13 | 1.3 mm |
KA-100-15 | 1.5 mm | 250 ml | 270 mm | 270 l/min | SG008-100A-15 | 1.5 mm |
| • Type : Pressure Feed • Cup Capacity : non • Fluid Inlet : 1/4" • Air Inlet : 1/4" | • Working Pressure : 30~45 psi • Standard Nozzle : 1.0 mm • Gun Weight : 524 gs |  | ||||
KA-200 (WA-200)
Specification | Turn - up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
KA-200-10 | 1.0 mm | 200ml | 330 mm | 270 l/min | SG008-200-10 | 1.0 mm |
KA-200-12 | 1.2 mm | 220 ml | 340 mm | 270 l/min | SG008-200-12 | 1.2 mm |
KA-200-14 | 1.4 mm | 240 ml | 340 mm | 280 l/min | SG008-200-14 | 1.4 mm |
KA-200-16 | 1.6 mm | 260 ml | 350 mm | 280 l/min | SG008-200-16 | 1.6 mm |
KA-200-18 | 1.8 mm | 280 ml | 350 mm | 290 l/min | SG008-200-18 | 1.8 mm |
KA-200-20 | 2.0 mm | 300 ml | 370 mm | 290 l/min | SG008-200-20 | 2.0 mm |
| • Type : Pressure Feed • Cup Capacity : non • Fluid Inlet : 1/4" • Air Inlet : 1/4" | • Working Pressure : 30~45 psi • Standard Nozzle : 1.2 mm • Gun Weight : 546 gs | |||||
KH-200 (HVLP type)
Specification | Turn - up Kit | |||||
|---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
KH-200-10 | 1.0 mm | 140ml | 330 mm | 280 l/min | SG018-200-10 | 1.0 mm |
KH-200-12 | 1.2 mm | 150 ml | 340 mm | 290 l/min | SG018-200-12 | 1.2 mm |
KH-200-14 | 1.4 mm | 170 ml | 340 mm | 300 l/min | SG018-200-14 | 1.4 mm |
KH-200-16 | 1.6 mm | 200 ml | 350 mm | 300 l/min | SG018-200-16 | 1.6 mm |
KH-200-18 | 1.8 mm | 220 ml | 350 mm | 300 l/min | SG018-200-18 | 1.8 mm |
KH-200-20 | 2.0 mm | 250 ml | 370 mm | 310 l/min | SG018-200-20 | 2.0 mm |
| • Type : Pressure Feed • Cup Capacity : non • Fluid Inlet : 1/4" • Air Inlet : 1/4" | • Working Pressure : 20~28 psi • Standard Nozzle : 1.2 mm • Gun Weight : 546 gs | |||||
Applications:
1.Automotive
2.Mechanical engineering
3.Iron and Steel
4.Woodworking
5. Glassmaking
6.Plastic
7.Packaging
8.Food Processing
9.Pharmaceuticals
10.Ceramics
Suitable Spraying Medium:
1. Paint and lacquers
2. Marking paints
3. Mould separating fluids
4. Adhesives and glues
5. Smoothing media
6. Foodstuffs
7. Pharmaceutical products
8. Sealing materials
9. Oil and greases
10. Adhesion promoters
Reasons for choosing HVLP guns:
1. Suitable for wide range of paint: primer, base coat, clear coat. Both oil-based and water-based paint.
2. Paint saving: high efficient paint-transfer rate, reducing overspray and paint waste by 10-30%. Great cost saving for professionals.
OEM / Distribution
Interested in our Automatic Spray Guns?
Packing & Delivery
Company Profile
OEM, Private label, or "Prowin" brand distribution are welcome to contact us.
Established in 1994, Prowin Tools Company has been engaging in pneumatic field for more than 25 years, supplying a wide range of high quality air spray gun, painting equipment, peripheral accessories, etc. Our products line covers conventional spray gun, HVLP, LVLP, airless spray gun, airbrush, paint pressure tank, diaphragm pumps, air die grinder, air sander, air polisher, air control unit, etc.
With long-term market cultivation, Prowin has extensive sales experience and has been serving customers over 50 countries. Customer oriented service with prompt service makes Prowin Company outstanding in pneumatic tools field. To provide value-added products and prompt service are always Prowin Company’s core philosophy.
In addition, Prowin has rich experience on offering OEM/ODM upon customers' request. For business importer, who has private label, products OEM/ODM, or “Prowin” brand distribution requirement, is welcome to contact us for more details.
Please feel free to leave your needs with us. We will get back to you shortly.
Related Products
Spray Gun Air dual action sander
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer and exporter specializing in supplying professional pneumatic tools, air painting tools and peripheral accessories. Our products are suitable for a wide range of applications.
Q: How long is your delivery time?
A: Generally it is about 15 days for sample orders, or 30-45 days for general orders, mainly according to required quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we can provide samples, but since we are a professional manufacturer of pneumatic tools, we do not provide free samples. However, we will not specifically require the minium order quantity(MOQ) for sample orders.
Q: What is your terms of payment ?
A: T/T in advanced. or Credit card via Alibaba platform.
