PVC profile extrusion line consists of Conical twin-screw extruder, Vacuum forming equipment, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce window or door profile, wire trunking, stair handrail and other special profiles. Our extrusion line is full automatic, energy saving and high efficiency.
Machine Parameters
Downstream
YF240
YF240-2
YF300
Mould type
Single Outlet
Double Outlet
Single Outlet
Installation Power(kw)
about 80kw
about 80kw
about 80kw
Installation Length
about 20m
about 20m
about 20m
Vaccum Calibration Tank
5m
10m
7.2m
Traction Speed
6m/s
6m/s
about 80kw

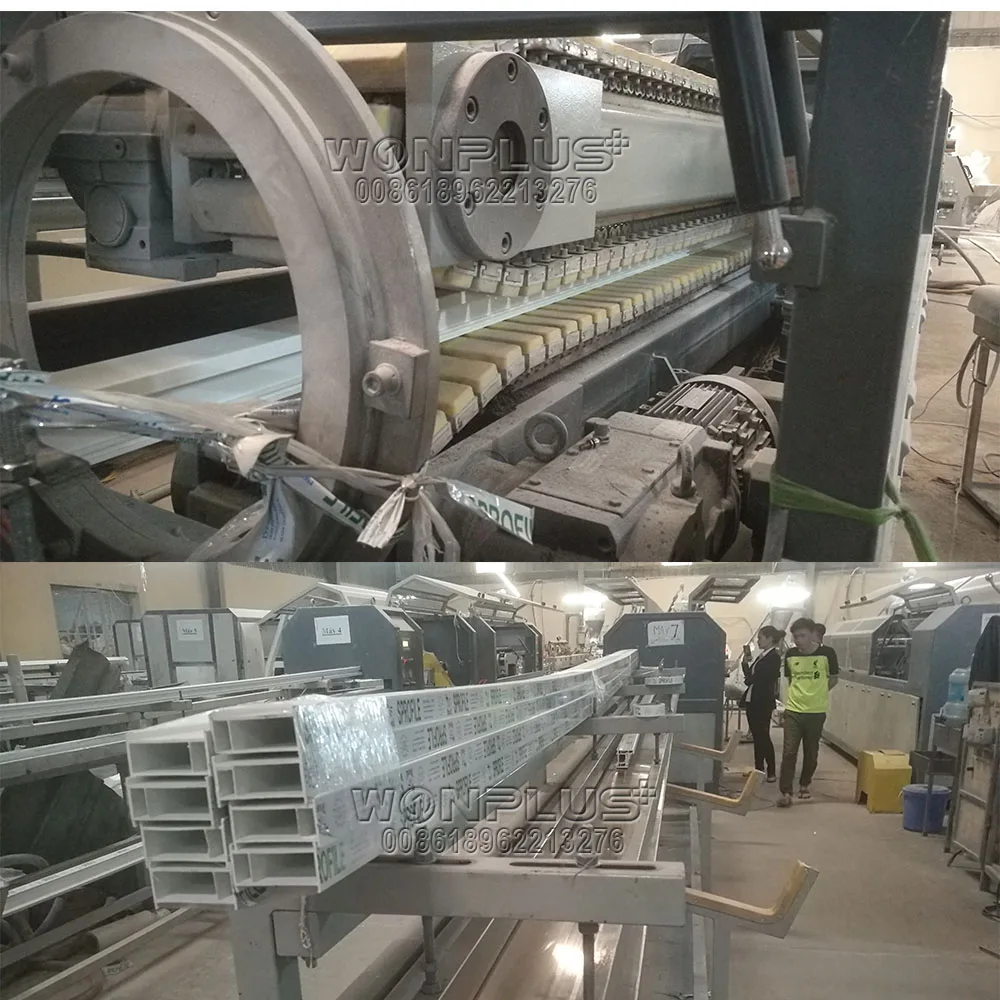

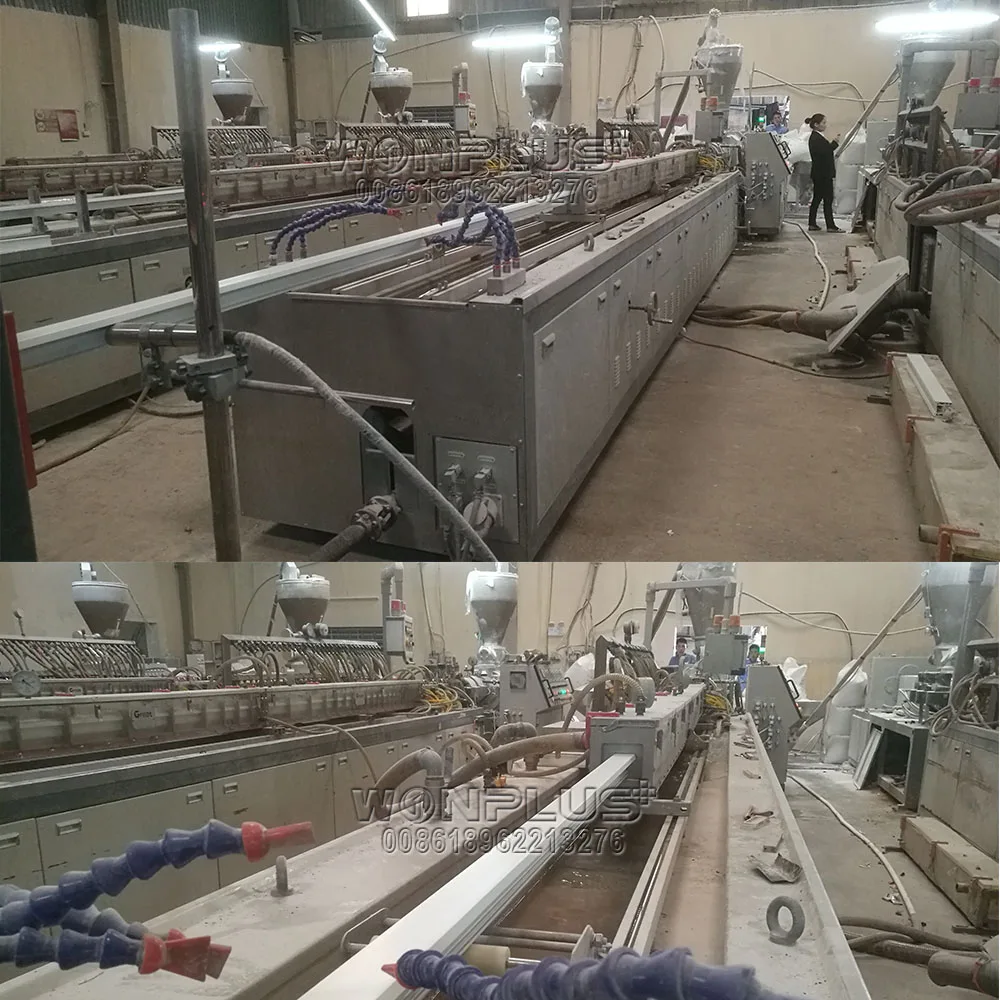

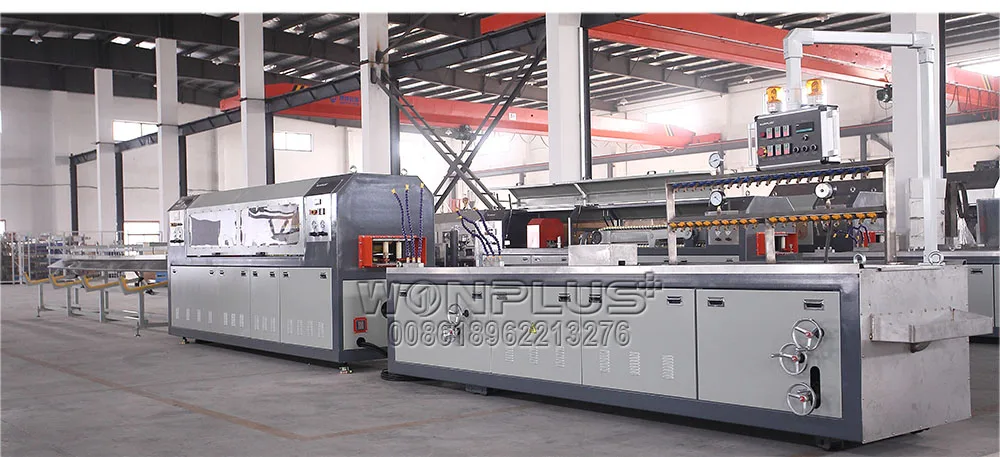

Machine Overview
Machine Main Parts

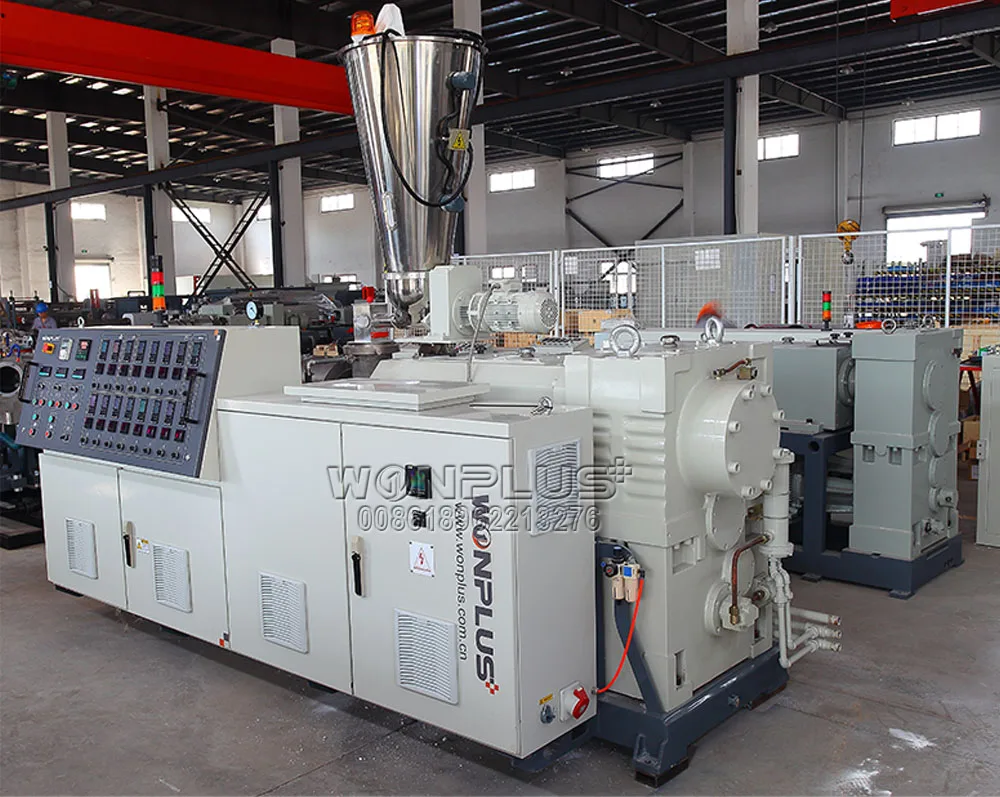

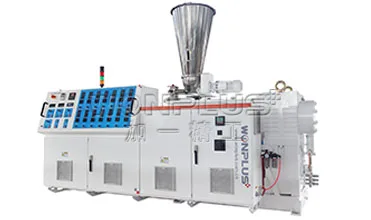

Conical Twin Screw Extruder
Driven motor: Siemens brand
Temperature control: Japan RKC, Omron, or Siemens computer
Inverter: ABB brand
Cotactor & Relay: Schneider brand
Circuit breaker: DELIXI

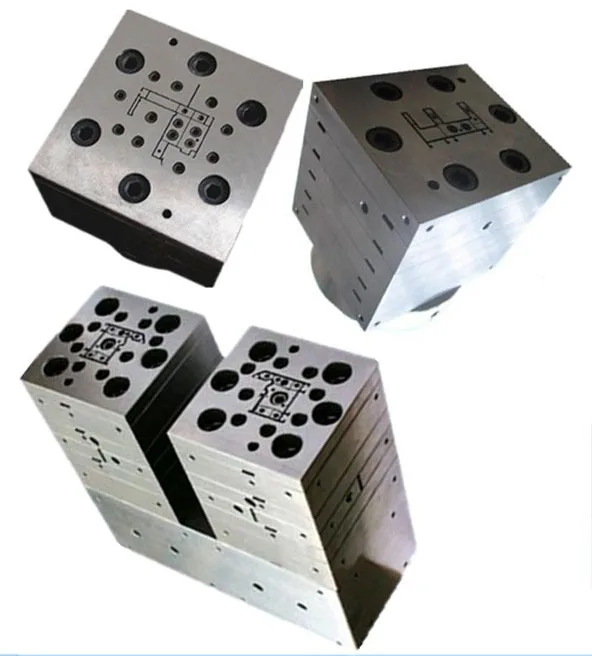

Extrusion Mould
Material: 40Cr Calibrator: Stainless steel The inner flow channel is plated with hard chrome, the outer surface is treated with high temperature paint, the corrosion resistance is strong.

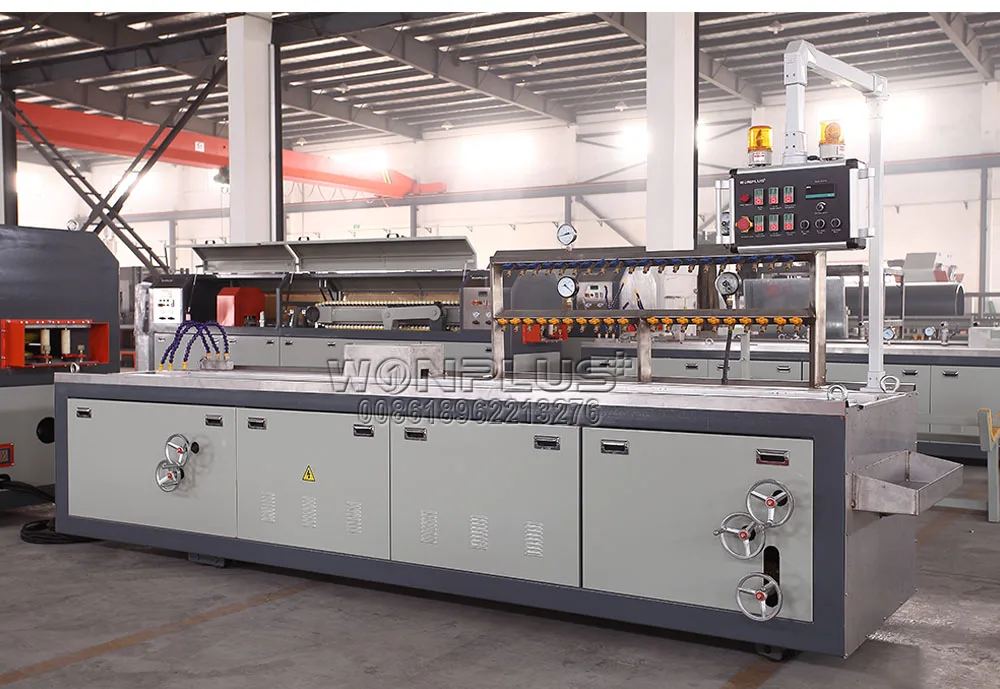

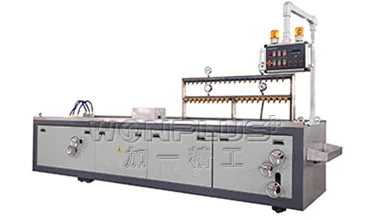

Calibration Tank
Material: Stainless steel Tank Movement : Forth and back by motor driven , Up and down by food screw adjust

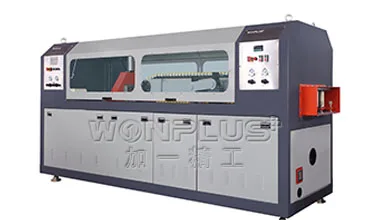

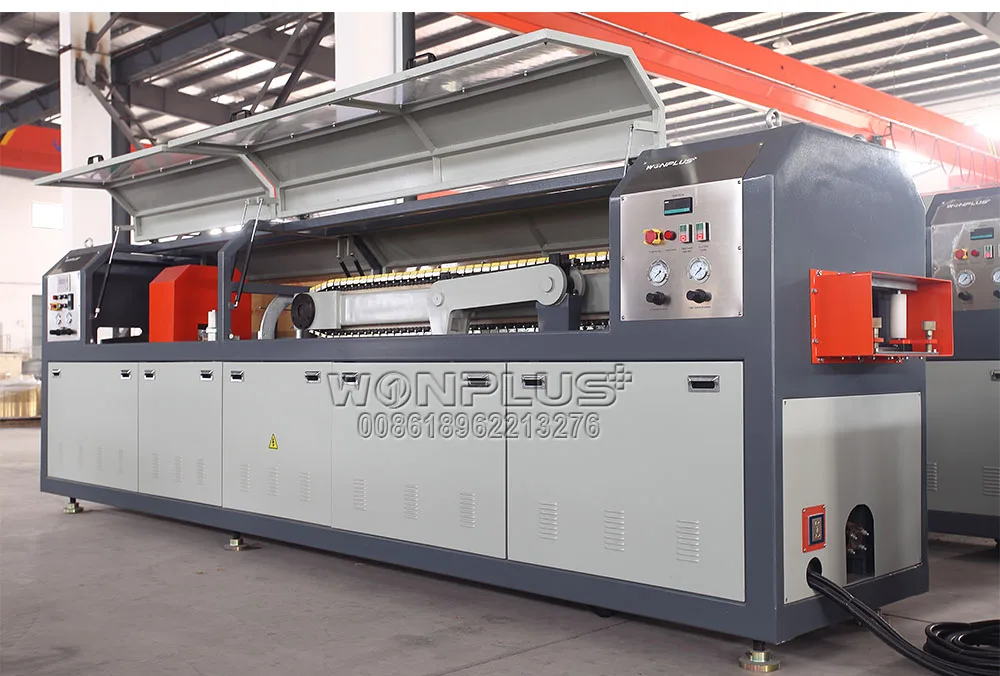

Hauler & Cutter
Four outlet PVC pipes Hauler and cutter are integrated.
Traction motor reducer: Servo motor, INNOVANCE brand
Electricity components: Schneider brand
Cutting control: SIEMENS PLC computer
Cutting type: Non-dust cutter, or Saw cutter.

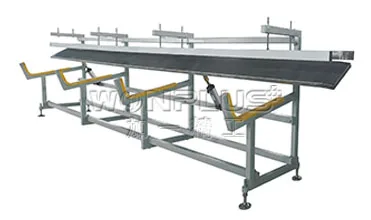

Stacker
Humanized design, humanpower saving

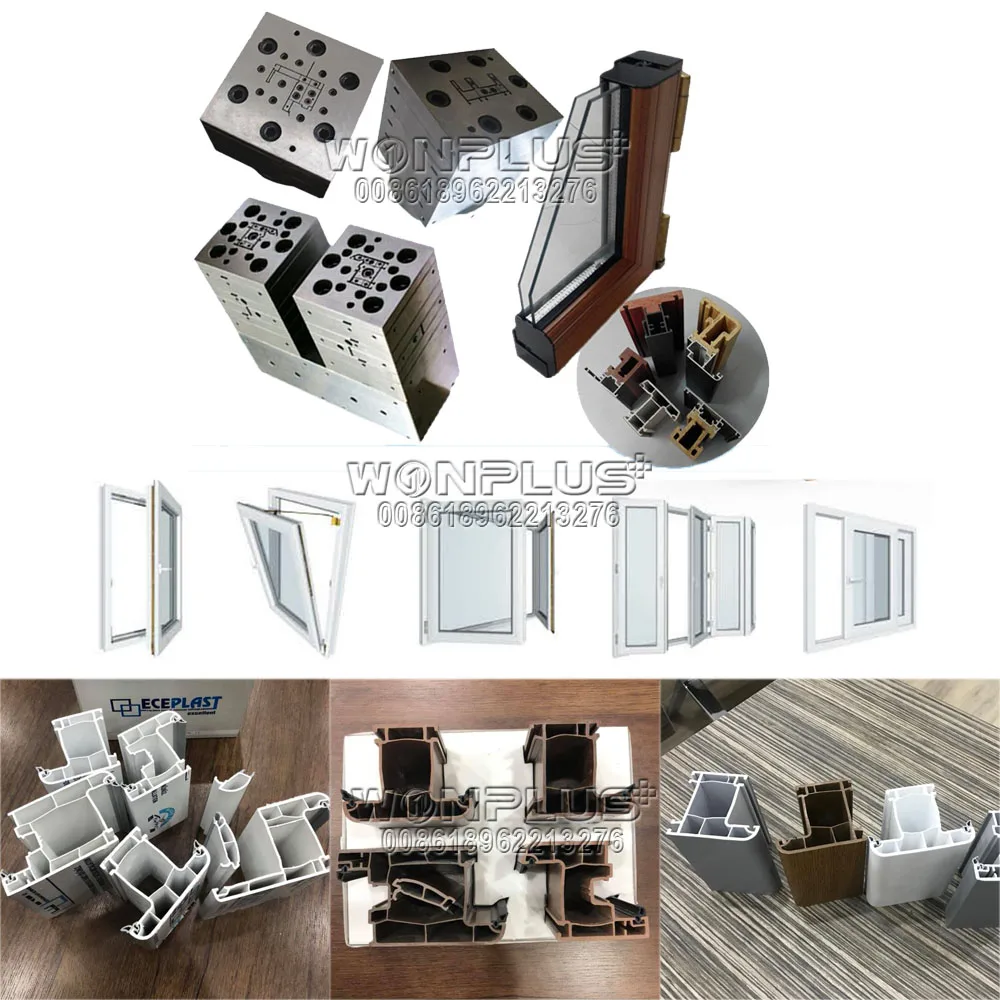

Products Application
PVC profile extrusion line normally make the customerized profile for window,door frame,wire trunking, and other special profiles. The PVC profile has the performance of Non-conductive, Smooth surface, Fire resistant, Corrosion Resistance, Impact strength and so on.
Turnkey Project
Company Information
---Specialized In Plastic Extrusion Machinery---
Kunshan Oneplus Machinery Co.,Ltd. is specialized in twin and single screw extrusion line for pipes, profile,sheet and board, plastic recycling granulator. We manufacture both conical and parallel types of extrusion lines depending on the applications. The product has been exported to South East Asia, the Middle East, Africa,Europe and other regions.
