1) Machine continuously made flat panels, no limit on length;
2) Anti-impact: much better stiffness and strength than plastic, due to fiberglass reinforced;
3) Fire resistant: made by thermosetting resin;
4) Mildew resistant: Effectively inhibit the growth of mildew;
5) Easy install: No other tools are needed except for rivet or glue only;
6) Anti-corrosive: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;
7) Easy cleaning: It can be easy cleaned by steam or high-pressured squirt gun;
8) Extreme temperature resistant: Withstand temperature at -40 -110 degree C for long time;

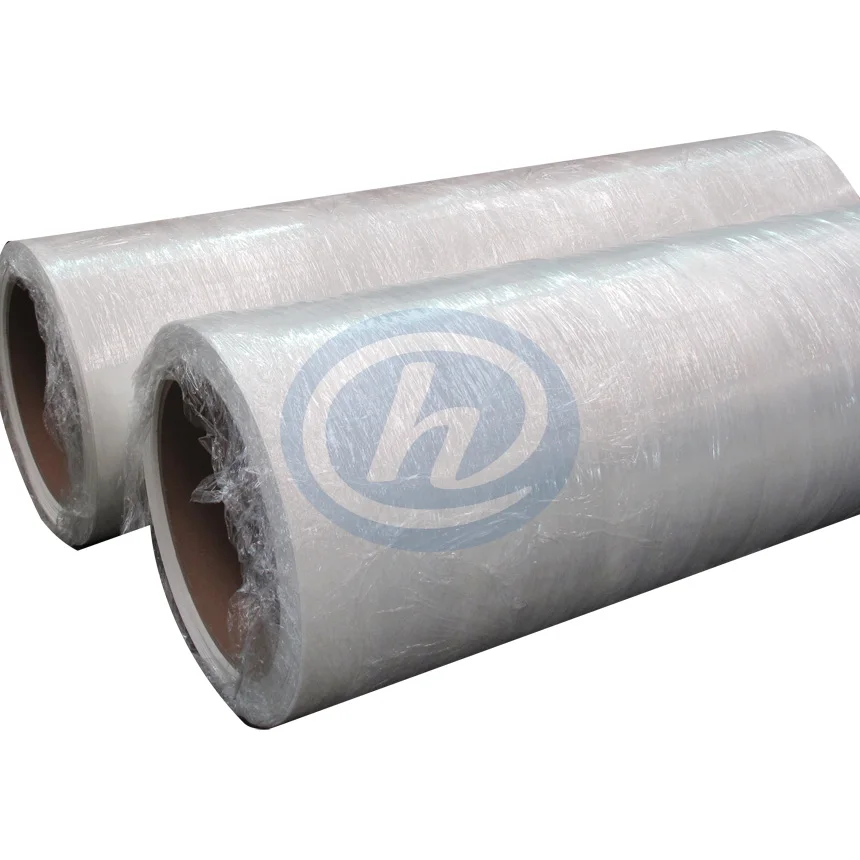

9) Rolled up by machine with 50-100m length as a coil, to save shipping cost.


Higoal Panel Options
Thickness:1.2mm-3.0mm
Max width: 2750mm
Feature: anti-aging, good decorative surface, impact resistant.
Standard color: white creamy, Black
Thickness:1.2-3.0mm
Feature: anti-aging, smooth glossy surface.
Standard color: White Creamy Black
With 300μm gel coating on surface, anti-skid
Thickness:1.2-3.0mm
Standard color: White Grey Blue
The above mentioned panels can be combined with the froth, gypsum, polywood, aluminium honeycomb ,the lsandwich panels is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.

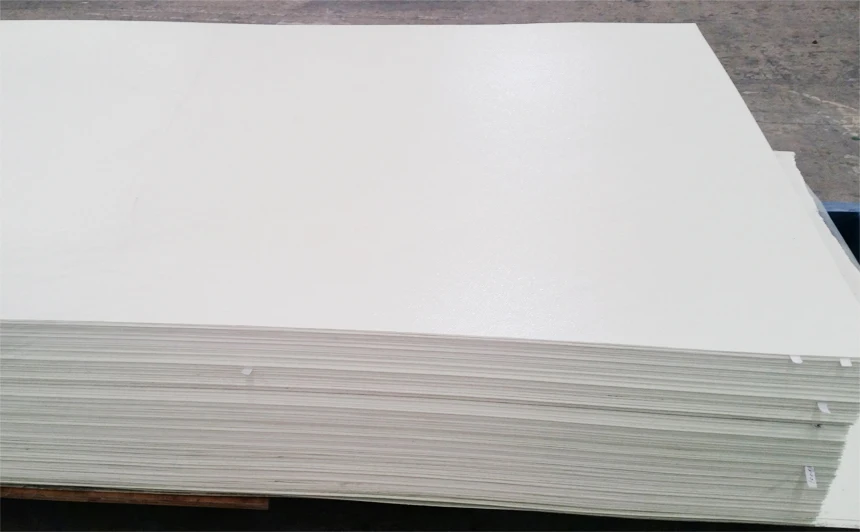

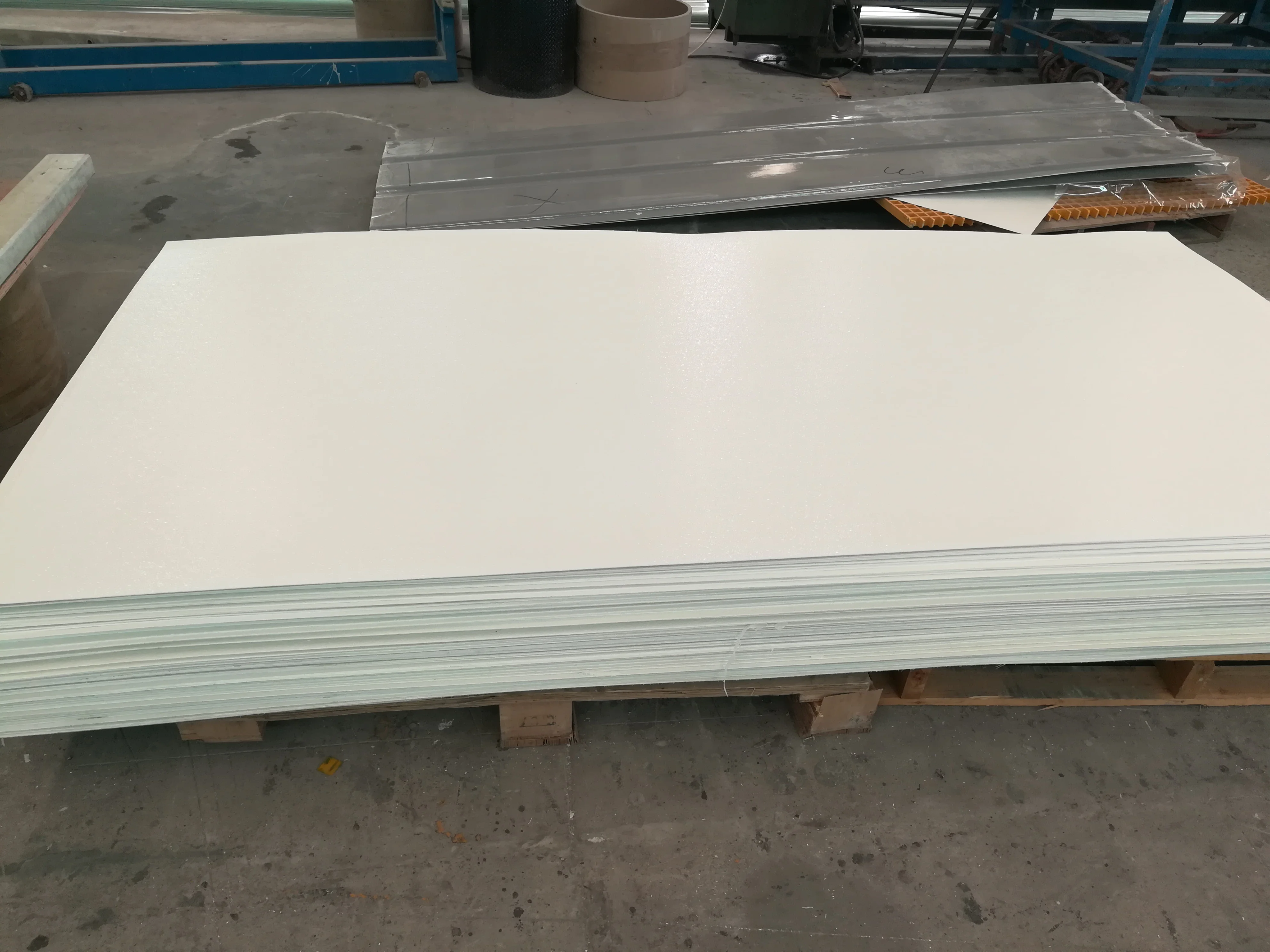

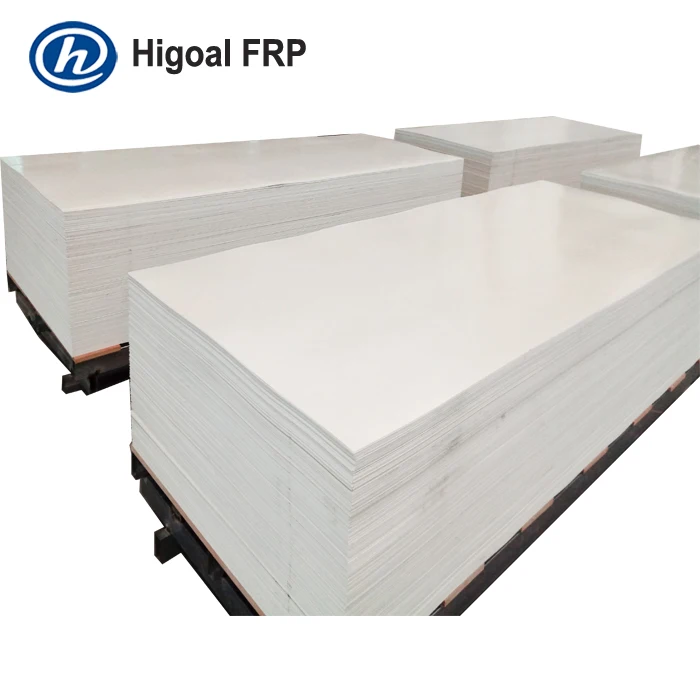

Items | 4x8 fiberglass panels sheets | ||||
Material | Gel coating: 300um ISO-phthalic polyester gel coat Matrix resin: unsaturated polyester resin Reinforce fiber: E-glass | ||||
FRP panel size | Thickness: 1.0mm-3.0mm Width: ≤2750mm ; Length: customer length | ||||
Tensile strength | ≥75MPa | ||||
Tensile modulus | ≥4800MPa | ||||
Bending strength | ≥120MPa | ||||
Bending modulus | ≥5GPa | ||||
Impact strength | ≥35KJ/m2 | ||||
Compression strength | ≥35MPa | ||||
Distortion temperature(1.8MPa) | >230℃ | ||||
Thermal expansivity | 2.4×10-5℃-1 | ||||
Gravity | 1.6-1.7g/cm3 | ||||
Water Absorption | 0.16%/24hrs, 25C | ||||
Stickiness | ≥42dyne | ||||

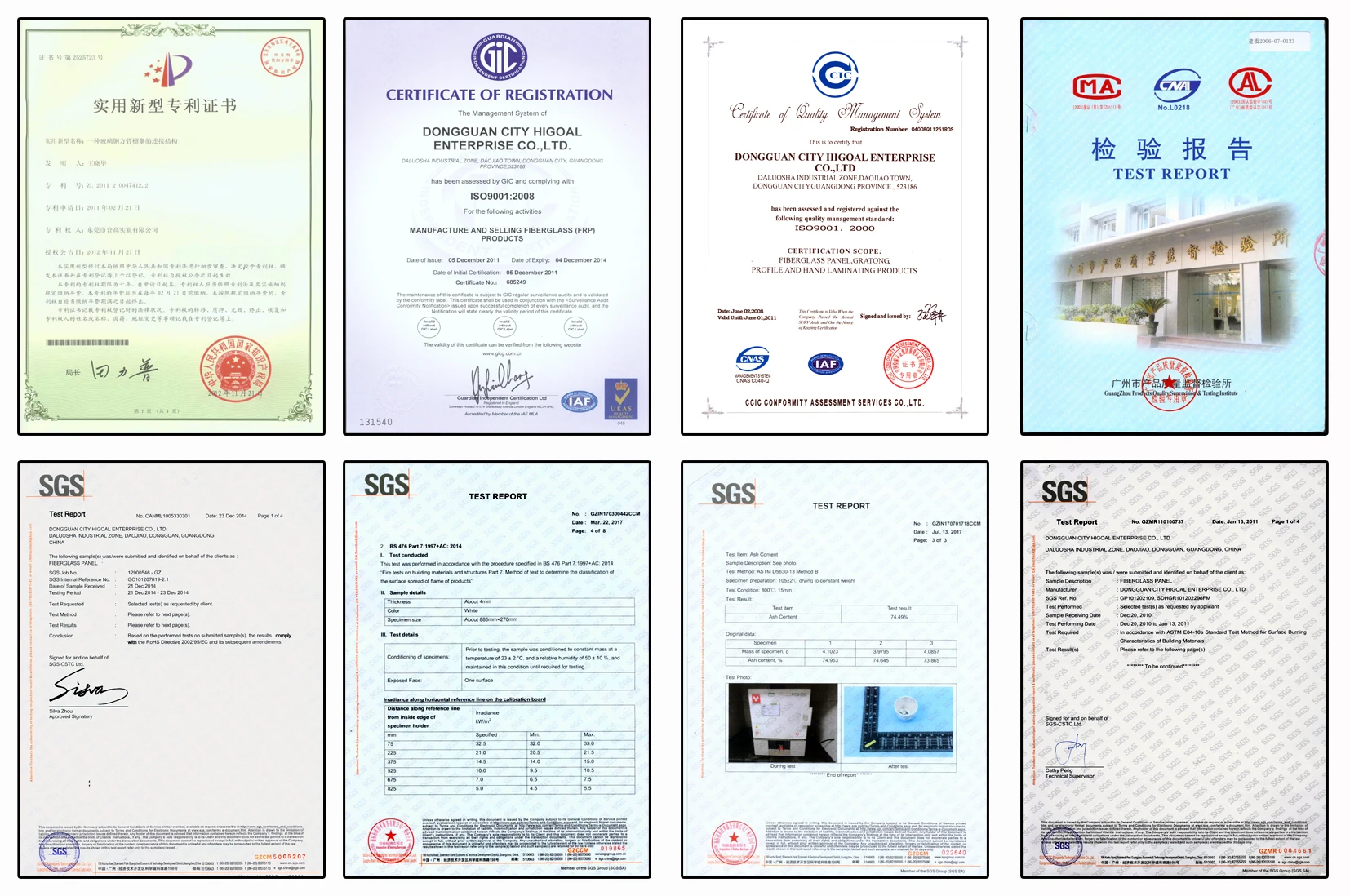

Approval test standards: | ASTM-E84, RoHS 2002/95/EC | ||||
Chemical resistance | Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer. | ||||
Corrosion resistence high strength insulation FRP products 4x8 fiberglass panels sheets | ||||||
Packing | 1. Protected by stretch film; | |||||
2. Fasten by packing banding and packed on pallet; | ||||||
3. Grating corners are protected by FRP angle or thick papercard. | ||||||
Delivery | 1. Stock grating: 3-5 working days. | |||||
2. Manufacturing: 1-2 weeks, or depends on the order quantity. | ||||||
