LANBOO 12mm Aluminum Oxide Black with Red/Green/Blue Bright LED Illumination pushbutton Self Lock or Reset 1NO
- Category: Switches >>>
- Supplier: Lanboo Intelligent Technology Co. Ltd.
Share on (62016417997):
Product Overview
Description
Product Description

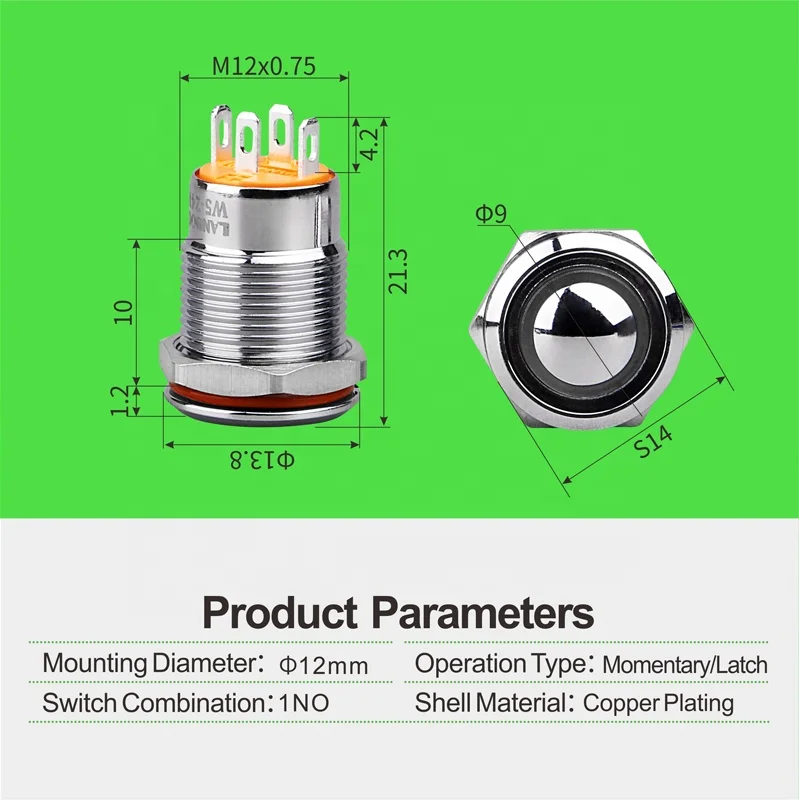

| Model Description | |
| Model Number | LB-12B metal push button switch |
| Mounting diameter | 12MM |
| Head shape | Flat Head/High Head |
| Switch Combination | 1NO |
| Operation type | Momentary/self locking |
| Illuminating type | Annular,power symbol |
| Illuminating color | red/green/blue/yellow/orange/white/purple/pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |

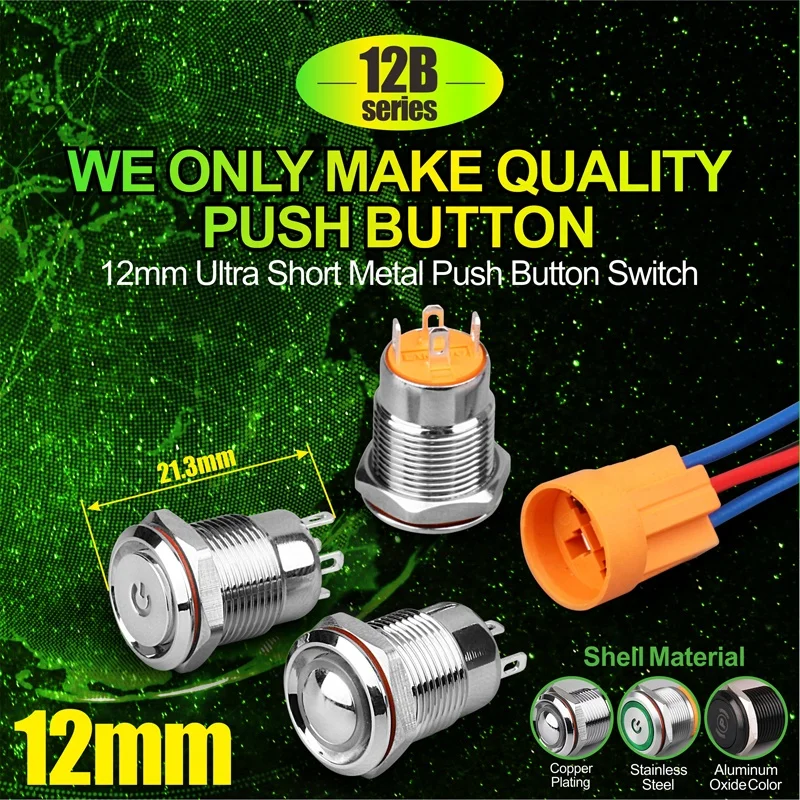

| Shell material | Stainless steel,aluminum oxide,copper plating |
Technology Parameter
The Others Parameters | |||
Project | Parameter | Project | Parameter |
| Contact type | Slow moving double contact | Actuating Force | about 4N |
| Contact Resistance | ≤50mΩ | Mounting panel thickness | ≤8mm. customised the others |
| Insulation Resistance | ≥1000mΩ | ||
| Dielectric Strength | 1000VAC min | Nut torque | 5~10N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/Aluminum Oxide/Copper plate |
| Protection Levels | IK08 | Diffuser | PC |
| Electrical Life | Rated:0.2A24VAC- 100,000 times | Nut | Nickel brass |

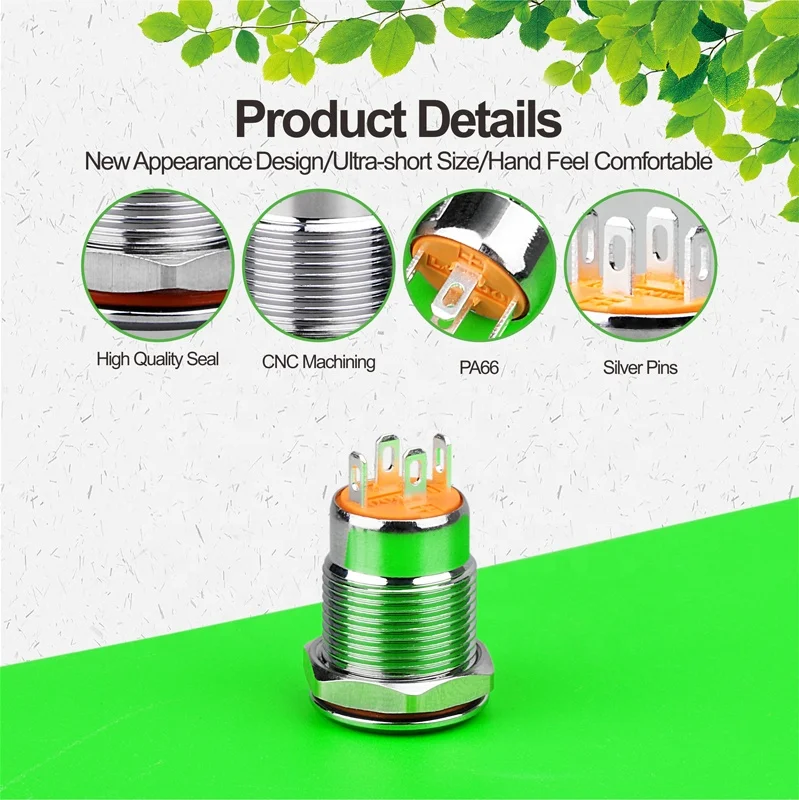

| Base Seat | |||
| Rated:2A24VAC-50,000 times | Bottom Seat | PA66 | |
| Mechanical Life | Momentary-600,000 times | Pins | H65 Silver Plated |
| Latching-200,000 times | Contact | Environment-friendly Silver Contact | |
| Waterproof | IP65 | Spring | Imported steel wire |
Switch Rated Load | |||||
| Project | Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Heating current lth | 2A | ||||
| Rated Voltage | DC24V | AC220V | |||
| Rated Current | Nonreactive Load | 1 | 1 | ||
| Inductive Load | 0.5 | 0.5 | |||
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |

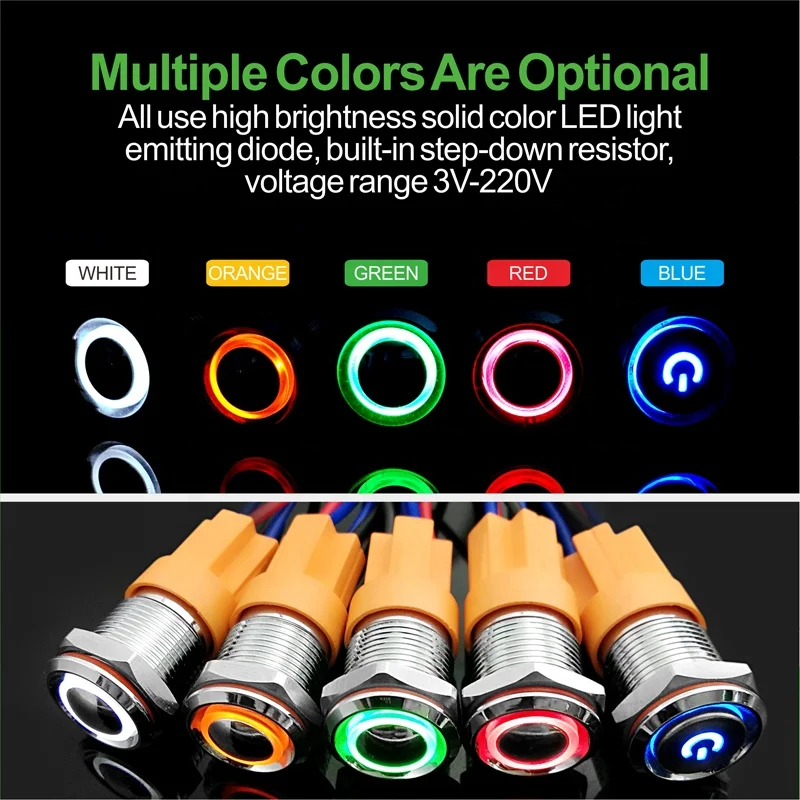

| Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
Company Information
FAQ
| Thank you for visiting our website ! Add more questions to your inquire so we can serve you better . |
Q2: How's the delivery time ?
A2: It rests with the quantity you need,1-30days usually
Q3: Tell me the standard of package?
A3: For the small capacity, small box and EPS as inner package and carton as delivery package. But also we can pack it according to your requirment.
Q4: How about the logo? Would you accept to use our logo ?
A4: Our logo is LANBOO. If your order has good quantity, it absolute no problem to do OEM. But you use our logo LANBOO will be high appreciated.
Q5: How do it know that you have sent the products out?
A5: Onece the products already finished ,We will send pictures ,video to you .Also a tracking number will be provided so that you can check where your goods at all time.
Q6: Could you offer Form A or C/O ?
A6: It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q7: We want to know month capacity?
A7: It depends on which model.For example for 16mm metal button switch , month capacity can reach near 500,000pcs
Q8: Where is your market?
A8: Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q9: What kind of certificate you have ?
A9: Our company already Obtained RoHS,CQC,CE,CCC,IP67,IK10 ,design and technical patents certificates
