Customized Product High Efficiency Traverse Telescopic Manipulator /Mechanical Arm/Robotic Arm
Product Description

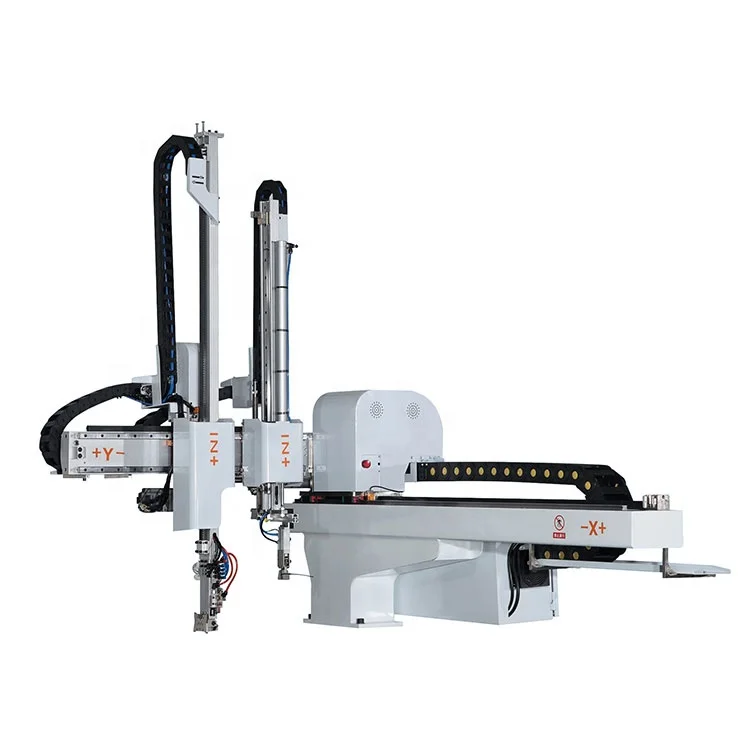

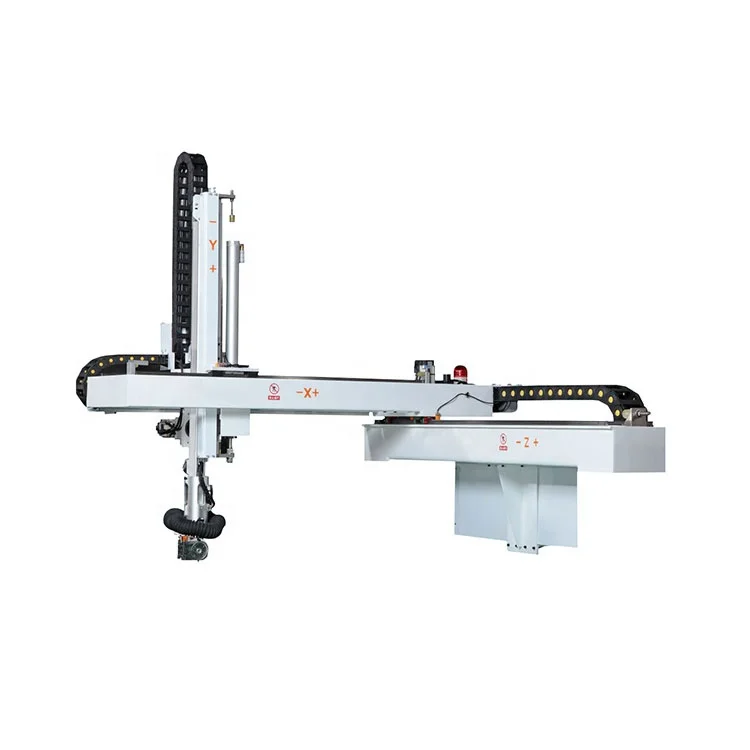

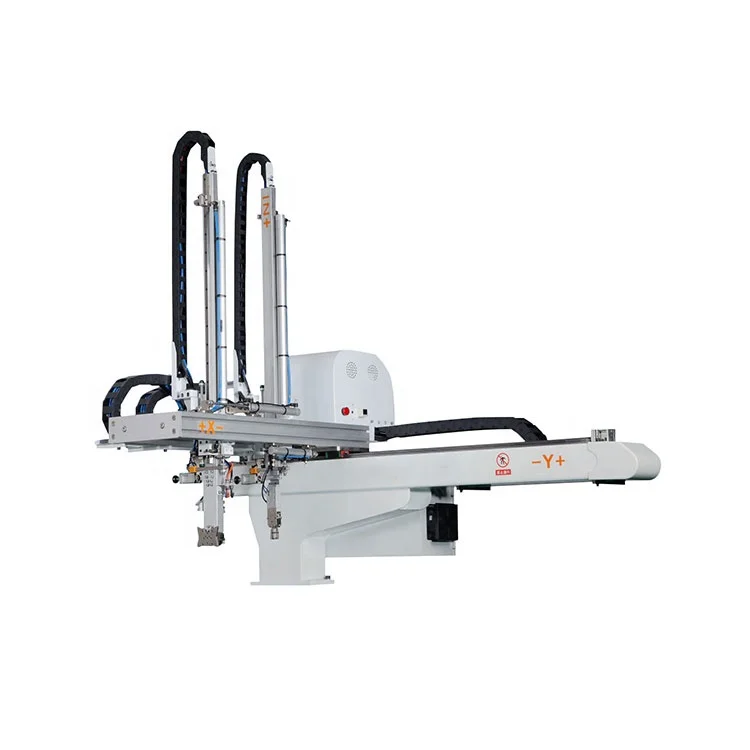

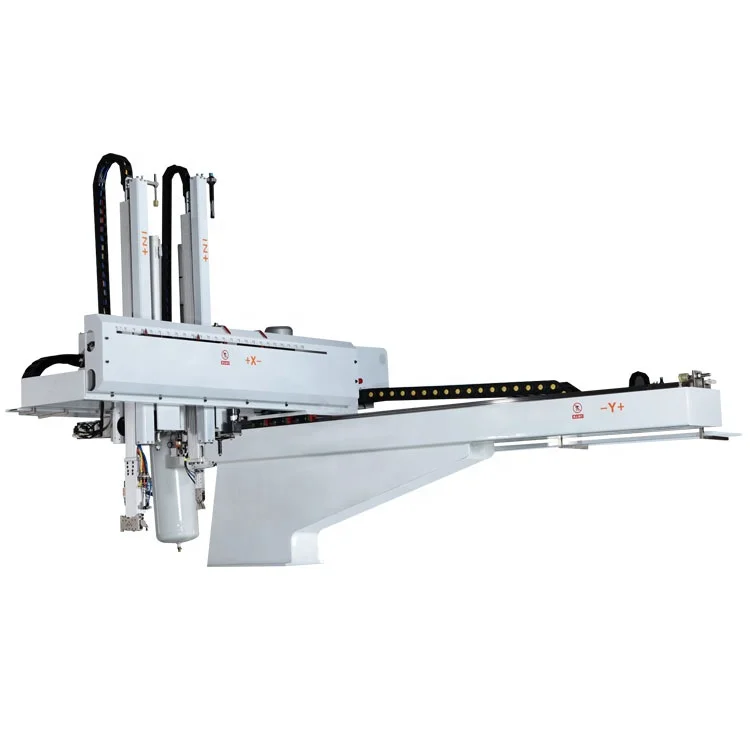

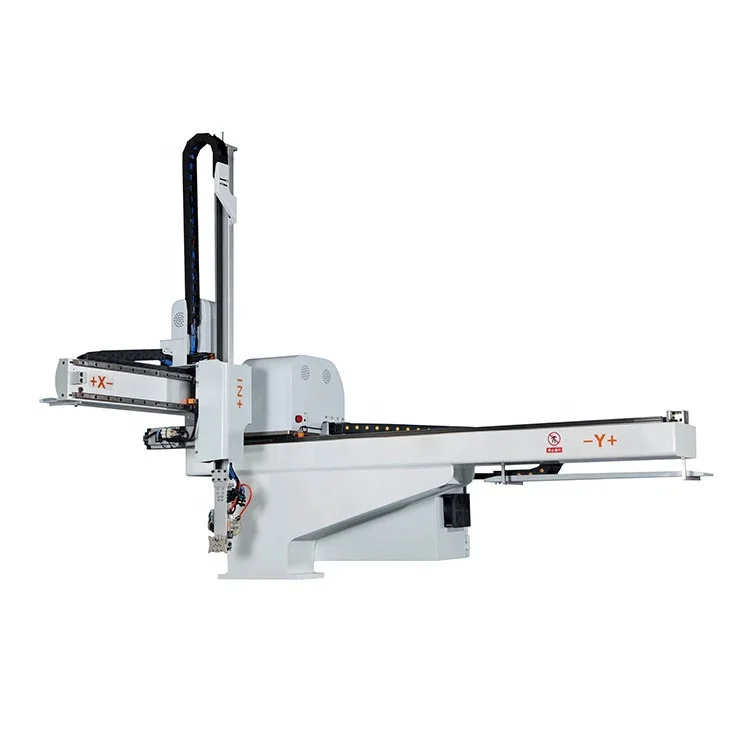

Telescopic Manipulator
The HA series robot arm is used for the finished product and nozzle of each type of plastic horizontal injection molding machine of 50T-250T. Model 550/650/750/850/950, the upper and lower arm types are single-cut and double-cut and double-cut; the upper and lower strokes are from 550-950mm. The jib can be added to the three-piece mold, while the finished product and the material head are clamped. The horizontal axis is driven by a variable frequency motor and driven by an AC servo motor. Install this series of robots to increase production capacity (20%-30%) and reduce product defect rate. Guarantee the safety of operators, reduce workers, accurately control production, and reduce waste.
Parameter:
Model
HAVM-550
Size (length*width*height)
1787*1200*1300mm
Power Source
AC220V±10V 50/60 HZ
Working Pressure
5Kgf/cm² 0.49Mpa
Max.AllowedPressure
8Kgf/cm² 0.8Mpa
Drive System
Z By model X.Y Pneumatic Cylinder
Swivel
90°Fixed Pneumatic
Control System
HS48
Power Capacity
0.5/1KVA(AC servo Motor)
Recommendedl.M.M.
50-100ton
Traverse Stroke
1000mm
Traverse Driven
Standard: variable frequency motor / AC servo motor
Crosswise Stroke
P:250mm
R:100mm
Vertical Stroke
550mm
Max.Loading
3Kg
Dry Take Out Time
1s
Dry Cycle Time
8s
Air Consumption
19 NI/cycle
Net Weight
140-180Kg
Packaging & Shipping
Mechanical arm in standard export wooden box packaging
