Factory Direct Electric Stainless Steel Automatic Retractable Telescoping Bollards



Product description


Product Pictures:













Automatic bollardBollards-AnxiaBollardBollard-with (1)Automatic Bollards (4)hydraulic-bollard-500x500bollards-1024x768auto bollardsAutomatic Bollards (3)rising Bollard.jpg

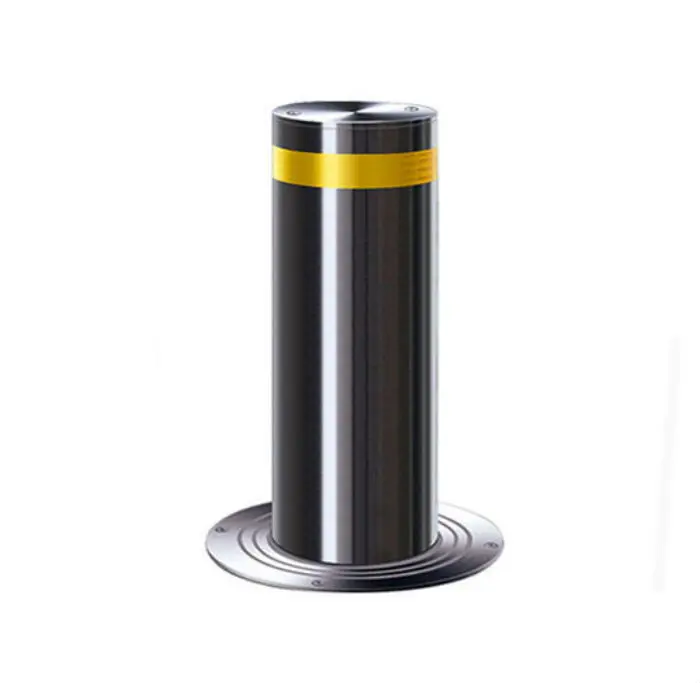

Automatic bollard:

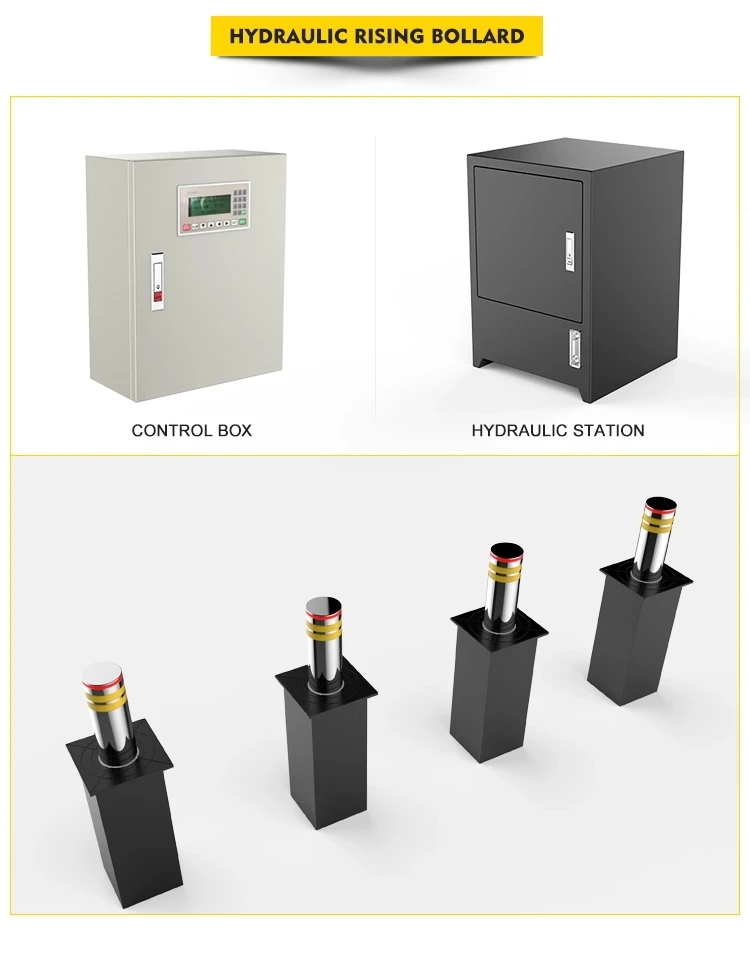

This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.

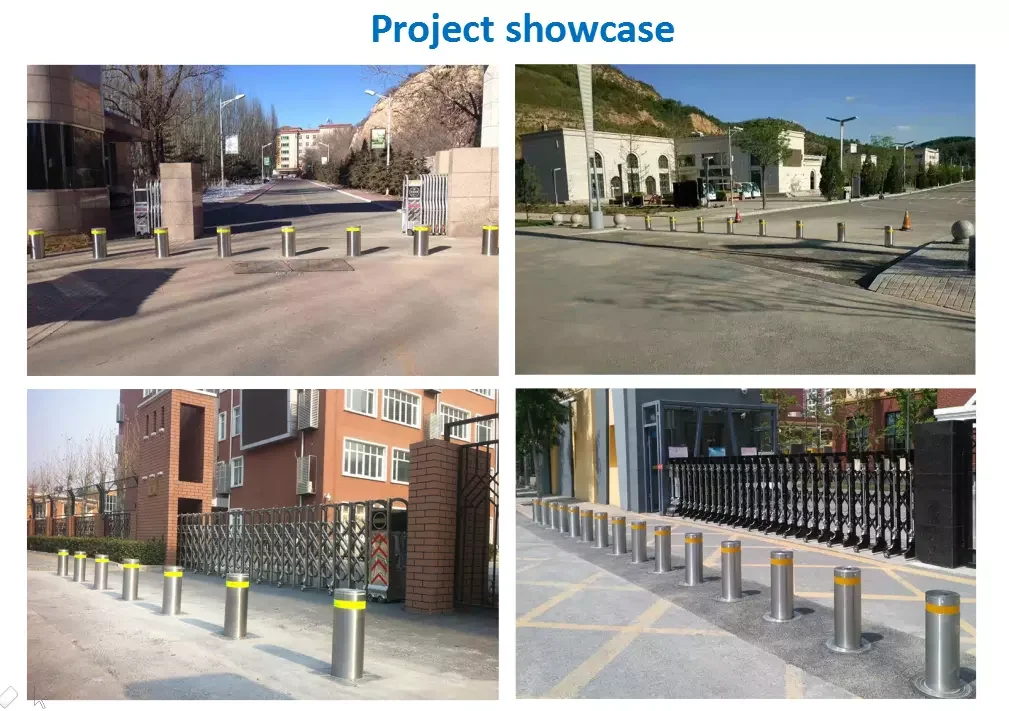

The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.





Features:



Different thickness of steel is available (default 6 mm)
Different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Lowering down the bollard by handle valve, in case of power failure or fault of automatic system
Raising up the bollard by handle pump, in case of power failure or fault of automatic system
Housing with durable and stainless Galvanization


Optimization of frame structure, high anti-impact capability, high loading capability


High security and anti-collision ability

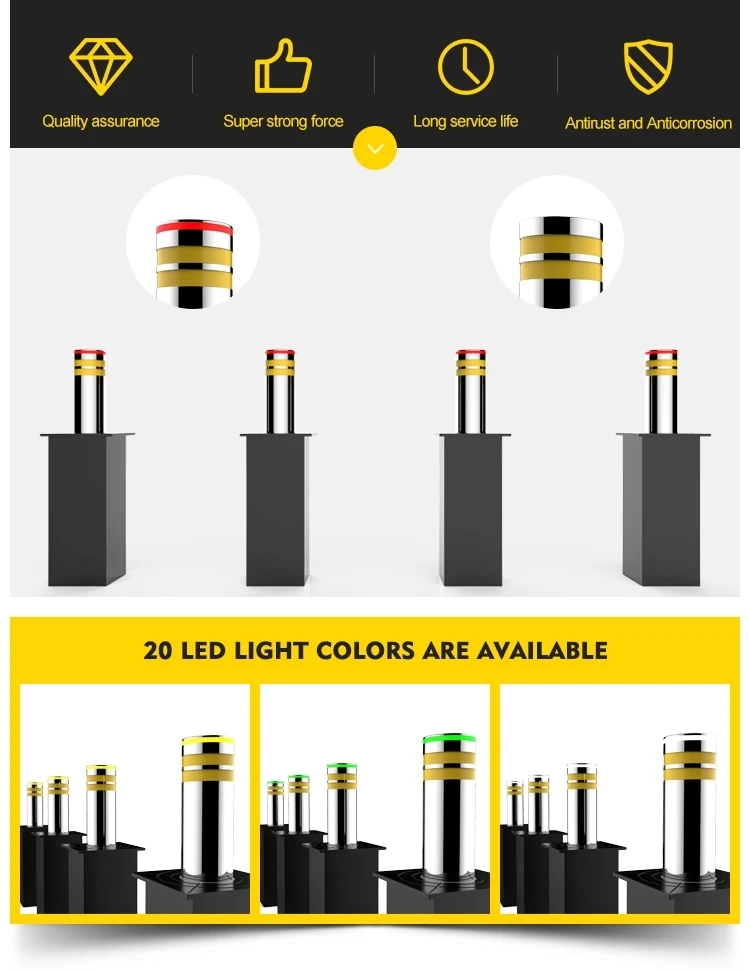

With a reflective band and a low energy consumption LED light at night





Parameters:

















































Product nameElectric automatic bollard
Control systemElectric-hydraulic operated
Maximum weight of passing cars8 T
Power supply220 V (control voltage: 24V)
System power1.5kW / 2.2kW
Rising time 4 s (adjustable)
Dropping time 2 s (adjustable)
Working temperature-35°C ~75°C
Material#304 stainless steel
Diameter of pillar219mm (168mm, 275mm, 324mm are also available)
Thickness of housing6mm(8mm, 10 mm are also available)
