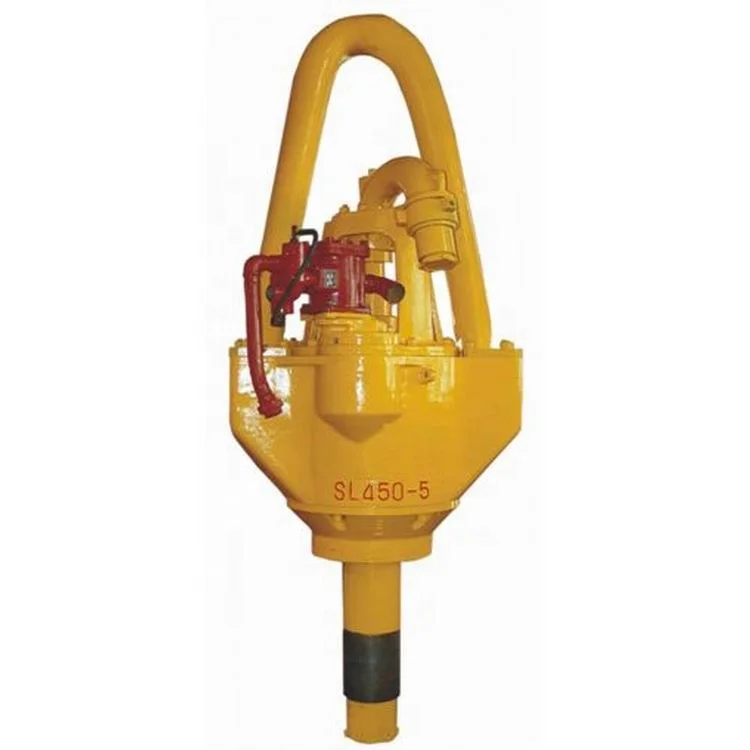

Oil drilling SL450 swivel with spare parts bearing/seal ring/packers

Water Swivel for drilling: The swivel includes two main categories, which are common swivel and double duty swivel. Double duty swivel is a common swivel combined with a spinner. Common swivel consists of swivel bail, shell, support, gooseneck, central pipe, master bearing, joint and other parts. The lower end is connected with kelly stem by REG thread. The swivel bail is hung on the hook. Gooseneck and rotary hose can be connected by REG thread connection or union connection.

Washpipe packing set assembly adopts cassette structure, so it can be quickly replaced without disassembling rotary hose and gooseneck. 3LP and 4LP internal or external thread hose connection thread are available for you. Our swivel meets API SPEC 8C PSL1 standards. We can also manufacture low temperature resistant swivel according to customer's requirements.

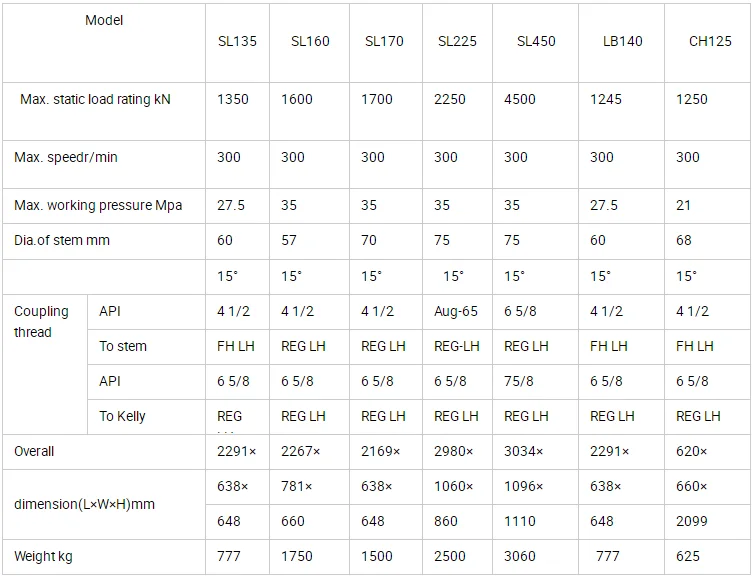

Technical Parameters:

Swivel:

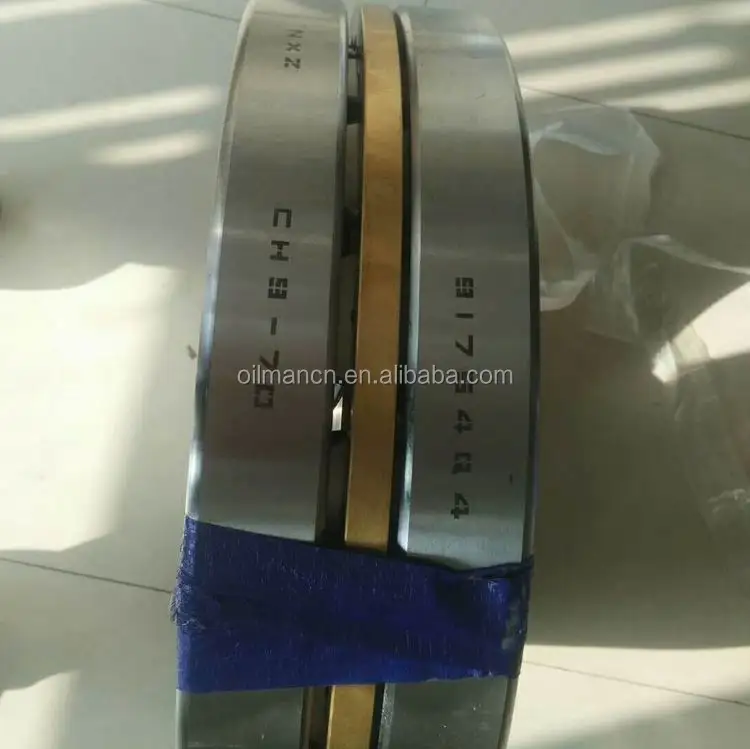

Swivel bearing 91754Q4:

Packing: Wooden case, or customized packing.

Delivery time: Stock or depending on quantity

Delivery: By express, truck, train, air, sea

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.

I. Equipment arrived at the scene, by my company to send technical personnel and service personnel arrived at the scene, the installation of equipment debugging and technical training.

II. Equipment from the date of acceptance, the warranty period of one year, the warranty period, equipment problems, we respond within 12 hours, if necessary, our service staff received a notice within 5 days (international) to reach the scene, the two sides Technical analysis, a product quality problems, we are responsible for free repair or replacement, more than the warranty period, we provide technical services and spare parts supply.

III. After the device is running, we will conduct a telephone tracking service, and regular user visits.
