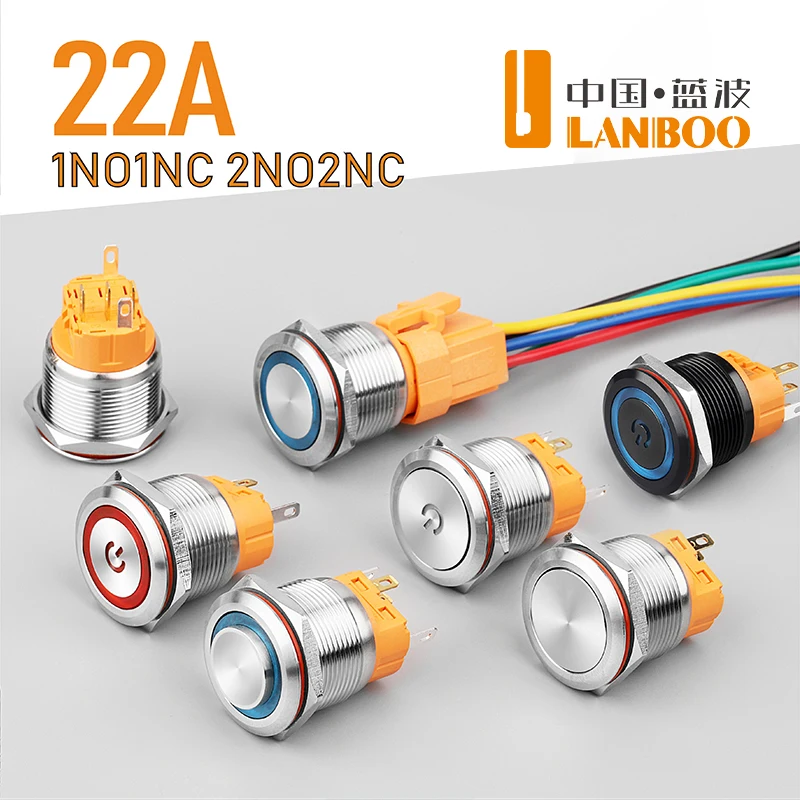

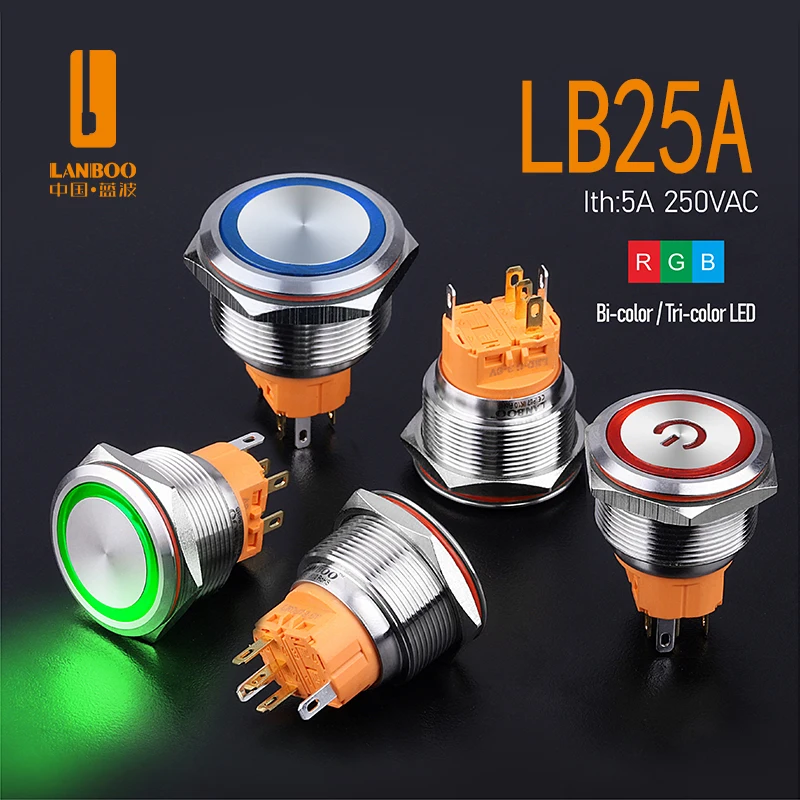

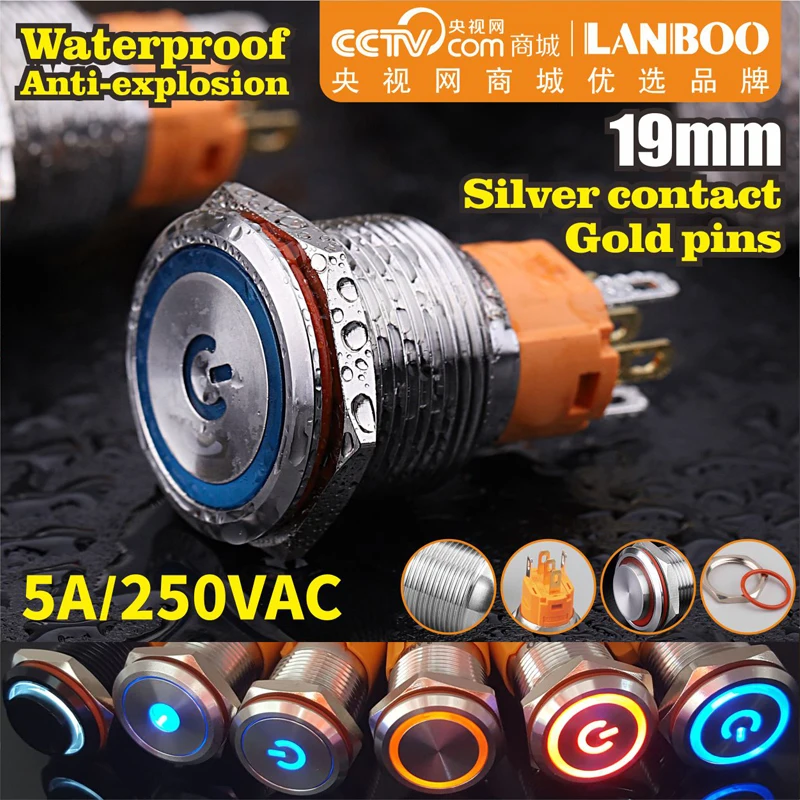

LANBOO 16/19/22/25mm self locking reset waterproof IP65 customizable IP67 with red green blue LED
LANBOO 16/19/22/25mm self-locking reset waterproof IP65 customizable IP67 with red green blue LED
LANBOO 16/19/22/25mm self-locking reset waterproof IP65 customizable IP67 with red green blue LED
LANBOO 16/19/22/25mm self-locking reset waterproof IP65 customizable IP67 with red green blue LED
LANBOO 16/19/22/25mm self-locking reset waterproof IP65 customizable IP67 with red green blue LED
LANBOO 16/19/22/25mm self-locking reset waterproof IP65 customizable IP67 with red green blue LED

LANBOO 16/19/22/25mm self locking reset waterproof IP65 customizable IP67 with red green blue LED

Share on (62017341970):


Price:$2.60 - $3.00

Quantity:


Product Overview

Description


lantian

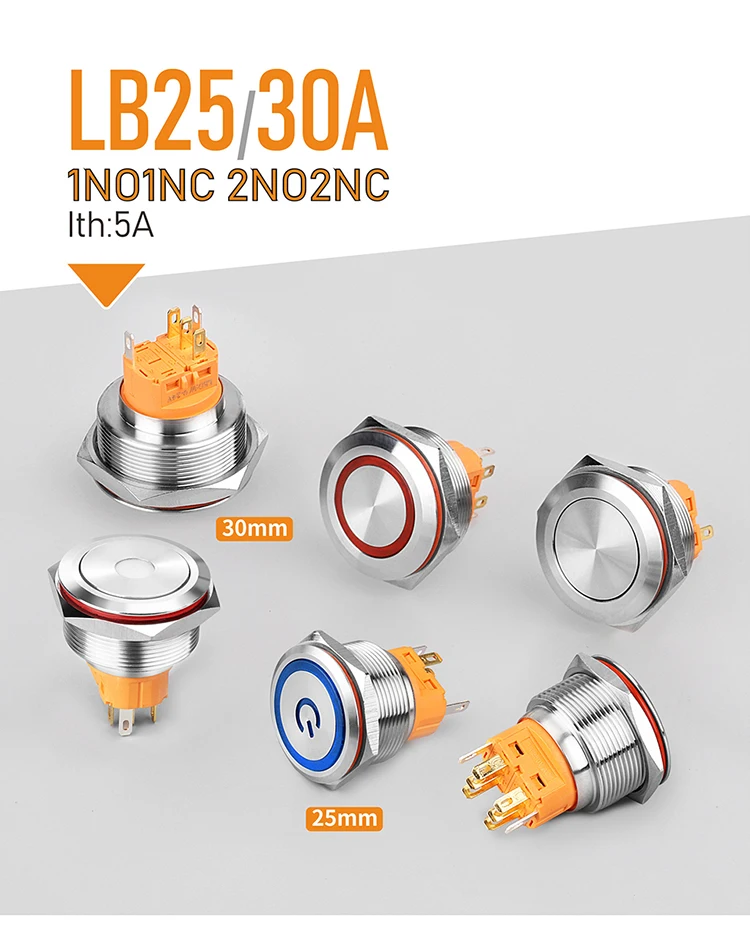

  Mounting Aperture  16mm/19mm/22mm/25mm
  Serial Number  Type A metal push button switch
  Head shape  Flat Head / High Head
  Switch combination  Self-locking / Self-recovering

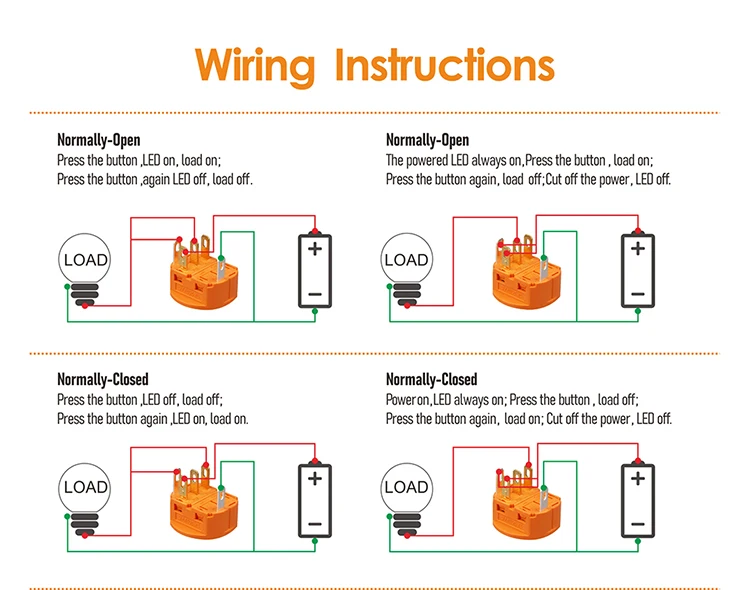

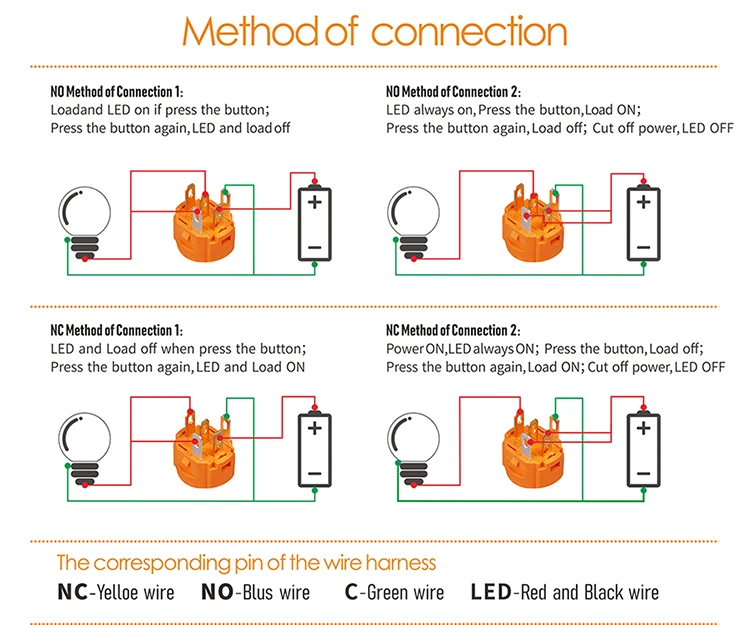

  Action form  1NO1NC/2NO2NC Independent Pin

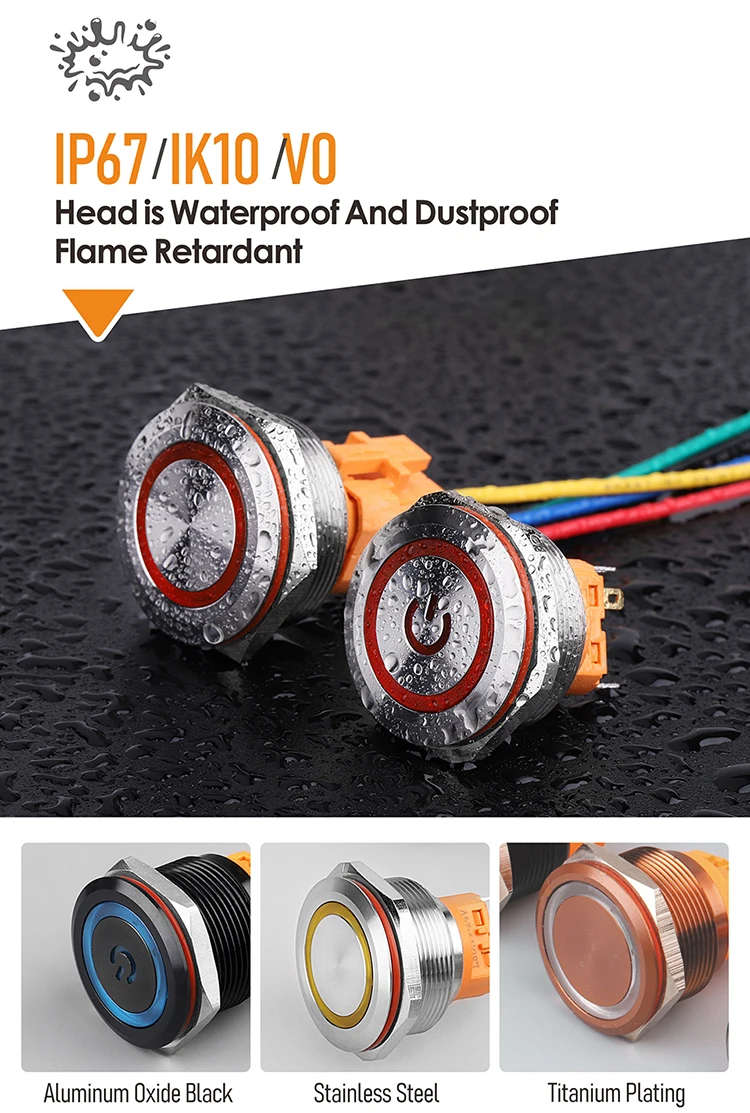

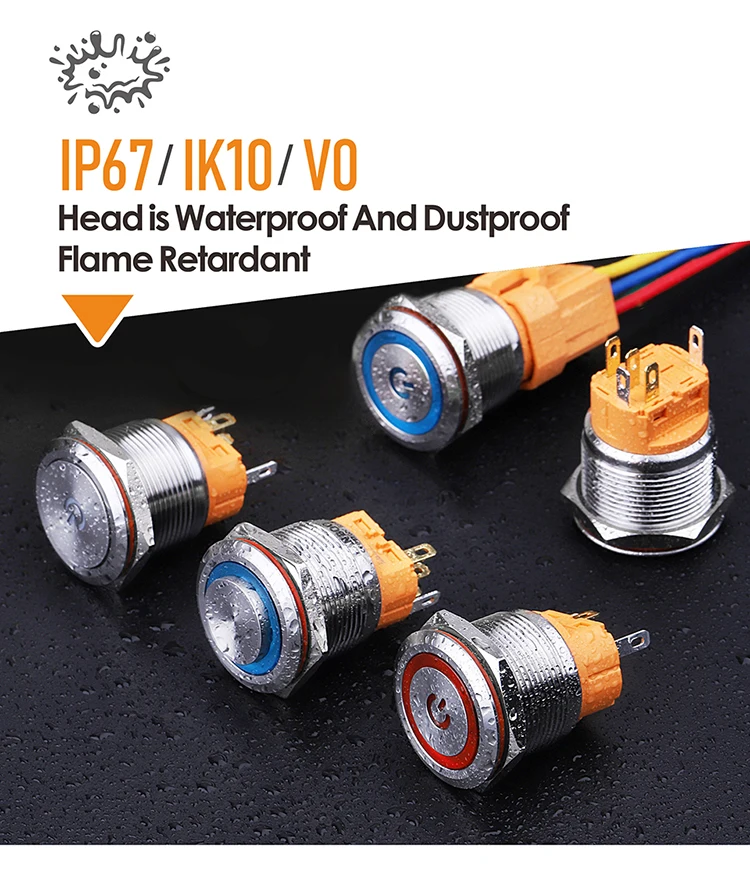

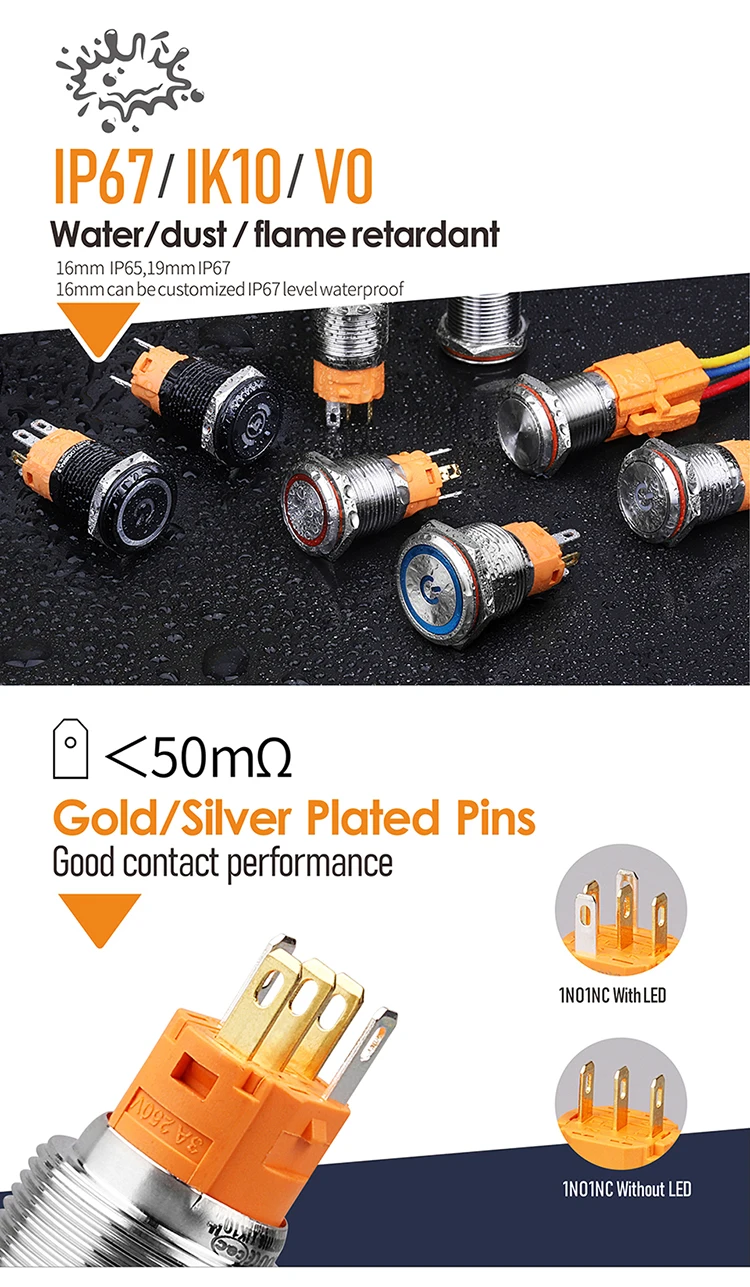

  Waterproof level  Customized IP67, Anti-collision IK10 (refer to GB/T 20138)
  Heating current  Ith: 5A, 250VAC
  Working environment  -40°C~+80°C (non-vacuum state, without freezing)
  Insulation resistance  ≥1000MΩ
  Contact resistance  ≤50mΩ

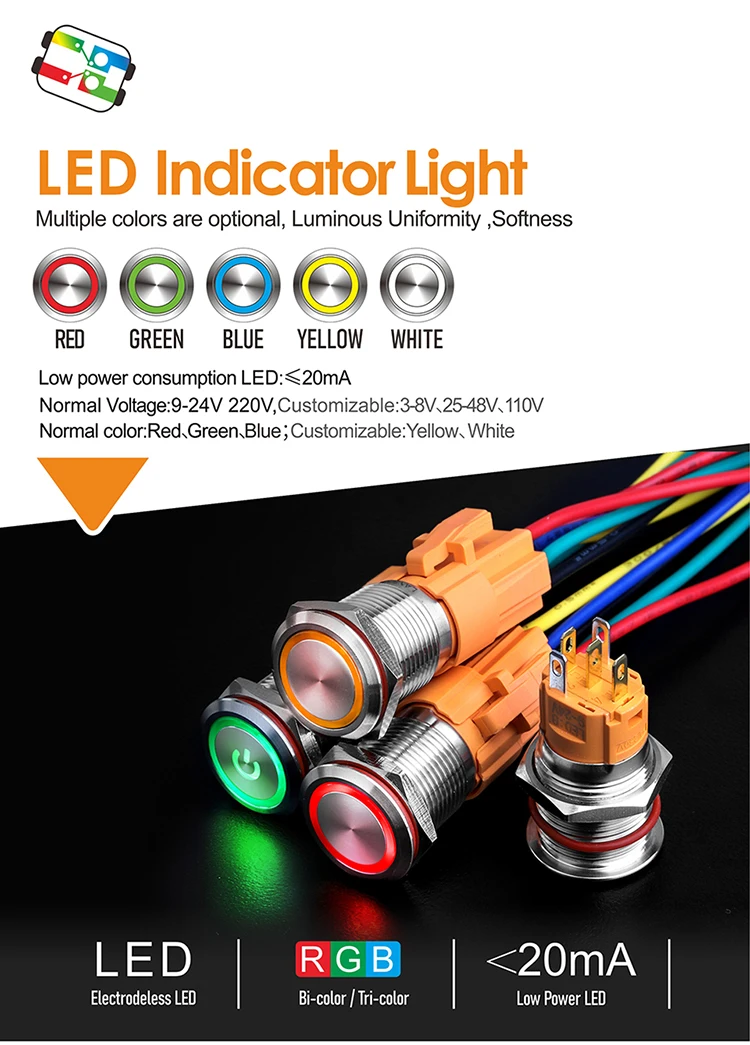

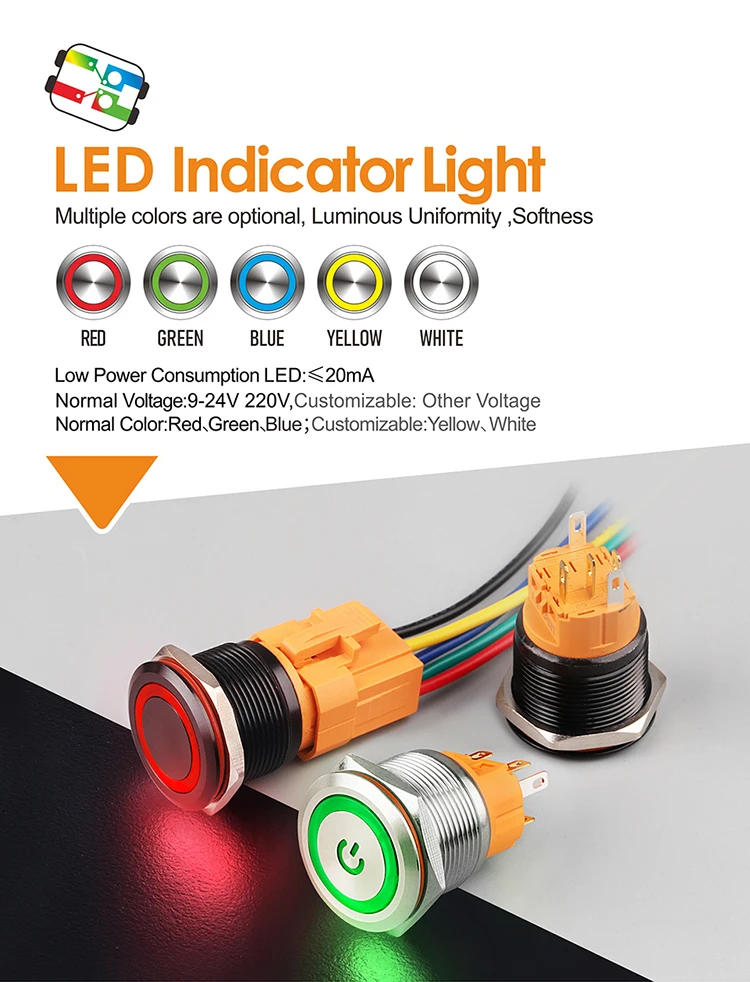

  LED voltage  9-24V, 220V / Customized: 3-8V,25-48V,110V
  Resistive load  AC-15: 110V:1A,220V:0.5A, DC-13: 12V/24V:1A
  Inductive load  AC-15: 110V/220V:0.2A, DC-13: 110V:0.2A

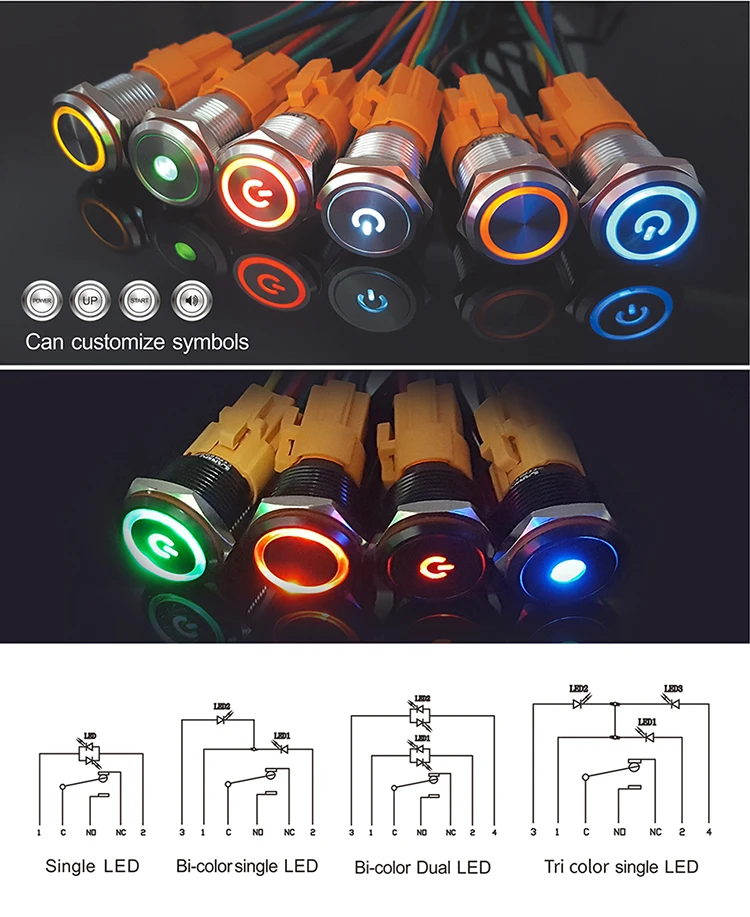

  Glowing shape  Ring/Ring+Power Symbol / Customized: Custom Pattern Symbol

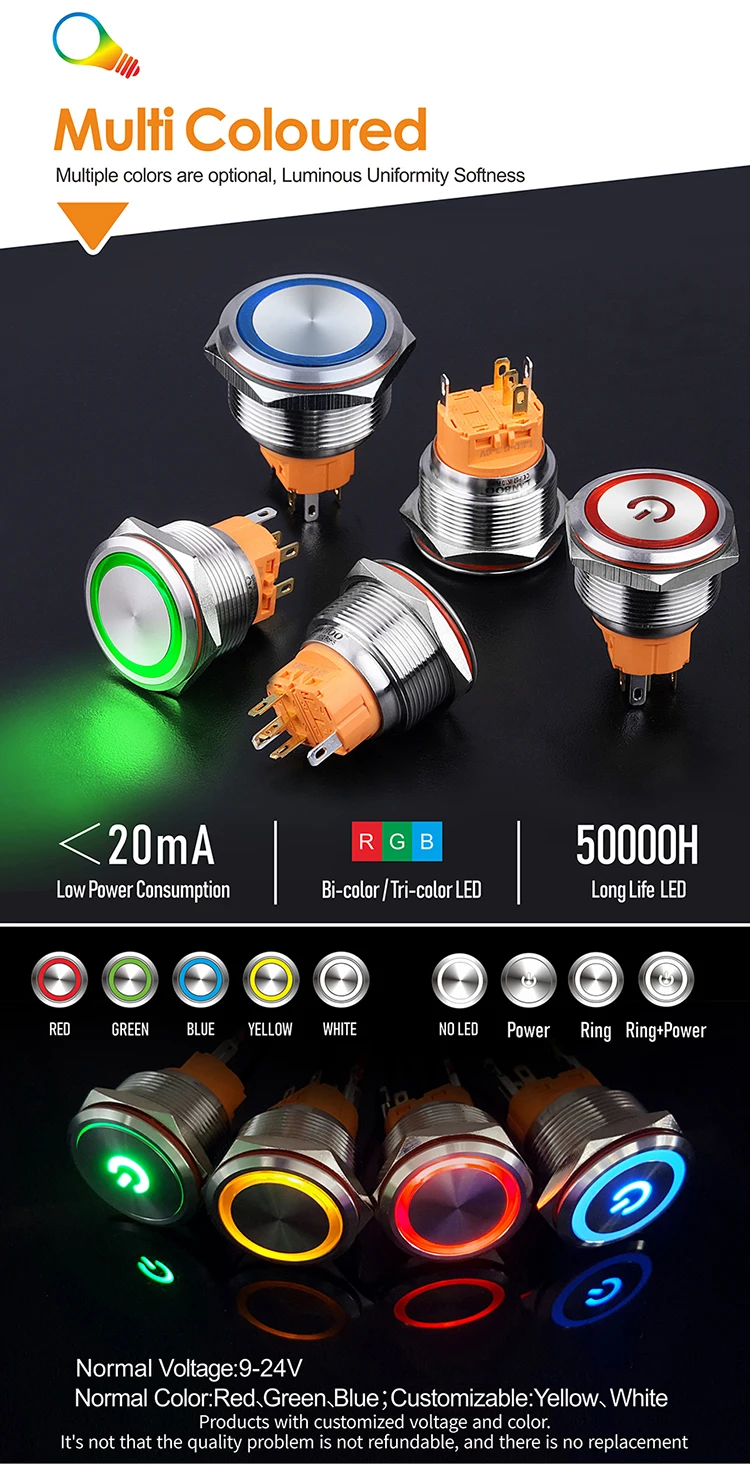

  Glow color  Red, Green, Blue / Customized: Yellow, White







16-19A (1)16-19A (3)16-19A (4)16-19A (6)16-19A (7)16-19A (8)16-19A (10)22A- (1)22A- (4)22A- (3)22A- (8)22A- (9)22A- (10)25-30A (1)25-30A (4)25-30A (5)25-30A (7)25-30A (8)
