Shenzhen P3.91 P4.81 P5.95 Outdoor Led Screen Price P4.81 HD Rental LED Video Display
- Category: LCD Module >>>
- Supplier: Shenzhen LED Visual Photoelectric Co. Ltd.
Share on (62017543737):
Product Overview
Description
Shenzhen p3.91 p4.81 p5.95 outdoor indoor led screen price p4.81 HD rental LED video display panel
Product Feature:
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
Product Description
Full color P4.81 SMD Nation star LED Display for Outdoor Advertising
Unit Module | Item | Parameter |
Model Number | SJ-P4.81-13S | |
Module size | 250mm*250mm | |
Pixel pitch | 4.81mm | |
Pixels Density | 43264dots/m2 | |
Pixel configuration | 1R1G1B | |
LED Package mode | SMD2727 | |
Pixel resolution | 52dots(W)*52 dots (H) | |
Max Power | 35W | |
Weight | 0.65kg | |
Scan mode | 1/13scan | |
Port type | HUB75-A | |
Brightness of white balance | ≥4500cd/m2 |
LED Cabinet | Dimension | 500mm*500mm/500mm*1000mm |
Monomer Module Number | 4pcs/8pcs | |
Thermal discharge | fan 1pcs | |
Pixel per cabinet | 104*104/104*208 | |
Best viewing distance | 5M~20M | |
Best viewing angle | 160°(W) 140°(H) | |
Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
Relative humidity | 10%-95% | |
Thickness | 65mm |
Power | Working voltage | AC110~220V±10% |
Average Power consumption | 230W/M2 | |
Max.Power consumption | ≤560W/M2 | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation system | WIN98/2000/NT/XP/WIN7 | |
Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
Refresh frequency | ≥1920HZ | |
Grey scale/colors | 4096gray level/16.7M colors | |
MTBF | ≥9000hours | |
Power switch | Automatic switch | |
Display Mode | ≥800*600/1024*768 |
Product Details Description:

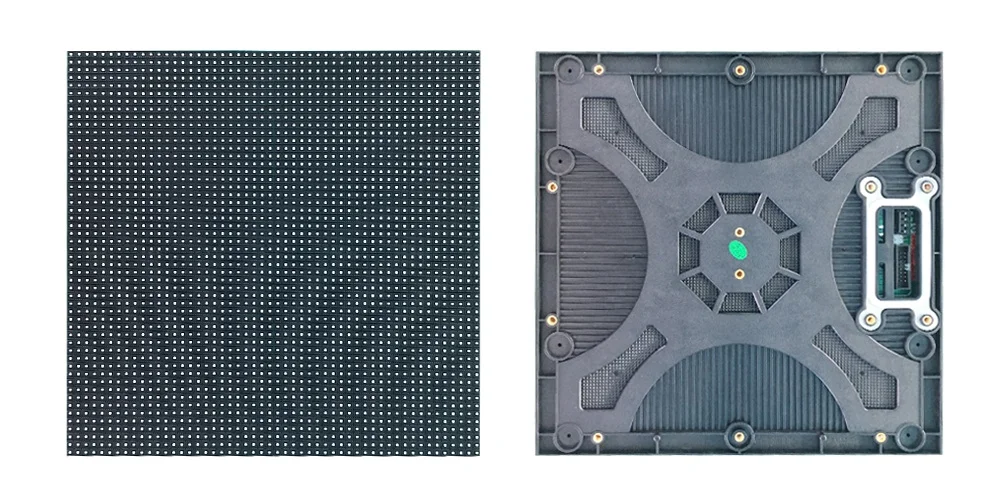

P4.81 Outdoor LED Display Module: 250mm*250mm

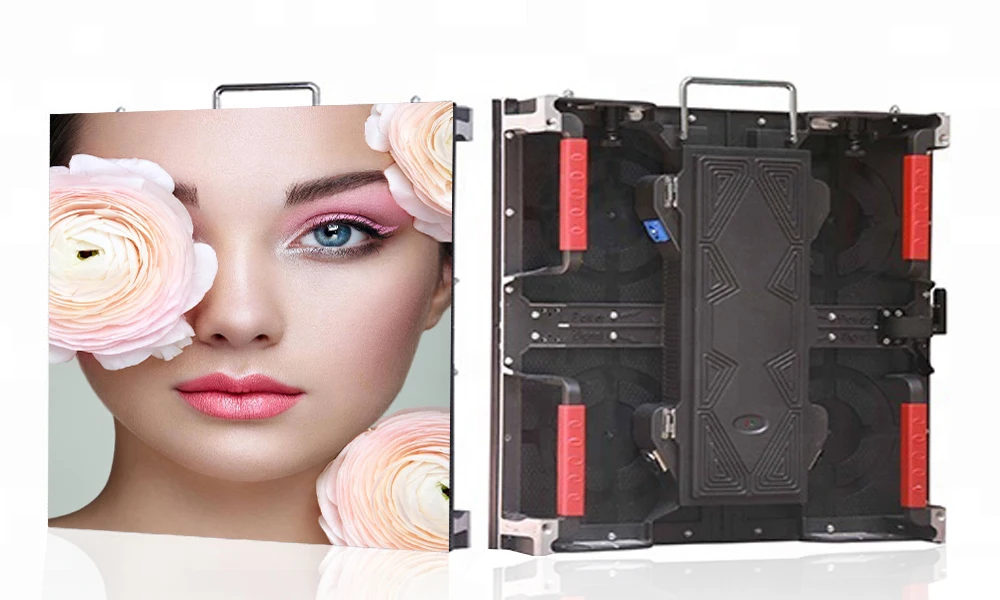

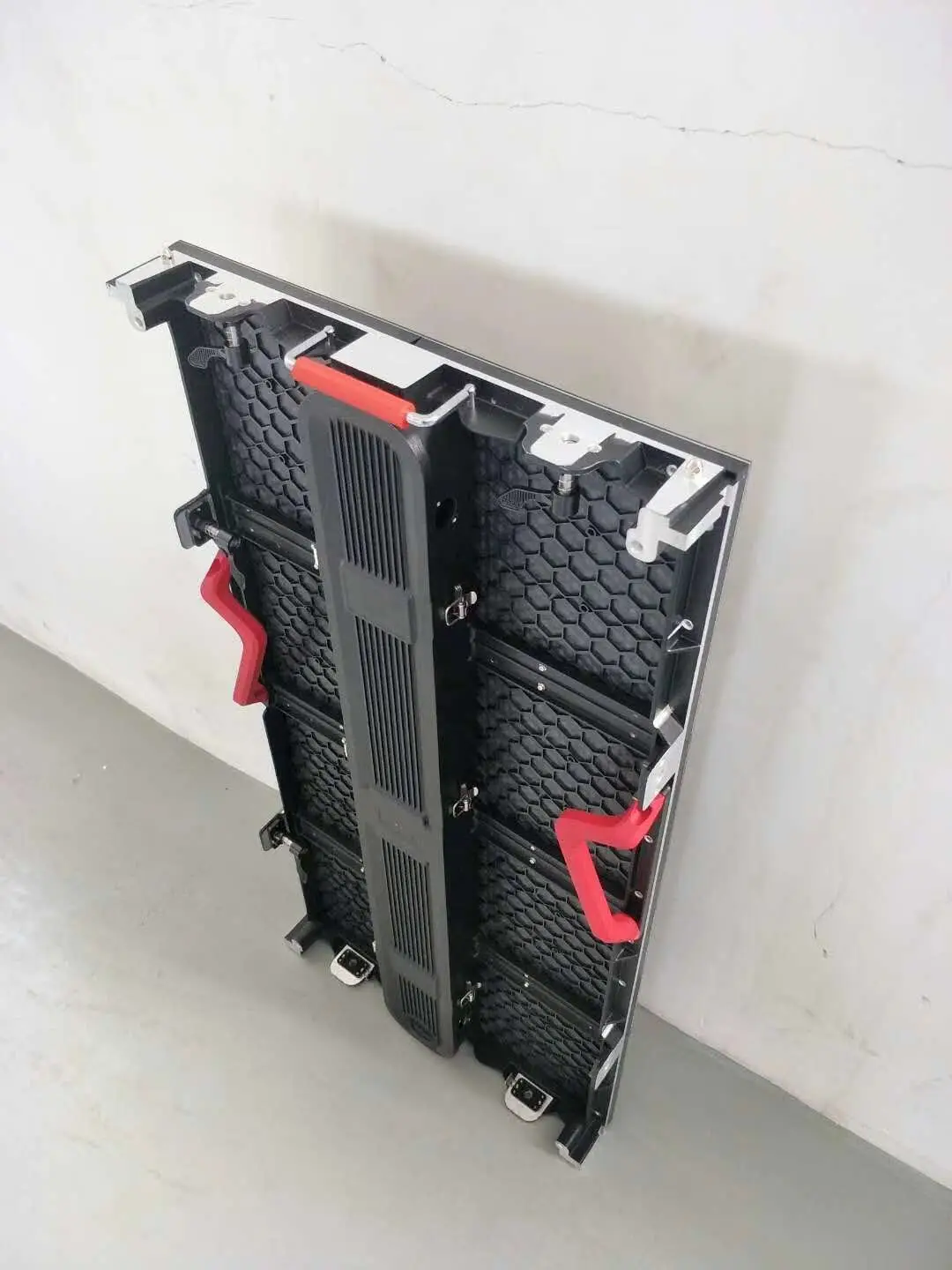

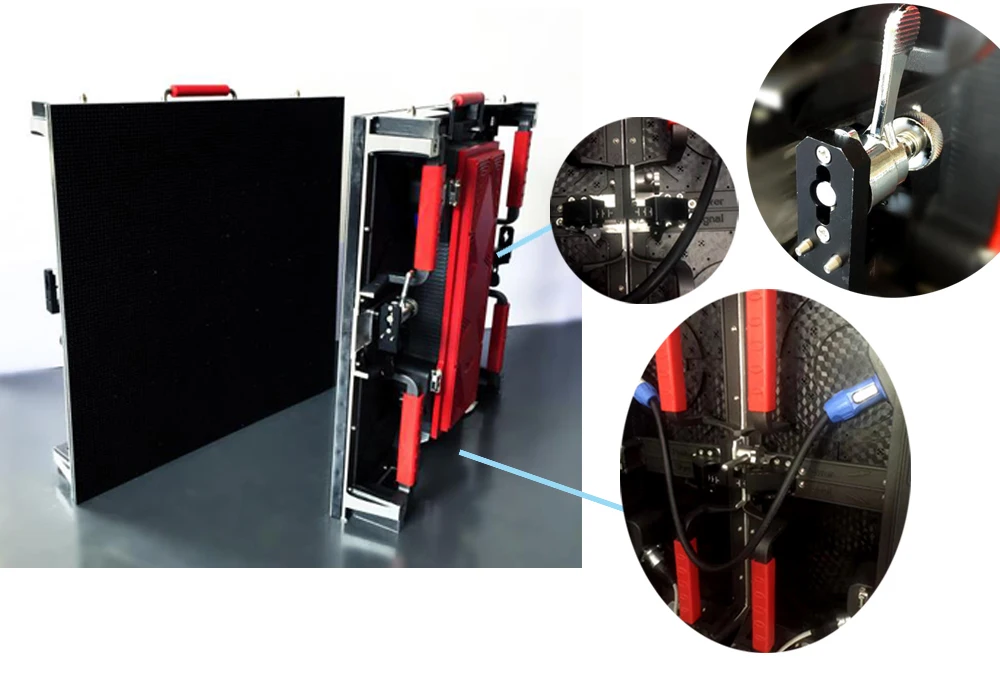

Die Casting Aluminum Cabinet: 500mm*500mm

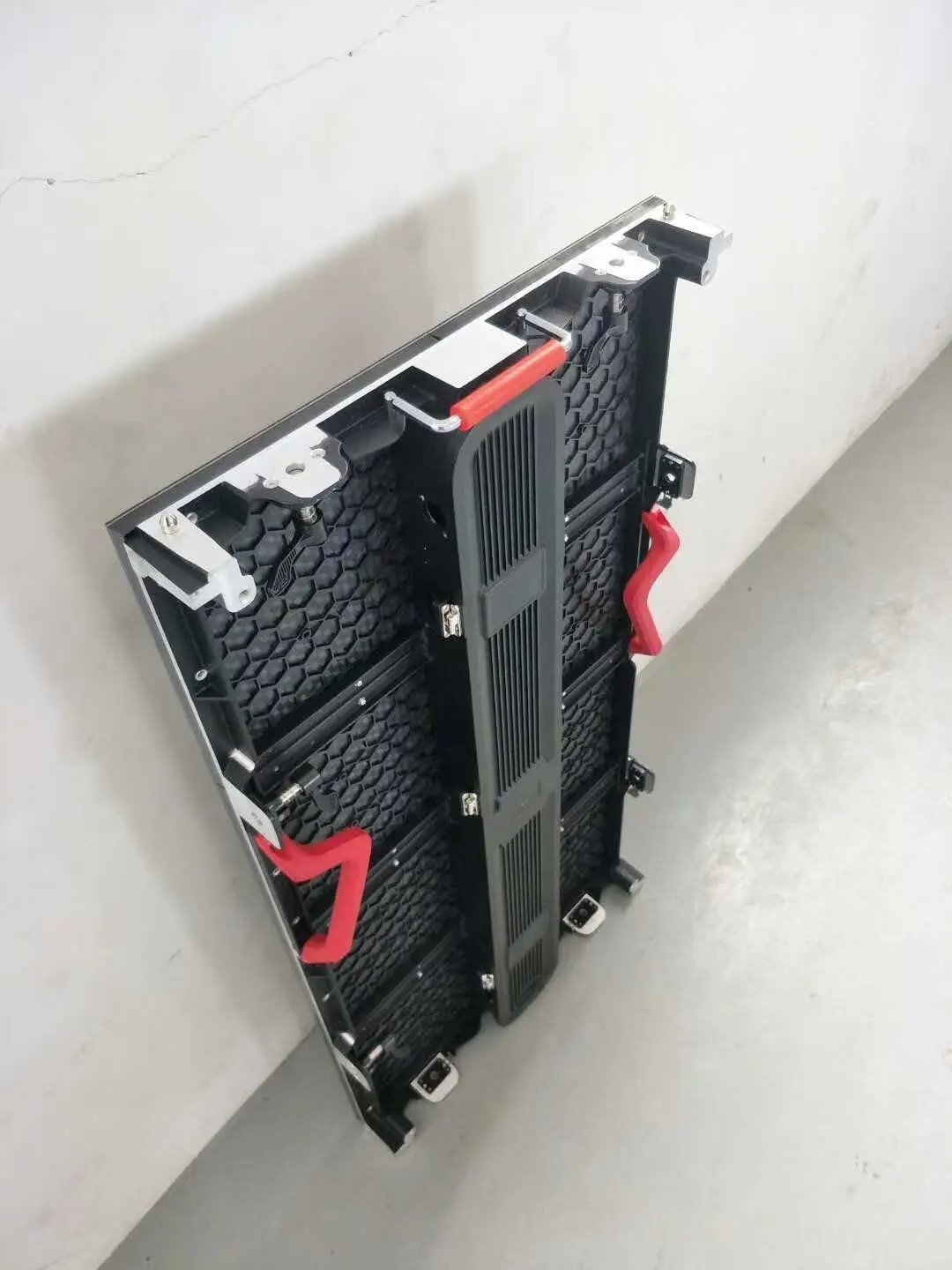

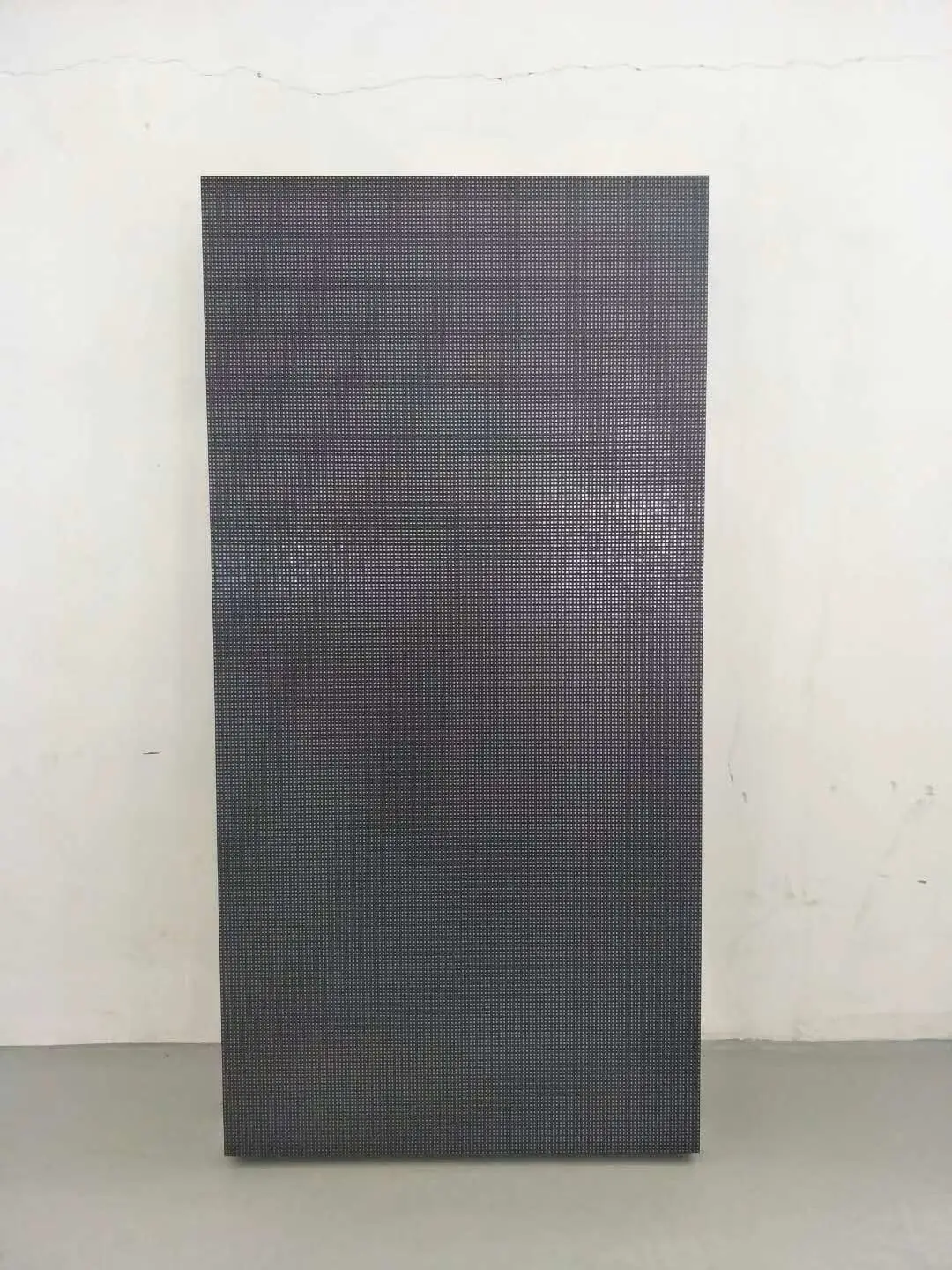

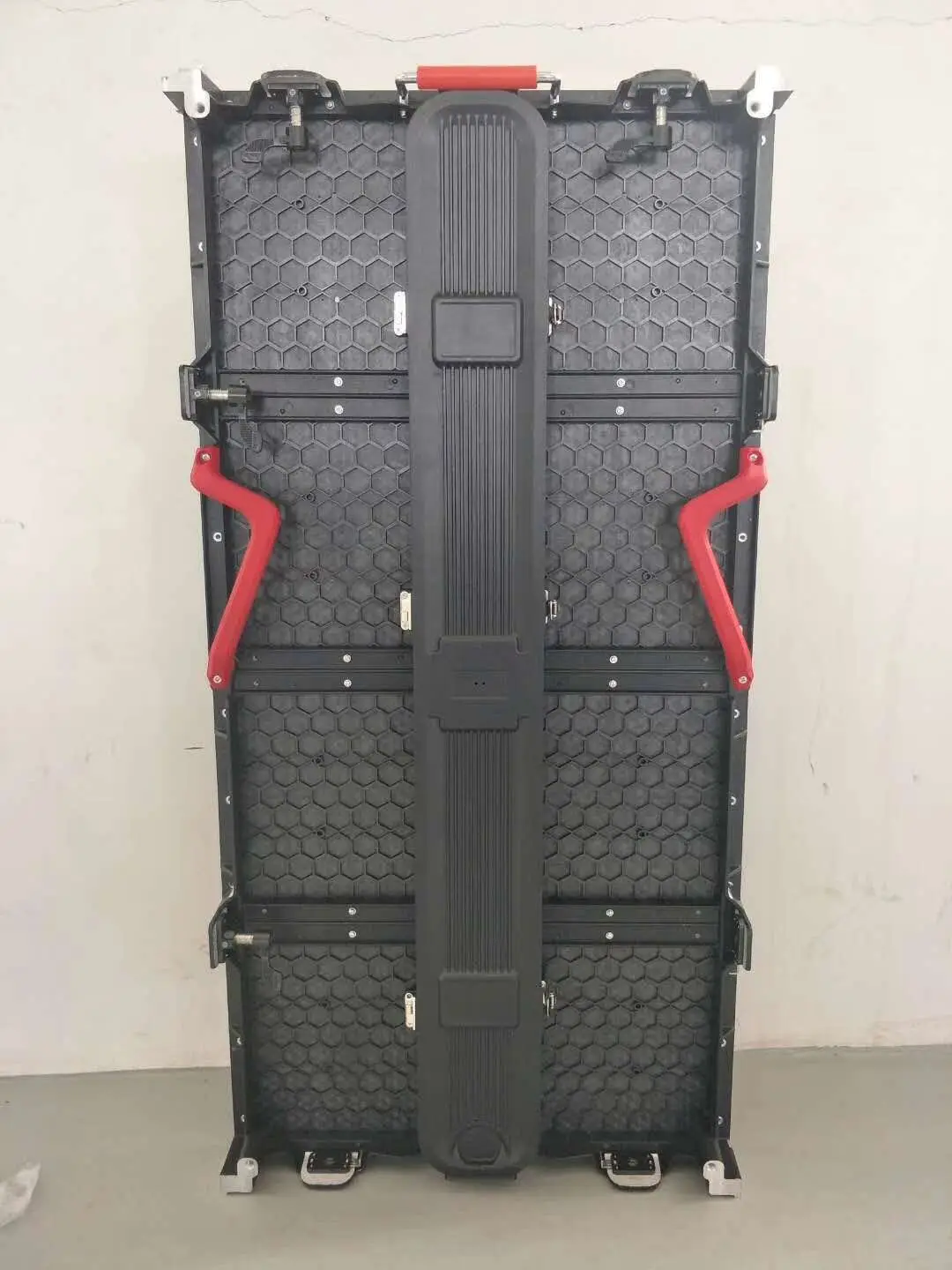

Die Casting Aluminum Cabinet: 500mm*1000mm

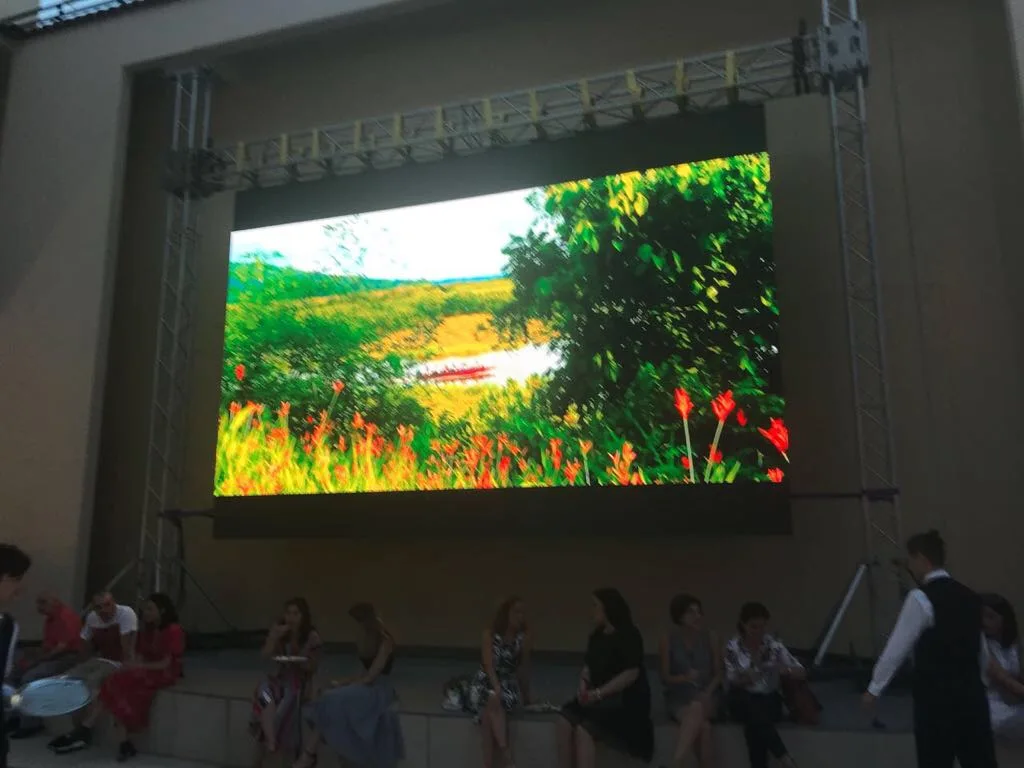

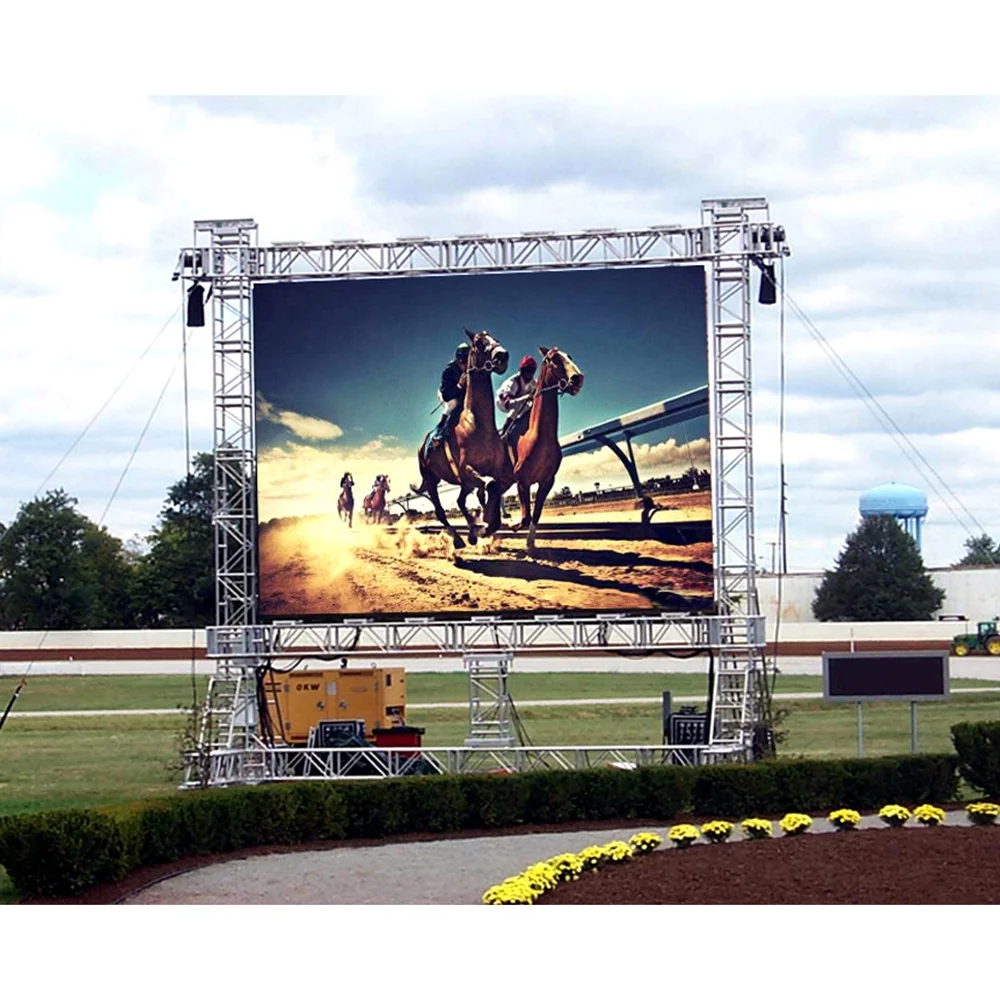

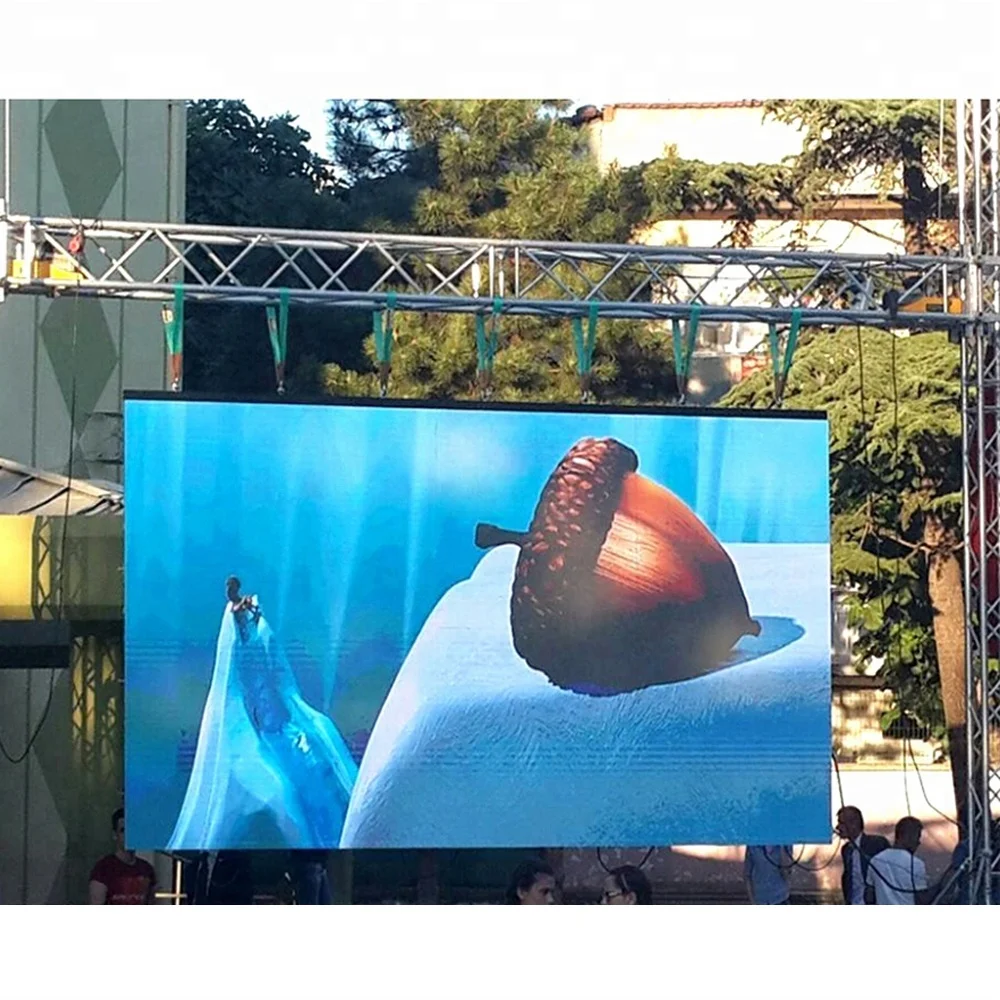

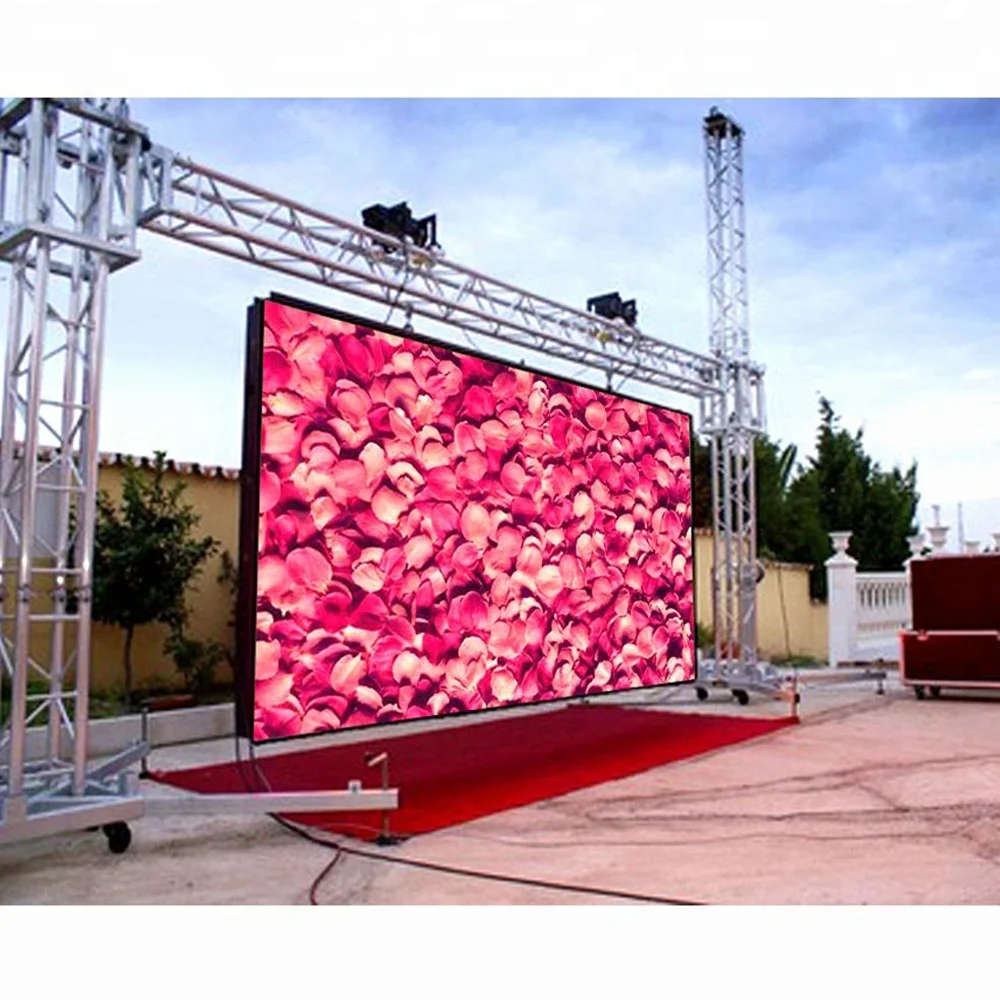

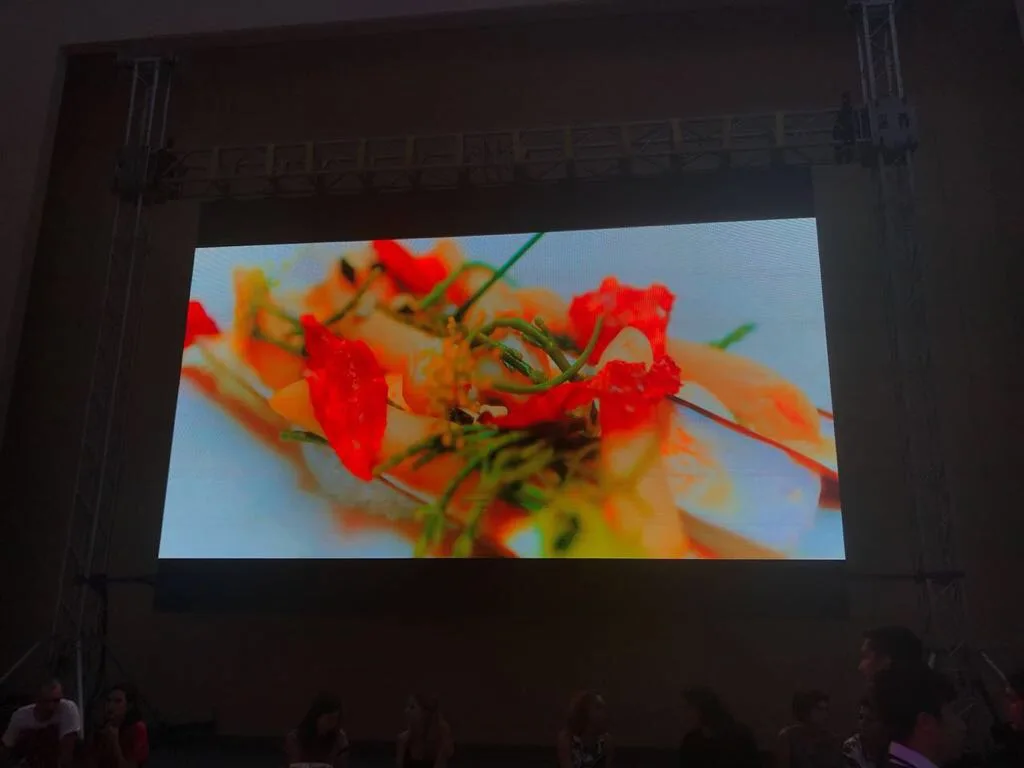

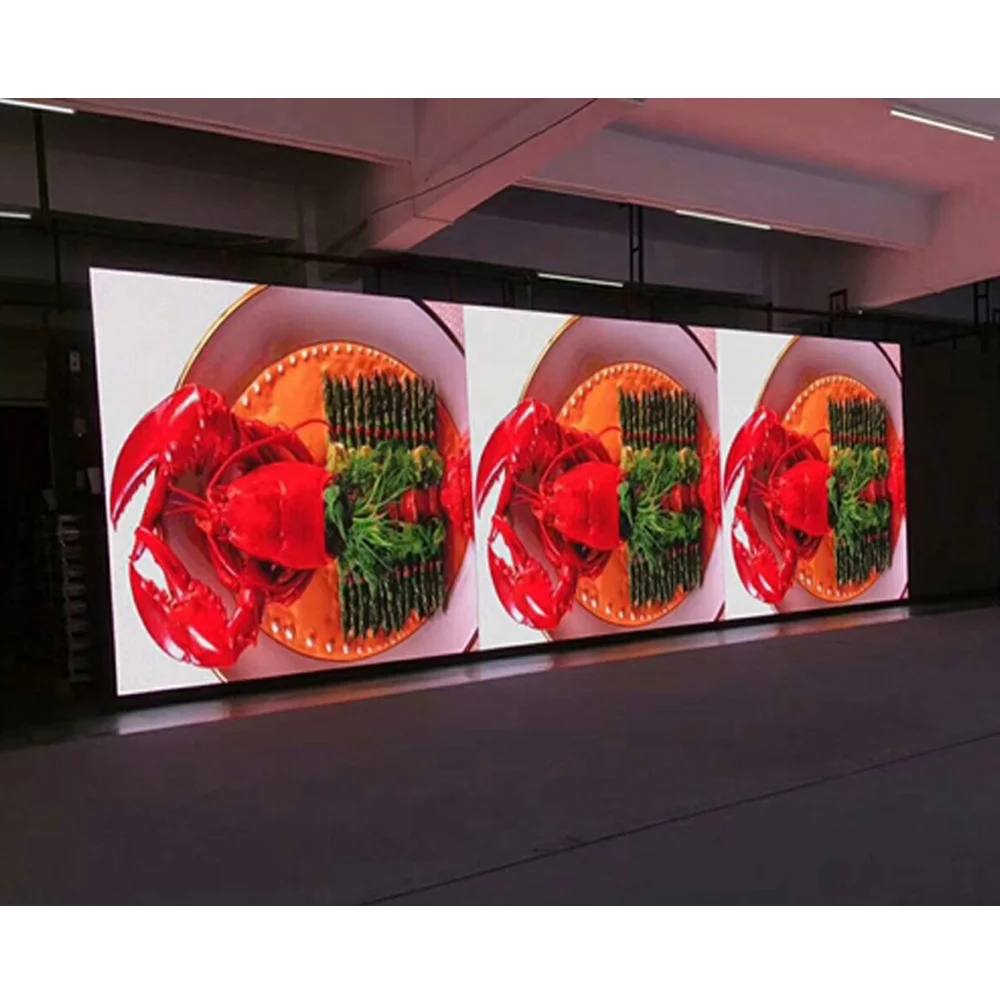

Application Projects:

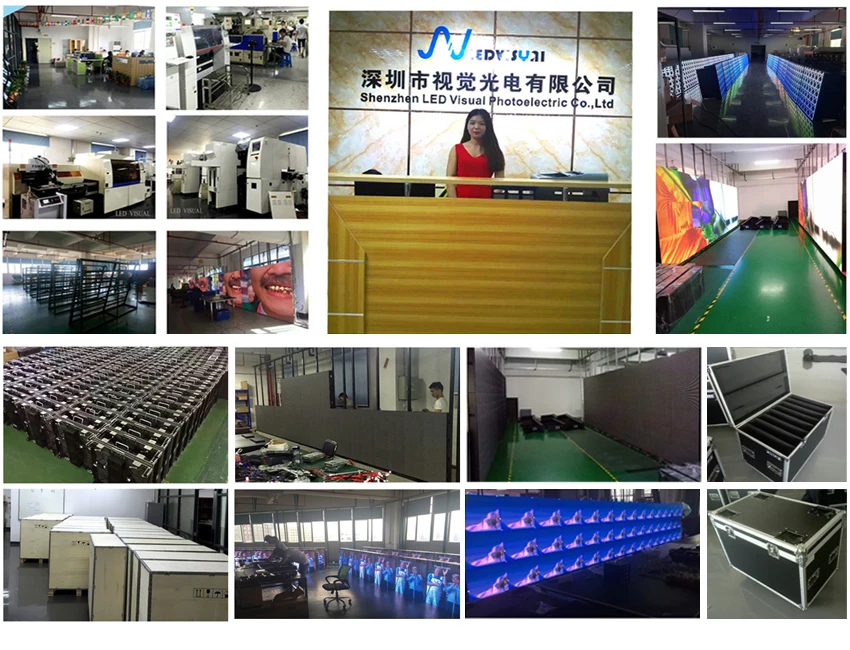

Company Information
Shenzhen LED Visual Photoelectric Co.,Ltd. was established in May 2016, the existing staff of 30 people, foreign trade salesman 10 people, Thai commissioner, one person one Russian commissioner, and English specialist 8 people, is a professional LED display manufacturer with new modern bussiness mode. Our company mainly produce indoor and outdoor single color module and the whole screen, indoor and outdoor full-color module and the whole screen, and series of peripheral products LED display sales, visual photoelectric is given priority to with foreign markets, 98% of all goods exported to foreign markets, the registered capital of two million yuan.
In today's market turmoil, our company holds integrity management, customer first, want to customers think, do what customers do, to make promote the company to grow and develop, now our company already exported to Ukraine, Iraq, Dubai, America, Belgium, outer Mongolia, Korea, Thailand, Singapore, India, South Africa, Malaysia, Brazil, Pakistan and other places of export goods. Shenzhen LED Visual photoelectric focus on specialization market - advertising and brand, sports venues, events and entertainment and so on of large activities, to provide different patterns of LED application product solutions and high quality products and services.
Certificates:

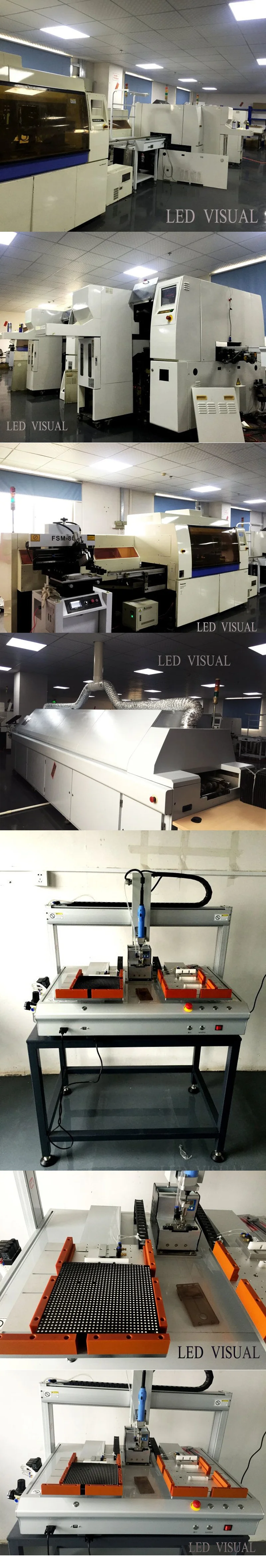

Workshop:
FAQ
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P3.91mm/P4mm/P5mm/P5.95mm/P6mm/P8mm/P10mm/P16mm)
Q4: Where is it used for?
A4: Outdoor & Rental use. Widely used for advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
