Smart Hybrid Photovoltaic Home Off Grid Solar Energy Systems 5Kwh 10Kwh 15Kwh 20Kwh 25Kwh 30Kwh Home Solar System Kit
- Category: Solar Energy Systems >>>
- Supplier: Shenzhen Jinsdon Lighting Technology Co. Ltd.
Share on (62017598625):
Product Overview
Description
Specification
5KW 15KW 10k 15KW 20KW 25KW 30KW home solar energy | ||||||||||||||
Parts | Description | Quantity | ||||||||||||
Parts | Description | 5kw | 10kw | 15kw | 20kw | 25kw | 30kw | |||||||
mppt Controller Inverter | Model:48V/5000W Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 1PC | 2 PCS | 3PCS | 4PCS | 5PCS | 6PCS | |||||||
Lifepo4 battery pack | Model:48V 80AH Rated Voltage：51.2V Rated Capacity：80AH Net Weight：45kg DOD depth：100% | 1PC | 2PCS | 3PCS | 4PCS | 5PCS | 6PCS | |||||||
PV Panel | Model:PV380P Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 8PCS | 16PCS | 24PCS | 32PCS | 40PCS | 48PCS | |||||||
PV Panel Mounting Bracket | Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set | |||||||

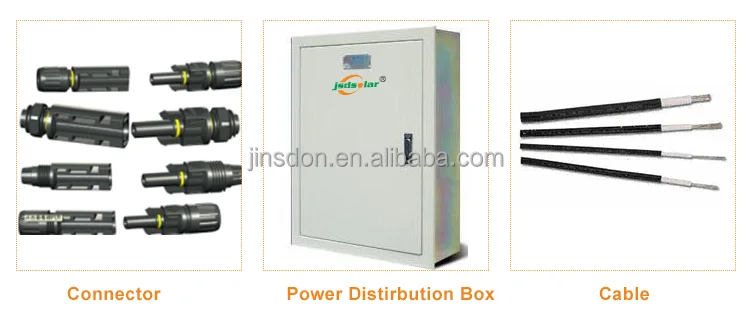

Power Distribution Box | Customized,Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set | |||||||
Cable | Model:PV-1*6mm2 Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：-40℃-90℃ | 40 M | 80 M | 120 M | 160 M | 200 M | 240 M | |||||||
PV Waterproof Connector | Model:MC4 Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 10Pairs | 20Pairs | 30Pairs | 40Pairs | 50Pairs | 60Pairs | |||||||

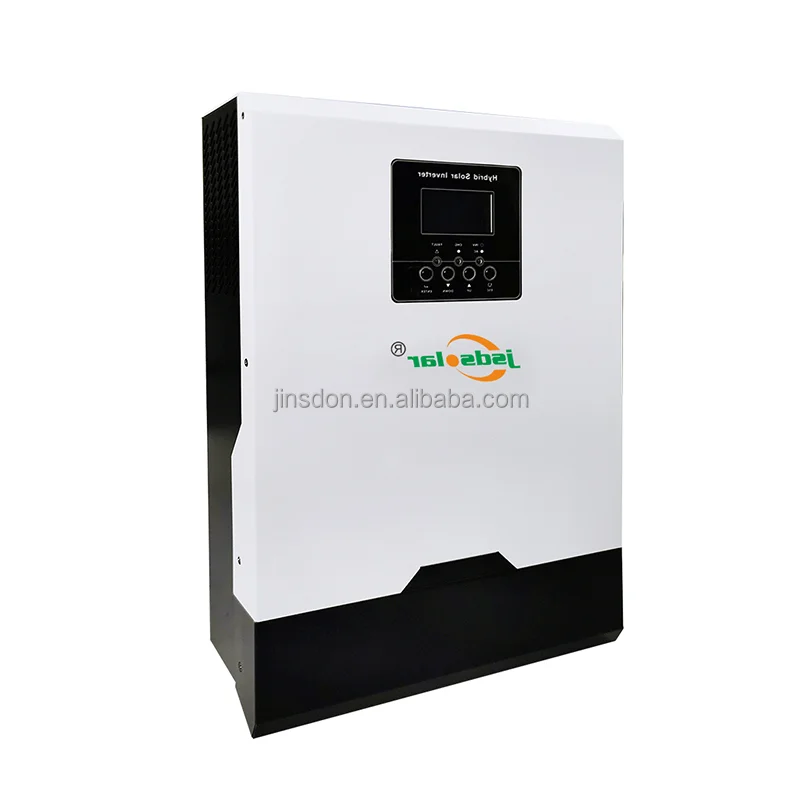

MPPT Controller Inverter
1. Pure sine wave inverter;
2. Inverter running without battery ;3. Built-in MPPT solar controller;
4. Configurable AC/Solar Charger priority via LCD setting;
5. Compatible to mains voltage or generator power
6. Auto restart while AC is recovering;
7. Overload/ Over temperature/ short circuit protection
8. Cold start function.
2. Inverter running without battery ;3. Built-in MPPT solar controller;
4. Configurable AC/Solar Charger priority via LCD setting;
5. Compatible to mains voltage or generator power
6. Auto restart while AC is recovering;
7. Overload/ Over temperature/ short circuit protection
8. Cold start function.

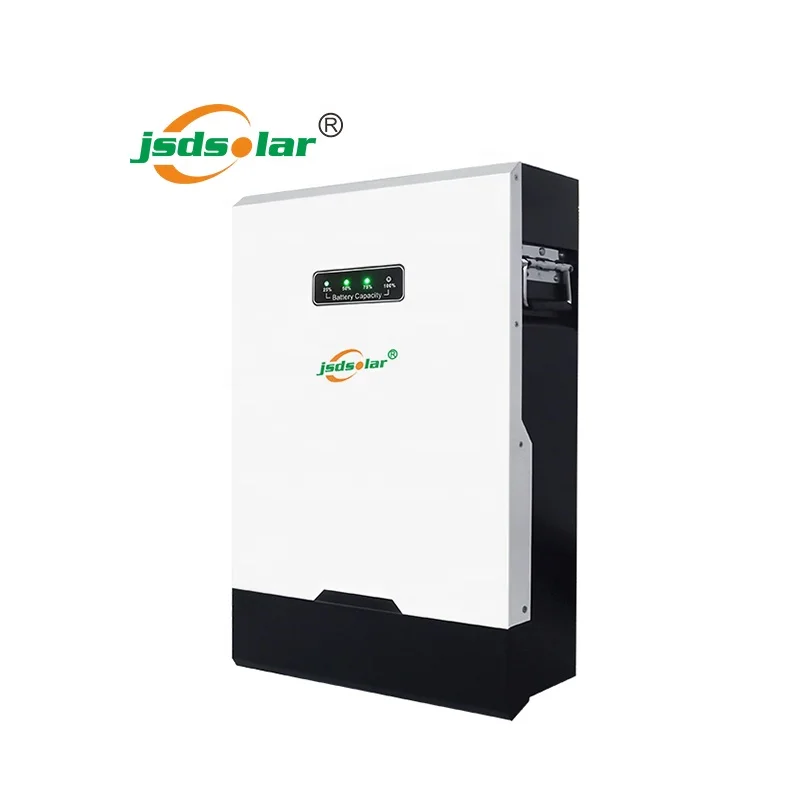

1. Safety and Reliable
1) High safety level of lifepo4 battery cell;
2) Popular battery energy: 4kwh, 5kwh, 6kwh
3) Long life cycle time >6000cycles;
4) Advanced BMS protection functionality;
2. Flexibility and Compatible
1) Store energy from thr grid or solar;
2) Total energy extends to 90kwh by parallel battery packs :
3) Installation: Floor/Wall mounted;
4) Monitor and optimize by smartphone app
1) High safety level of lifepo4 battery cell;
2) Popular battery energy: 4kwh, 5kwh, 6kwh
3) Long life cycle time >6000cycles;
4) Advanced BMS protection functionality;
2. Flexibility and Compatible
1) Store energy from thr grid or solar;
2) Total energy extends to 90kwh by parallel battery packs :
3) Installation: Floor/Wall mounted;
4) Monitor and optimize by smartphone app

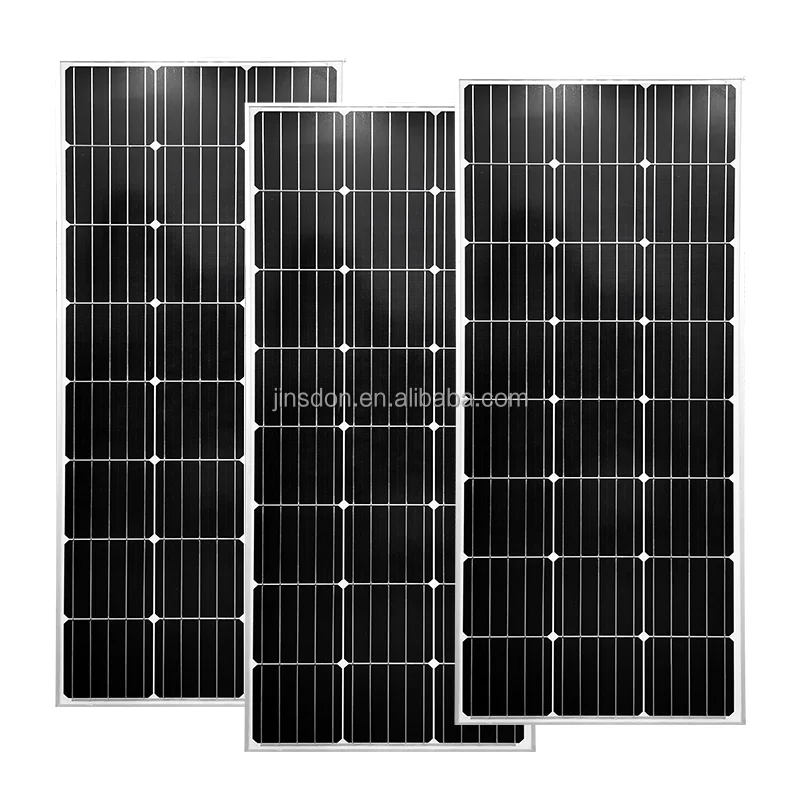

1. 25 years Warranty;
2. Highest conversion efficiency of 17%;
3. Anti-reflective and anti-soiling surface power loss from dirt and dust.
2. Highest conversion efficiency of 17%;
3. Anti-reflective and anti-soiling surface power loss from dirt and dust.

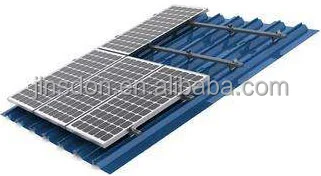

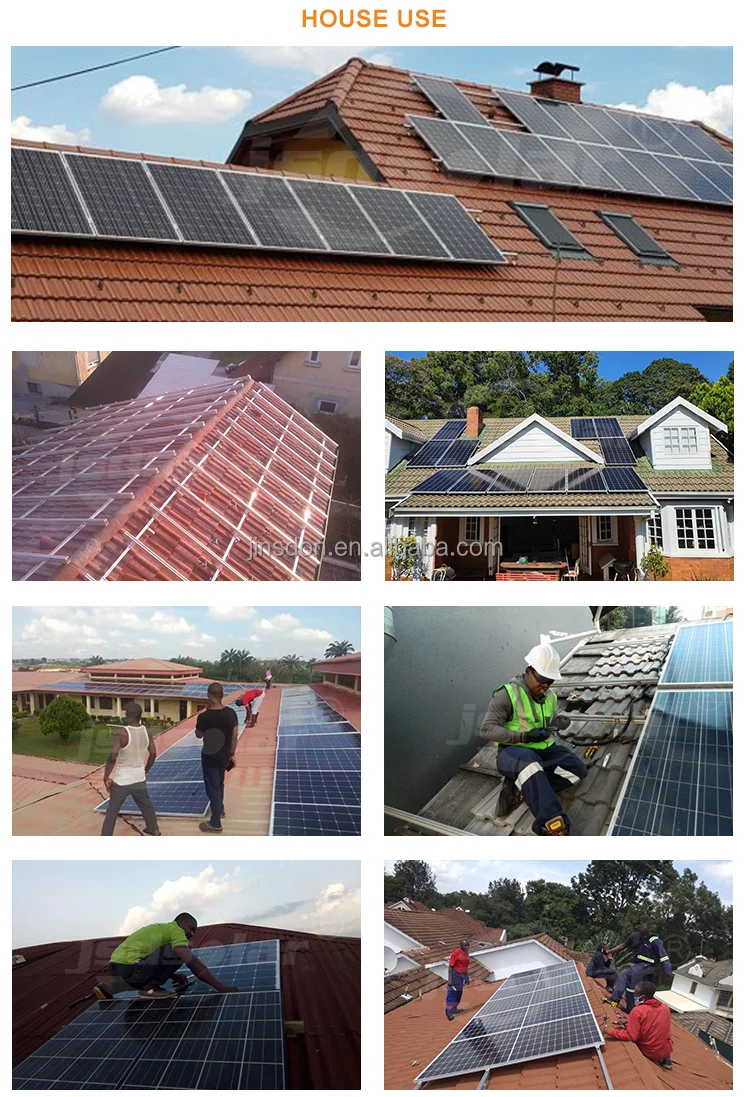

1. Residential Roof(Pitched Roof);
2. Commercial Roof(Flat roof&workshop roof);
3. Ground Solar Mounting system;
4. Vertical wall solar mounting system;
5. All aluminum structure solar mounting system;
6. Car parking solar mounting system.
2. Commercial Roof(Flat roof&workshop roof);
3. Ground Solar Mounting system;
4. Vertical wall solar mounting system;
5. All aluminum structure solar mounting system;
6. Car parking solar mounting system.
System Description
Recommend Products
Company Profile
Headquarter & Factory Location | No68, Baigongao Industrial area, Fucheng Street, Longhua District, Shenzhen, China |
Industry Experience | 12-Year Manufacturer and Trading, Alibaba Supplier |
Product Range | Solar Inverter, Solar Battery (lithium ion battery), Solar System, Solar Street Light, Solar Garden Light, Solar Wall Light, Solar Controller etc. |
Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
Department | 2-teams Marketing Dept, 1-team R&D, 1 Manufacturing Center, 6-team producing Dept, After-sale Service Dept. |
Certificate | ISO9001:2008, CE, RoHs, SGS, TUV, EMC, FCC etc. |
Patent | Software Patent, Design Patent, Project Patent |
Exhibition
Certificate
Our Service
Samples, OEM and ODM, Warranty and After-Sale Service:
* Welcome Solar Power System Sample Test;
* OEM & ODM is welcomed;
* Warranty: 5 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. please send email to us about PI number, Product number, most importantly, is the description of broken products, to the best,
and show us more details of pictures and video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
* Welcome Solar Power System Sample Test;
* OEM & ODM is welcomed;
* Warranty: 5 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. please send email to us about PI number, Product number, most importantly, is the description of broken products, to the best,
and show us more details of pictures and video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
