HK-5B-II Double Side h-beam h beam automatic welding machine Huawei Pro Factory

Product Description

 HK-5B-II main.jpg

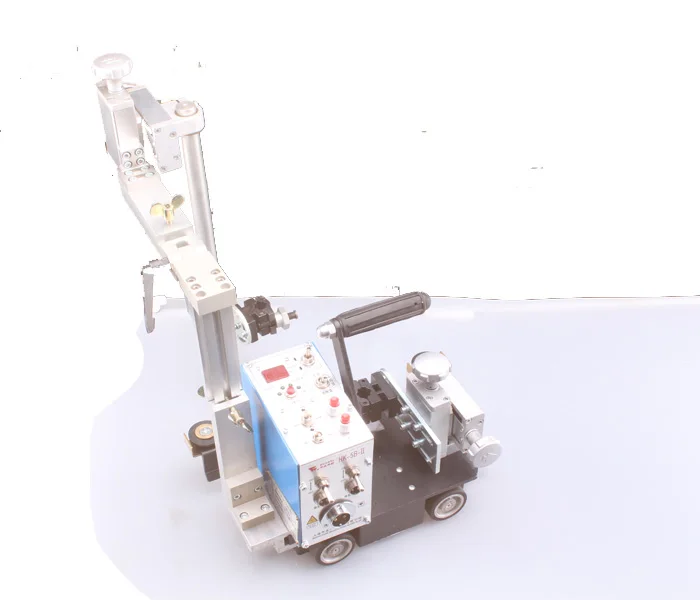

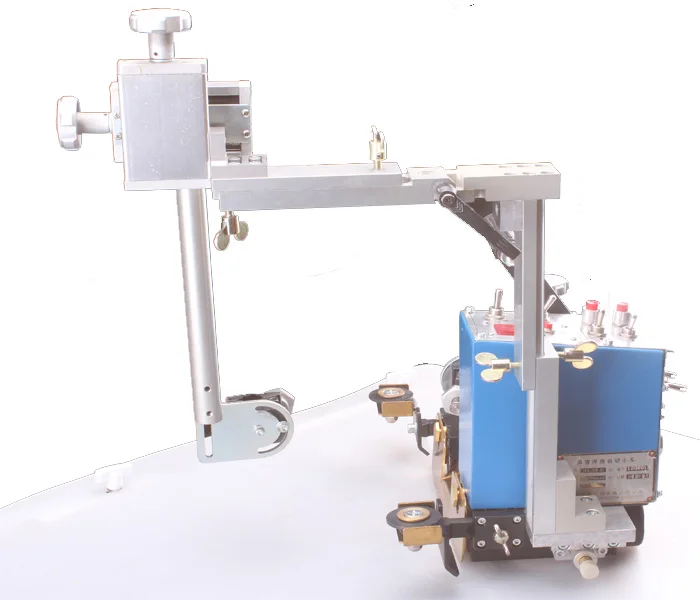

The main body is made of high strength alloy aluminum, compact structure, light and portable. With auto-welding device for double face horizontal welding; Option for one torch or two torch as required; the fixing holder for carriage can be adjusted in width and height epending on workpiece; application widely.
SPECIFICATIONS FOR HK-5B WELDING TRACTOR
Weight
12.5Kg
Dimension
320mm×230mm×290mm
Power source
DC 24V
Shifting
Four-wheel drive(Rubber rim)
Speed of travel
30~1900mm/min(Display on the nixie tube)


Adjustable range of the torch
Up and down                                                   60mm
Font and back                                                  60mm
Working angle range                                     ±45°
Moving angle range                                       ±10°


Operation function
Choice of moving direction                         Left and right
Setting of runoff time                                     0~3.5 S
Setting of the speed of travel                      Display on the nixie tube
