Product Overview

Description

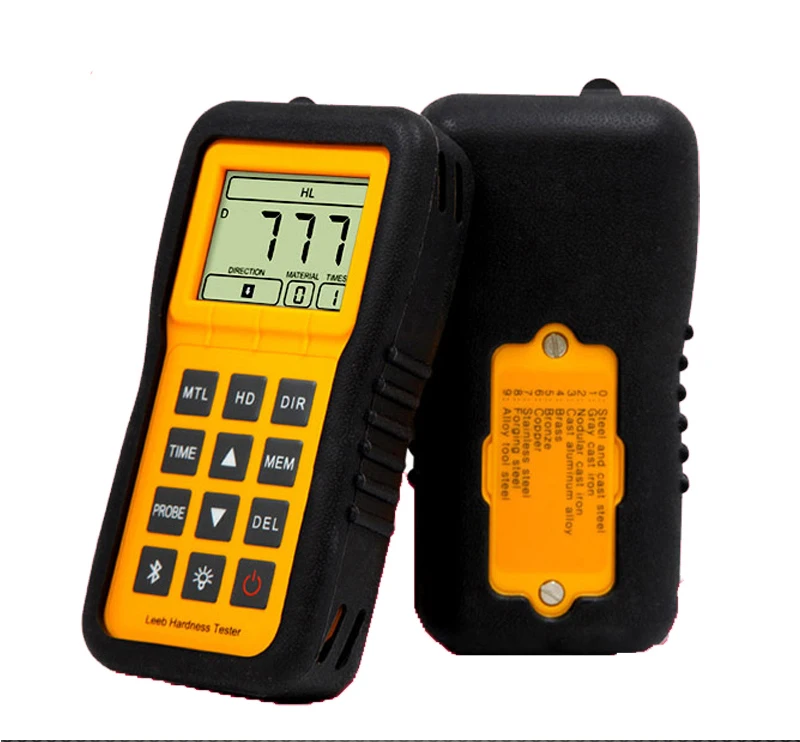

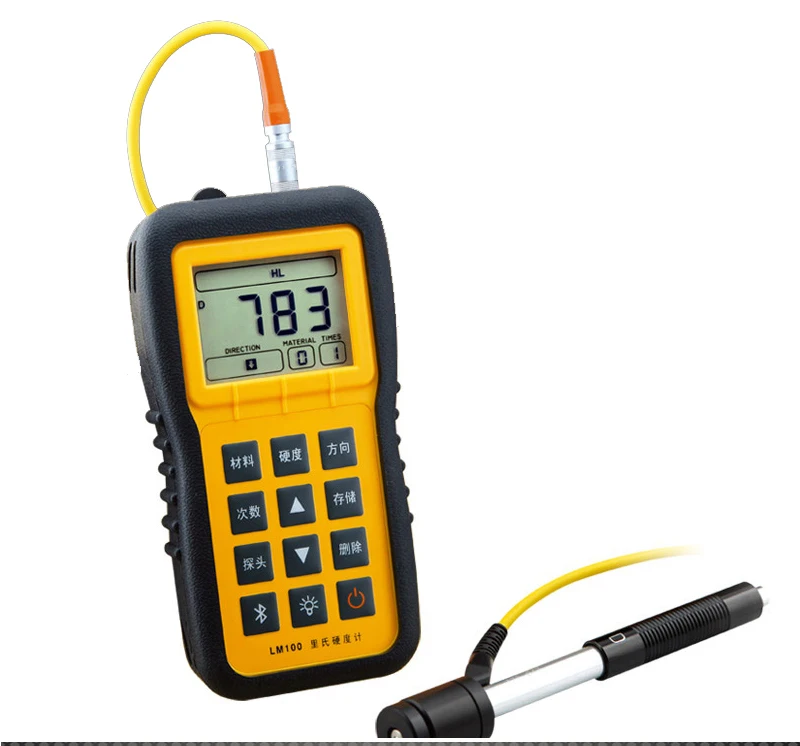

Ultrasonic Hardness Tester LM100


 Working Principle


To use the impact body of certain weight impacts against the testing surface under certain spring force, leeb hardness means the ratio of the impacting velocity(Va) and the rebounding velocity(Vb) of the impact body when the spherically test tip is located 1mm above the testing surface. The leeb hardness values are calculated by the following formula:


HL=1000*( Vb / Va )


Specification










































































Measuring Method



Leeb Hardness method



Hardness Scale



HL, HB, HRB, HRC, HV, HS, σb



Measuring Range



HLD(200-960), HRC(19.8-68.5), HRB(13.5-100), HB(30-651), HV(80-976), HS(26.4-99.5), σb (375-2639)



Impact Device



D type impact device standard, optional C/G/DC/DL/D+15



Accuracy



±6HLD (HLD=800), Repeatability:less 6HLD (HLD=800)



Measuring Direction



360 degree by manual setting



Material



Steel& Cast Steel, Stainless Steel, GC iron, NC iron, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass.



Resolution



1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS



Display



High Contrast Segment Liquid Crystal Display (LED Backlight)



Data Memory



100 groups (each group include 1-7 testing result and 1 MEAN value)



Communication

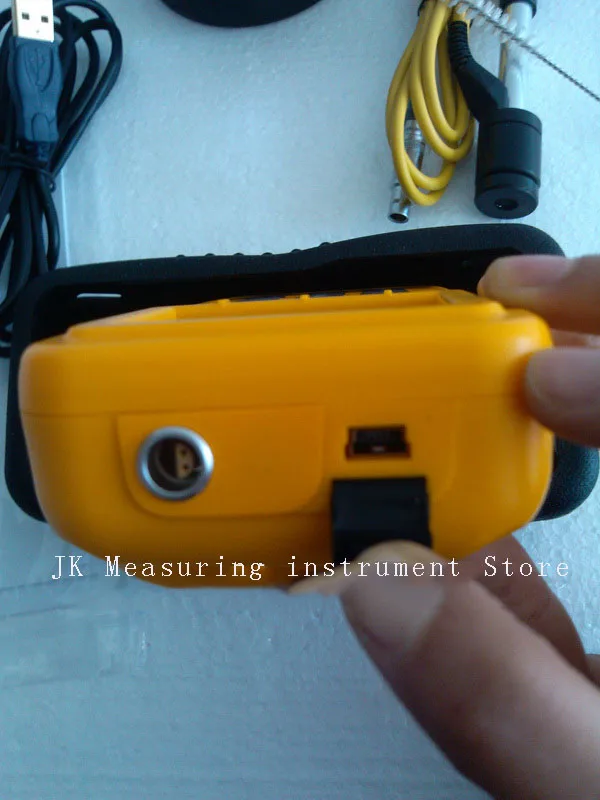

USB port (Standard) and Blue tooth (Optional)



Printer



Thermal Printer with blue tooth (optional)



Power



2 AA batteries



Working Temperature



-10 to +50



Size



153*76*37 (mm) (H*W*D)



Weight



280g include batteries



Standard



GB/T 17394-1998, ASTM A956

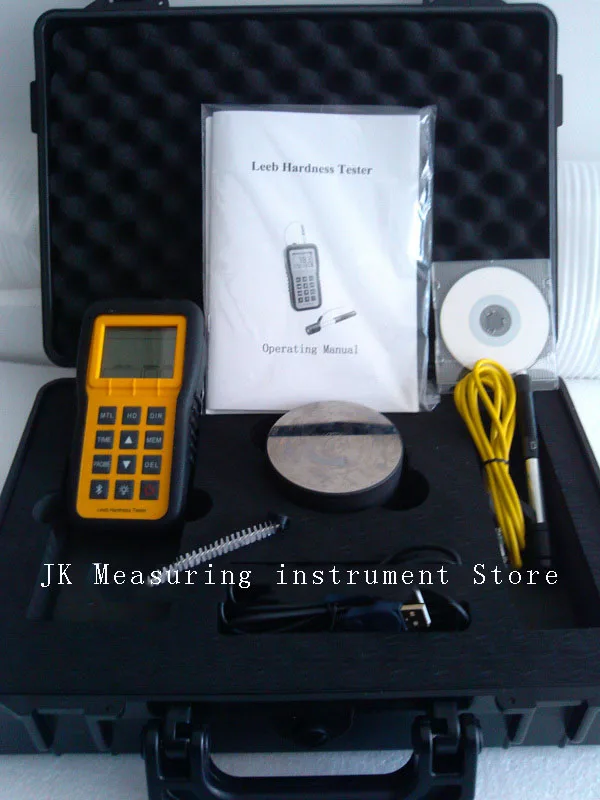

Standard Configuration



Optional Configuration



LM 100 Main Unit



Impact Device: D/C/G/DC/DL/D+15



D Type Impact Device

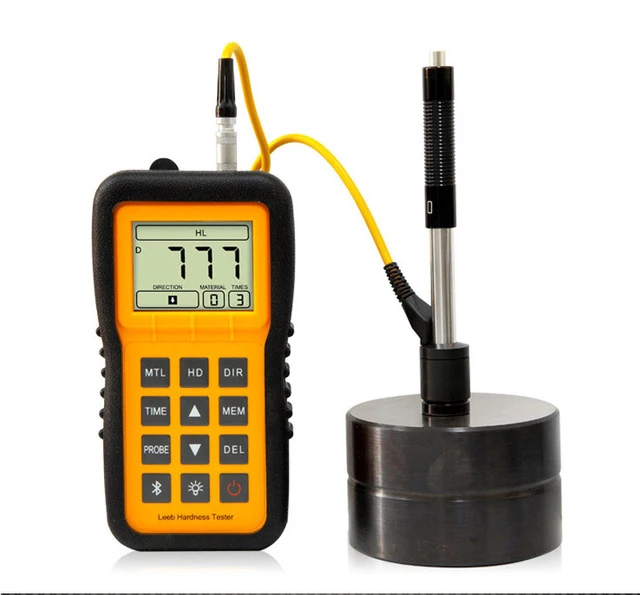

Standard Test Block



Standard Test Block



Blue tooth module & Thermal Printer



Rubber Sheath



Belt



Small Support Ring



Standard Support Ring



Cleaning Brush



Small Support Ring



2 AA Batteries



Special Support Ring



Operating Manual



Instrument Case
