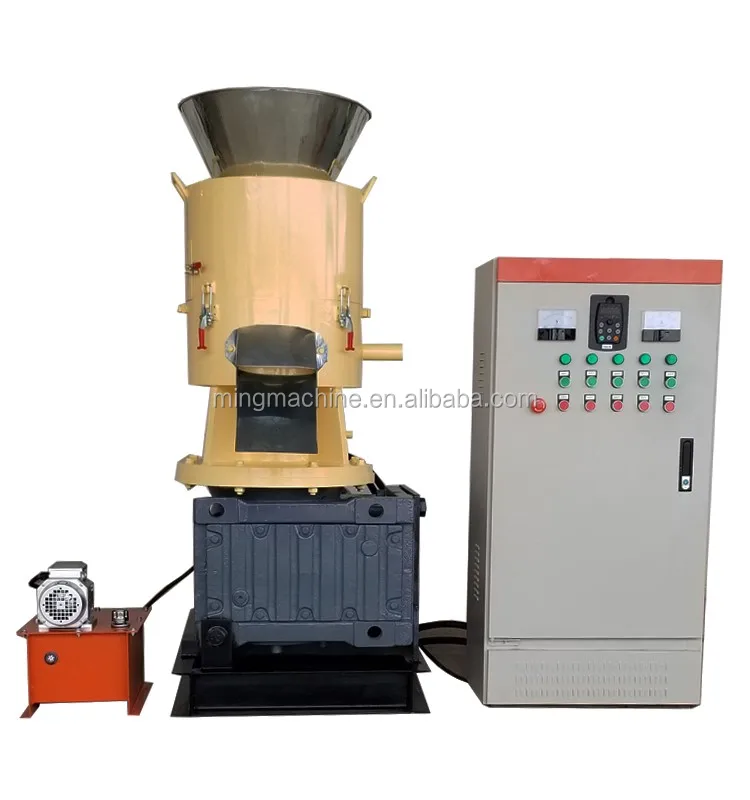

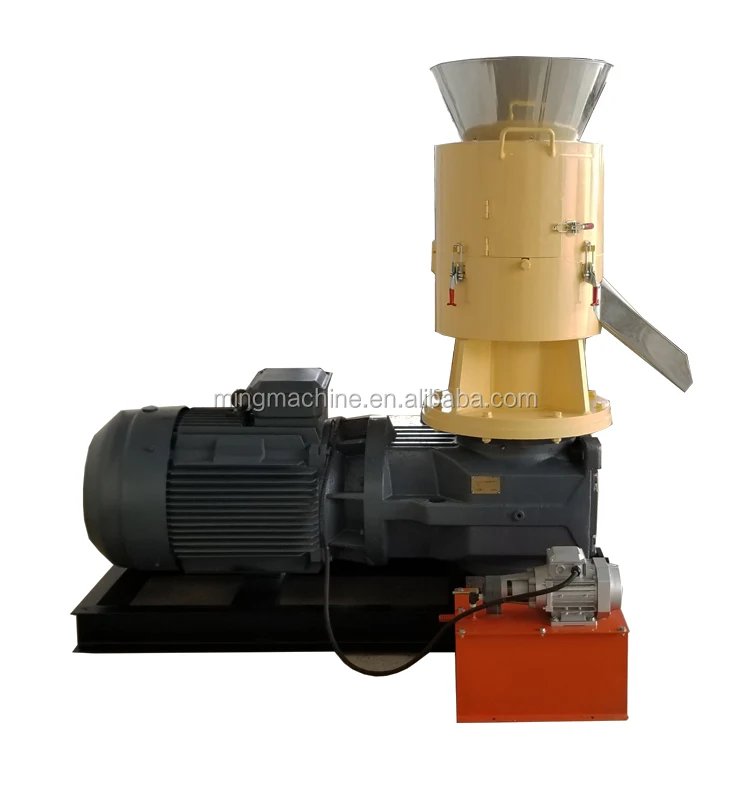

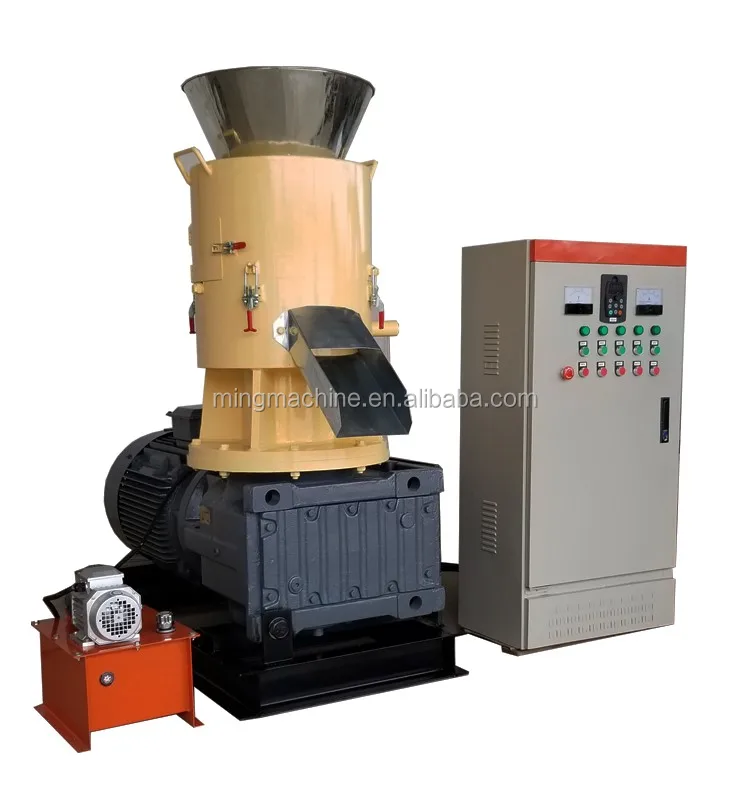

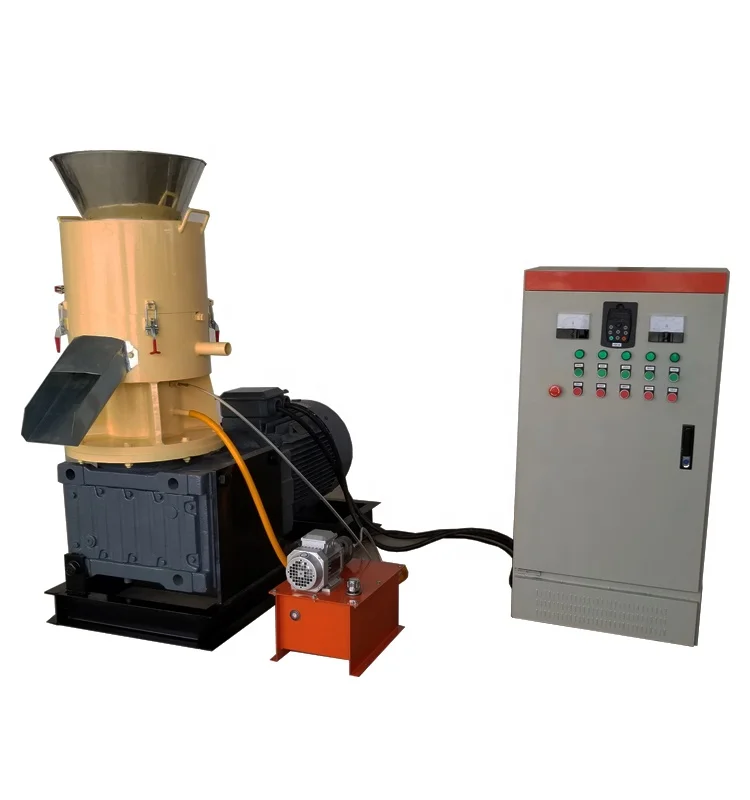

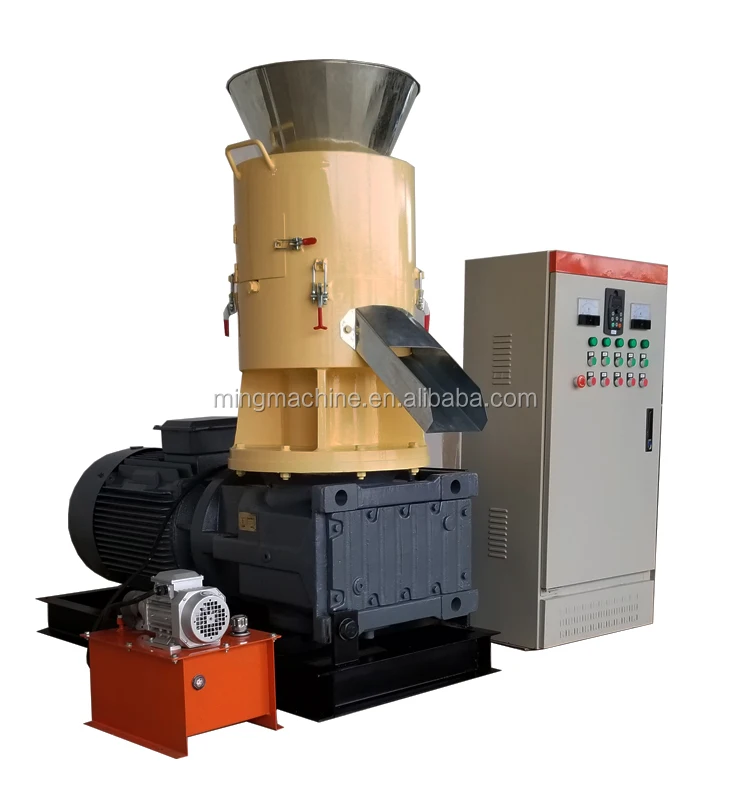

Высокоэффективная машина для производства древесных гранул

Product advantage

1: using high precision involute cylindrical helical gear drive directly, transmission efficiency is as high as 98% above.

2:Water transmission gear billet is heat treatment after forging, improve the tooth face hardness; Adopt tooth surface carburizing treatment, carburizing layer up to 2.4 mm to enhance the wear resistance, extend the service life of the components; Hard tooth surface by the silent practice edge grinding process, make the operation more quiet, more smoothly.

3.Spindle and conjoined hollow shaft with Germany imported alloy structural steel after forging, heat treatment, pure and fine grinding and become, reasonable structure, uniform hardness improved component fatigue resistance and wear resistance, to provide safe operation more reliable guarantee.
4.The host body using high quality steel precision casting and become, uniform thickness, structure tightly; Again carefully processed by the Swiss import nc machining center, the machining accuracy of zero error. Provide stronger support for normal operation.

Main Features

1) The bearings and oil seals used in the transmission part are made of the high-precision bearings imported from Japan and the wear-resistant and temperature-resistant fluorine rubber oil seals imported from the United States. In addition, the lubricating oil return system is specially added to ensure the sufficient lubrication of the bearings and the safe and reliable operation.

2)Granular molding system used for bearings are silent bearings with high quality, and increase the butter circulating cooling lubrication system, the service life of the bearing is longer and safer operation.

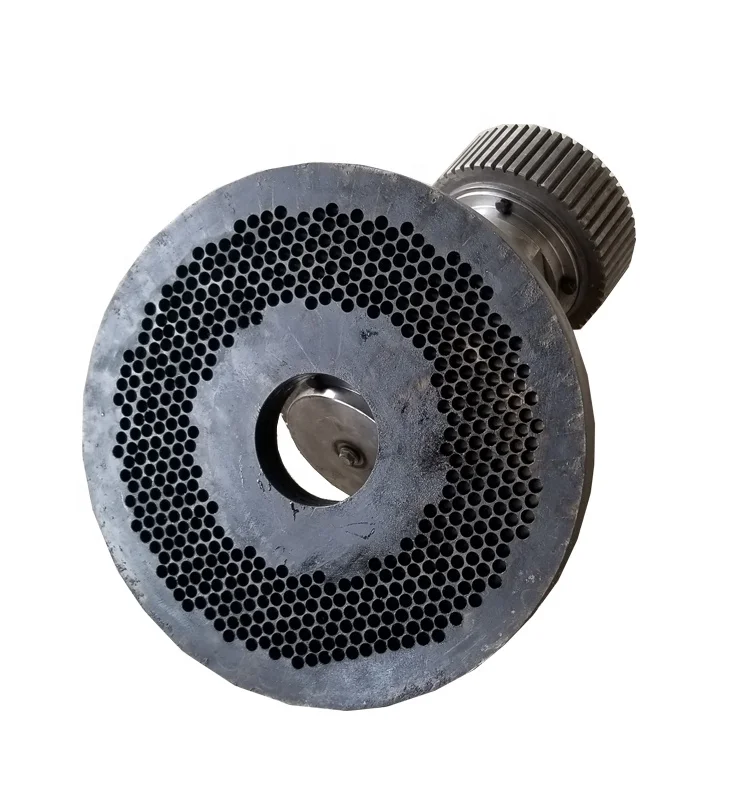

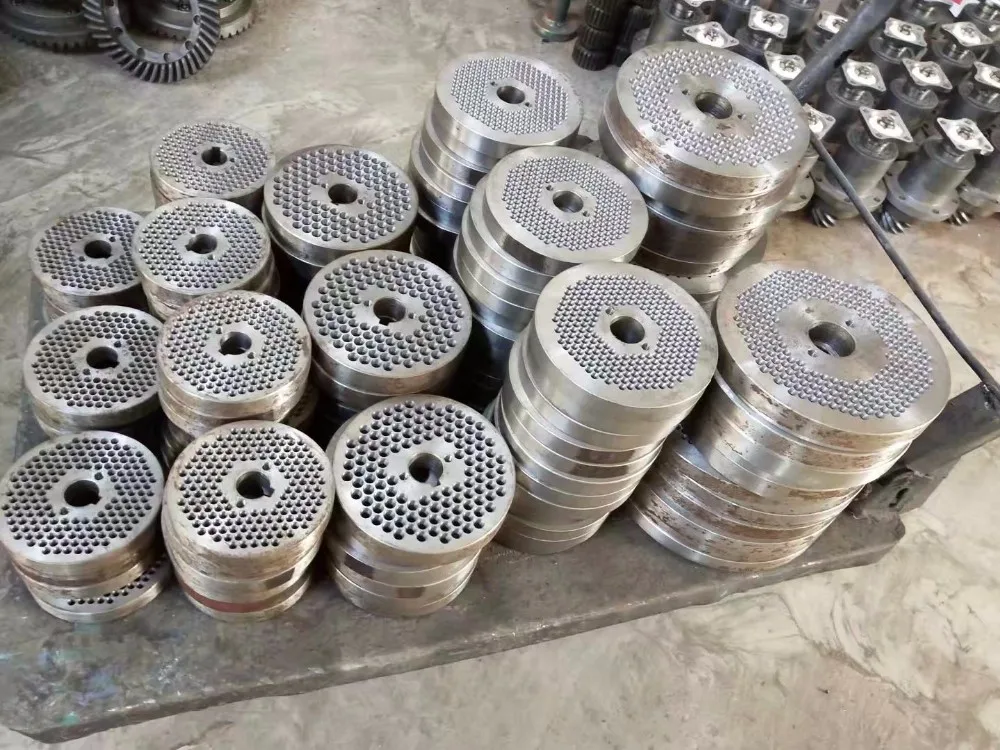

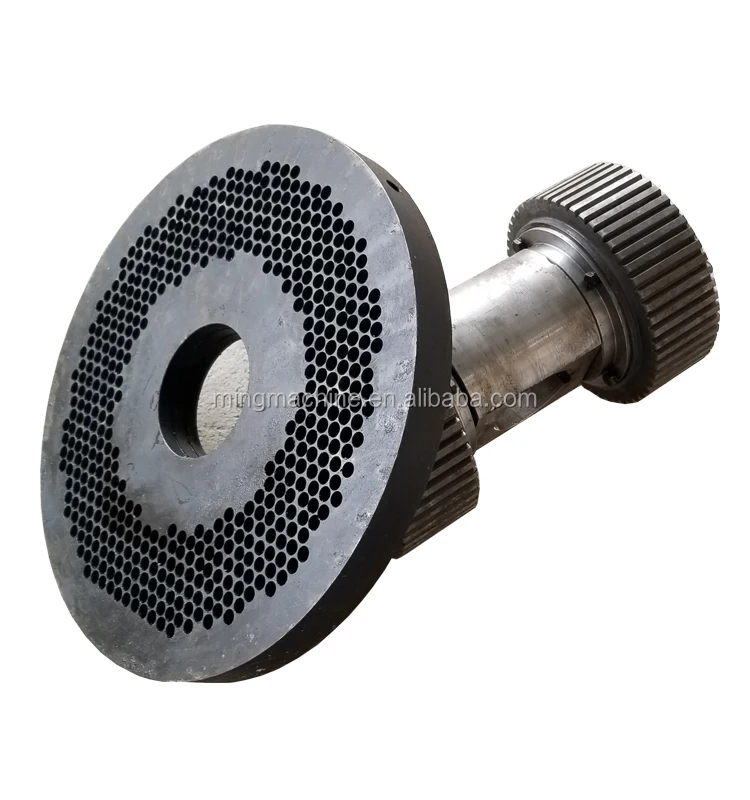

3) Particles machine mould adopts high quality alloy steel manufacturing, the unique design of compression ratio is reasonable, make the product quality is better, longer service life of ring die, reduce the production cost.

model:ML-250

production:100-150 kg/h

power:15KW

size:105*46*110cm

weight:550kg

model:ML-350

production:260-360 kg/h
power:30KW
size:120*60*115cm
weight:900kg

model:ML-450

production:400-600 kg/h

power:45KW
size:145*70*135cm
weight:1300kg

model:ML-550

production:600-1000 kg/h
power:55KW
size:150*70*160cm
weight:1500kg
