5000kg Electric Powered Hydraulic Scissor Dock Lift

Product Overview

Description

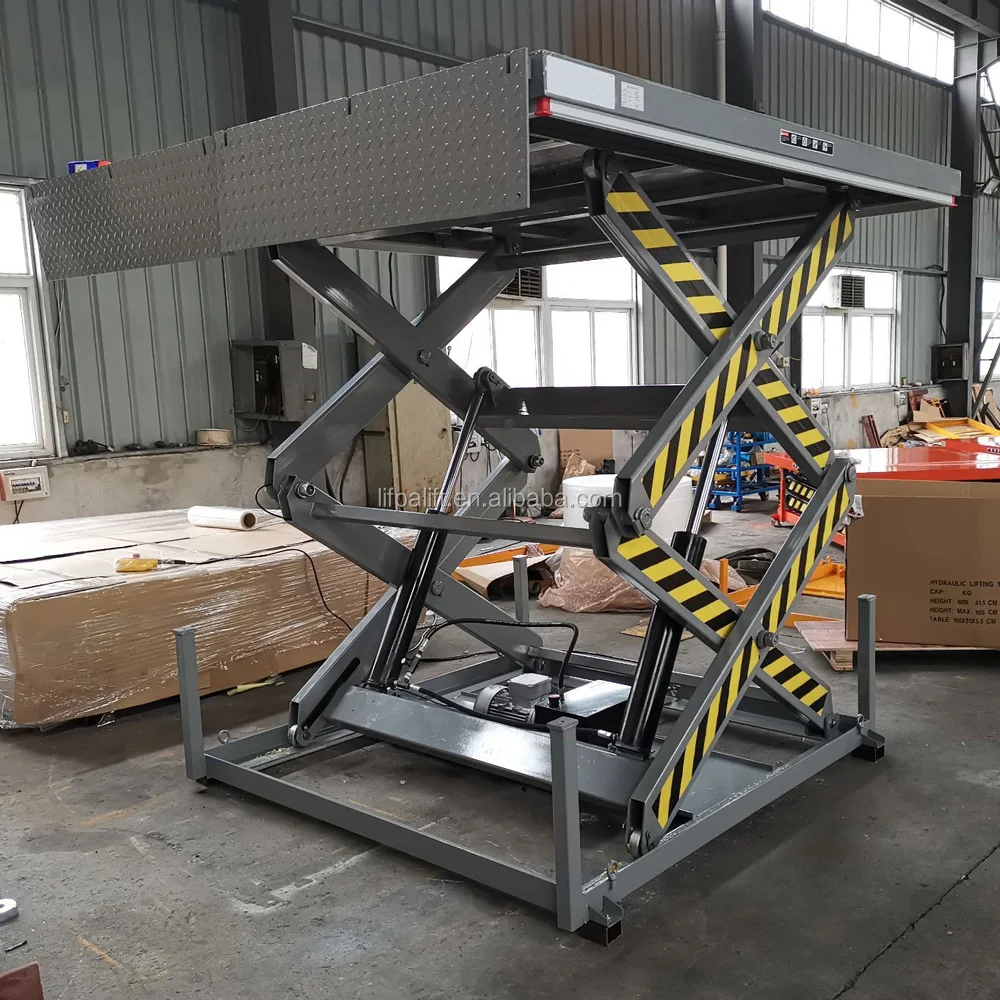

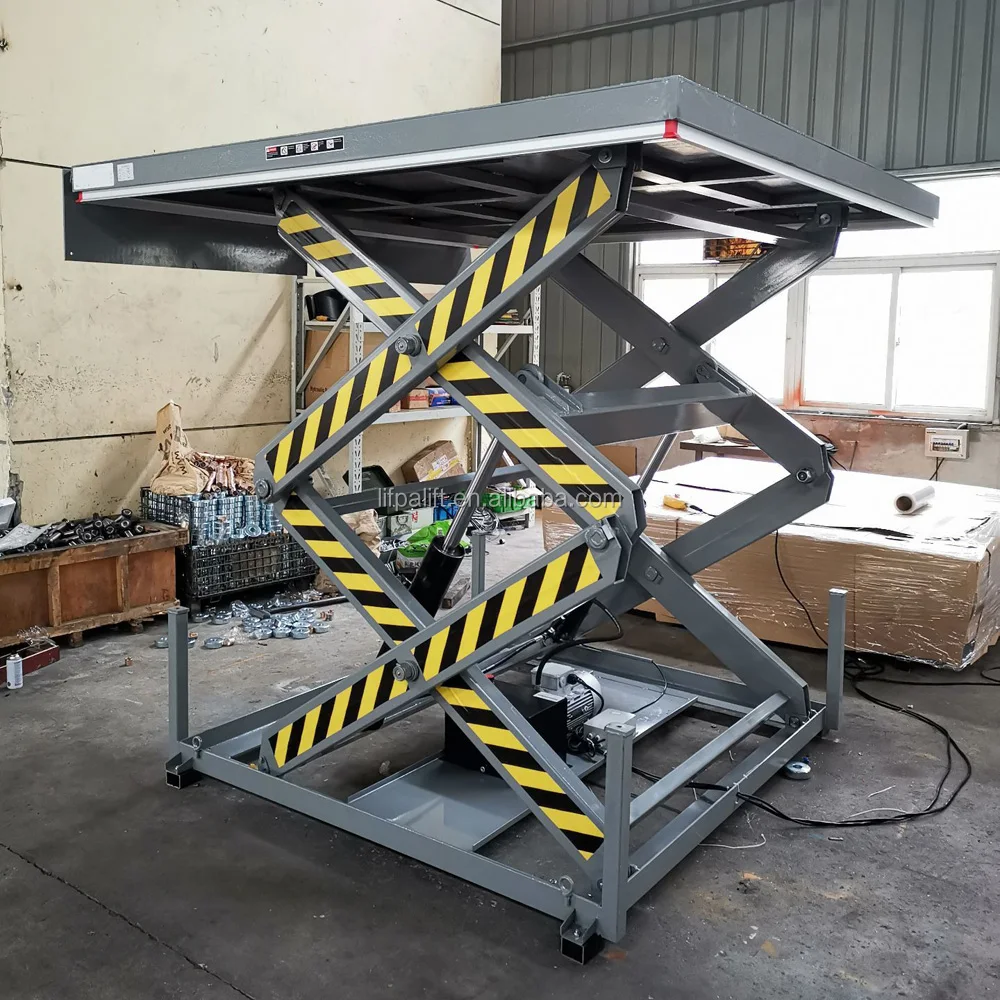

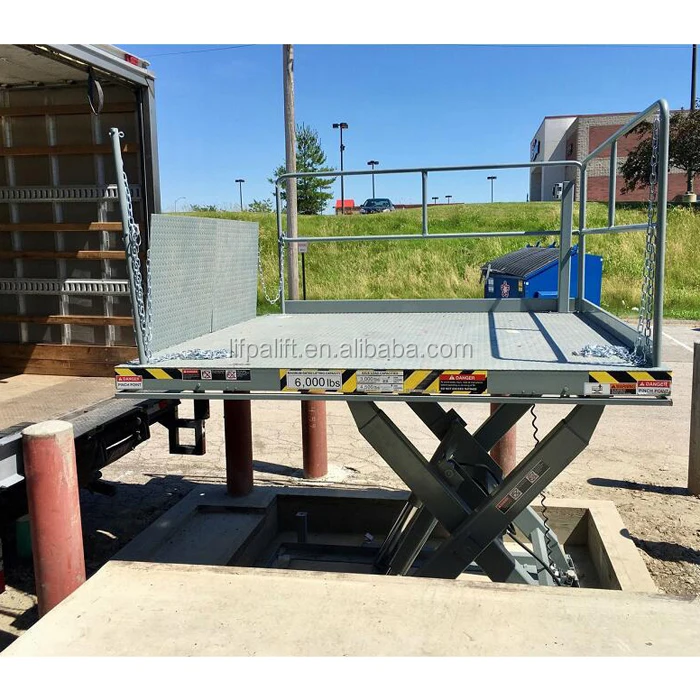

Real Pictures









Product Highlights



• Electric toe guard protects pinch points during lowering of the table







• Upper travel limit switch to stop table at maximum height







• AC 110/220/380/460V, 50-60Hz motor available





Features

• Portable ergonomic elevating table minimizes workers bending and lifting

• Electric toe guard protects pinch points during lowering of the table

• AC 110/220/380/460V, 50/60Hz power supply

• Brass velocity fuse maintains platform height regardless of hydraulic pressure

• All steel frame with powder coated finish

• Pushbutton power control for effortless operation

• Custom size and specs available



Main Parameters

Model		PG-10-A	PG-20-A	PG-40-A
capacity	kg	1000	2000	4000
table size	mm	2000 x 1000	2000 x 1800	2200 x 1800
raised height	mm	1300	1400	1300
lowered height	mm	240	250	300
power supply	V	AC 380	AC 380	AC 380
lift motor	kW	1.10	1.50	3.00
lift speed	mm/s	46	42	40
weight	kg	250	550	720





Optional Equipment













 SEND INQUIRY  to get Catalog with Full Models now!
