HUAYIN Waste tire pyrolysis reactor recycling machine to diesel

Product Overview

Description

HUAYIN Waste tire pyrolysis reactor recycling machine to diesel



Waste tyre rubber recycling  plant to fuel oil can turn waste tyre to fuel oil with latest pyrolysis technology. Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.







01. Layout design of HUAYIN Waste tire pyrolysis reactor recycling machine to diesel

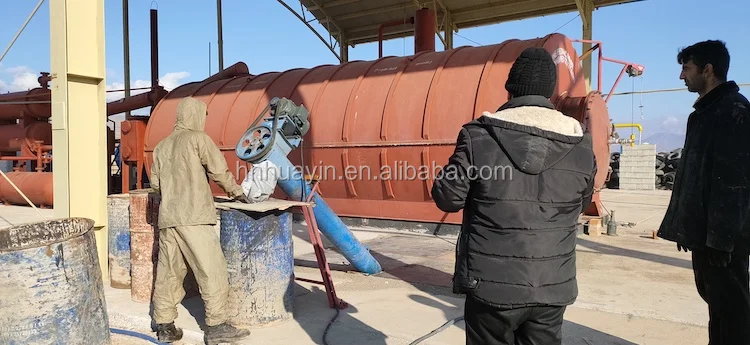

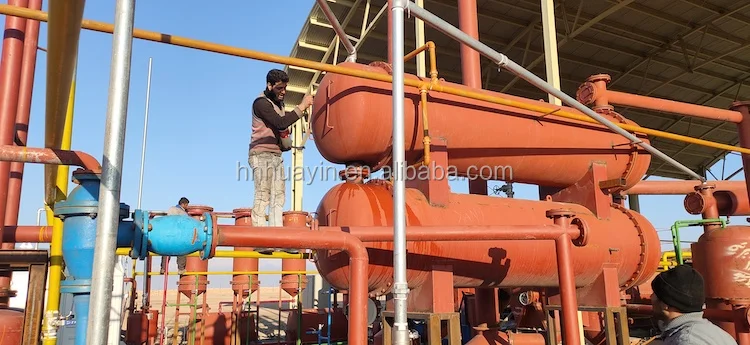

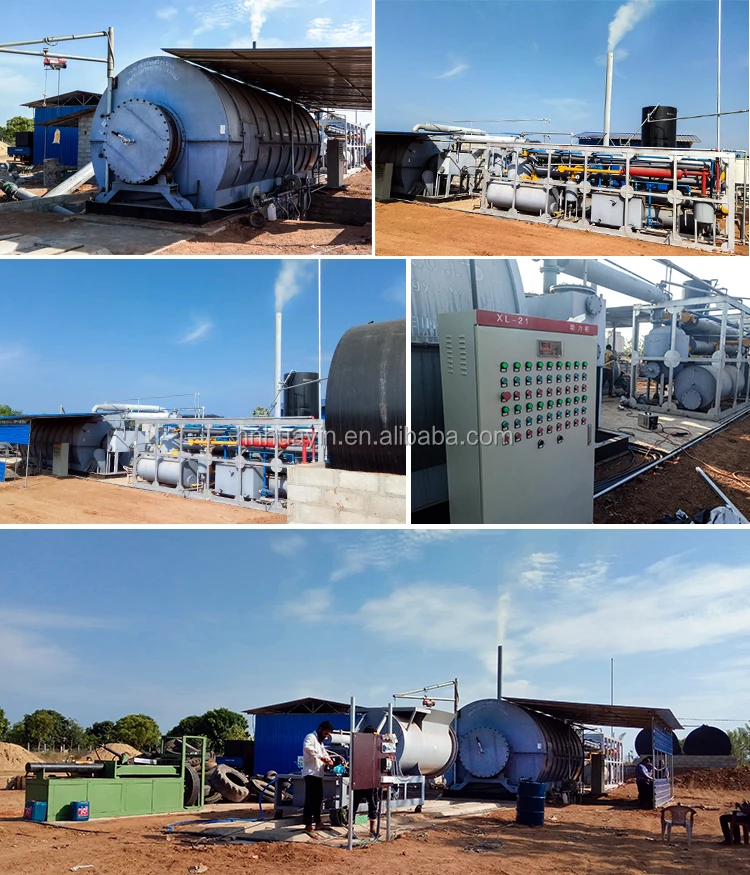

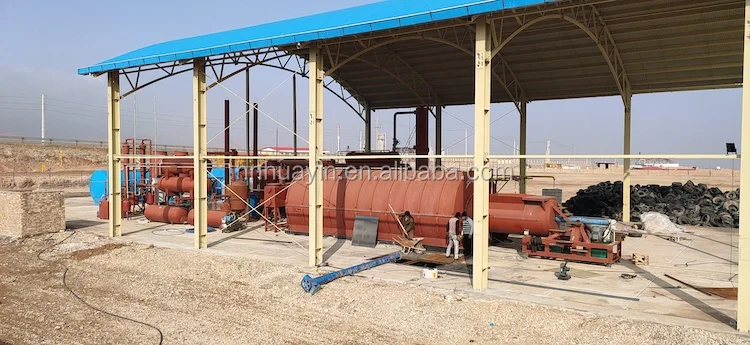

02 .Show part of Installation cases

















Our advantage of Residual plastic waste to fuel mini mobile pyrolysis machine

1. Safety

The Waste tyre rubber recycling  plant to fuel oil business is equipped with mature safety devices, such as alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system and fire fighting device, which will guarantee 100% safety in the tyre to oil recycling process.

2. Energy-saving

By the extra gas recycling system, the gas that can not be condensed will be recycled to the burning room. It can replace the fuel material to heat the reactor, which will reduce additional fuel consumption.

3. Environment friendly

In the dedusting system, three steps (water spray, ceramic ring filter, washing chamber) are used to dedust the extra gas and more than 95% of the dust would be removed. The released gas is pollution-free and can be discharged into the air directly with ISO9001:2008,CE Certificate.



03. Raw materials available for HUAYIN Waste tire pyrolysis reactor recycling machine to diesel

Various kinds of rubber products ,like car tires , truck tires , OTR tires , rubber cabinet ,etc.

Various kinds of plastic products like PP , PE , PS , ABS ,PMMA (organic glass ),scrap aluminum products.

Various kinds of oil sludge , ground crude oil , oil from shipping line etc.

All of these waste can be processed and recycled by Huayin Pyrolysis Plant.

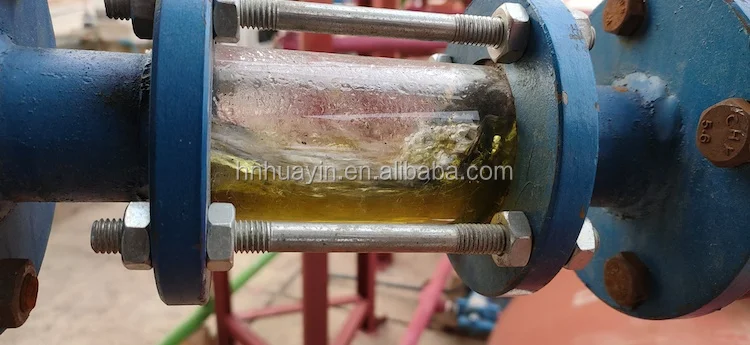

04. Show output product --fuel oil and diesel oil





The main product Fuel oil -widely used for industrial and commercial purposes. With the heating value 10592.48Kcal/Kg,it is a kind of good heating fuel which can be applied for boiler factory, cement factory,glass factory and steel mill, etc.

It also can be refined to diesel by the distillation machine. The distillation diesel can be used as diesel fuel used in diesel burners or diesel generators and some diesel engines.

The by product also have carbon black and steel wire

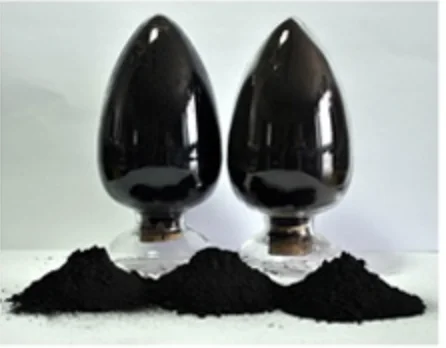

	By product carbon black 30%-35% Carbon black is used as raw material or main ingredient in many industries and thechemical structure of carbon black strengthens, lengthens the endurance, and improve the coloring features of the materials. This Carbon black can be directly sold to cement or brick factory Or pellet it used for heating, just like coal, it has the heating value of 7034 kcal/kg.

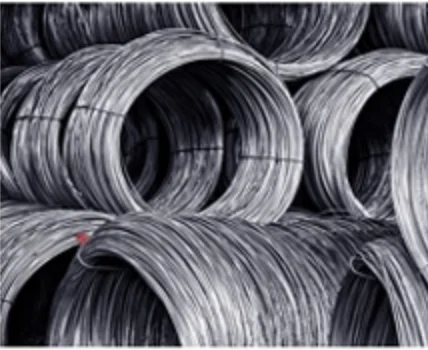

	steel wire 15%-20%, can be sold directly



05 . Profit analysis Residual plastic waste to fuel mini mobile pyrolysis machine

(This profit analysis is done by one of our customers) (10ton per day)
Cost
Item	Quantity	Unit Price(USD)	Total(USD)
Used tyre	10Ton	42	420
Fuel	Pyrolysis oil	0	0
Electric	200kw	0.2	40
Salary for worker	4 workers	50/ day/ person	200
Total cost			660
Return
Item	Quantity	Unit price (USD)	Total (USD)
Crude oil	4.5Ton	850	3825
Carbon black	3Ton	20	60
Steel wire	1.5Ton	250	375
Total return			4260
Daily Gross profit			3600
Month Gross profit 3600 USD *25 days			90,000USD
Annual profit 90000USD* 12 months			1,080,000USD







 06. Specification of the HUAYIN Waste tire pyrolysis reactor recycling machine to diesel



Technical Parameter of HUAYIN waste tire and plastic pyrolysis plant
No.	Items	Contents
1	Equipment Type	HY-6	HY-8	HY-10
2.	Raw material	Tire/plastic	Tire/plastic	Tire/plastic
3.	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4.	24-hour capacity	6T	8T	10T
5.	Oil yield	45%	45%	45%
6.	Operationg pressure	Normal pressure	Normal pressure	Normal pressure
7.	Material of reactor	Q245R	Q245R	Q245R
8.	Thickness of reactor	16mm/18mm	16mm/18mm	16mm/18mm
9.	Rotate speed of reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10.	Total power	20KW	20KW	20KW
11.	Mode of cooling	Water cooling	Water cooling	Water cooling
12.	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
13.	Noise dB(A)	≤85	≤85	≤85
14.	Size of reactor(DXL)	2200X6000	2200X6600	2800X6600
15.	Working form	Intermittent operation	Intermittent operation	Intermittent operation
16.	Delivery time7	30days	30days	30days
18.	Weight	27T	30T	35T

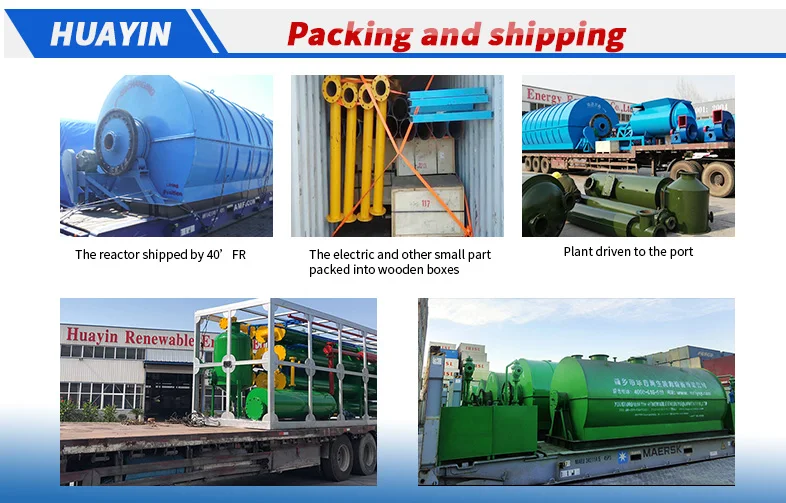

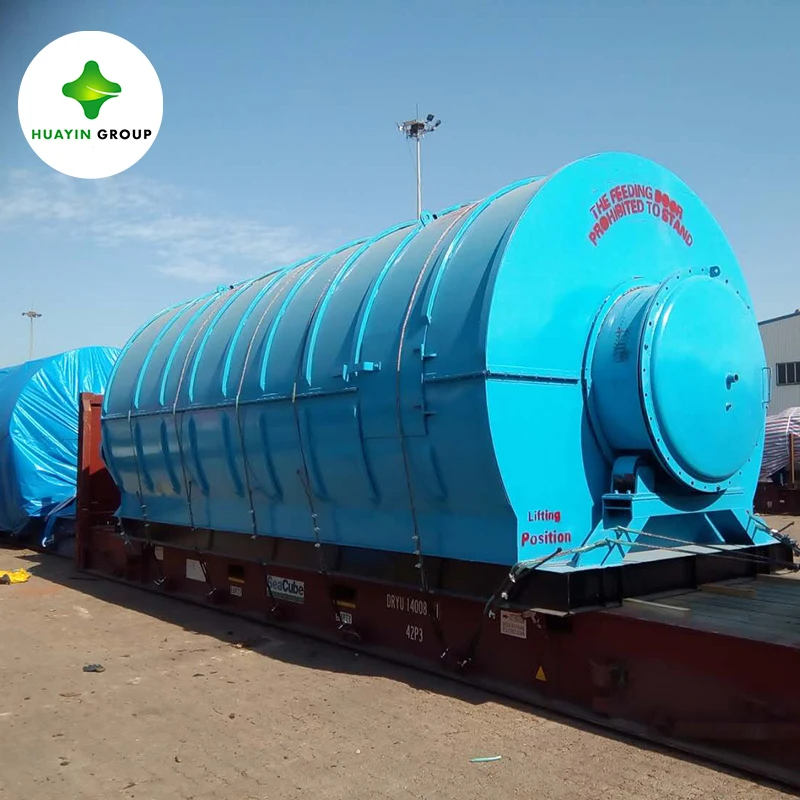

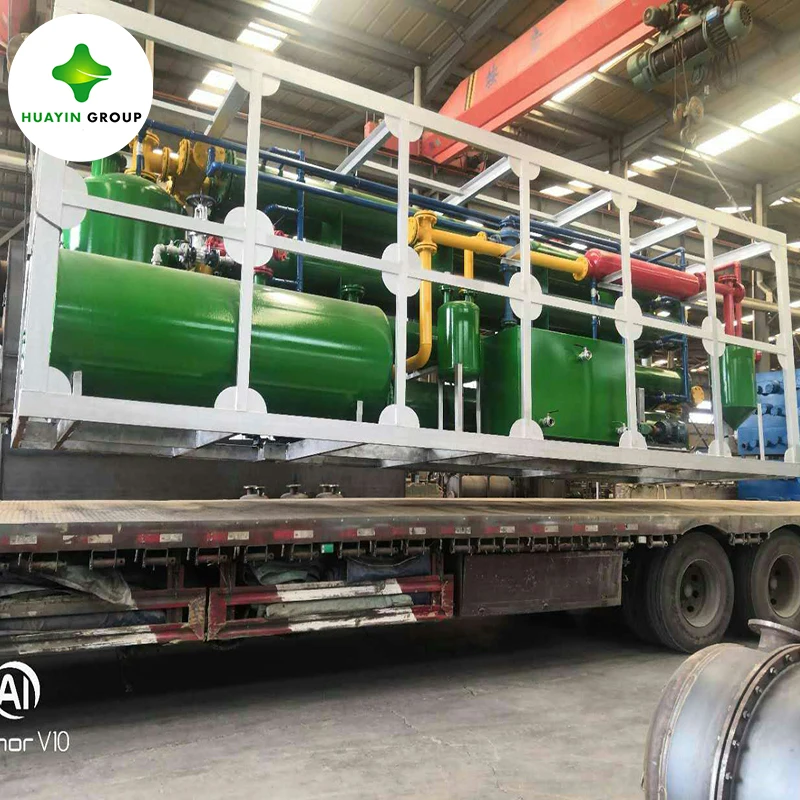

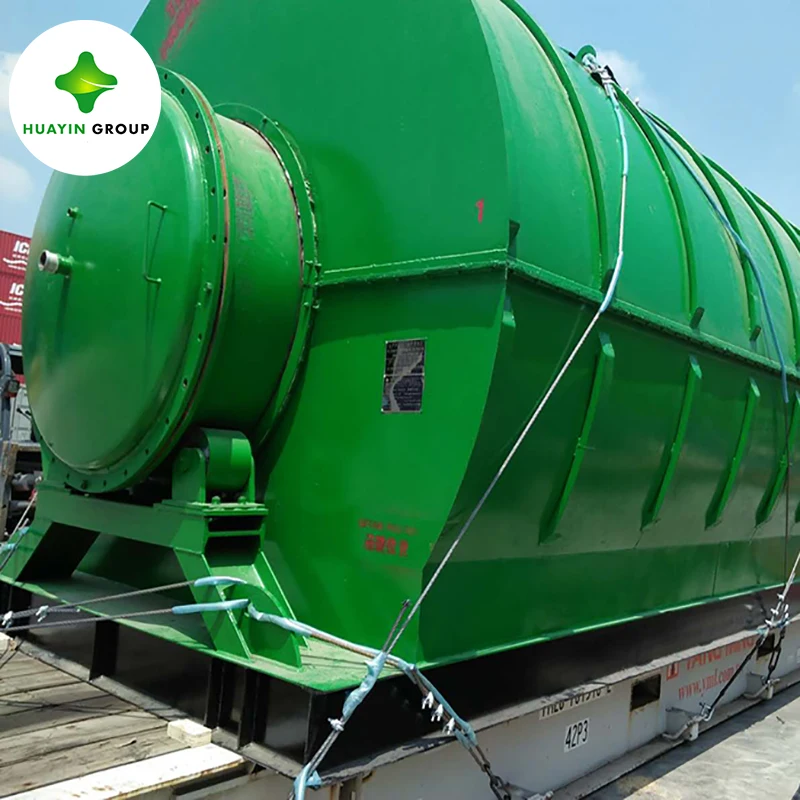

08 . Delivery

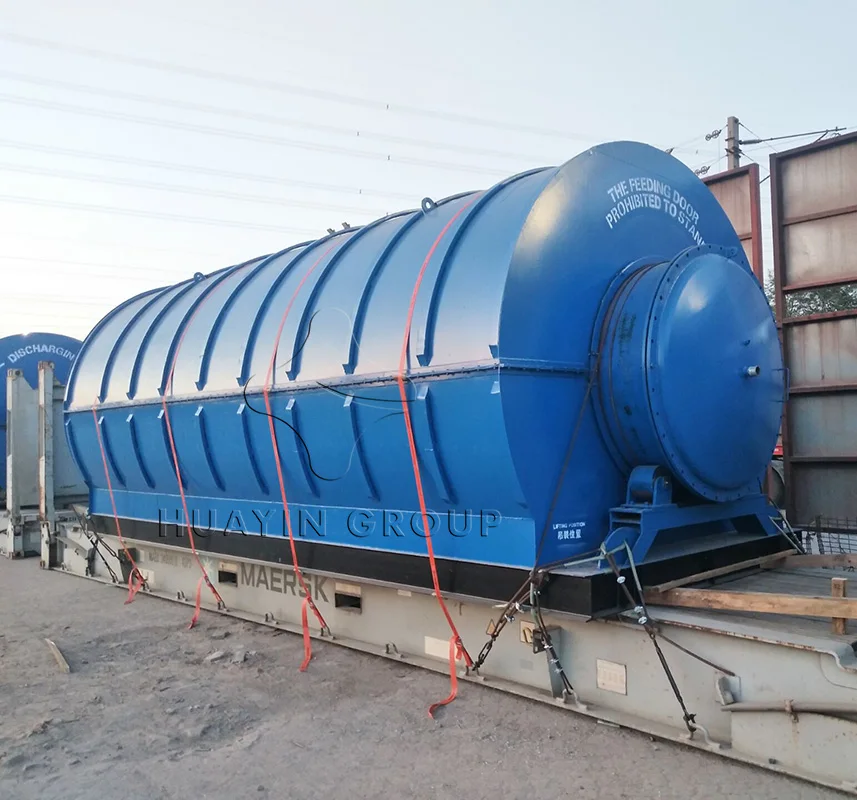

the waste tyre plastic recycling to oil pyrolysis plant need one 40' HQ and one 40' FR , the machine will delivery to Qingdao port.

Delivery time : 25 days after received the deposit.



09. About us



Xinxiang Huayin Renewable Energy Equipment Co., Ltd is an enterprise with modern management , has been specializing in manufacturing waste management equipment for over 20 years. our equipment has been exported to over 50 countries including Romania, Hungary, Turkey, Slovakia,Ecuador, Guatemala, Haiti, Mexico, Peru,Canada , USA,Jordan, UAE, Lebanon, Kuwait, Italian , Chile , Poland , England , Thailand, Greece, Mexico , Benin , Indonesia , India , Singapore ,Russia etc.



 Huayin Has 3 big workshops that convering 25000 Square meters and over 2000 square meter demo machine factory . We have been producing and supply pyrolysis machine and distillation machine since 1993. We have 6 production lines which can ensure delivery machine according to buyers' requirement . Through years of development , ,we have got CE ,ISO , SGS , BV, Emission Report, 11 patents certifications.











Our company Huayin is located in Xinxiang City, Henan Province.The nearest airport is Zhengzhou Xinzheng International Airport. We will pick up you at the airport when you come to visit our factory. Welcome to visit us at any time!
