100mm mini self recovery linear position displacement sensor Ivdt
100mm mini self-recovery linear position displacement sensor Ivdt
100mm mini self-recovery linear position displacement sensor Ivdt
100mm mini self-recovery linear position displacement sensor Ivdt
100mm mini self-recovery linear position displacement sensor Ivdt
100mm mini self-recovery linear position displacement sensor Ivdt
100mm mini self-recovery linear position displacement sensor Ivdt

100mm mini self recovery linear position displacement sensor Ivdt

Share on (62020318072):


Price:$85.00

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tWelcome to HT Sensor \t\t\t\t\t\t\t

Introduction:

◆T-PTK two types A: Square tube. B: Round tube
◆ Range: 10mm~300mm
◆ Mini self-recovery linear position sensor
◆ Application for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, footwear machines and so on.

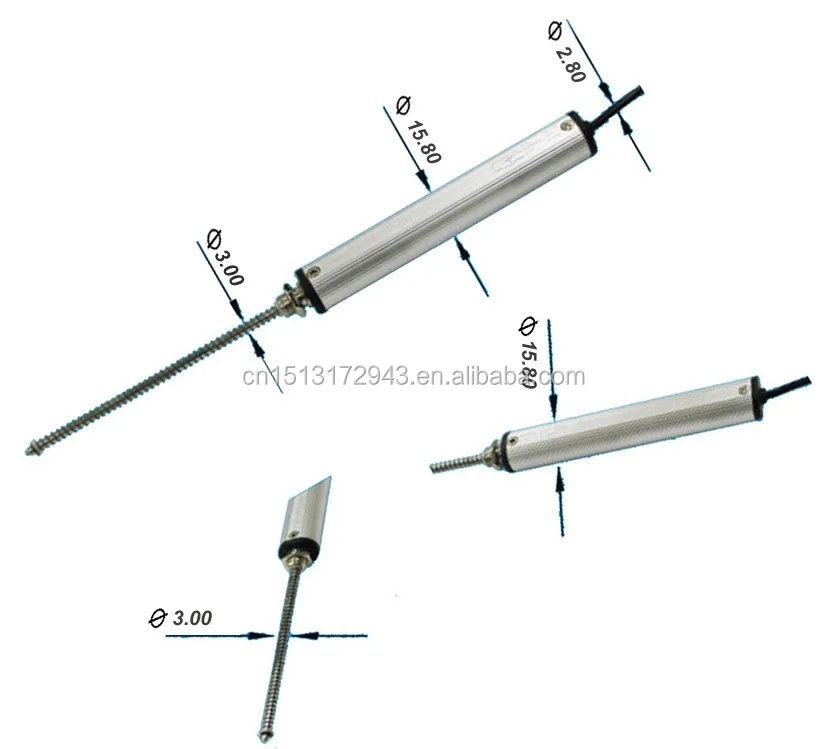

Dimensions
Specifications
\t
T-PTK range
\t
5mm
\t
10mm
\t
15mm
\t
20mm
\t
25~100mm
\t
Linear Precision (±%FS)
\t
±0.1%
\t
Resistance (±10%)
\t
1ΚΩ
\t
2ΚΩ
\t
3ΚΩ
\t
4ΚΩ
\t
5ΚΩ
\t
Effective Stroke
\t
range+3mm
\t
Input Voltage
\t
4~5ΚΩ: ≤24Vdc, 2~3ΚΩ: ≤12Vdc, 1ΚΩ: ≤5Vdc
\t
Output
\t
0~100% × input voltage (change with the movement of the rod) resistance output
Packing & Delivery

Packing

Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments

Delivery

Normal products:  7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc
