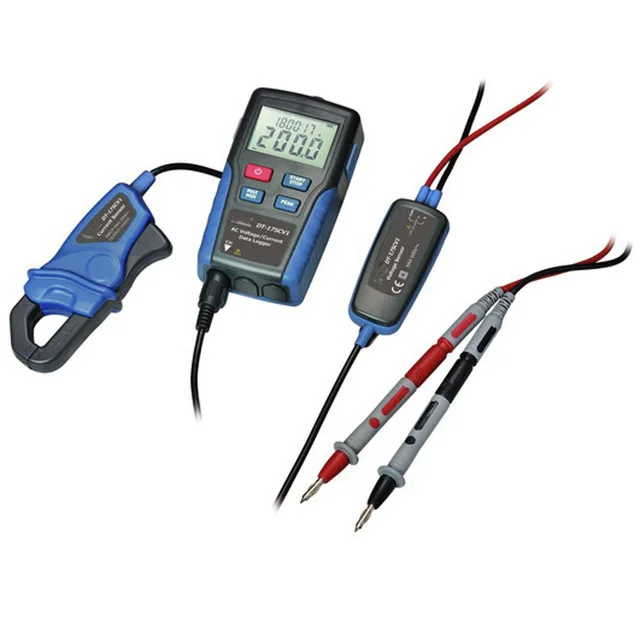

DT 175CV1 Current voltage tester Current voltage recorder

Product Overview

Description

DT - 175 cv1 voltage current data recorder is a record and measure the true RMS current and the voltage of the recorder. It will save in recorder and computer via USB interface is easy to appear, and the LCD screen will display the current readings, maximum, minimum and warning signs.



Product features

1, can hold 100000 data of the large capacity

2, voltage sensor can measure up to the standard of CAT III maximum flow voltage 600 v

3, liquid crystal display shows data record is very convenient

4, the freedom to choose from 1 second to measurement cycle 24 hours a day

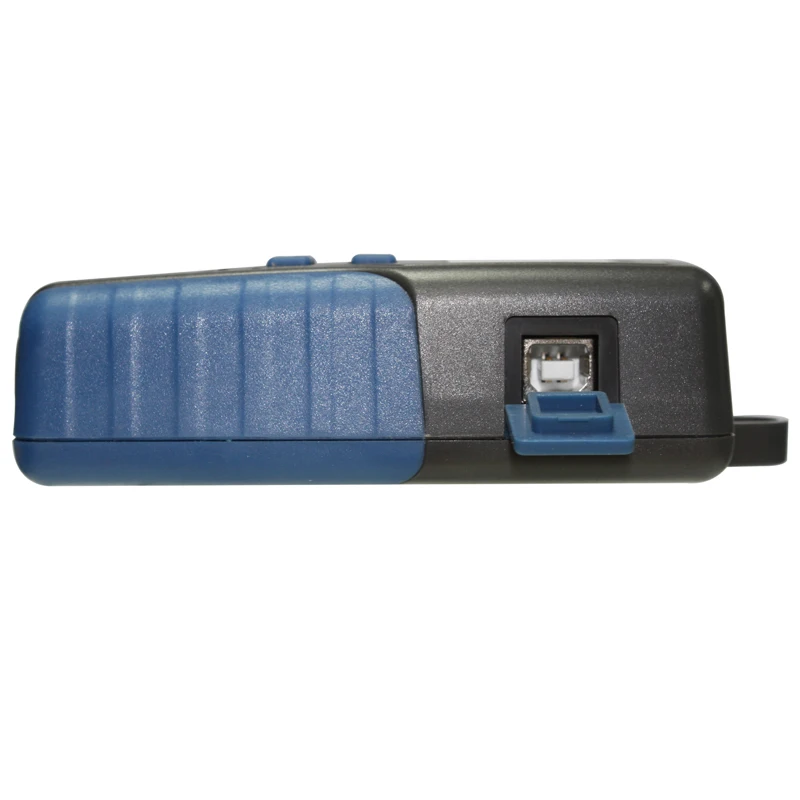

5, through the computer USB interface can download the data collected

6, overload suggests



Technical indicators

Compliance with the safety standards of IEC61010

Ac voltage range: 6-600 - v

Alternating current range: 10-200 - a

Channel: single channel signal input

RMS: measure and record the communication cycle signal of true effective value of voltage and leakage current

Measurement frequency: 40 hz ~ 1 KHZ

Accuracy: voltage 6 v to 600 v + 2% for current 2 a ~ 200 a plus or minus 2%

Waveform records: records beyond set voltage (current) value of the waveform data (764)

RTC: is there a real time display, the software calibration. (if again after shutdown boot time still disconnect all without correct measurement, open the back cover to replace the new 3 v button battery calibration again)

Data storage: 100000 sets

Record cycle: 1 SEC - 24 hours

Peak measurement: 8 v - 850 - v + / - 1.5%

Data output: USB data output

Operating environment: 0 C to 50 C (32 F - 122 F) < 70% LingLou

Storage conditions: - 20 C to 60 C  (- 4F-140 F) < 80% LingLou

Operational altitude: 2000 m

Suitable for Windows 2000 / XP/Vista / 7
