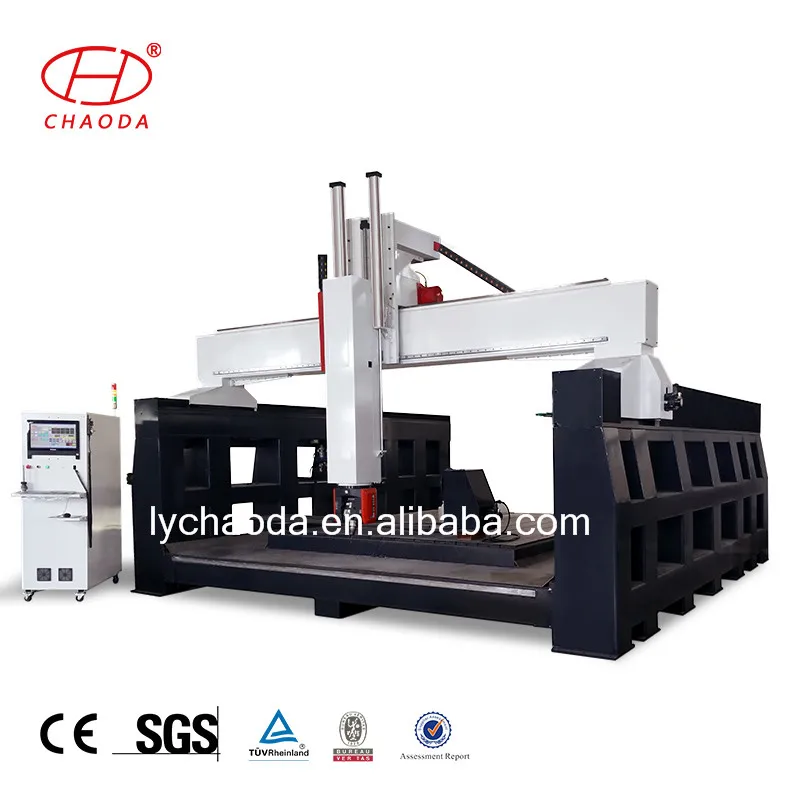

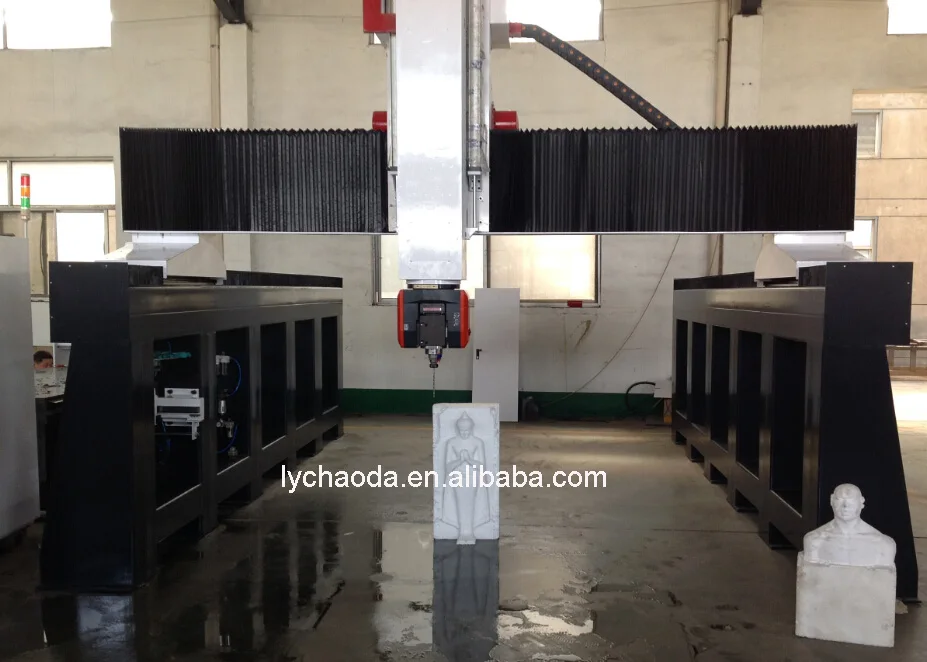

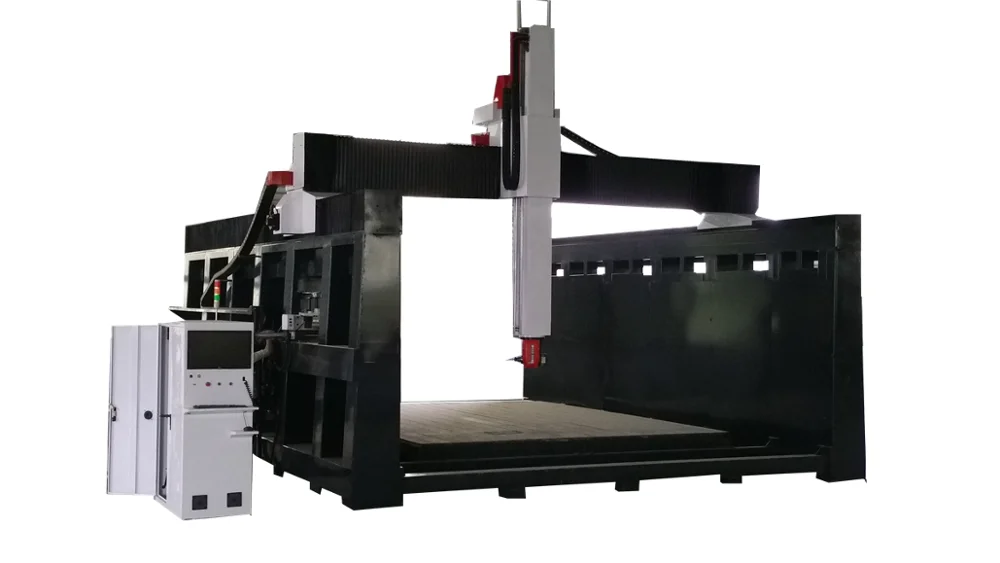

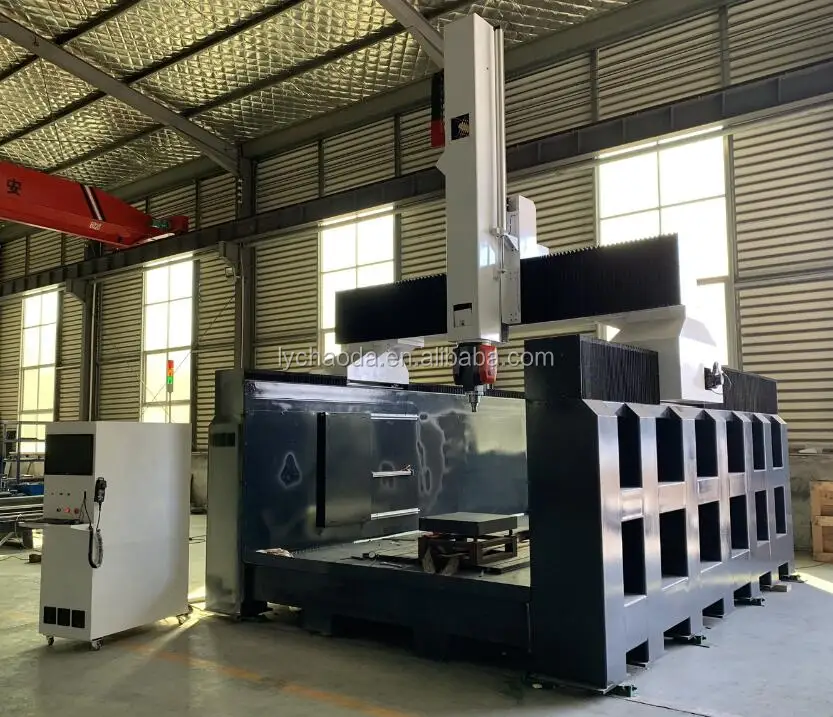

3d marble stone carving cnc router machine with 5 axis

Product Overview

Description

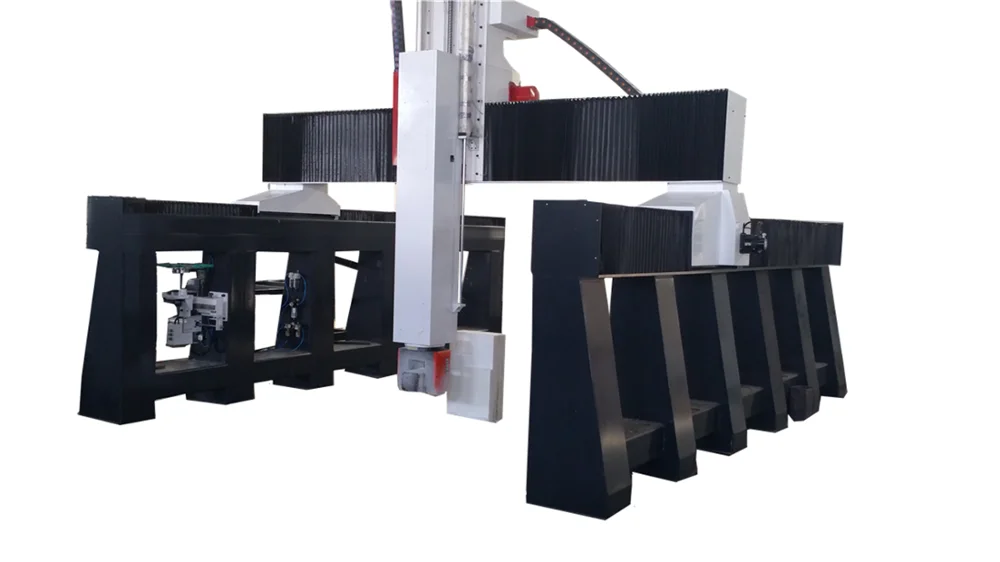

3d marble stone carving cnc router machine with 5 axis



our products include cnc router of 3 axis, 4 axis, 5 axis and 5+1 axis

as well as 3d scanner, laser machine and plasma cutting machine

 we supply not only cnc machines !

but also best solution to your specific project !!



                                    Model No. JC1325-5AXIS

                                        Machine Features

     a) All machine parts adopt high configuration and top quality from all over the world, to

make machine with high performance and durability.

       b) High z axis design,suitable for large scale three dimensional surfaces machining.

 c) Heavy duty steel wall structure,keep machine with good stability and working precision.

d) 5 axis head can process very complex 3d jobs.

                                       Technical Parameter

Working size	1300*2500*1000mm (working size could be customized)
Lathe bed structure	heavy duty steel wall structure
Table	T-slot with clamps,with water tank
X structure	Rack and pinion, linear square rail
Y structure	Rack and pinion, linear square rail
Z structure	Ball screw, linear square rail
Reposition accuracy	±0.05mm
Max. travelling speed	0-55000mm/min
Max. working speed	0-20000mm/min
Spindle power	11KW ATC spindle
Tool magazine	Linear or disk type auto tool changer,8 tools ability
Working mode	Japan YASKAWA servo motor and driver
Operating system	5 axis Syntec with handwheel
Command code	G code(*uoo,*nc,*mmg, *plt)
Working voltage	3 phase AC380V 50Hz
Running circumustance	Temperature: 0°C~45°C relative humidity: 30%~75%

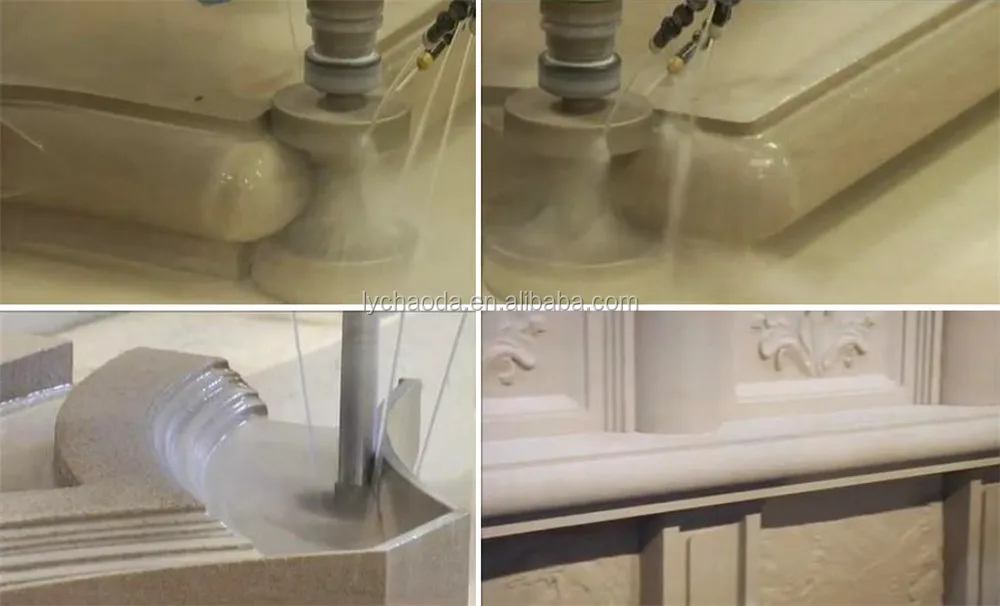

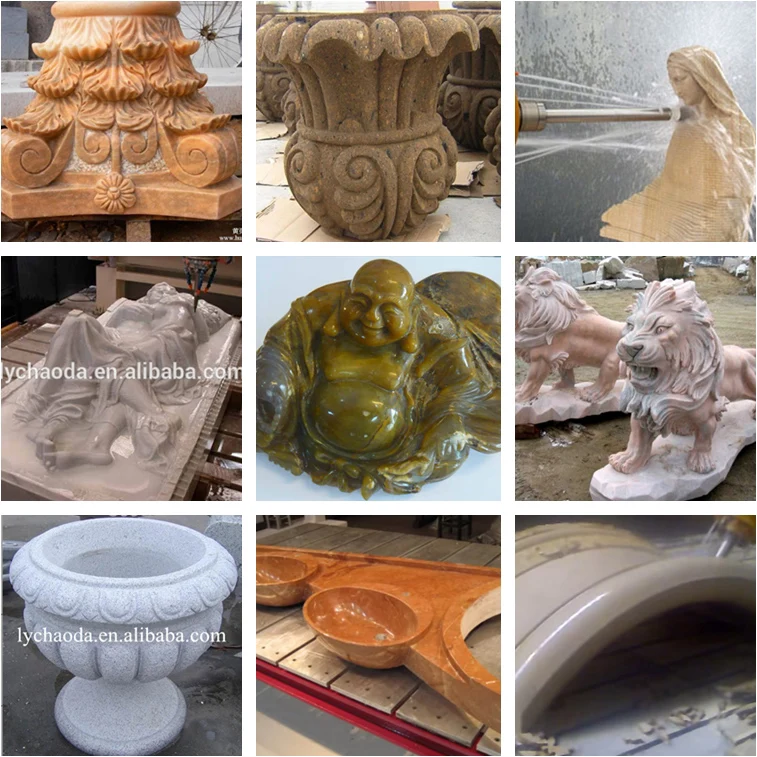

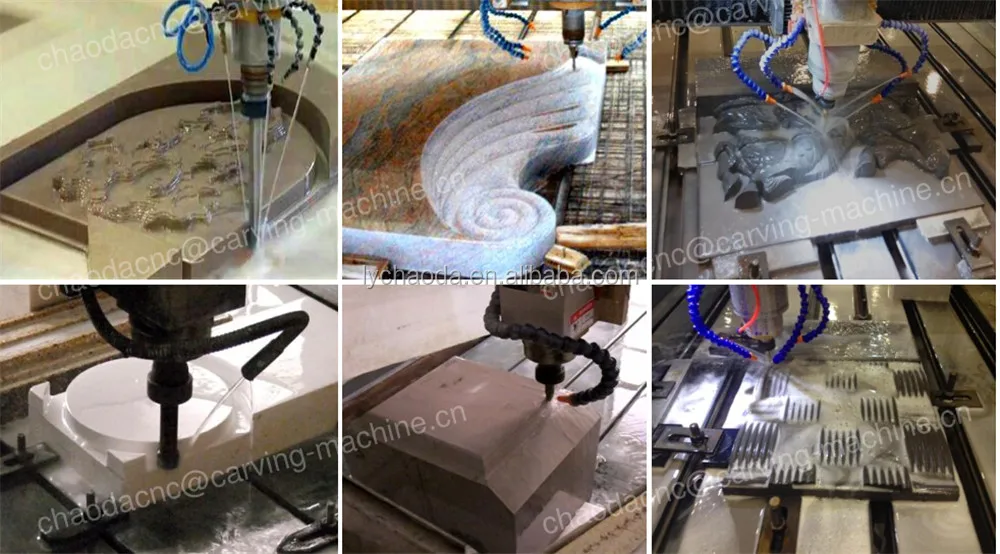

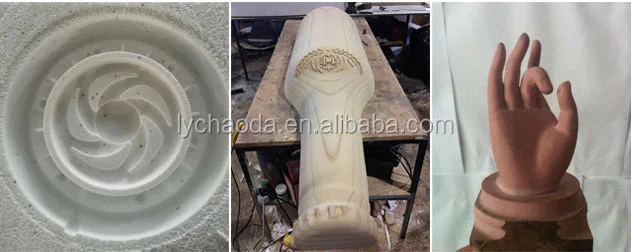

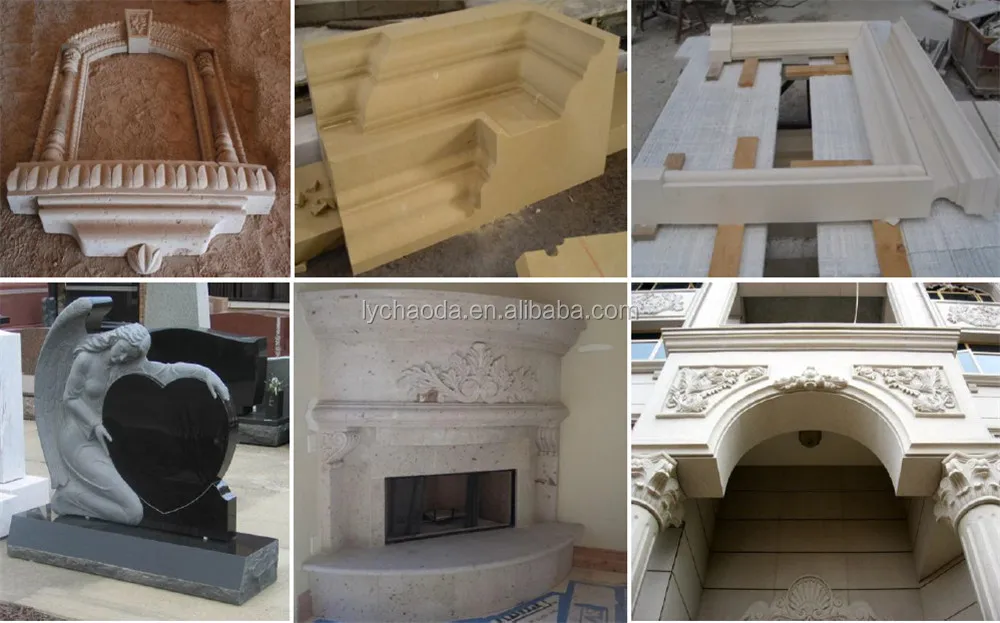

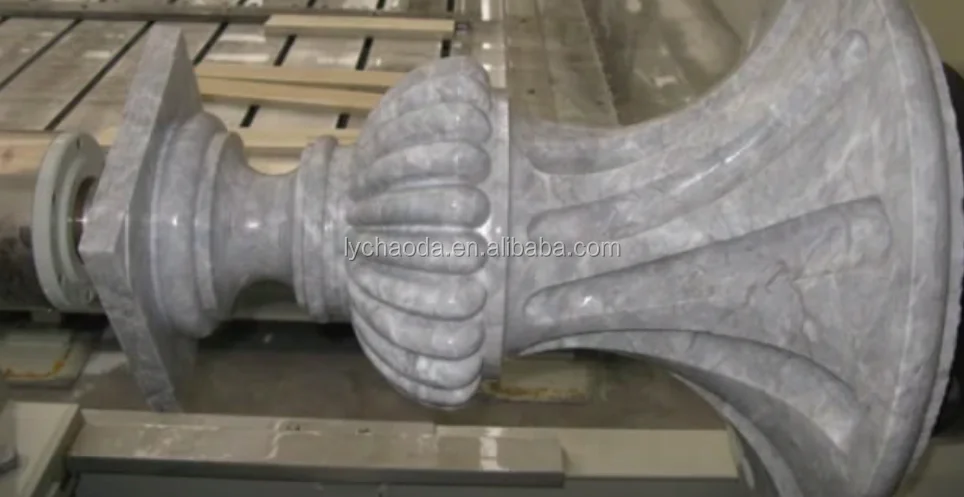

                                        Working Samples

 2D 3D engraving, line engraving, cutting, slotting, edge inversing, drilling, polishing

 on Artificial stone, Marble,Granite, Ceramic Tile,Milestone,Terrazzo,Limestone,Sandstone,

Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Glass, Plexiglass,Wood, Plastic,

Eps foam, Aluminum composite panel, Aluminum block, Copper and so on.

                         Optional Configurations You May Like

 >> with rotary device

>> 3d scanner

                        Product Certificates (CE,BV,TUV,SGS)

                            Customer Visiting & Training



                                       Customer Feedback



                                      Company Information

 Our factory was established in 2002 and covers 40000 Square meters. we have experienced and

professional engineers who devote themselves to machines' research, development, production,

and after- sale service .Our machines have won praise from customers worldwide and with very

good reputation in this field.
