Fully automatic rolling labeling supermarket plastic bags making machine
Specification
Feature
Non-stop rewinder
Solid state relay
FOTEK from Taiwan
Cylinder
SHAKO Taiwan
Inverter
Yasakwa Japan
Touch screen
Weinview Taiwan
PLC
Panasonic Janpan
Servo motor
Yasakwa Japan
Main motor
CPG Taiwan
Photocell
SICK Germany
Functions and Features
This machine is specializing in producing rolling bag. It also can make garbage bag, fruit bag,,vegetable bag and table bag. Fully automatic exchange system can reduce the labor fore. And it is easy to operate with the excellent servo drive system control. It is the best choice for high output of printed bag and blank bag.
1. It adopts JAPAN YASKAWA servo motor system 2. With two lines bag-out traction EPC design , to make rewinding flat and even. 3. High productivity
Model
CW-1000BR
Length of bag making machine
200-4000mm
Width of bag making
150-900mm
Line speed
100m/min
Max diameter of unwinding
φ800mm
Max diameter of rewinding
Φ160mm
Max roll exchange times
7rolls/min
Total power
14KW
Machine weight
3500kg
Machine dimension(L*W*H)
8200*3100*1870mm
Air compressor
7.5HP
Application Fields:
This kind of machine is widely used in daily life,like the fruit or vegetable bags in supermarket, the garbage bags in daily use, disposable storage bag and so on.

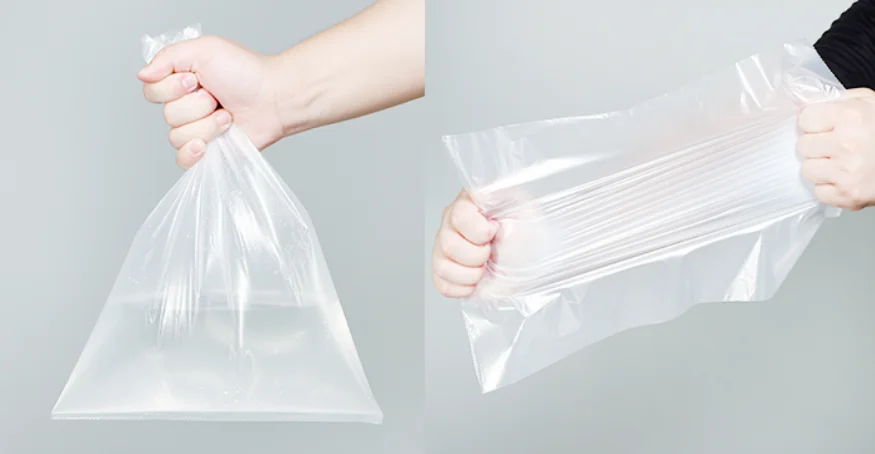

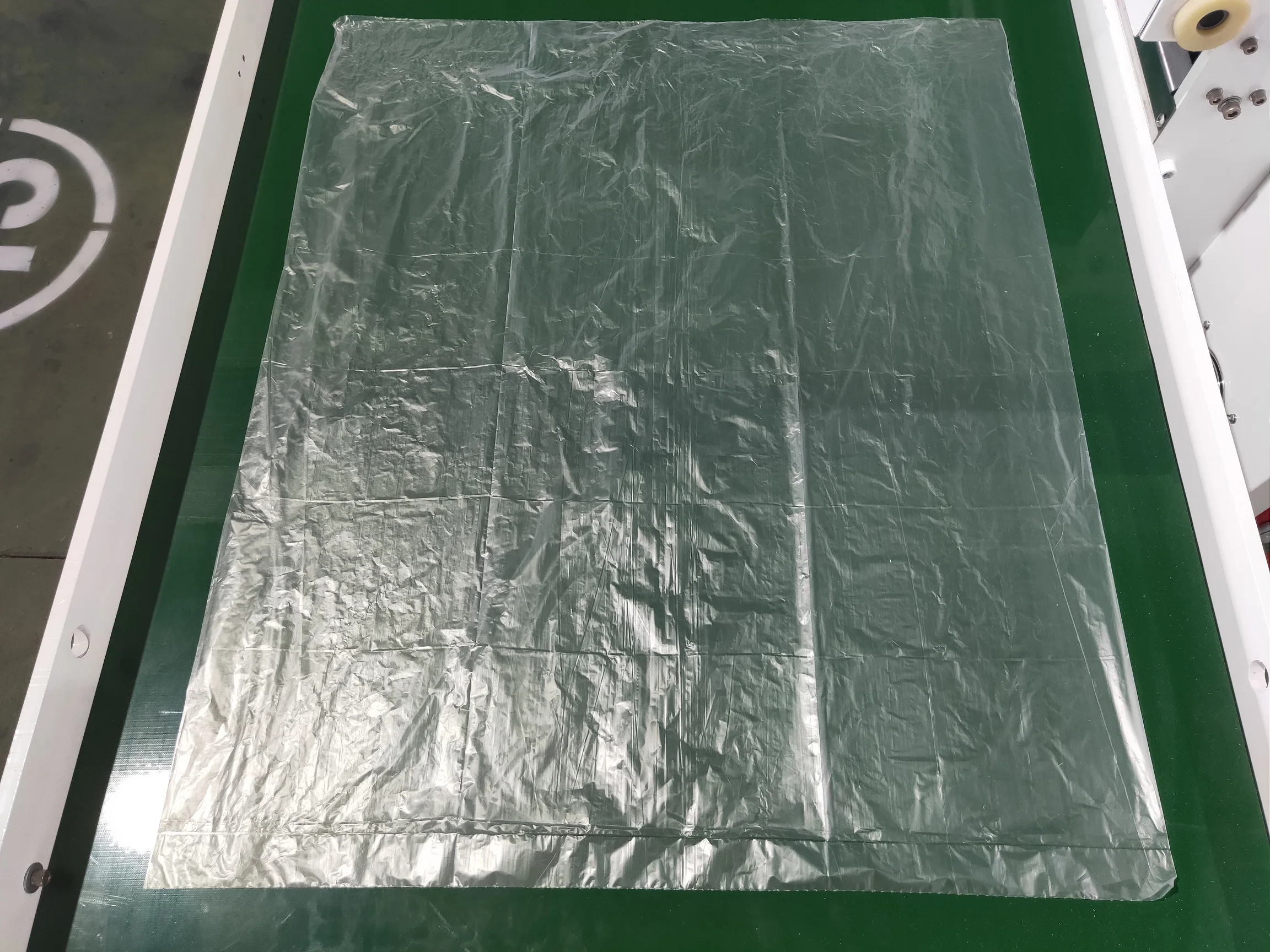

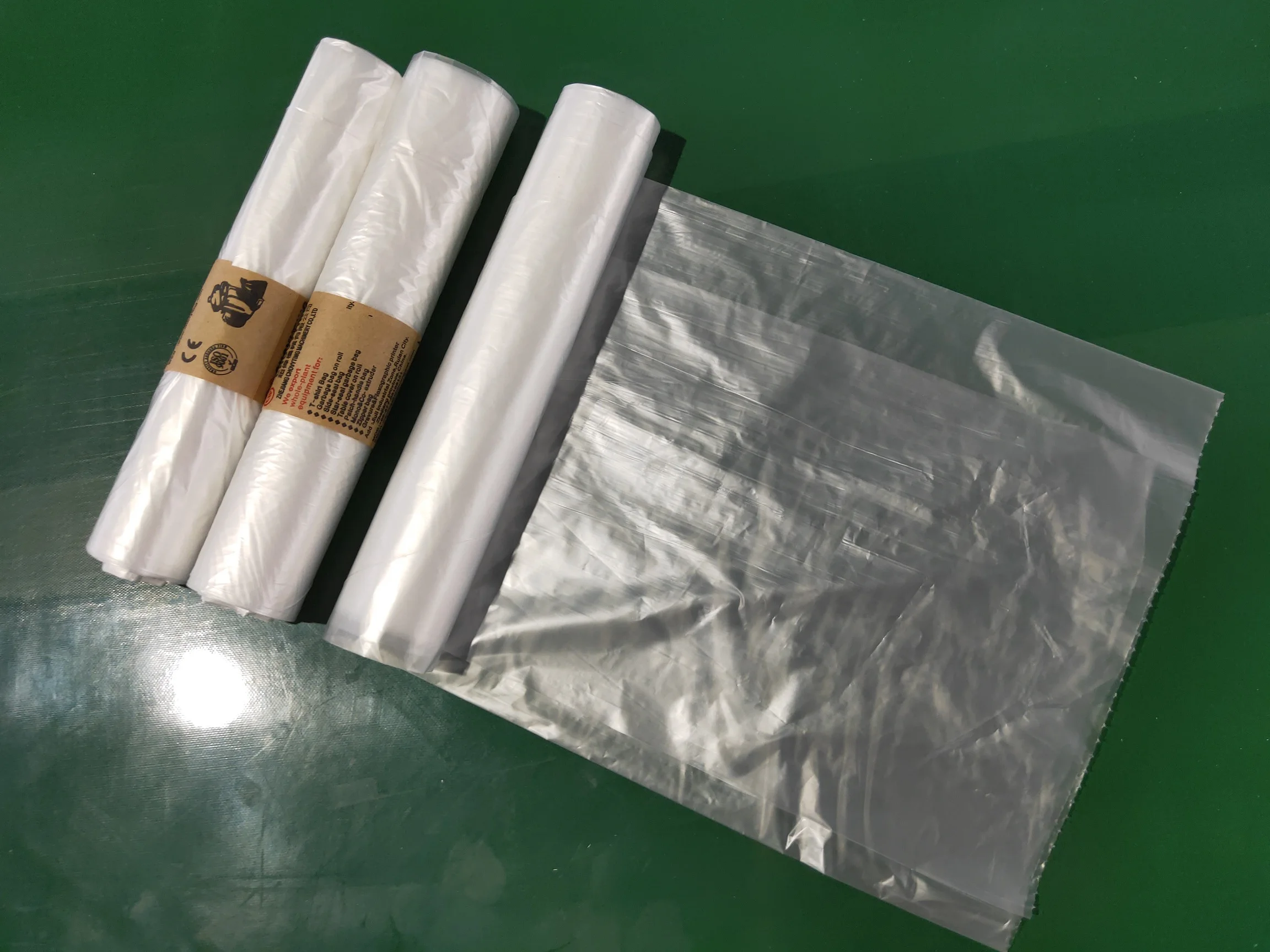

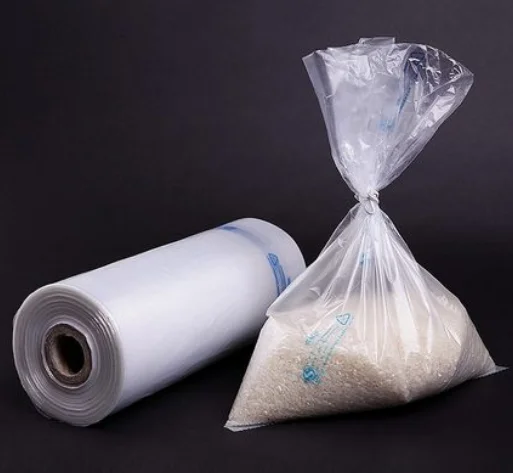

Sample Bags

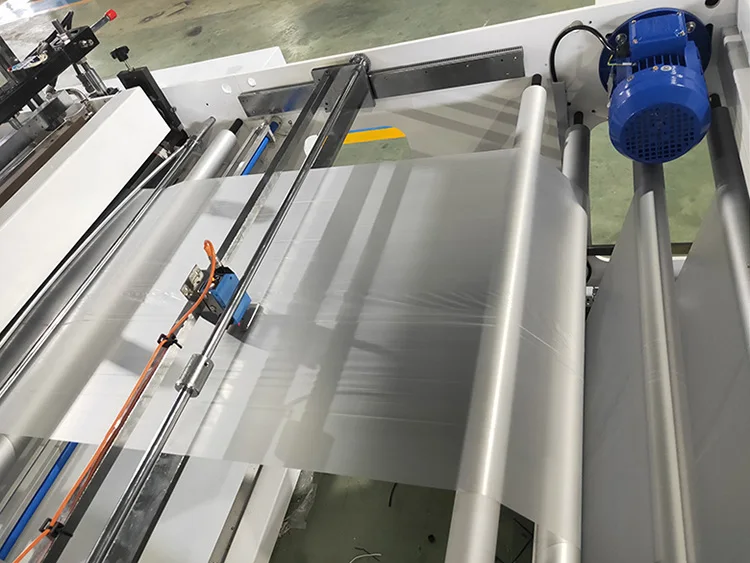

Photocell part

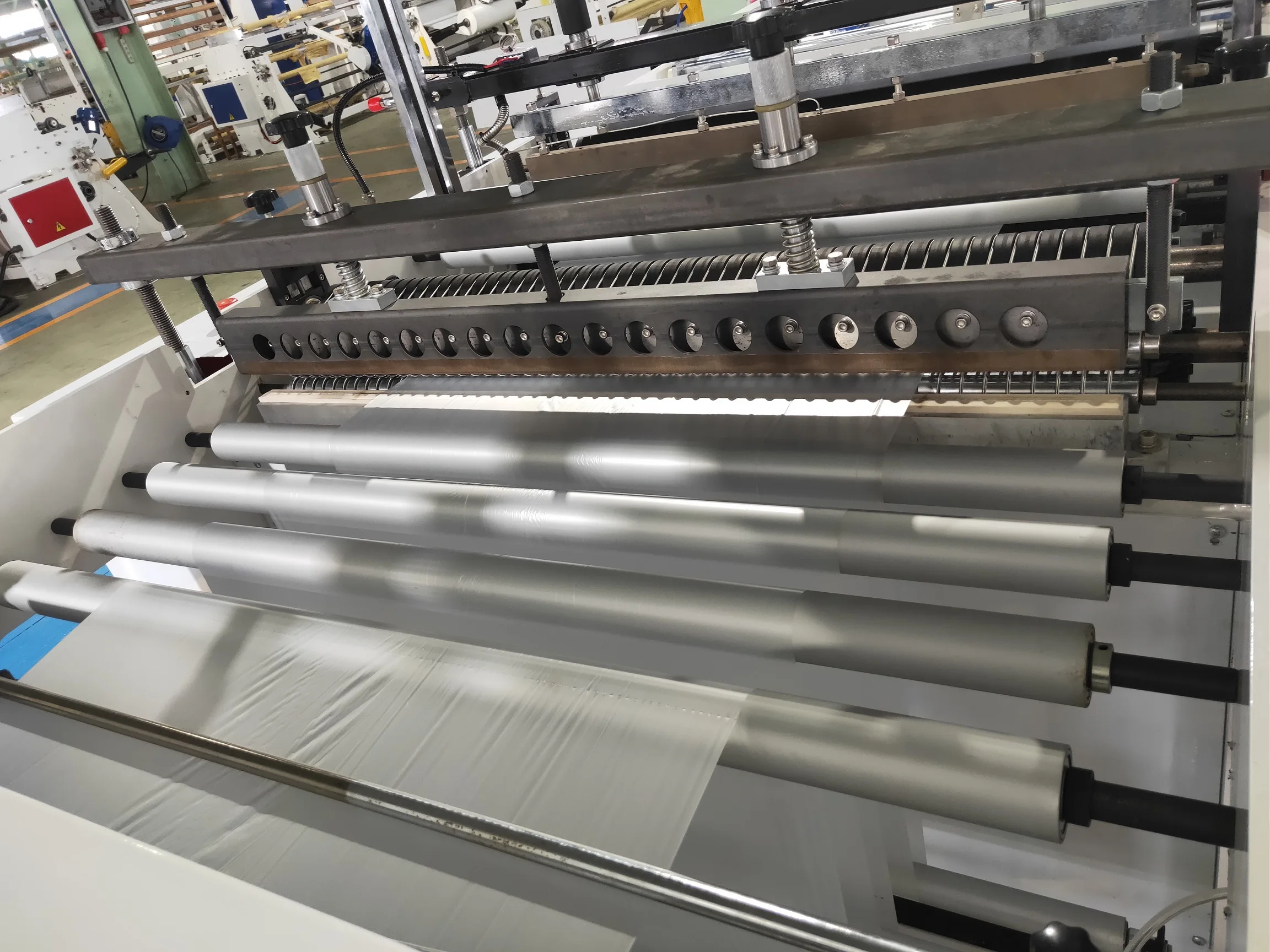

Bottom sealing & perforation part

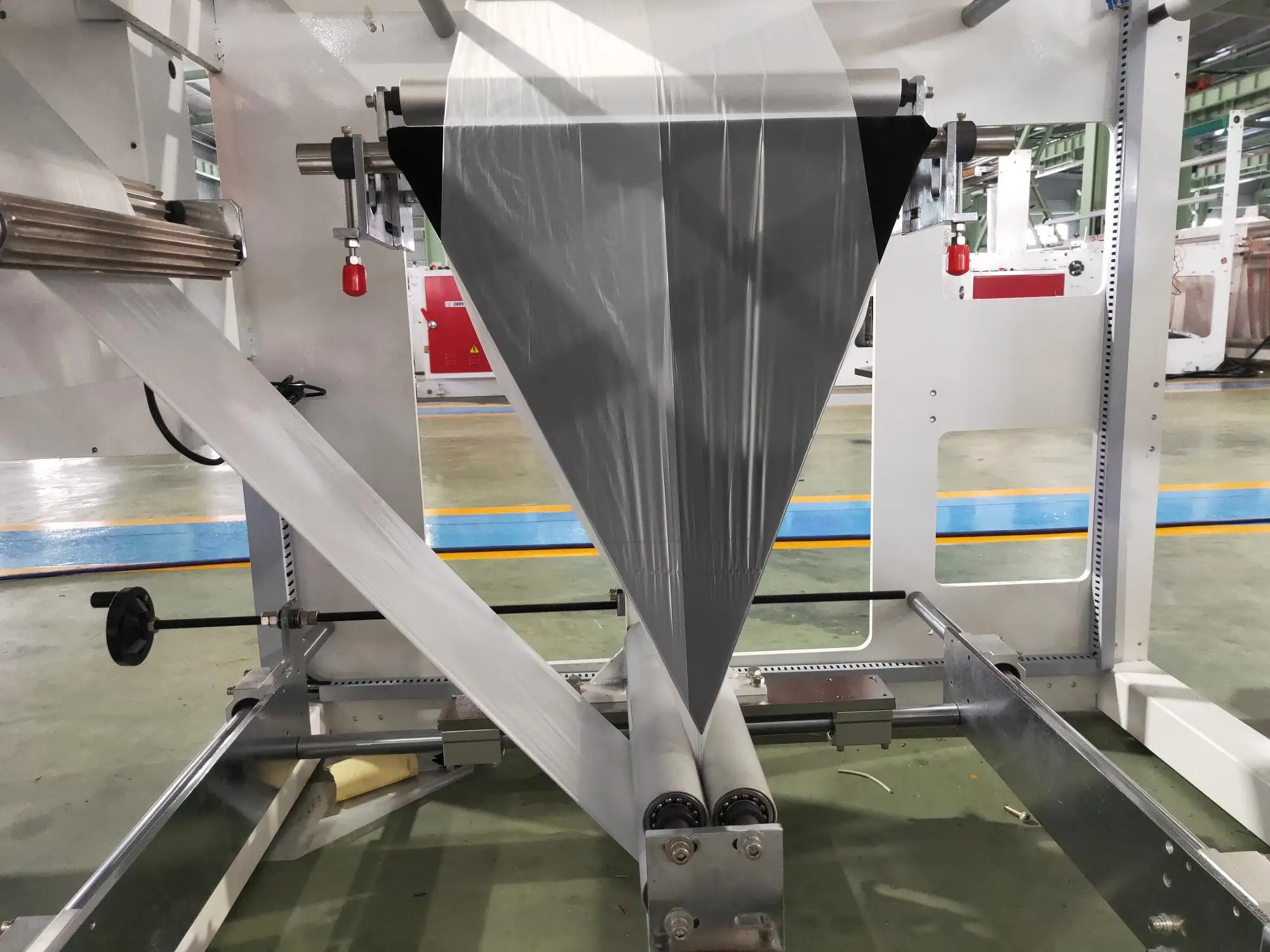

The first folding part

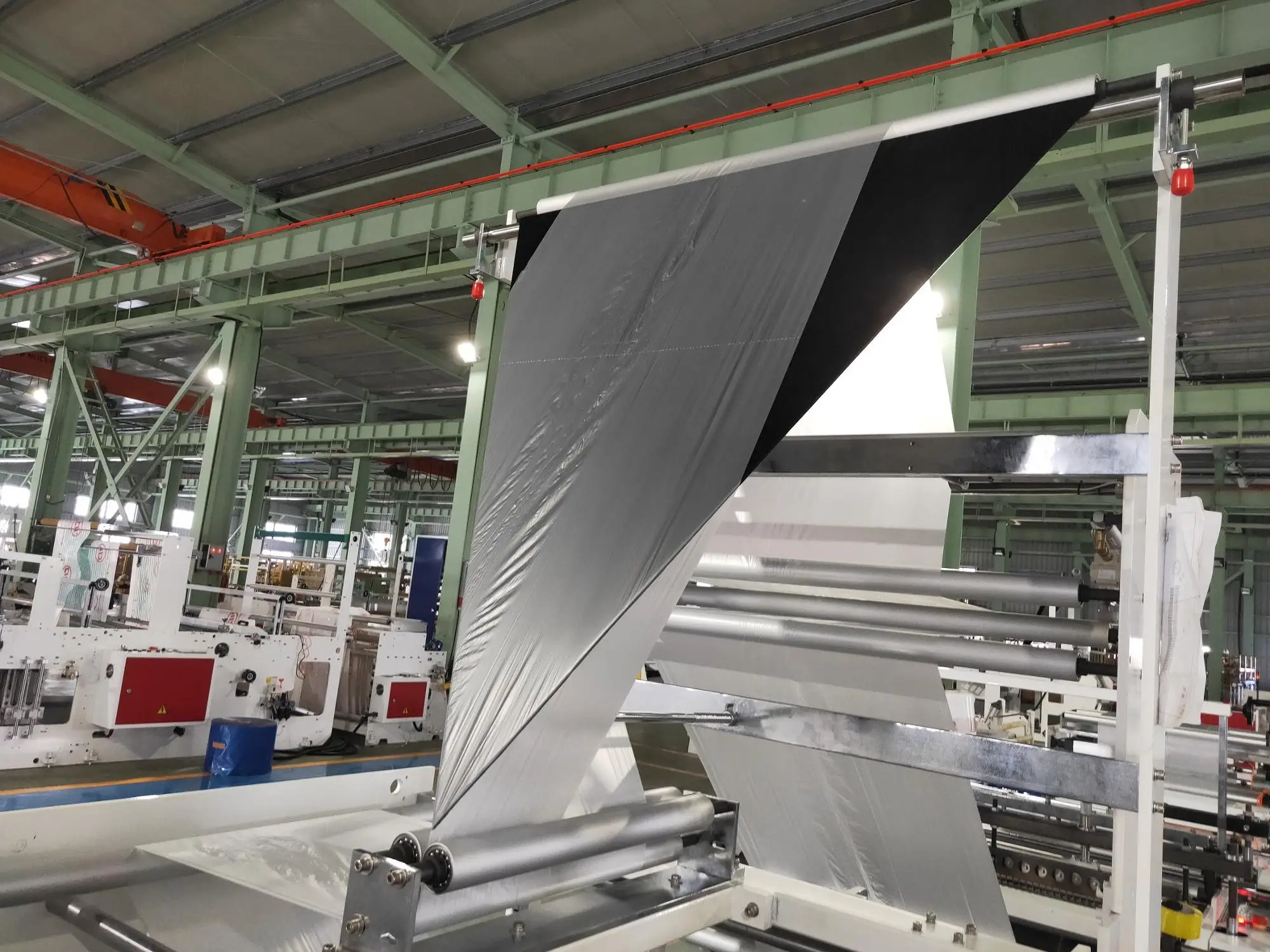

The second folding part

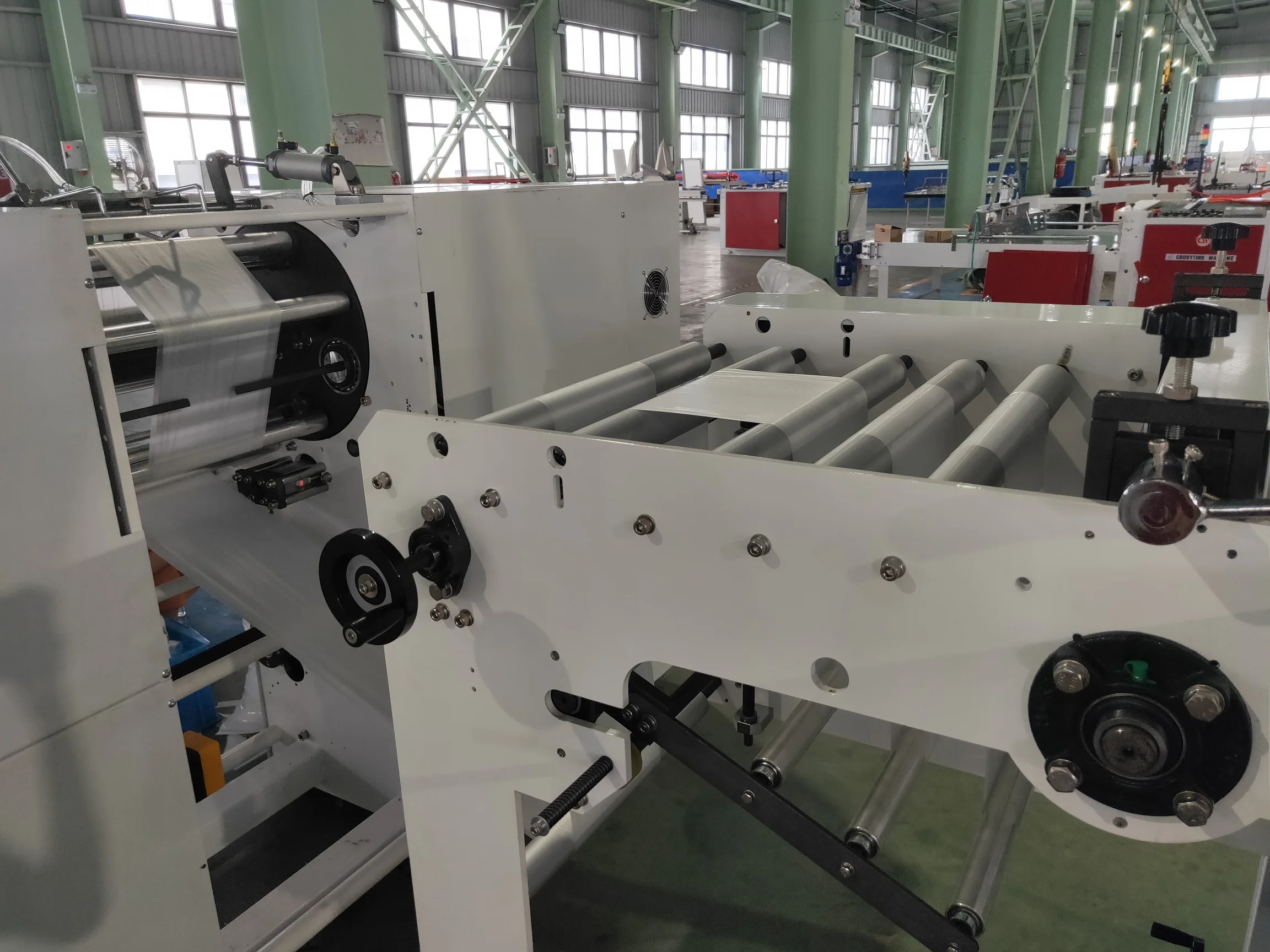

Rolling rewinding part

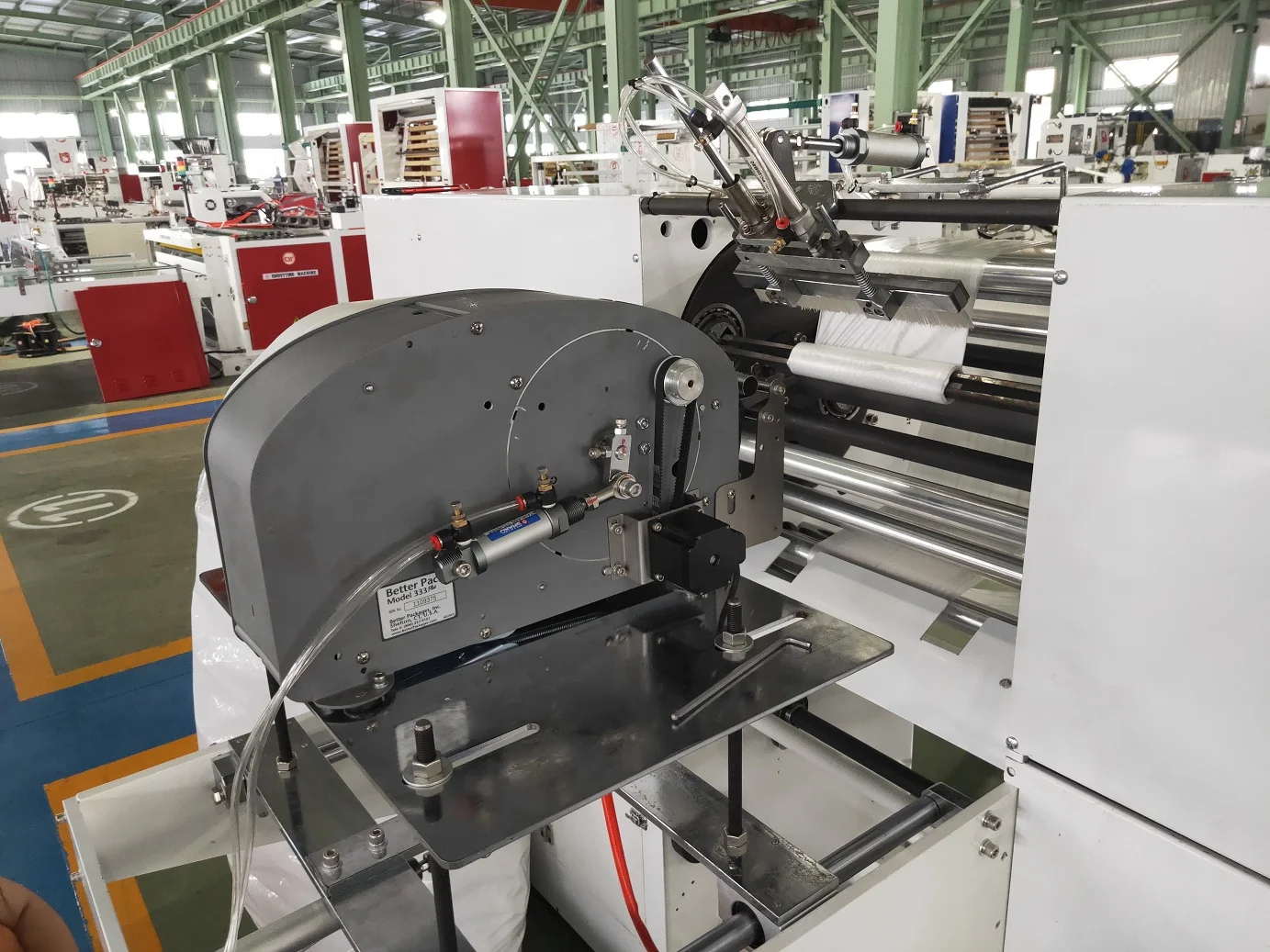

Labelling part
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for
train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing
machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model
Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
