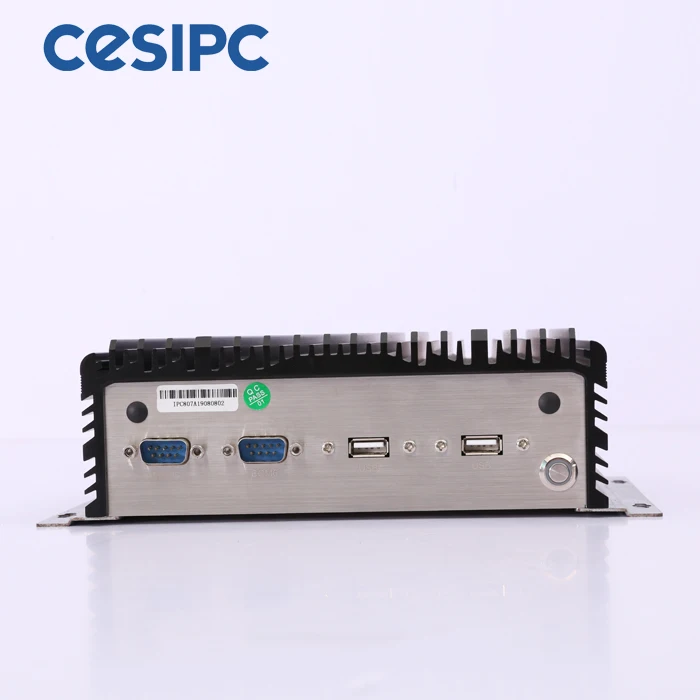

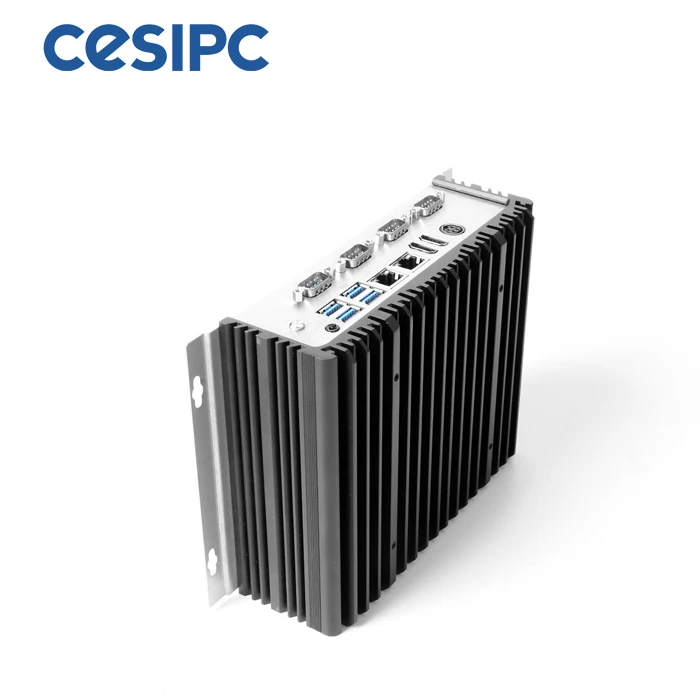

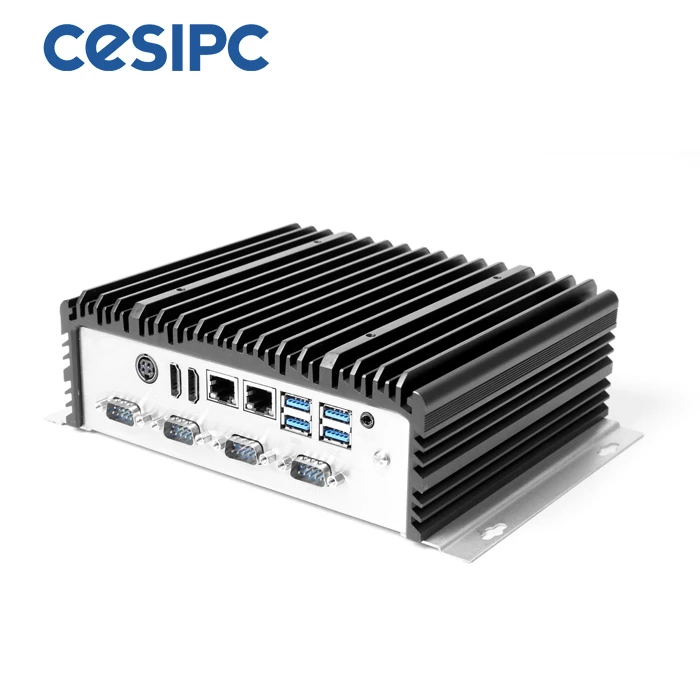

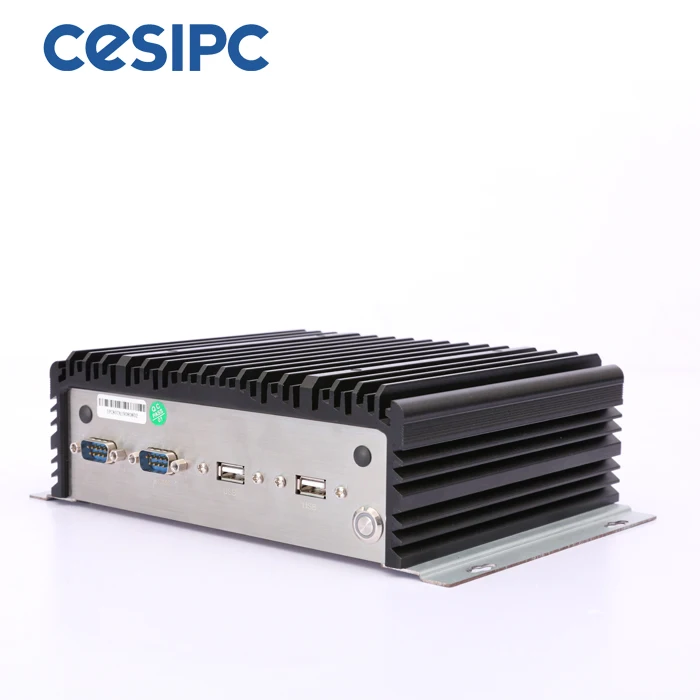

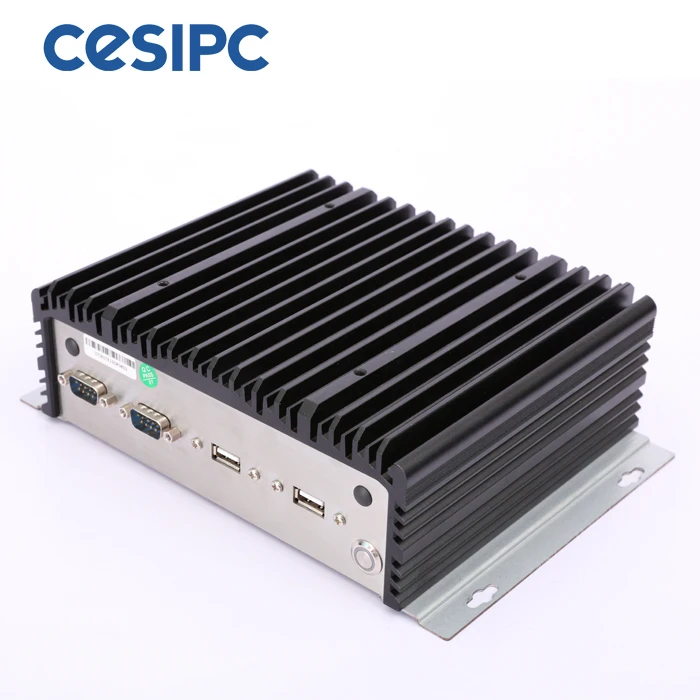

I3 7100U CPU безвентиляторный промышленный ПК коробки

Product Overview

Description



Related Products
Industrial PC	Industrial Panel PC	Industrial Panel PC



















IPC-805 is a new, industrial box PC equipped with an Intel® 7th Gen Core processor. Meeting the demands of harsh environments, the fanless design makes the IPC-805 extra reliable for applications in the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, make device connection and integration easy.



CPU	i3-7100U Dual Core up to 2.40 GHz 3M Cache, TDP 15W i5-7200U Dual Core up to 3.10 GHz 3M Cache, TDP 15W
Cooling System	Fanless
Memory	1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB
Storage	mSATA SSD+2.5'' SATA HDD
I/O ports	USB: 4xUSB3.0
	COM: 4xRS232
	Dual Display: 2*HD-MI (3840*2160 @30Hz)
	Audio: 1xMic-in, 1x Line-out
Network(LAN)	2x 10/100/1000Mbps Ethernet
Input Voltage	12V DC(Aviation Connector) , optional 9V-36V DC
OS Support	Microsoft Windows 7/ 8/ 10/ Linux
Operating Temperature	-10C~60C(14~ 140 °F)
Storage Temperature	-20C~75C-4 ~ 167 °F)
Dimensions	190.3*161.27*65.3mm
Weight(G.W.)	1.95KG
Material	High Strength Aluminum Alloy Front Panel











FAQ

Q1: Can we accept sample order ?

A1: Yes, samples are always available and can be dispatched to you very quickly.

Q2: Whether your industrial panel pc support the oem / odm?

A2: Yes. The motherboards are all designed and produced by ourselves. So the customization include size, IO ports, structure design are welcome.

Q3: Are you real factory?

A3: We are real factory with PCB factory and whole product assembling production lines.

Q4: What is our the warranty policy ?

A4: 24 months warranty lifetime free maintainance except the human damage and force majeure factor.
