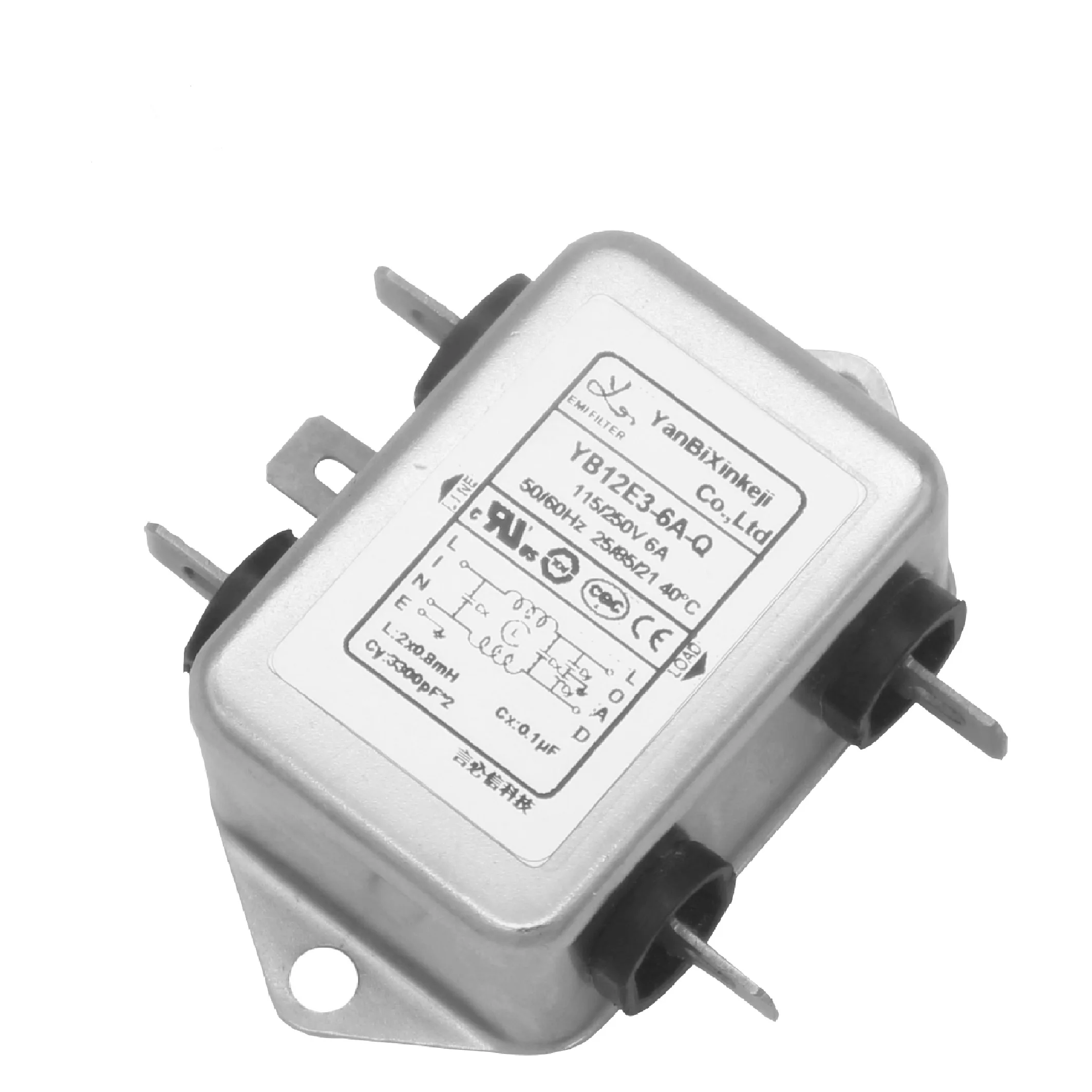

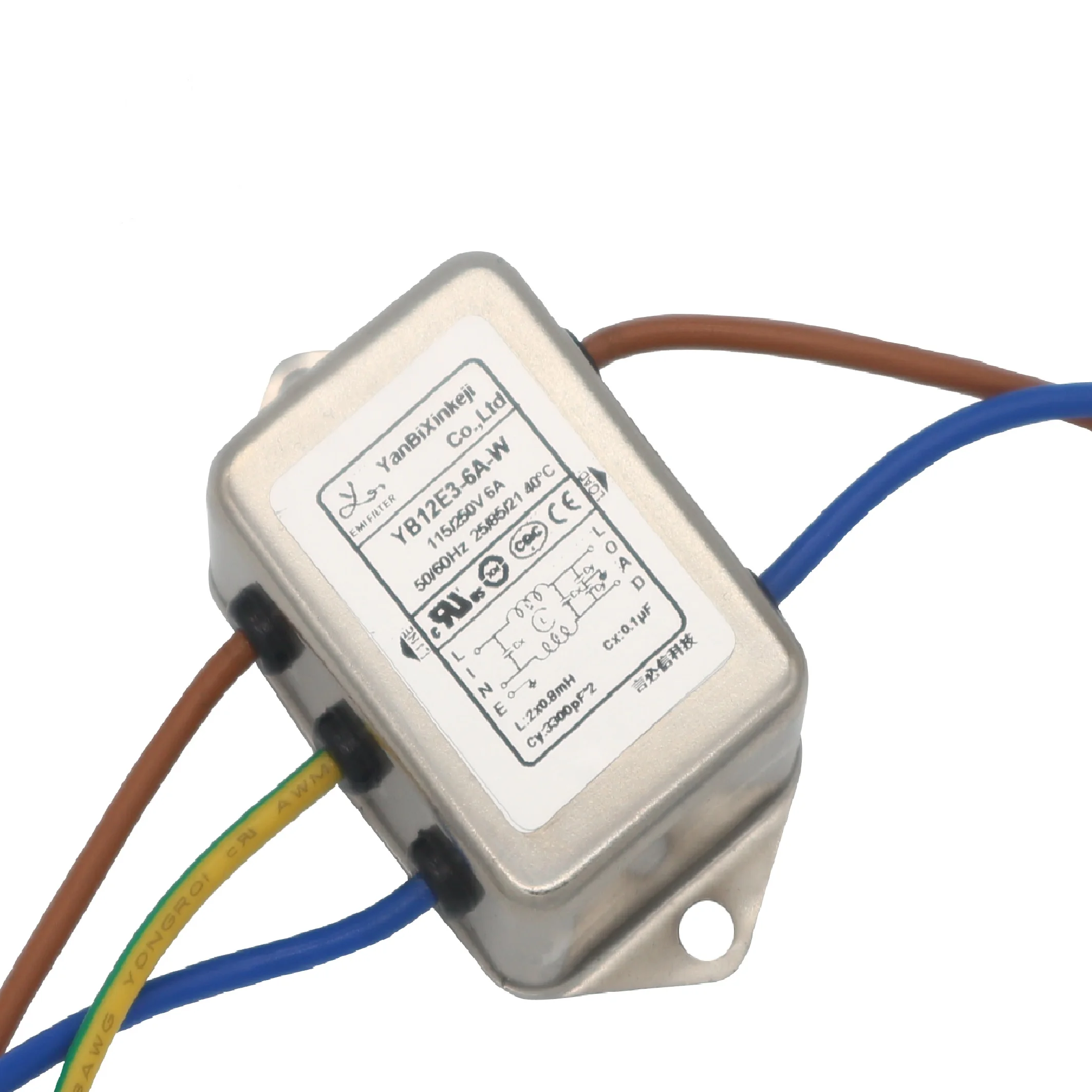

EMI Filter Manufacturers Produce High Quality Power Line Filters 1A~10A Single Phase EMI Filters
- Category: Filters >>>
- Supplier: Shenzhen Yanbixin Technology Co. Ltd.
Share on (62022639698):
Product Overview
Description
Product Paramenters
Product name | Single Phase EMI Filter | ||||||

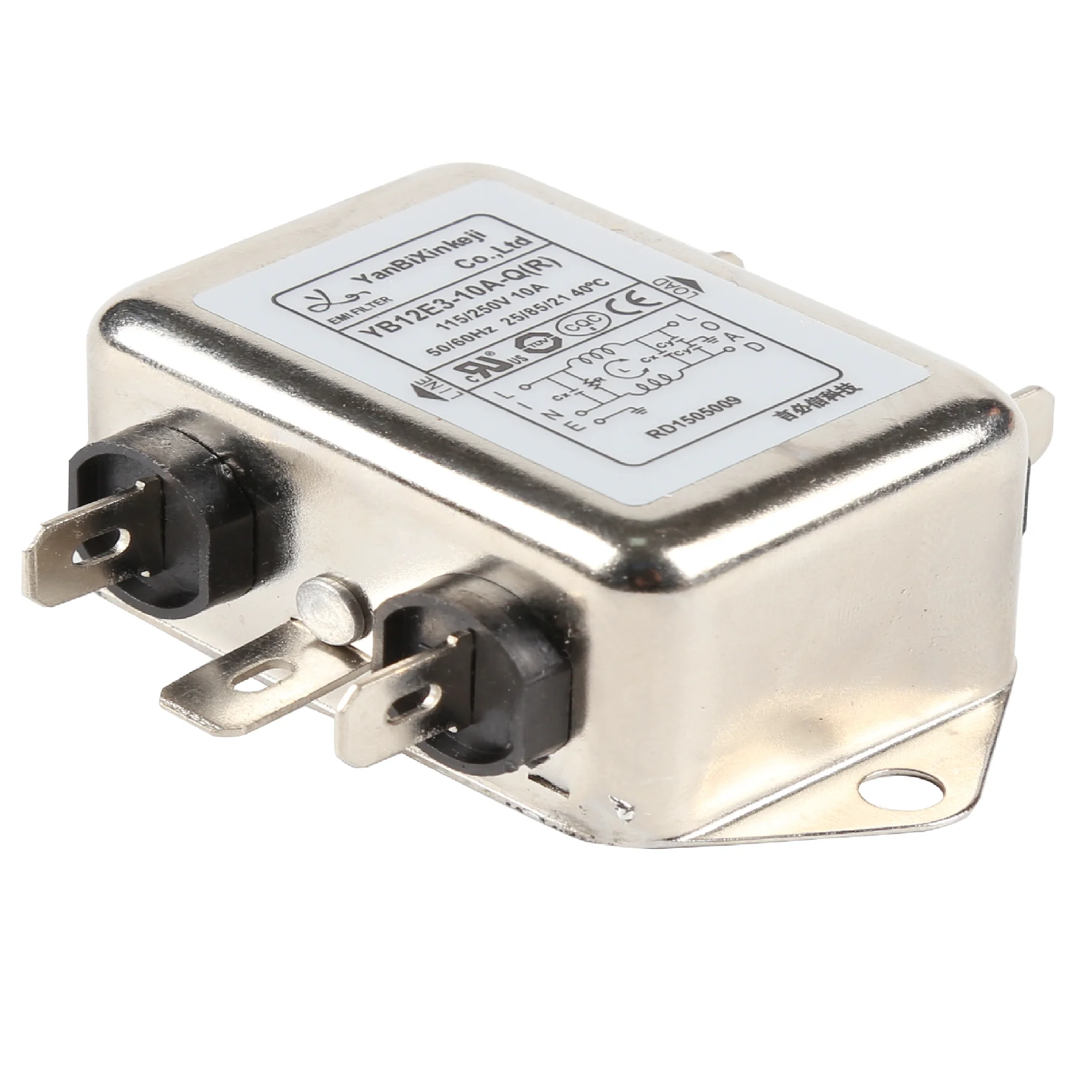

Model | YB12E3-10A-Q | ||||||
Rated Current | 1A-10A | ||||||
Rated Voltage | 115VAC/250VAC | ||||||
Frequency | 50/60HZ | ||||||
Test Voltage | 1450VDC(line to line) ,2250VAC (line to ground) | ||||||
Insulation Resistance | 50Ω | ||||||
Transfer Function | Low pass | ||||||
Temperature Range | -25°C~+85°C | ||||||
Customization | MOQ≥3000 pcs can be customized | ||||||
Warranty | 180 Days | ||||||

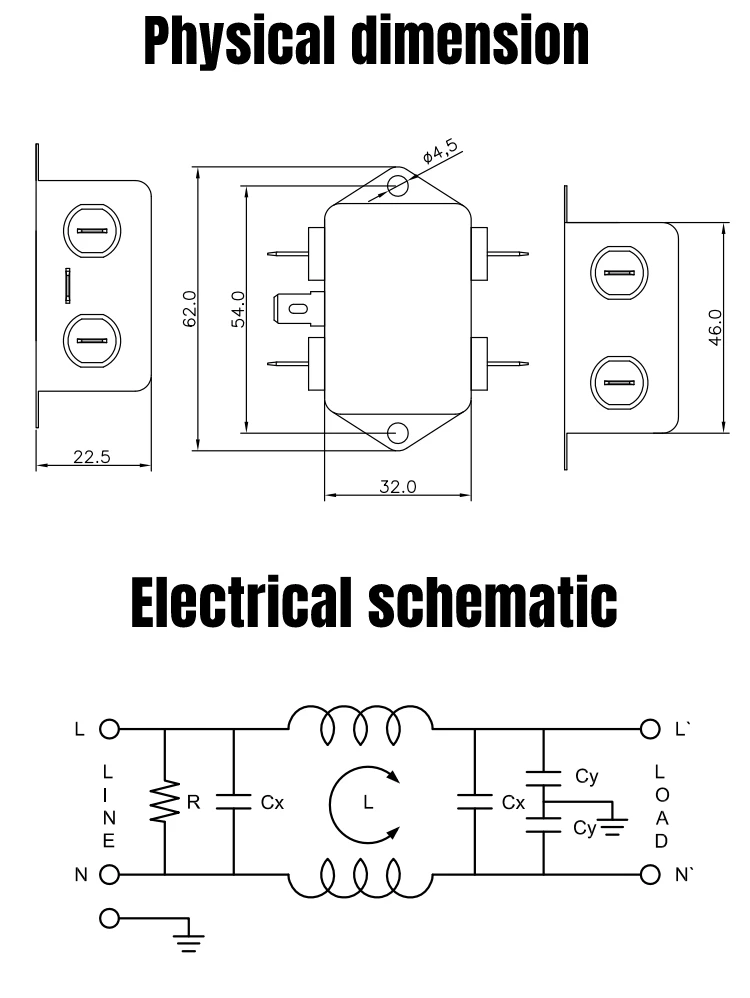

Detailed Parameters
(2) Current Rating:
A.@115VAC............................................................................................... 10A RMS Max.
B.@250VAC............................................................................................... 10A RMS Max.
(3) Oprating Frequency:50/60Hz
(4) Leakage Current: each line to ground
A. 115VAC/60Hz........................................................................................... 0.4mA Max.
B. 250VAC/50Hz...........................................................................................0.8mA Max.
(5) Hipot Rating(for one minute)
A. Line to ground............................................................................................ 2250VDC
B. Line to line.................................................................................................. 500VDC
(6) IR: 50M ohm A7 500VDC any input or output to ground
(7) Temperature Range: -25℃~+85℃
