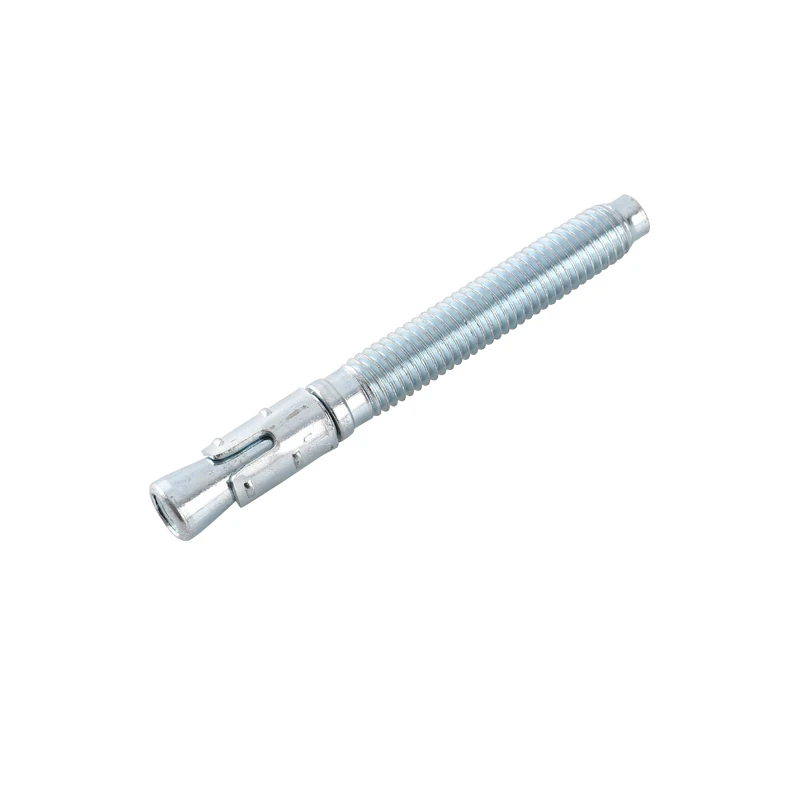

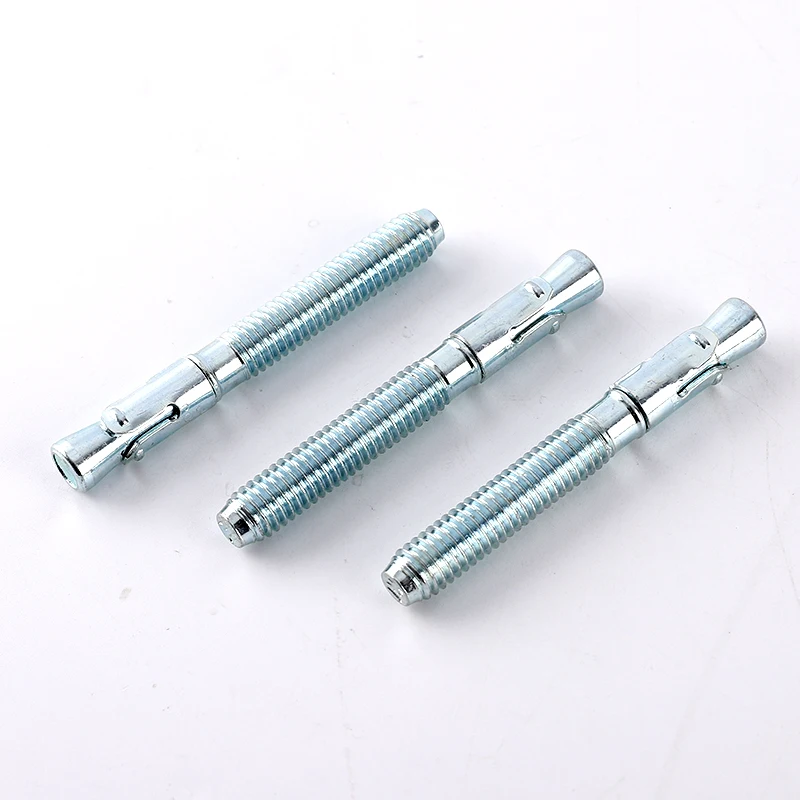

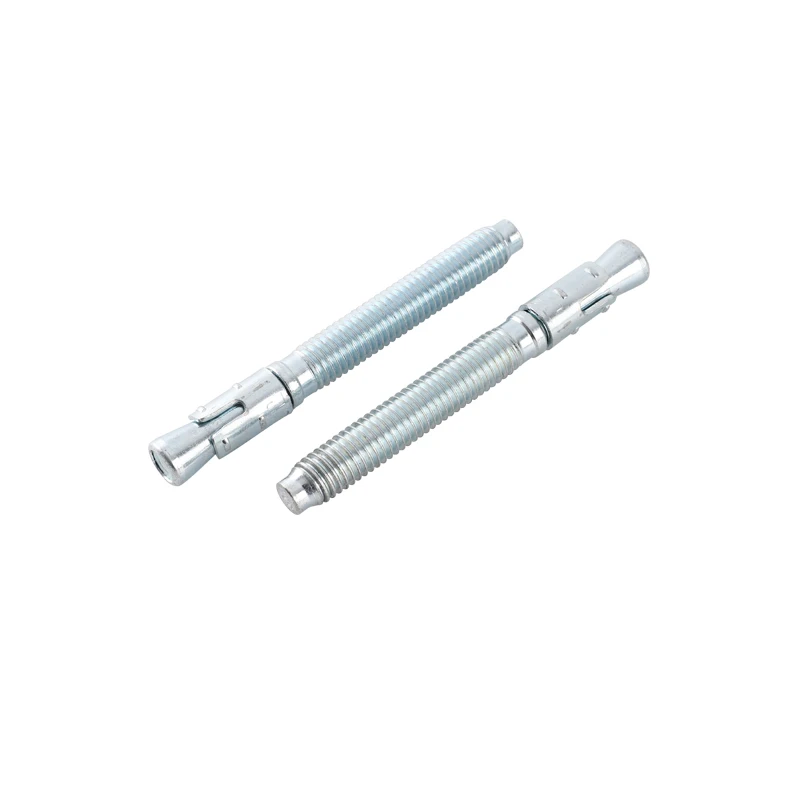

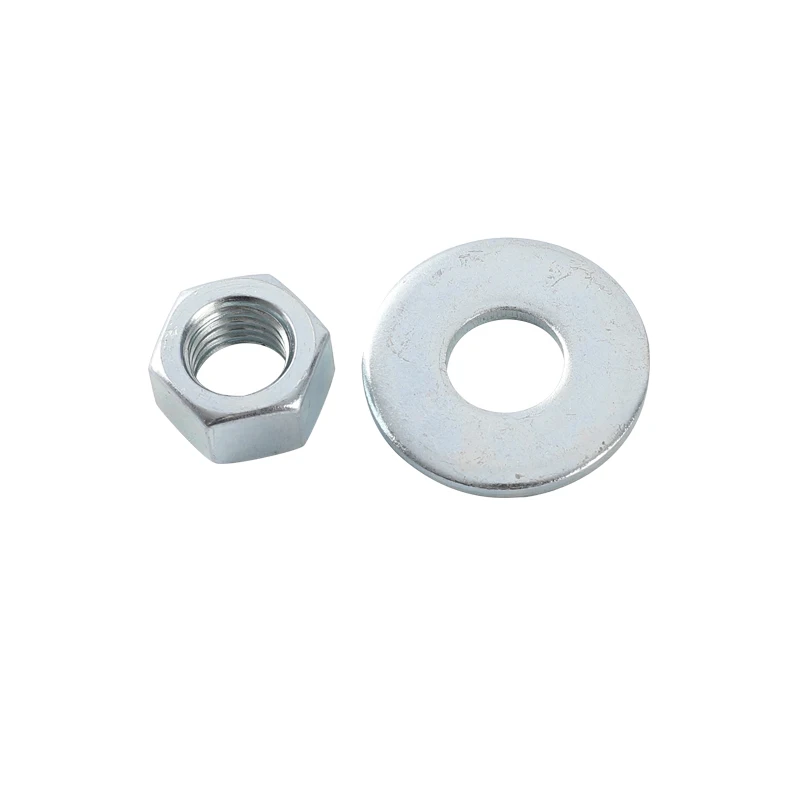

The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
The one piece clip is formed around anchor , assuring full expansion for dependable , superior holding power. Expanding clip will not fall off in the hole .
This product is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry
Anchor size L
Min.thread length
Piece per box
Piece per carton
1/4"X1-3/4" min
3/4"
100
800
1/4"X3-1/4" max
2-1/4"
100
600
3/8"X2-1/4" min
7/8"
50
300
3/8"X5" max
3-5/8"
50
300
1/2"X2-3/4" min
7/8"
50
200
1/2"X7" max
4"
25
100
5/8"X3-1/2" min
1-3/8"
25
100
5/8"X7" max
14"
25
75
3/4"X4-1/4" min
1-7/8"
20
60
3/4"X8-1/2" max
4"
10
40
1"X6" min
2-3/8"
10
30
1"X12" max
8-3/8"
5
30
1-1/4"X9" min
4-3/4"
5
15
1-1/4"X12" max
7-3/4"
5
15
