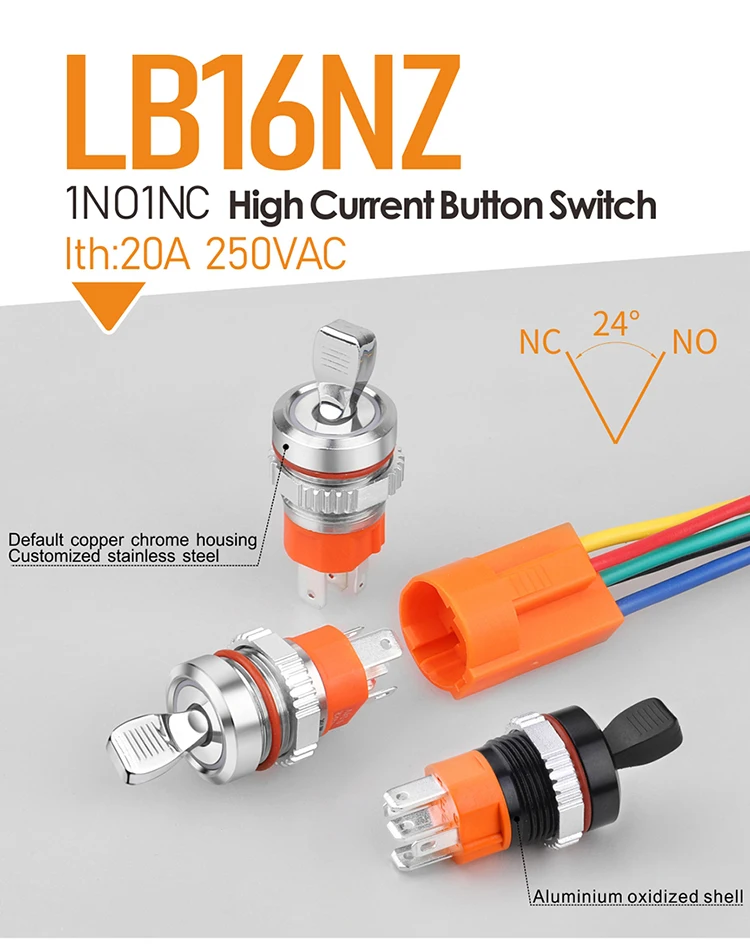

LANBOO 16mm waterproof high current metal button switchToggle Switch With L blue wave factory direct sales with indicator 5 24V
- Category: Push Button Switches >>>
- Supplier: Lanboo Intelligent Technology Co. Ltd.
Share on (62023085219):
Product Overview
Description
Product Description
| Model Description | |
| Model NO. | LB16NZ |
| Mounting diameter | 16mm |
| Head shape | Toggle |

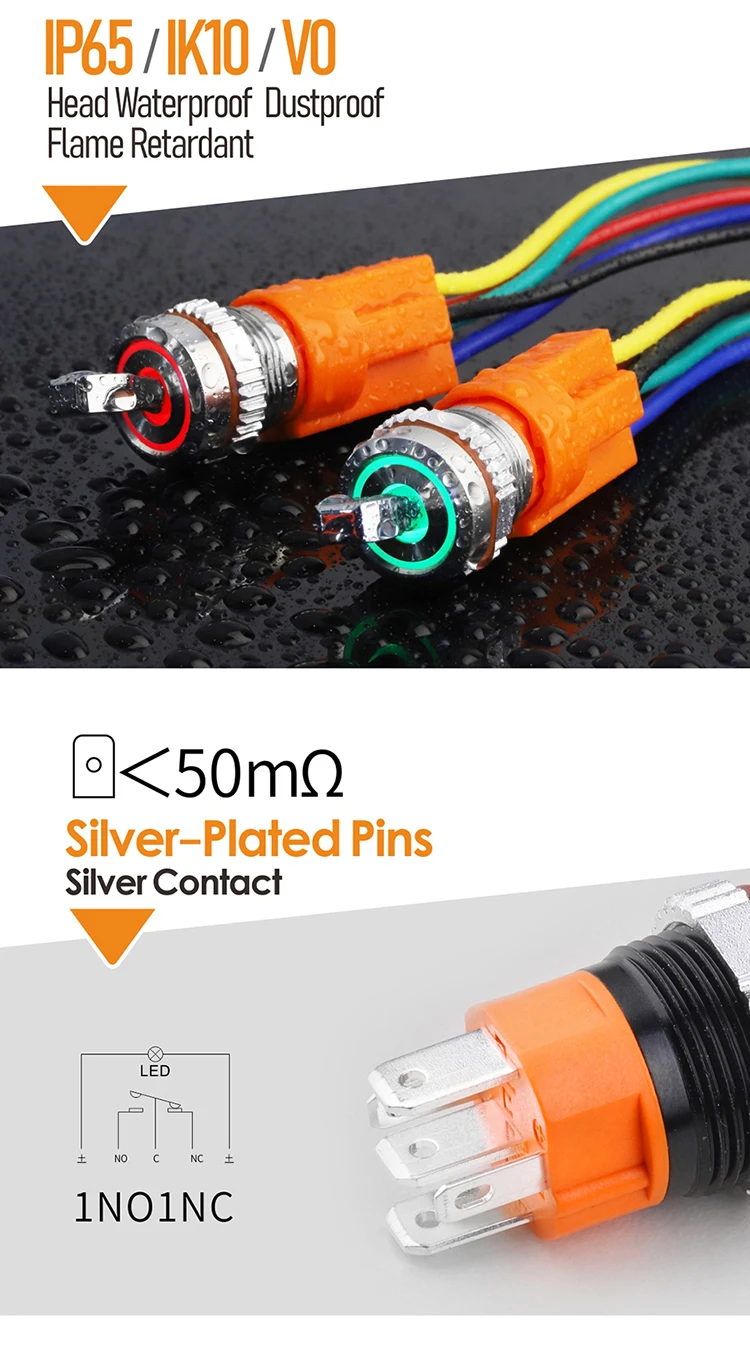

| Switch Combination | 1NO1NC /2NO2NC |
| Operation type | Latching |
| Illuminating type | Point LED |
| Illuminating color | Red,Gree(Customized) Blue(Customized)Yellow(Customized) White |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |

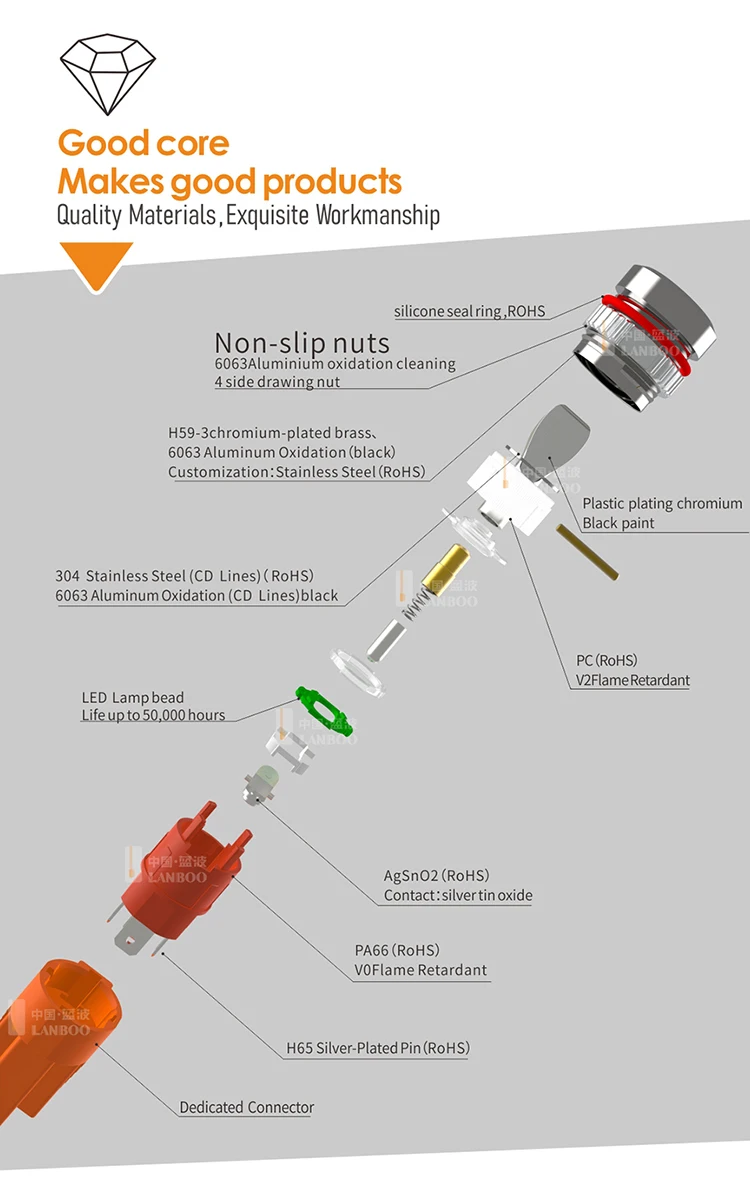

| Shell material | Chrcmium plated brass/Aluminum oxide/Stainless Steel |
| Switch Rated Load | |||||
Project | Parameter | ||||
| Reated Insulation Voltage | AC220V | ||||
| Fusing Current | 5A | ||||
| Rated Voltage | DC12V | DC24V | AC110V | AC220V | |
| Rated Current | Nonreactive Load | 15A | 15A | 15A | 15A |
| Inductive Load | 4A | 4A | 4A | 4A | |

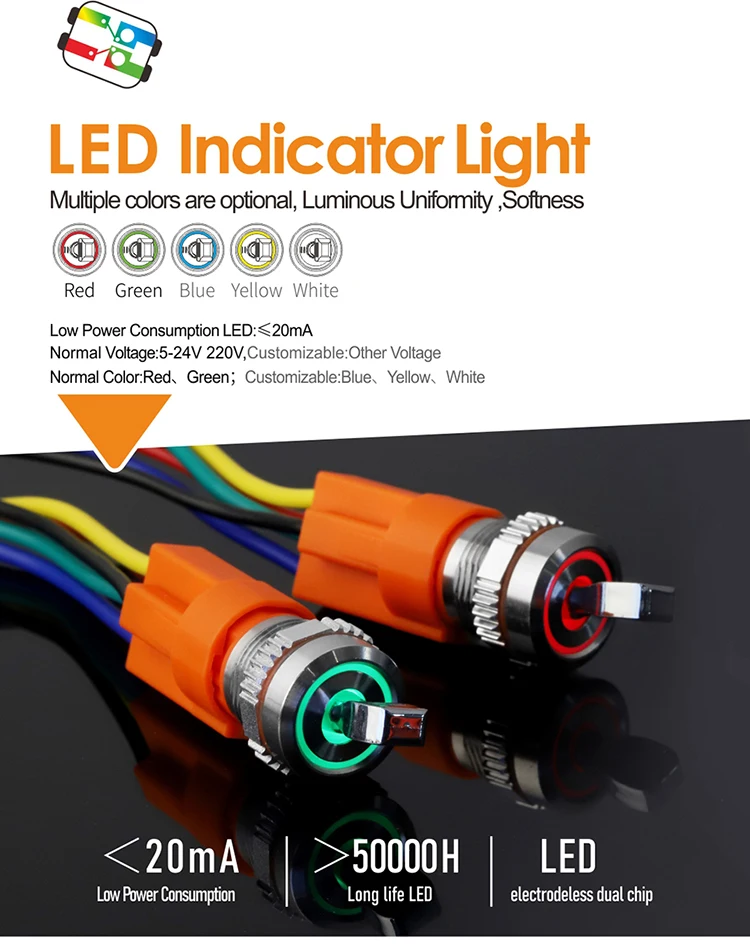

| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,White, |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤24V,≤20mA;>24V,≤10mA |
| Reference Life | 50,000hours |
