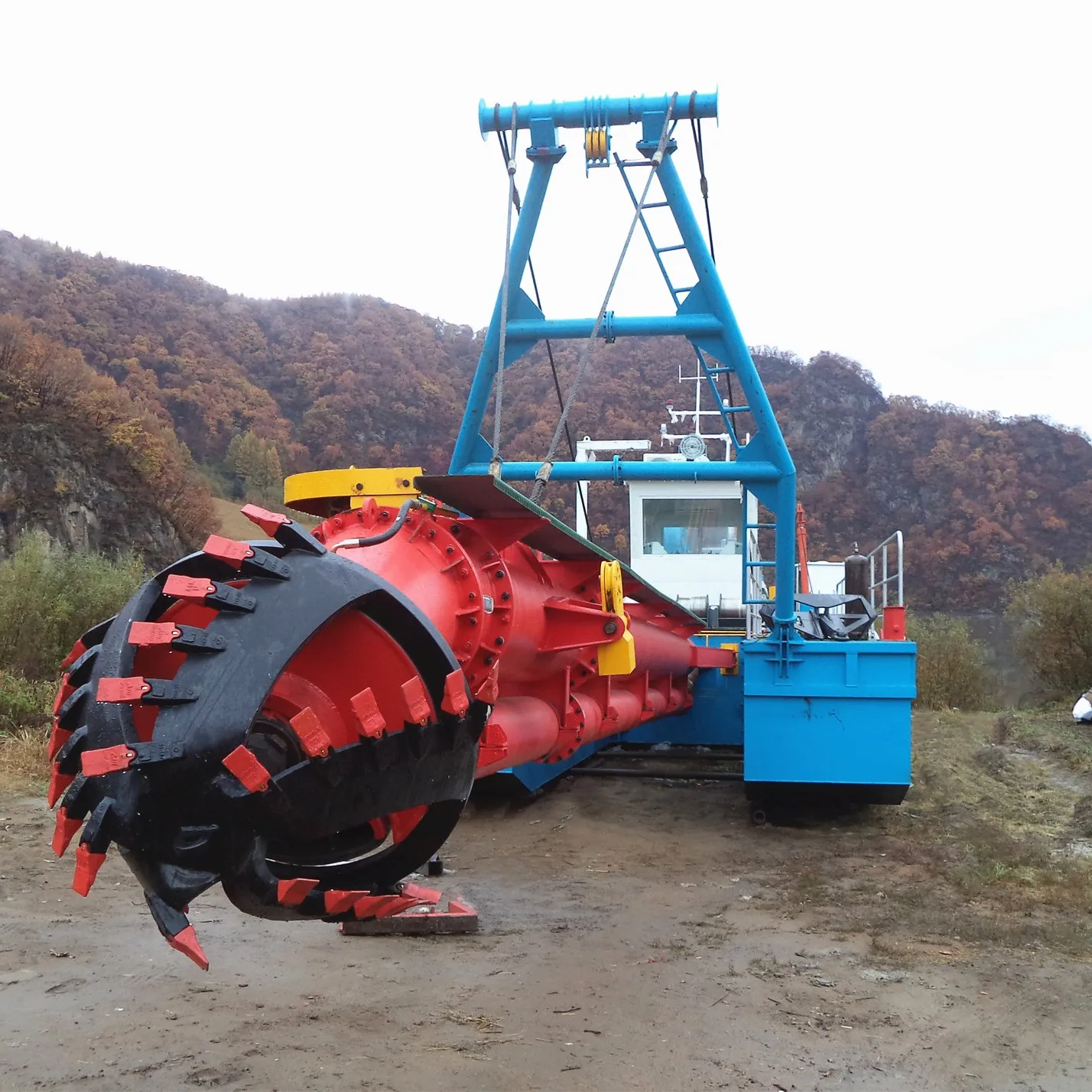

Cutter Suction Sand Dredger With After Sales Service
- Category: Dredger >>>
- Supplier: Qingzhou Julong Environment Technology Co. Ltd.
Share on (62024059288):
Product Overview
Description
Product Description
Julong Cutter Suction Dredgers, characterized by strong geographical environment adaptability, simple structure, easy maintenance, reliable performance, long service life, low costs and large workload (1,000 to 4,000 cubic meters per day) are ideal choice for sand field and river sand mining. It can also be used in salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development. Dug sand after screening and separation is pure and inclusion-free, which is an ideal choice for the building industry.
Cutter suction dredgers can be installed with ore dressing equipment to extract gold, iron ore and other minerals, featuring a high degree of automation, high extraction accuracy and large processing capacity. It leads the industry both at home and abroad.
SPECIFICATIONS OF JULONG CUTTER SUCTION DREDGERS | ||||||||||||
Models | Max. Dredging Capacity | Dredging Depth | Full-loaded Draft | Suction Pipe Dia. | Discharge Pipe Dia. | Engine Power | ||||||
JLCSD-200 | 500m3/hr | 8m | 0.8m | 250mm | 200mm | 224kw | ||||||
JLCSD-250 | 800m3/hr | 10m | 1.0m | 300mm | 250mm | 336kw | ||||||
JLCSD-300 | 1200m3/hr | 12m | 1.0m | 350mm | 300mm | 559kw | ||||||
JLCSD-400 | 2200m3/hr | 14m | 1.2m | 400mm | 400mm | 746kw | ||||||
JLCSD-450 | 3000m3/hr | 15m | 1.3m | 500mm | 450mm | 895kw | ||||||
JLCSD-500 | 3500m3/hr | 16m | 1.3m | 600mm | 500mm | 1231kw | ||||||
JLCSD-550 | 4500m3/hr | 18m | 1.3m | 650mm | 550mm | 1690kw | ||||||
JLCSD-600 | 6000m3/hr | 20m | 1.5m | 700mm | 600mm | 2190kw | ||||||
Main Features
1. Simple, rapid assembly and dismantling.
2. Spare parts and floating pipe available.
3. Transportable by road, rail or sea.
4. Reliable hydraulic system.
5. Fresh water engine cooling system.
6. Efficient fuel consumption.
7. One-man operation.

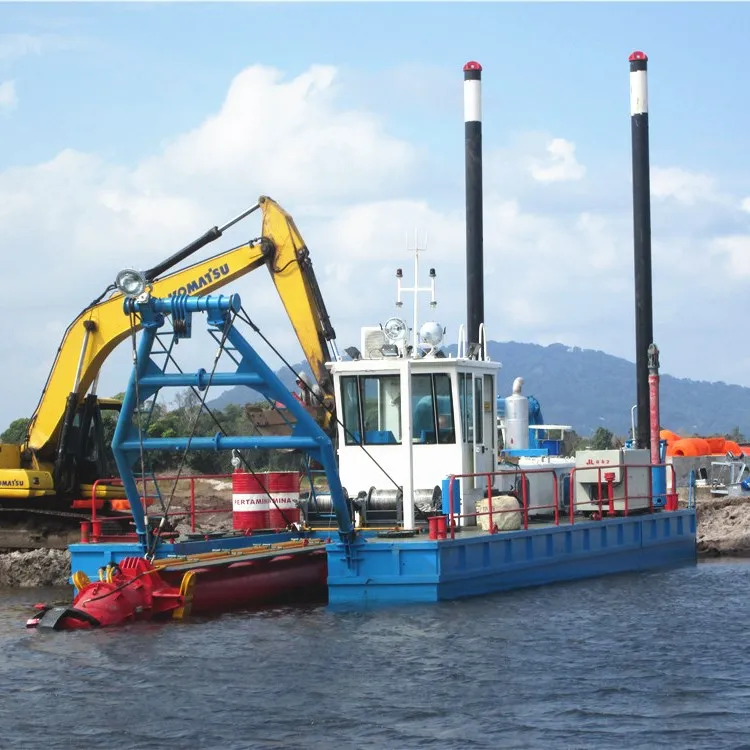

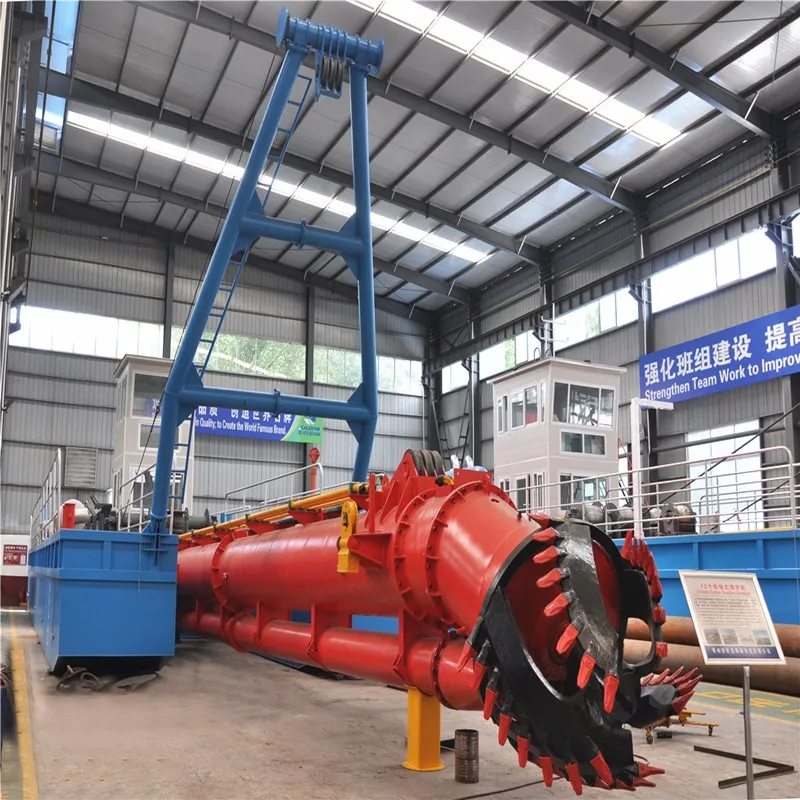

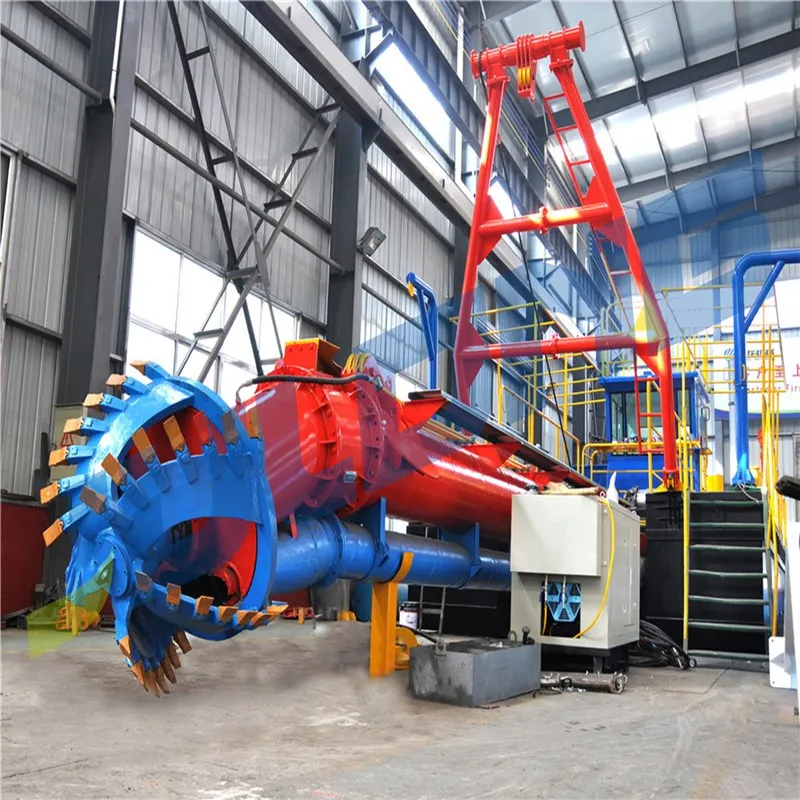

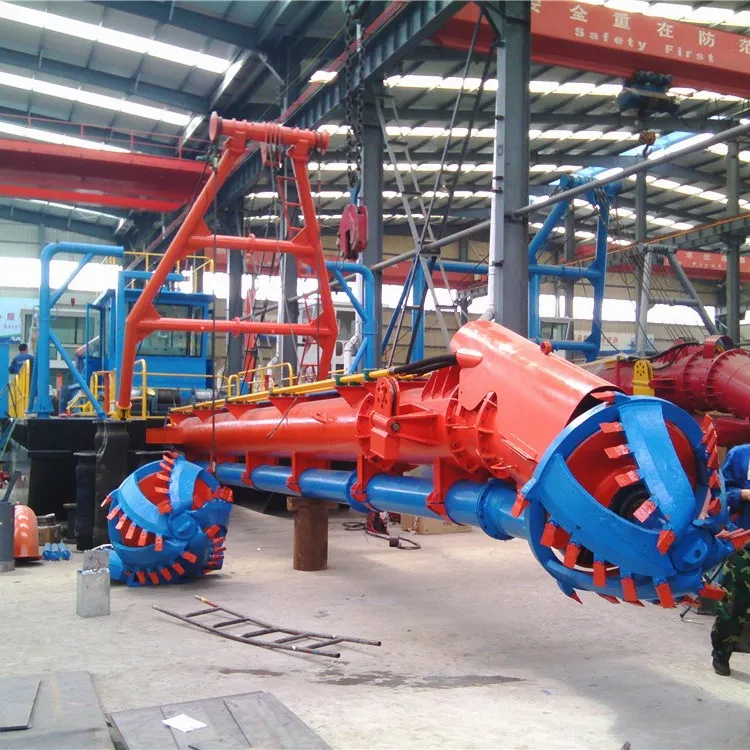

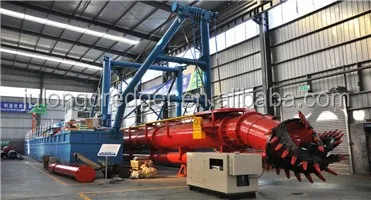

Detailed Images
Quality Control

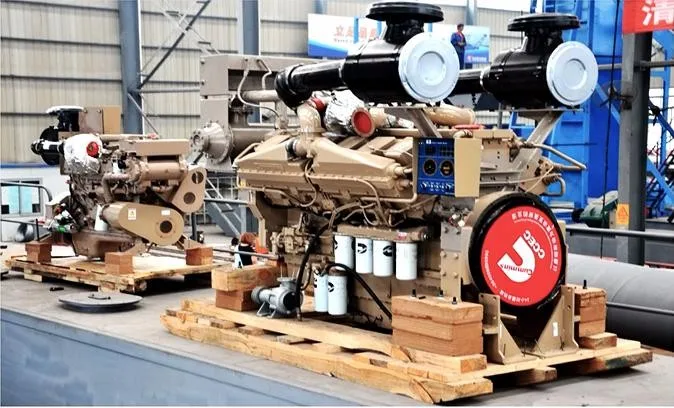

The main components of Julong dredgers are all well-known brands at home and abroad, like Cummins, Weichai and Schneider etc, which can ensure the efficiency and working life.
Modular Structure
The side pontoons and main pontoon are connected by high strength bolt. With this cambined design, this equipment can be ensured to module structure and be transported and assembled easily.
Environmental Concept

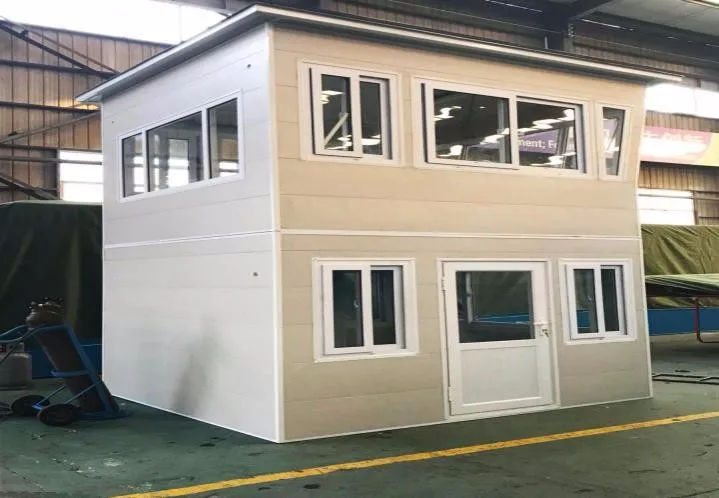

The cabin adopts new environmental protection material, which has the advantages of sound insulation and heat preservation and can effectively improve the working environment.
Short Delivery Time
Julong will prepare various main components of dredgers in the workshop, like diesel engine, dredging pump and cutter head, which can greatly shorten delivery time.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
The package can be made according to customers' demand and will be delivered by container or bulk.
Certifications
