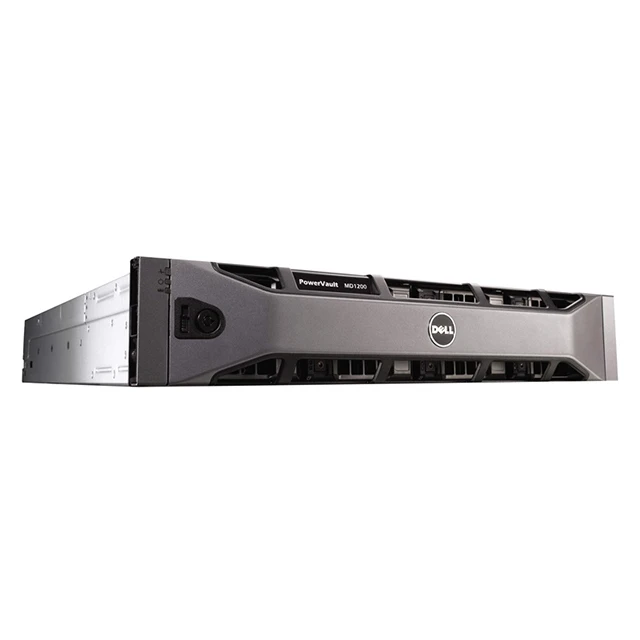

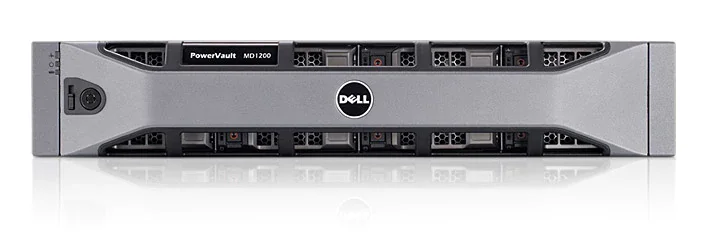

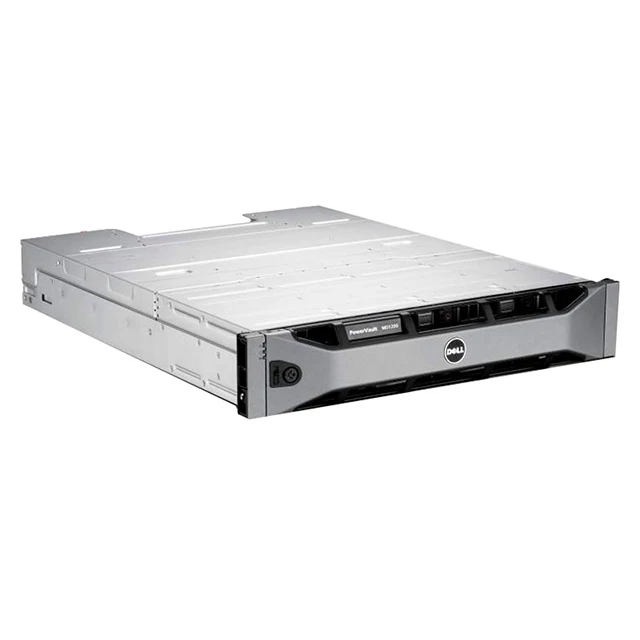

Network DELL PowerVault MD1200 Direct Attached Storage

Feature

Dell PowerVault MD1200

PERC H810

PCI-E 2.0 HostRAID adapter with two external x4 SAS ports, standard 512MB cache and TBBU

Drives and capacity

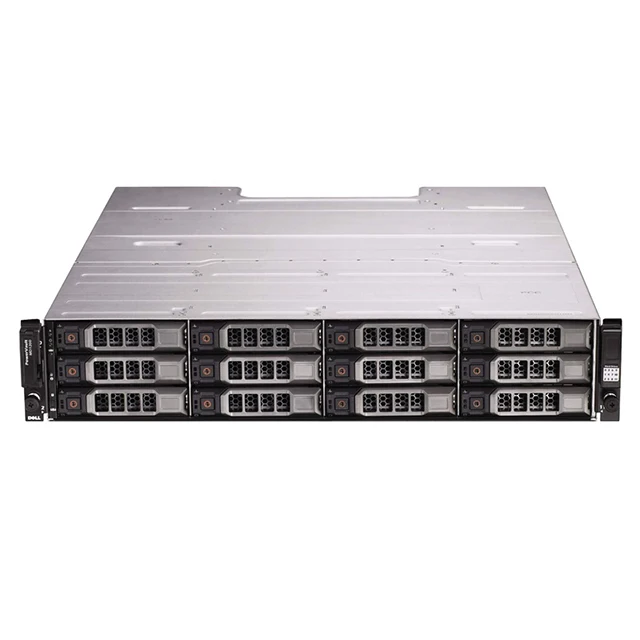

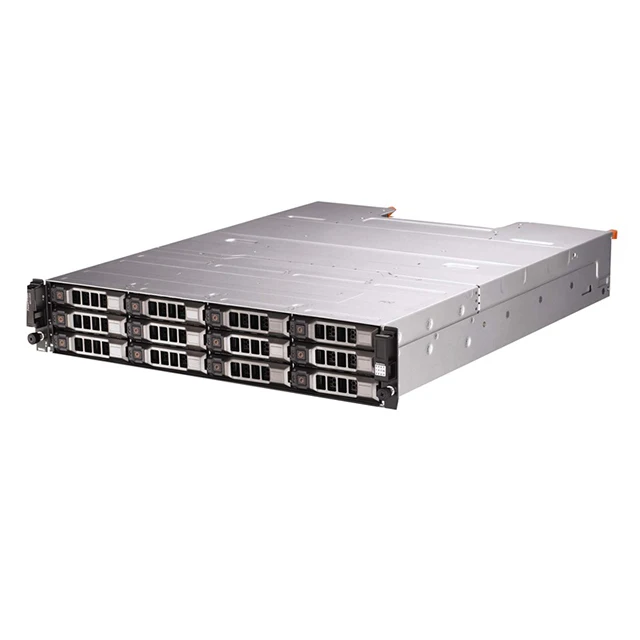

Drives

Up to twelve (12) hot-pluggable SAS HDDs at 7.2K, 10K, and 15K RPM and SAS SSDs; mix and match 3.5” and 2.5” drives (2.5” requires 3.5” carriers)

Drive performance and capacities

3.5” 6Gbps SAS:

HDD 15K – 300GB, 450GB, 600GB

HDD 7.2K – 1TB, 2TB, 3TB, 4TB, 6TB

3.5” 12Gbps NL-SAS: 1

HDD 7.2K SAS 512e – 6TB, 8TB, 10TB

2.5” 12Gbps SAS with 3.5” carrier:

7.2K HDD NL-SAS 512e – 2TB

SSD – 200GB, 400GB, 800GB, 1.6TB MU MLC

SSD – 200GB, 400GB, 800GB WI MLC

SSD – 800GB, 1.6TB RI MLC

2.5” 6Gbps SAS with 3.5” carrier:

HDD 10K – 300GB, 600GB, 900GB, 1.2TB

HDD 10K 512e – 1.8TB

SSD – 400GB mainstream SLC; 200GB, 800GB

value SLC; 800GB RI MLC; 200GB, 400GB WI SLC

Maximum capacity

(per enclosure) Up to 120TB when using 12 x 10TB NL-SAS 3.5” HDDs

Expansion capabilities

PERC H810 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port)

Host connectivity

Unified mode

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810

(4 enclosures per port, single path)

Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4

enclosures connected to both ports via redundant path cabling)

Split-mode/dual-host access

Split mode with dual EMM providing direct connectivity to drives 0 though 5 and a separate connectivity to drives 6 through 11

Enclosure Management Modules (EMM) and RAID

EMM

2 EMMs provide redundant enclosure management capability; hot-swappable

RAID

PERC H810 supports RAID levels 0, 1, 5, 6, 10, 50, and 60

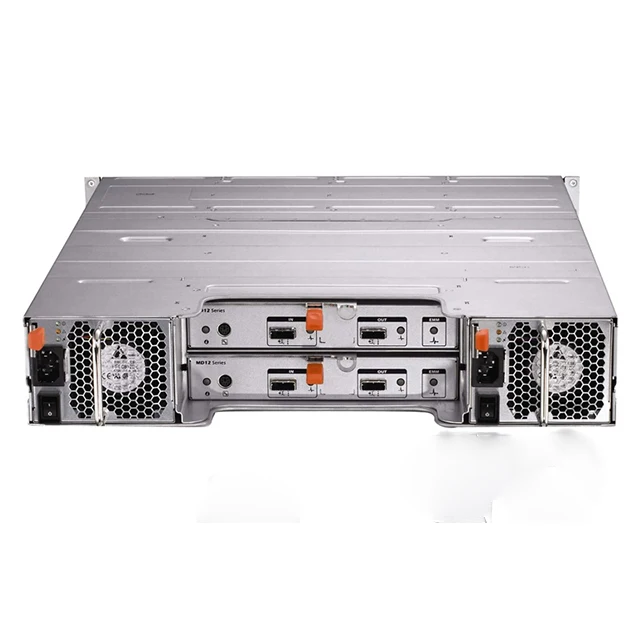

Back-panel connectors (per EMM)

Host connectivity

1 SAS (SFF 8088) IN connector for connection to the host

Expansion connectivity

1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure

Service management

1 6-pin UART mini-DIN connector (for factory use only)

Power supplies (per PSU)

Wattage also supports DC power

AC - 600 W; DC - 700 W

Host heat dissipation

AC - 2047 BTU/hr; DC - 2388 BTU/hr

Input voltage range

100-240 VAC, auto-sensing; 48 V DC

Frequency range

50/60 Hz

Amperage

8.6 A at 100 V, 4.3 A at 240 V

Available hard drive power (per slot)

Supported continuous consumption

Up to 1.16 A at +5V; up to 1.6 A at +12V

Physical

Rack xupport

Dell ReadyRails ™ static rails for toolless mounting in 4-post racks with square or unthreaded round

holes or tooled mounting in 4-post threaded-hole racks

Height x width x depth

8.7cm (3.39 inches) x 48.2cm (18.8 inches) x 59.4cm (23.17 inches)

Weight

28.39 kg (62.6 lb) (maximum configuration); 8.84 kg (19.5 lb) (empty)

Environmental

Temperature

Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour

Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hourSupports Fresh Air Cooling, up to 35°C

Relative humidity

Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour

Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour

Supports Fresh Air Cooling, up to 35°C

Altitude

Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour

Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour

Supports Fresh Air Cooling, up to 35°C
