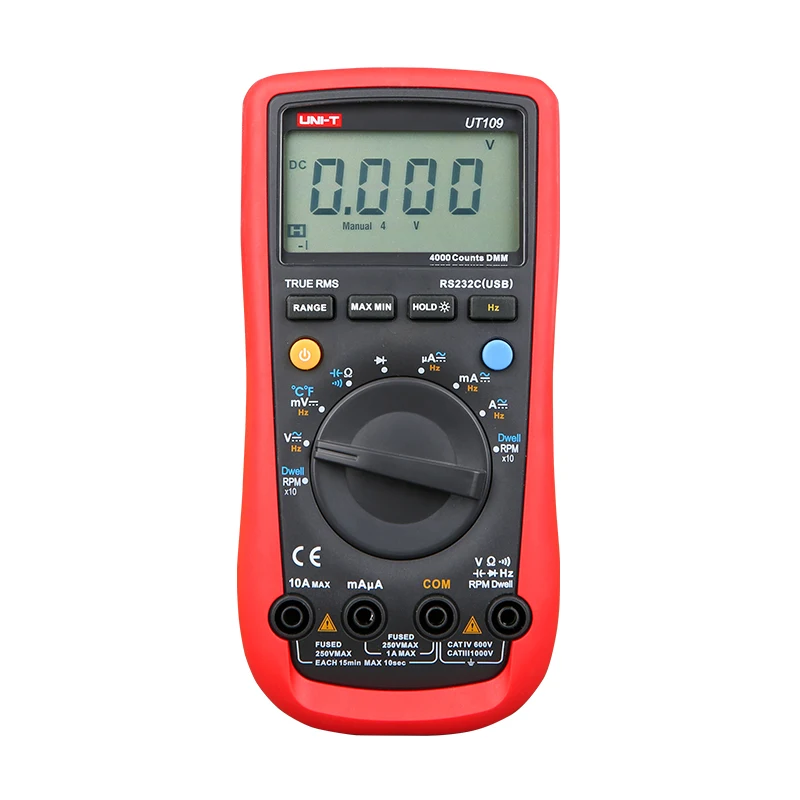

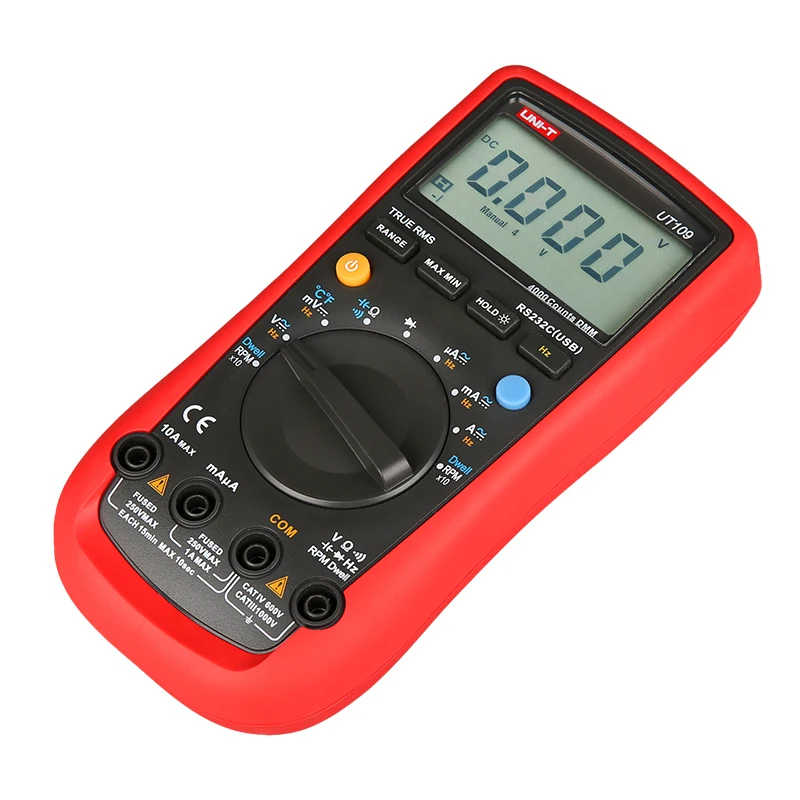

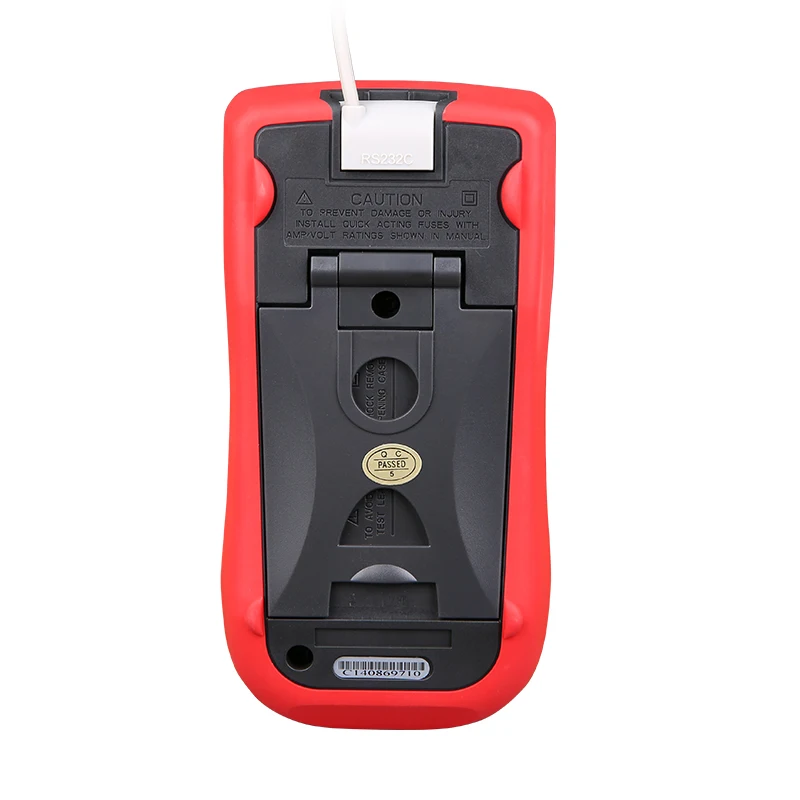

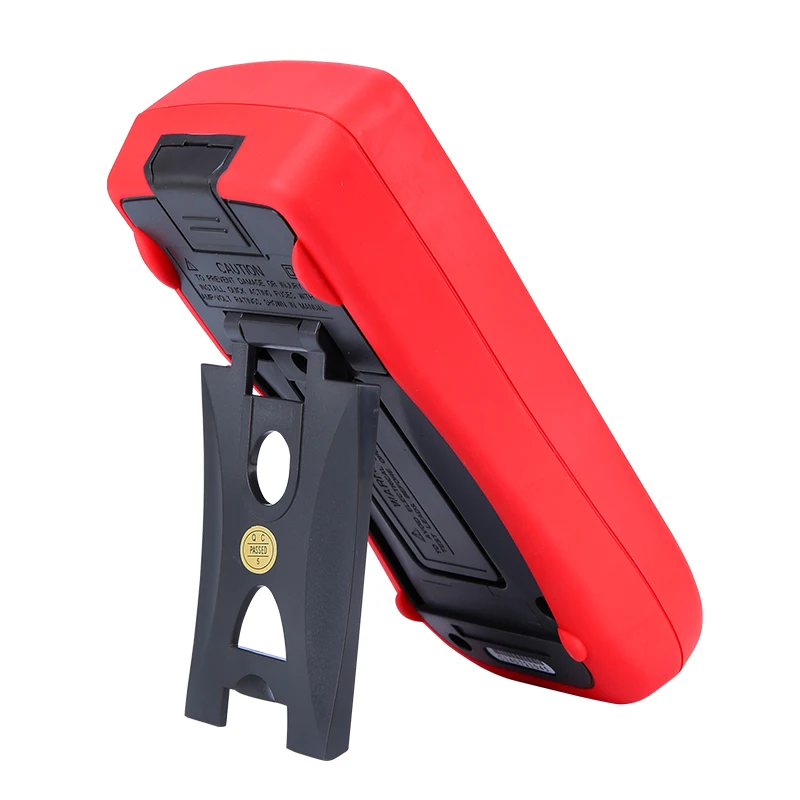

Uni t UT109 Automobile Multimeter professional multimeter

Product Overview

Description



Specifications	Range	UT109
DC voltage (V)	1000V	±(0.5%+3)
AC voltage (V)	1000V	±(1%+3)
DC current (A)	10A	±(1%+2)
AC current (A)	10A	±(1.2%+5)
Resistance (Ω)	40MΩ	±(1%+5)
Capacitance (F)	100μF	±(3%+5)
Frequency (Hz)	10Hz~1MHz	±(0.1%+4)
Temperature (°C)	-40°C~537°C	±(1%+10)
Features
Display count		4000
Auto range		√
Auto power off		√
MAX/MIN/RS-232		√
LCD backlight		√
USB interface		√
Input impedance for DCV	Around 10MΩ	√
Dwell/Tach	4CYL/6CYL/8CYL	±(3%+5)
General Characteristics
Power	9V battery (6F22)
Display	65mm×43mm
Product color	Red and grey
Product net weight	370g
Product size	180mm x 87mm x 47mm
Standard accessories	Battery, test leads, alligator clip, RS-232 interface cable, PC software CD, point contact temperature probe, multi-purpose socket
Standard individual packing	Gift box, English manual
Standard quantity per carton	20pcs
Standard carton measurement	465mm x 335mm x 365mm
Standard carton gross weight	14.7kg
Optional accessory	USB interface cable
