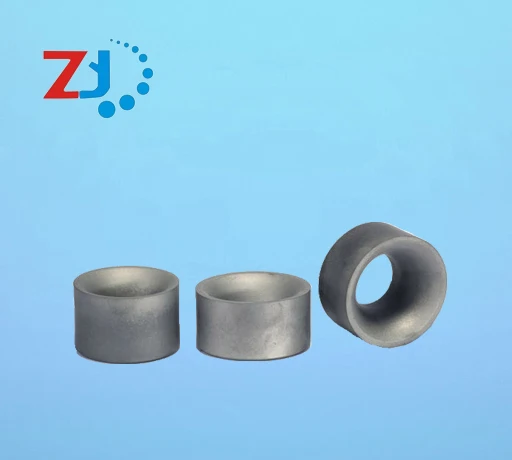

Tungsten Carbide Wire Drawing Die Cold Heading Dies for Steel Rope extrusion
- Category: Cemented Carbide >>>
- Supplier: Zunyi Zhongbo Cemented Carbide Co. Ltd.
Share on (62025504456):
Product Overview
Description
Zhongbo Tungsten Carbide Drawing wire Die / cold heading die /tips deep punch die/mould
Product Description
Application of Long life time hard metal cemented tungsten carbide wire drawing die
Cemented carbide wire drawing die as a tool material has been increasingly used for cutting tools, wear-resistant tools, impact-resistant tools, and other products with special purpose. Cemented carbide was first used in stretching mold area and has gone though cast iron mold, alloy steel mold, diamond dies, cemented carbide dies, polycrystalline module die and other developmental stages. With the property of high wear resistance, good polishing performance, low friction coefficient, etc., cemented carbide drawing die has been a substitute of steel mould which is used to stretching steel and non-ferrous metal.
Grades for tungsten carbide drawing dies
| Grade | Density (g/cm3) | Hardness (HRA) | TRS (MPa) | Average Grain Size (um) |
| YL01 | 15.25 | 93.5 | 3300 | 0.8 |
| YL10.2 | 14.5 | 92.0 | 4000 | 0.8 |
| YG6 | 14.95 | 90.0 | 2400 | 1.6 |
| YG6X | 14.95 | 91.5 | 1900 | 1.0 |
| YG8 | 14.75 | 89.5 | 2800 | 1.6 |
| YG11 | 14.4 | 87.5 | 3100 | 1.6 |
| YG15 | 14.05 | 87.0 | 3000 | 1.6 |
| Grade | Application Recommended |
| YL01 | Used sor drawing diameters less than 1.5mm of steel, tungsten and molybdenum wire under high speed drawing as well as nonferrous metals with high requirements on surface finish. |
| YL10.2 | Used sor drawing diameters between 1.5mm to 10mm of steel, tungsten and molybdenum wire under high speed drawing as well as nonferrous tubes with high requirements on surface finish. |
| YG6 | Used sor drawing diameters less than20mm of steel, nonferrous and its alloy wire or bar under a mede- -rate stress. It's also used for tubes less than diameters of10mm. |
| YG6X | Used sor drawing diameters less than20mm of steel, nonferrous and its alloy wire or bar under a mede- -rate stress. It's also used for tubes less than diameters of10mm. |
| YG8 | Used sor drawing diameters less than 50mm of steel, nonferrous and its alloy wire or bar under a mede- -rate stress. It's also used for tubes under35mm. |
| YG11 | Used sor drawing diameters less than 60mm of steel, nonferrous and its alloy wire or bar under a mede- -rate stress. It's also used for tubes under35mm. |
| YG15 | Used for steel pipe and steel bar as well as alloy steel bolt and head forging of rivet under a certain big stress. |

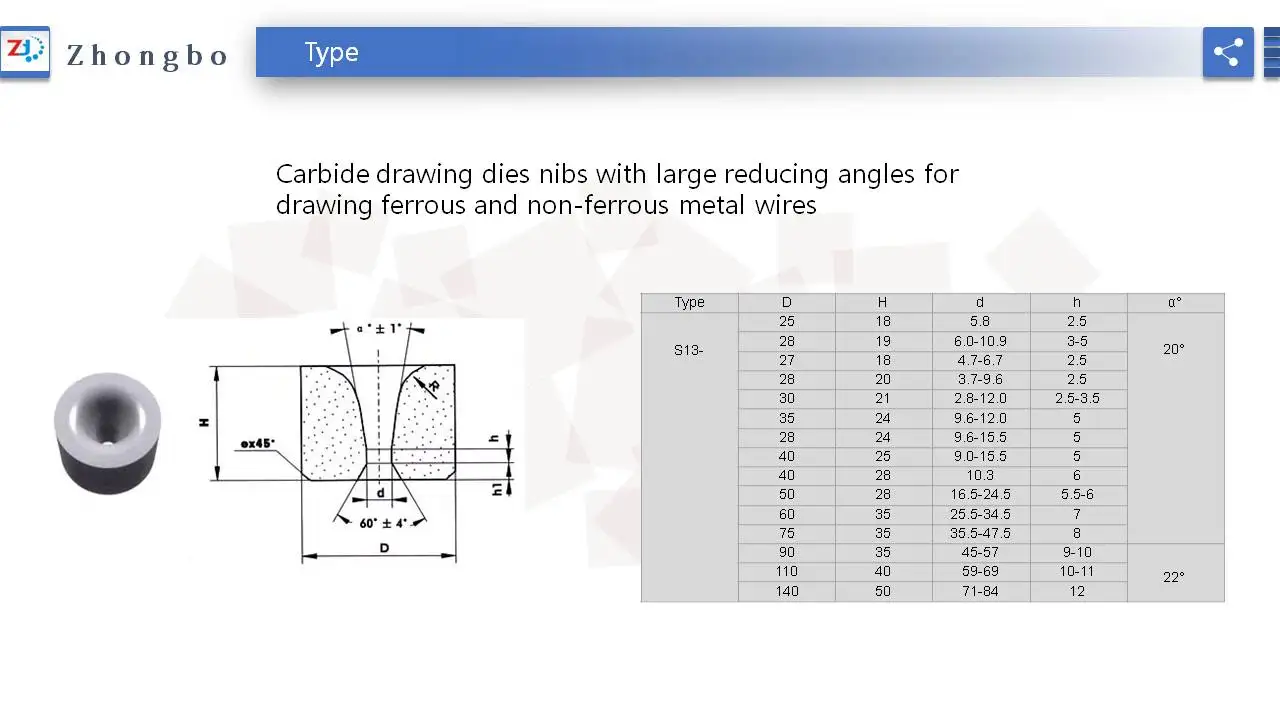

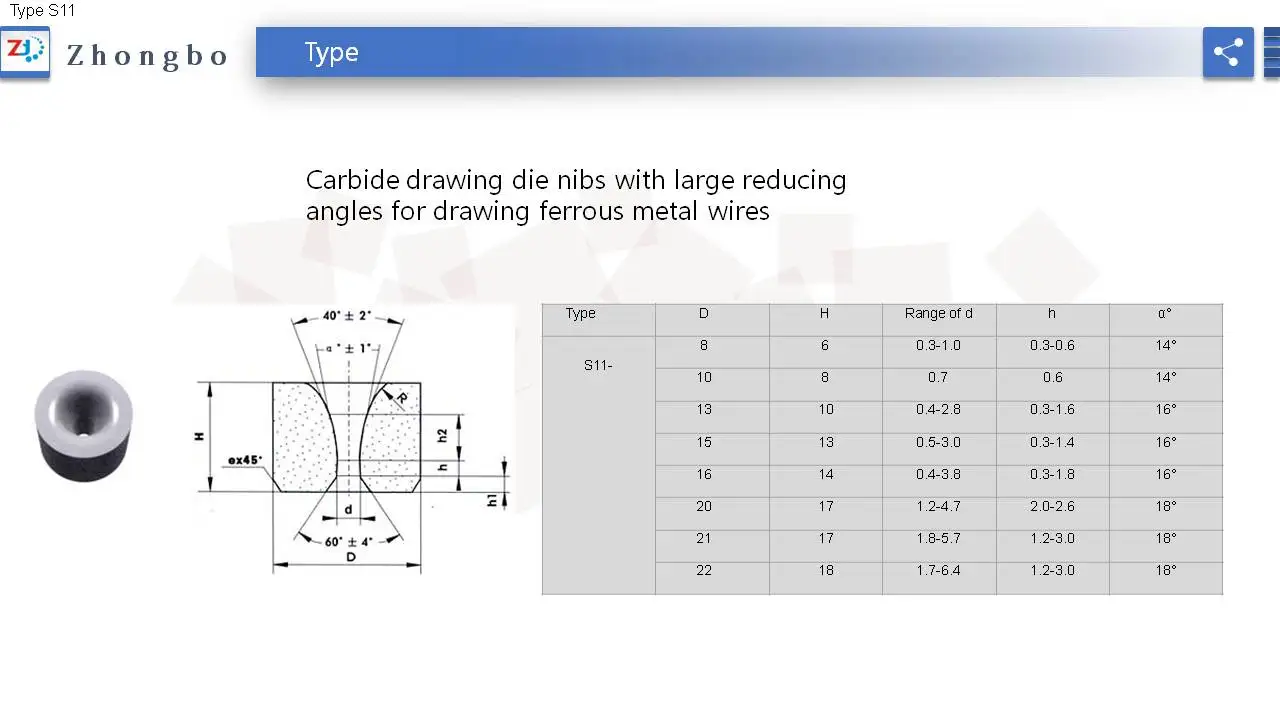

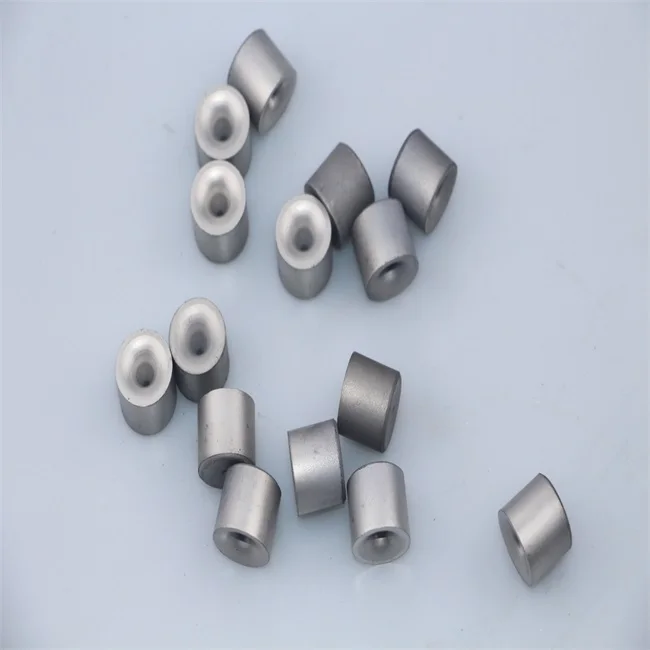

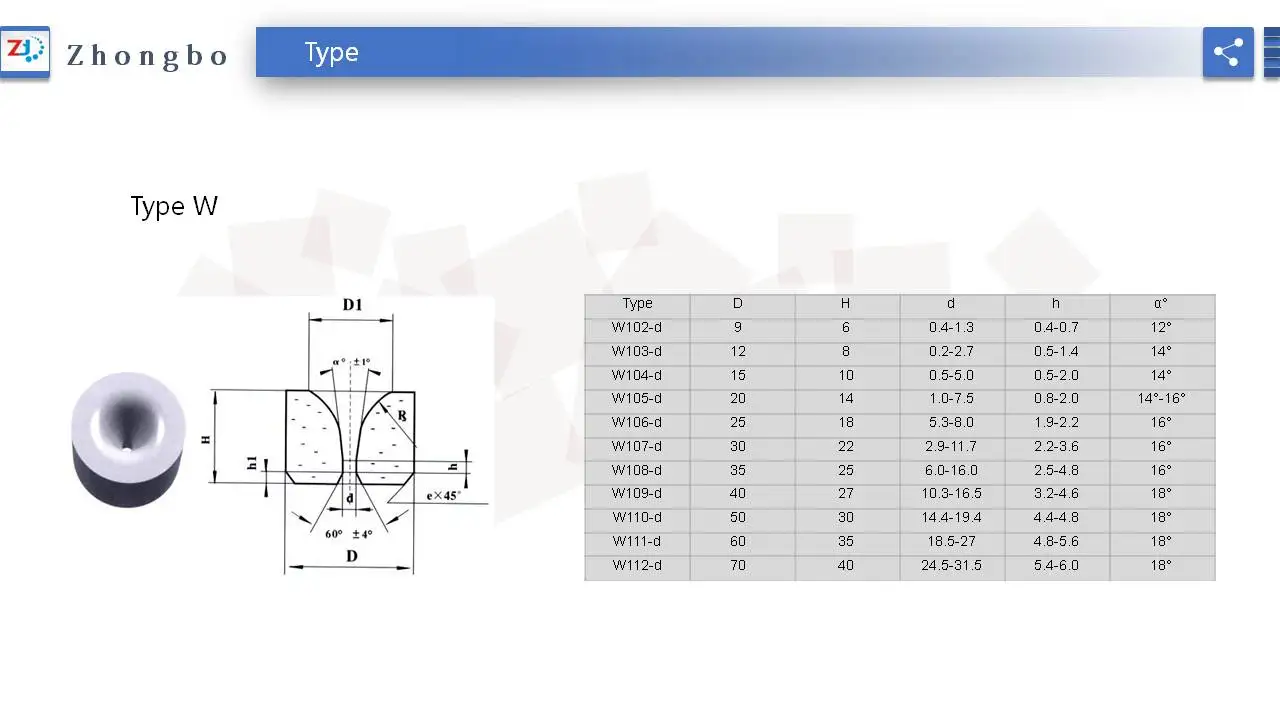

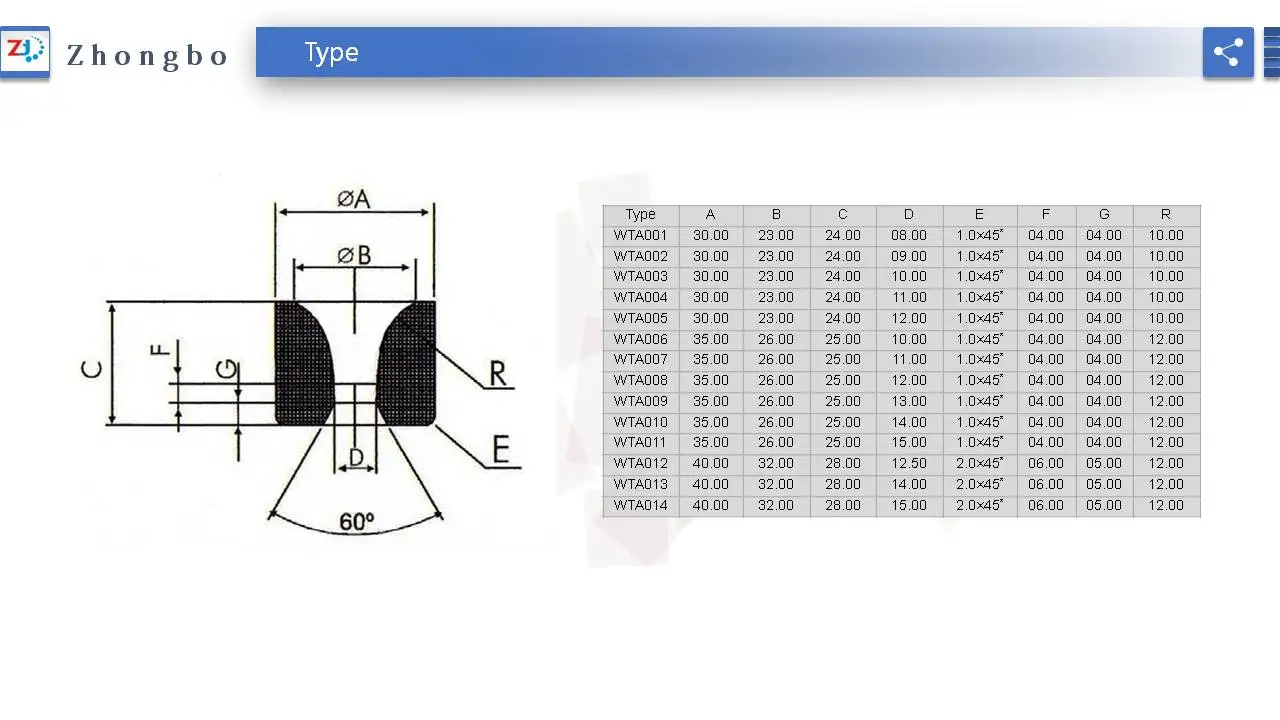

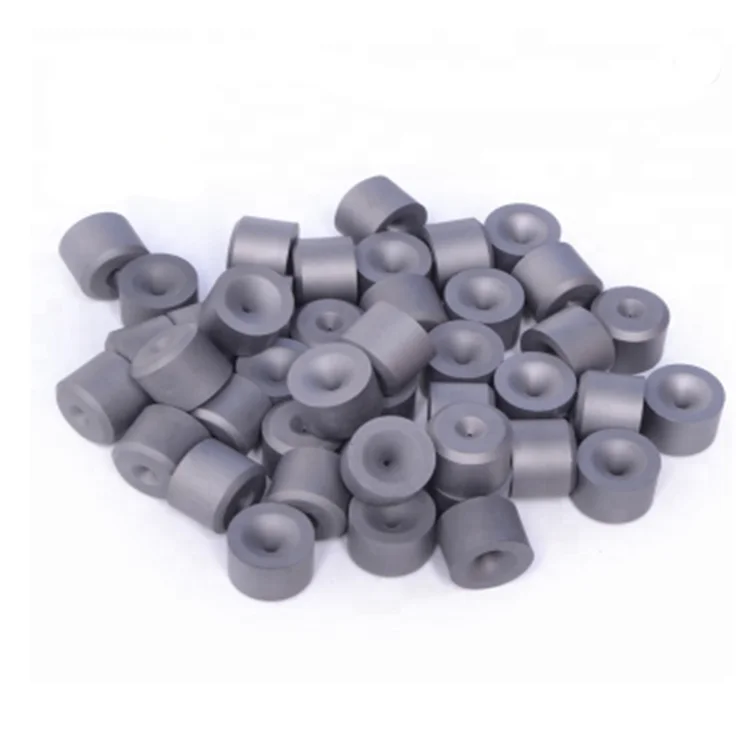

Product Show
![)}VN[`5TO7U~A(G]5PEHCPE.png](http://sc01.alicdn.com/kf/HTB1s.wieMaH3KVjSZFj763FWpXaW/234838370/HTB1s.wieMaH3KVjSZFj763FWpXaW.png)
Product Uses
Company Information
FAQ
If you have any others questions, please contact us and we will give you prompt response!
Q: Are you trading company or manufacturer?
A: We are factory?
Q: What is you mainly products?
A: The mainly products including carbide saw tips, drawing dies, cold heading dies, carbide buttons and hammer stone, drill bits, etc.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free change but do not pay the cost of freight.
Q: What about your general delivery date?
A: Normally the delivery time is 7-15 workdays.
Q: Do you have gurantee on your products?
A: Of course! we gurantee the goods produed is same as ISO 9001:2008, or samples, drawings confirmed by you.
