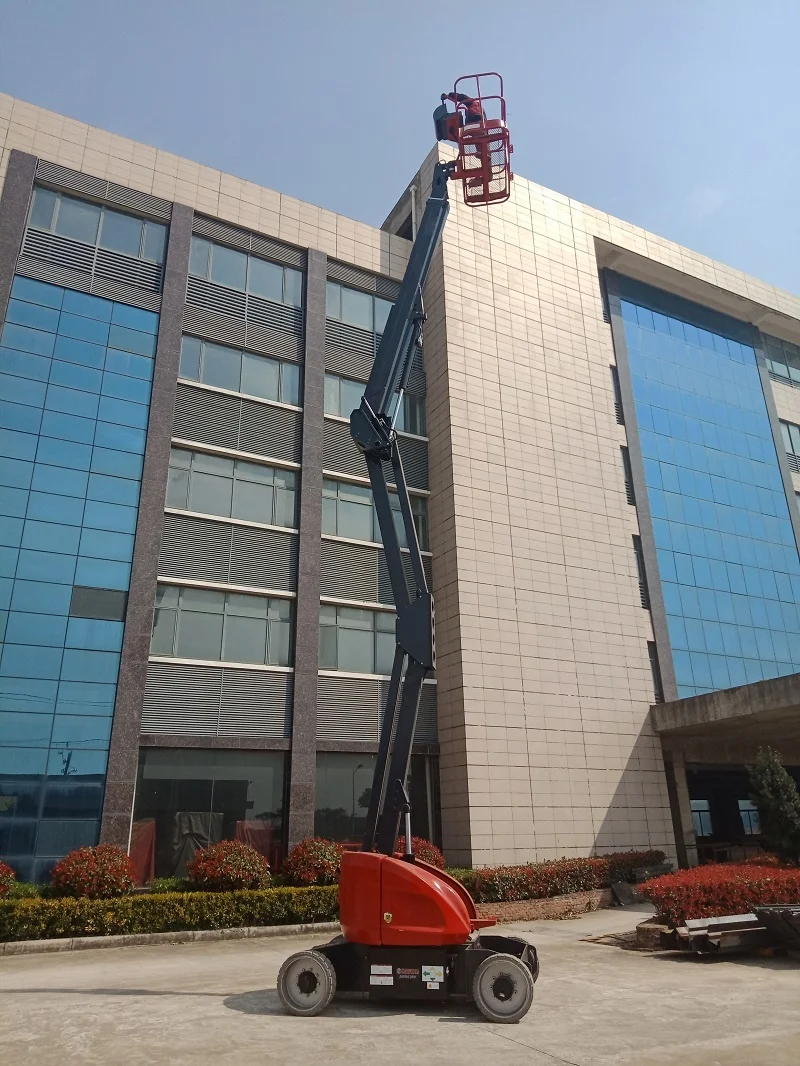

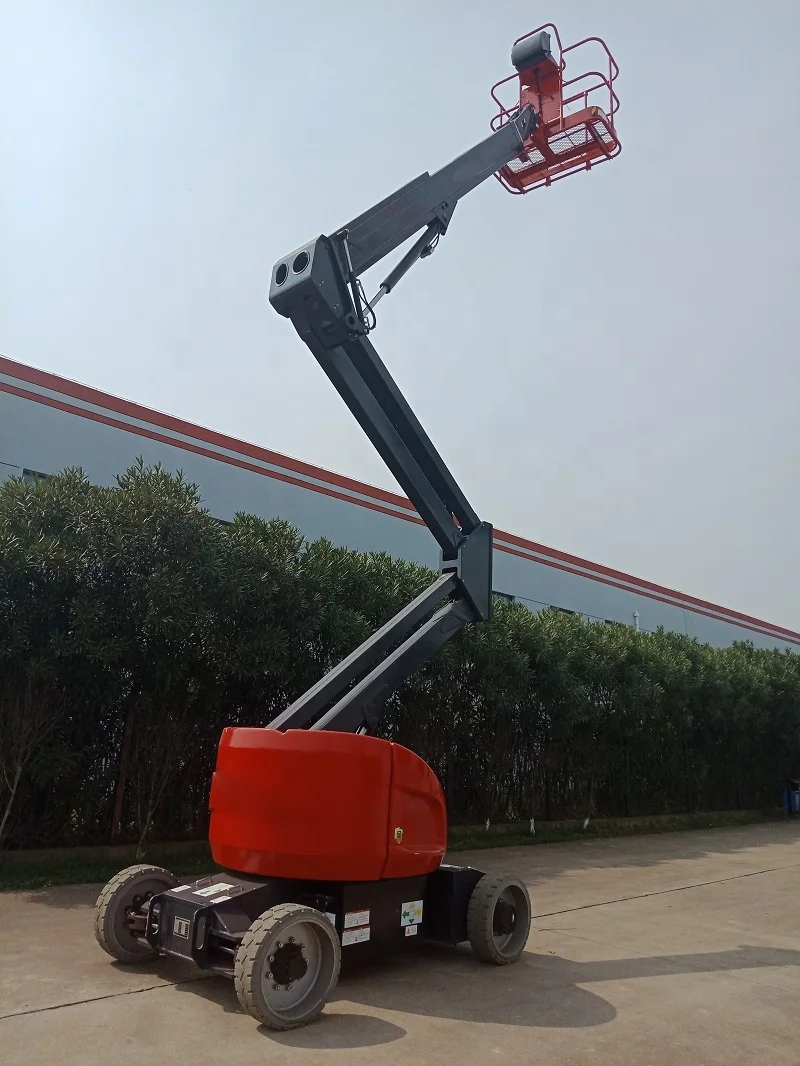

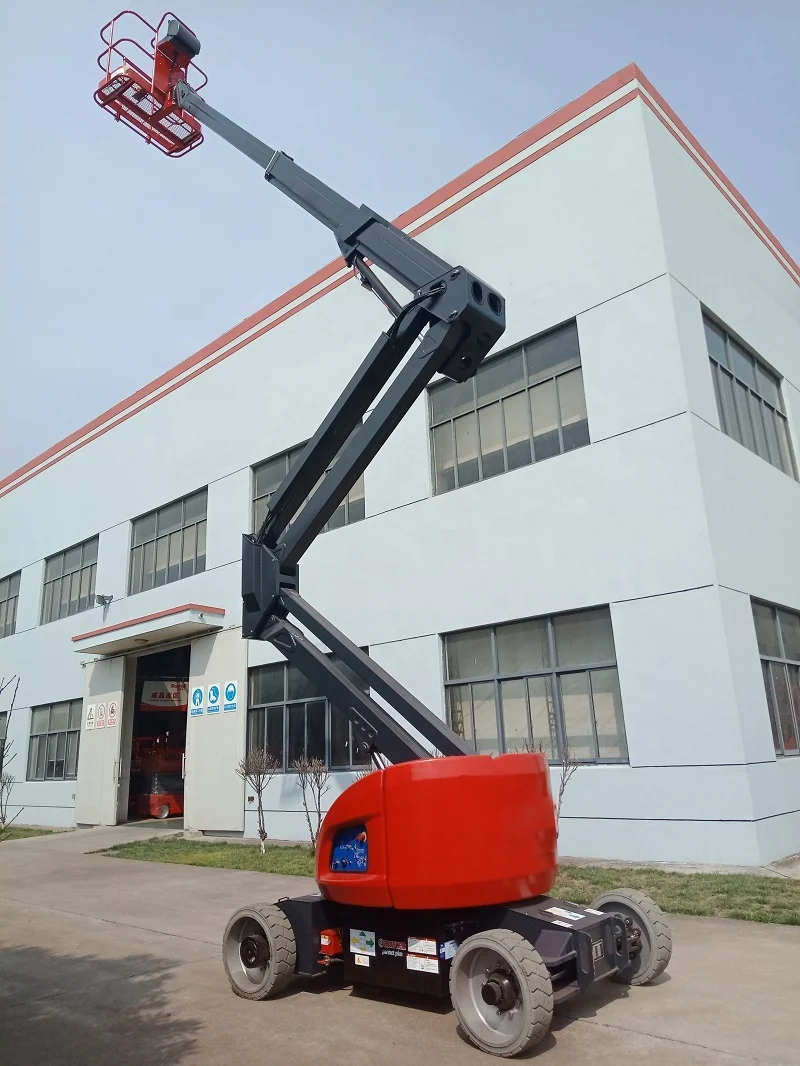

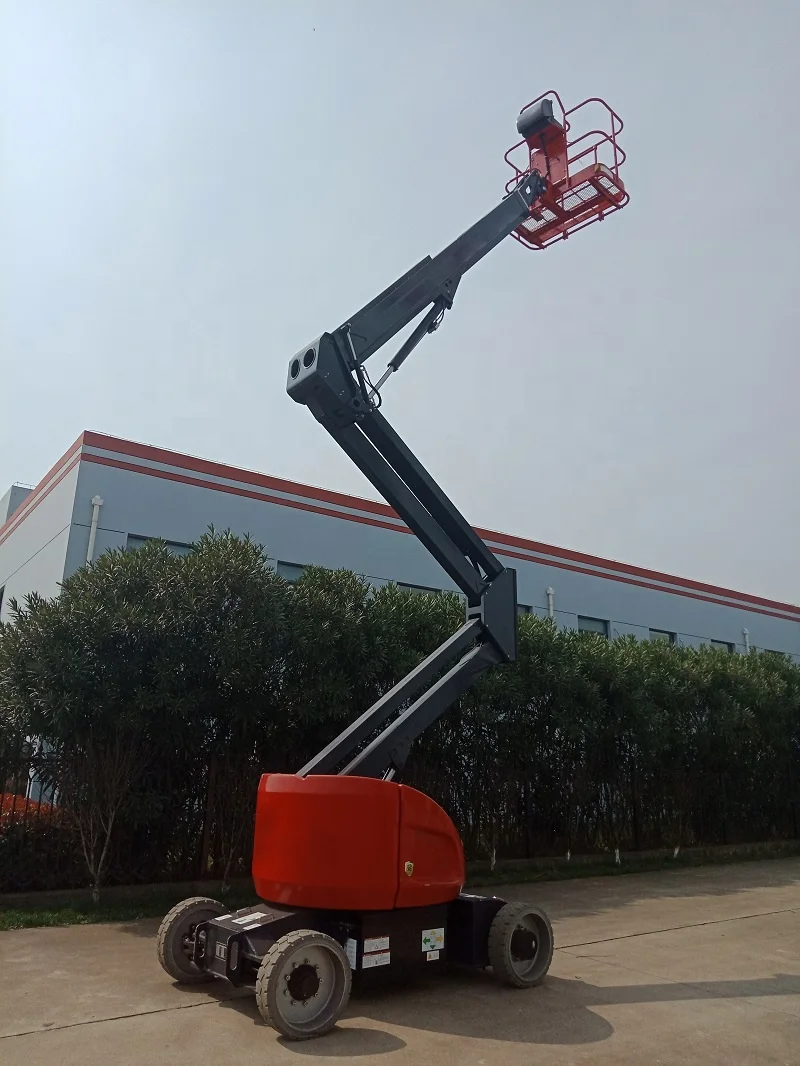

10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform
10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform
10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform
10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform
10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform
10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform
10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform

10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform

Share on (62025538721):


Price:$24,500.00 - $25,000.00

Quantity:


Product Overview

Description





Application

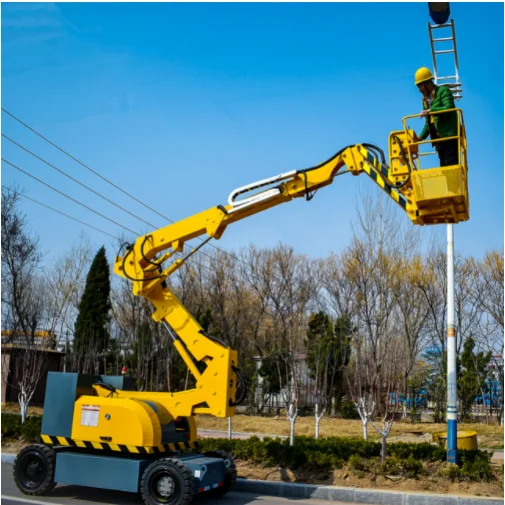

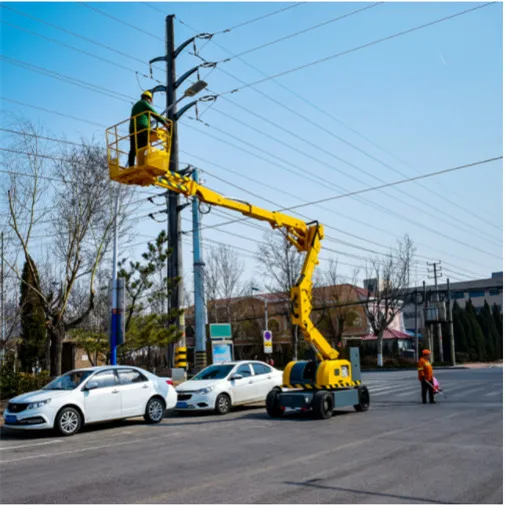

Mainly used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations and other high-altitude equipment installation, maintenance and cleaning of aerial working platforms enable us to complete work faster, better, more convenient and safer.




Details Images


Main Structure
This material has high strength, strong bending resistance and corrosion resistance. All rotating parts are equipped with lubricating bearings.
Surface Treatment
The surface of the product is treated with anti-rust, so that the product will not rust during use and affect the appearance.
Tire
Solid tires, high wear resistance / low resistance, easy to maintain.

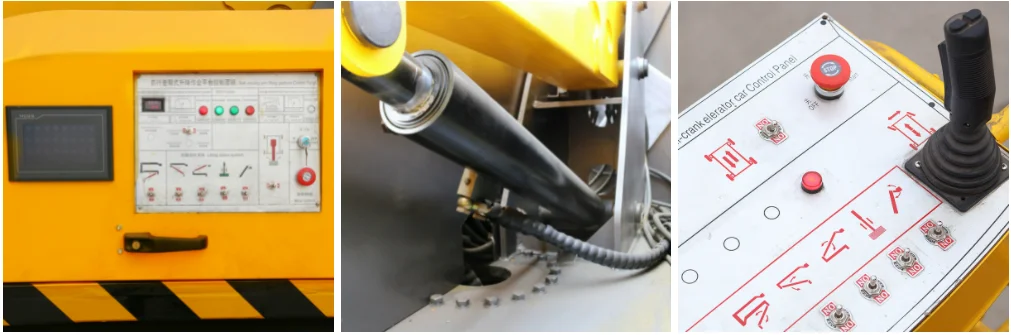

Control Panel-Bottom
The PLC system display screen and integrated control panel allow workers to control on the ground for easy maintenance and operation.
Hydraulic System
The seals and sealing rings are all imported from Germany (Deck Seal Company).
Control Panel-Top
Let workers be at high altitude and perform various tasks, front and back, left and right, ascent and descent.


Product Paramenters


1-Power Source: Diesel Engine And Battery
2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment
3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate
4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures
5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment


10 12 14 16 20 22 26 28 45m 230Kg loding Telescopic self propelled articulated boom lift scissor aerial work platform
HKG12D
HKG14D
HKG16D
HKG18D
HKG20D
HKG22D
HKG24D
HKG26D
Max working height
m
12
14
16
18
20
22
24.19
26.2
Max platform height
m
10
12
14
16
18
20
22.19
24.2
Max extension reach
m
6.4
8
7.6
9.8
10.8
12
13.8
15.8
Max acess working height
m
4.78
5
7.78
7.78
9.2
9.2
9.8
9.8
Max loading capacity
kg
230
200
230
230
230
230
230
230
Grade ability
14°
(25%)
14°
(25%)
16.7
(30%)
16.7
(30%)
14°
(25%)
16.7
(30%)
14°
(25%)
16.7
(30%)
Walking speed
km/h
5
5
5
5
5
5
5
4.2
km/h
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Length (Stowed)
m
4.35
5.3
5.7
6.71
7.81
8.67
9.05
9.92
Width (Stowed)
m
1.5
1.75
1.75
2
2.38
2.38
2.48
2.48
Height (Stowed)
m
1.99
2.05
2
2
2.5
2.47
2.8
2.82
Mini turning radio
m
2.16
3.8
4.5
4.5
5.2
5.2
5.2
5
Tail swing
m
0.125
0
0
0.33
0.34
Platform size (L*W*H)
m
1.1*0.65*1.13
1.1*0.65
1.53*0.76
1.53*0.76
1.53*0.76
1.83*0.76*1.13
1.83*0.76
1.83*0.76
Wheel base
m
1.65
2
2
2.2
2.4
2.4
3
3
Swing rotation
355°
355°
355°
355°
355°
355°
360°
360°
Platform rotation
120°
120°
180°
±80°
±90°
±90°
±80°
±80°
Rotary table rotating speed
rpm
0~0.8
0~0.8
0～0.8
0～1/3
0～1/3
Ground clearance
m
0.15
0.2
0.2
0.2
0.3
0.34
0.43
0.29
Driven wheel size
mm
φ590*190
φ590*190
250/15
250/15
33×12-20
33×12-20
36×14-20
36×14-20
Total weight
kg
4800
6800
6700
7200
9100
9350
13000
16300
Control voltage
v
24
24
24
24
24
24
12
12
Battery
v/Ah
48/320
48/320
48/390
48/390
48/390
48/390
80/560
80/560
Charger
v/A
48/50
48/50
48/60
48/60
48/60
48/60
48/60
48/60
Walking motor
kw
3.56*2
3.56*2
3.56*2
3.56*2
3.56*4
3.56*2
3.56*4
Hydraulic oil box volume
L
40
40
30
30
30
30
150
150

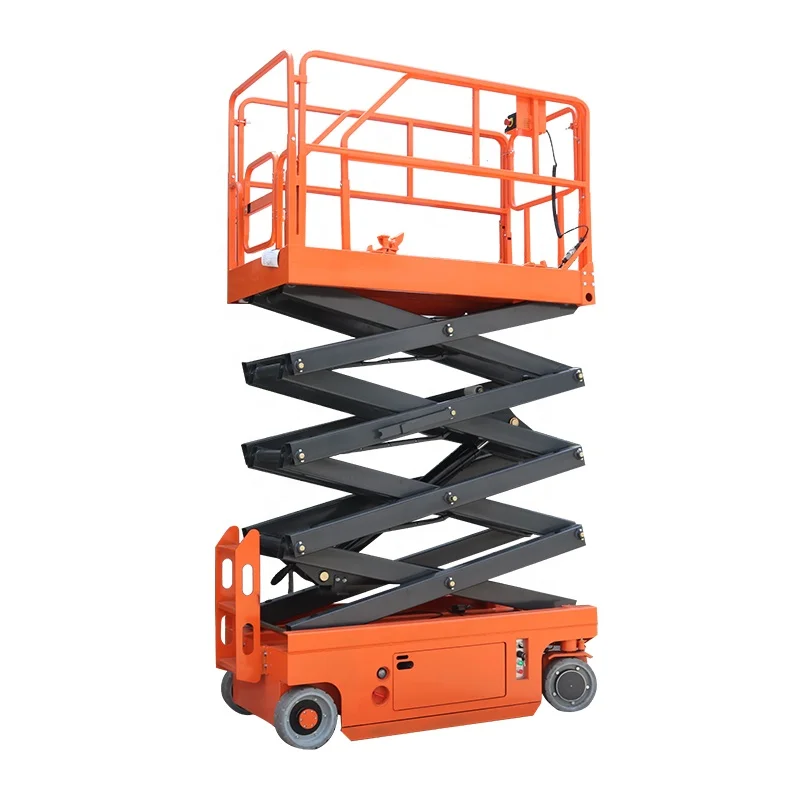

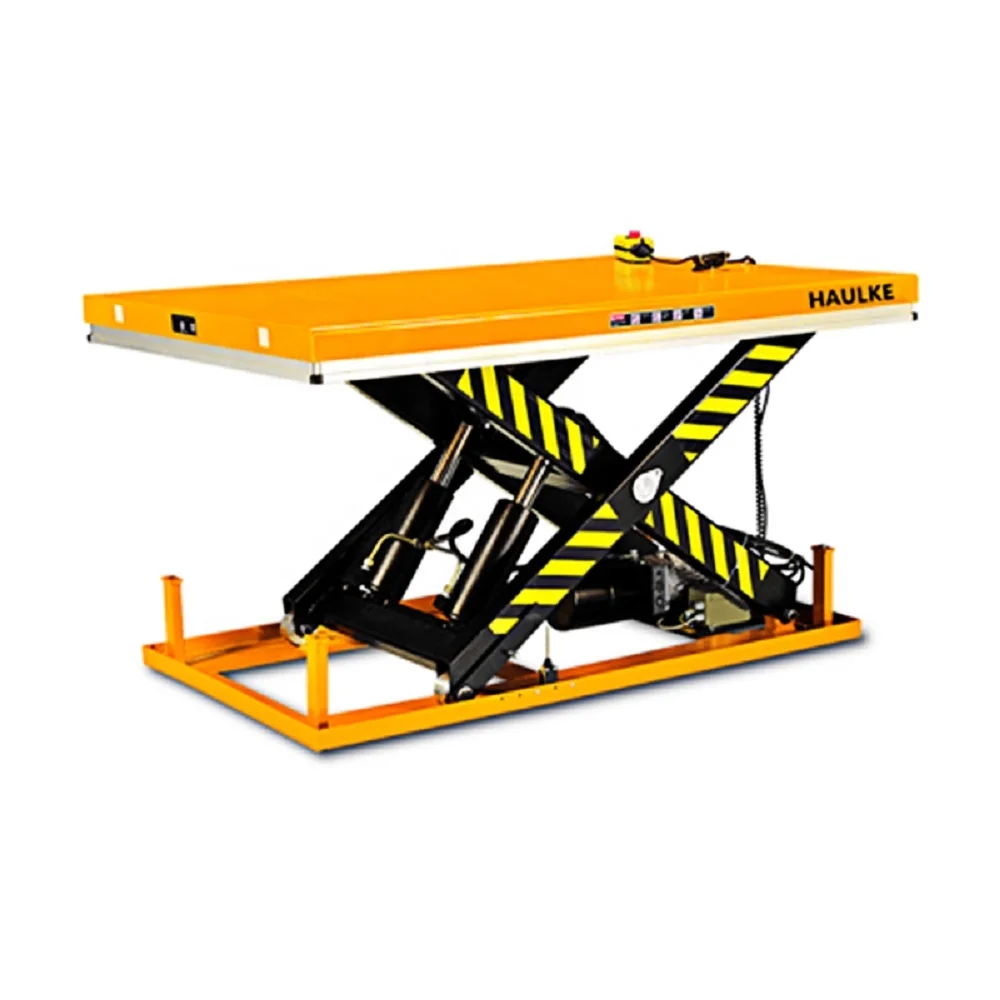

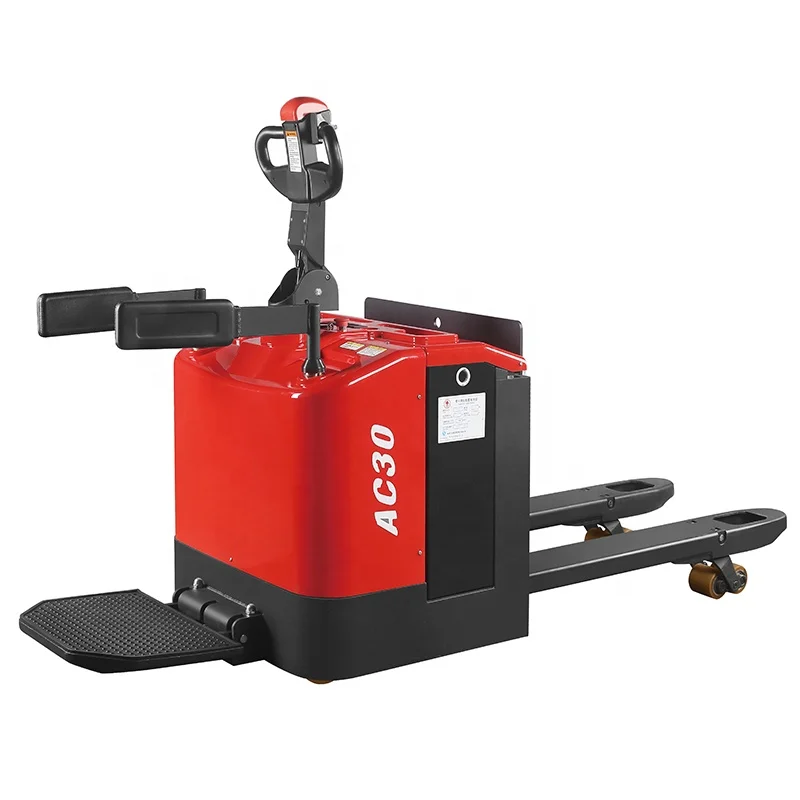

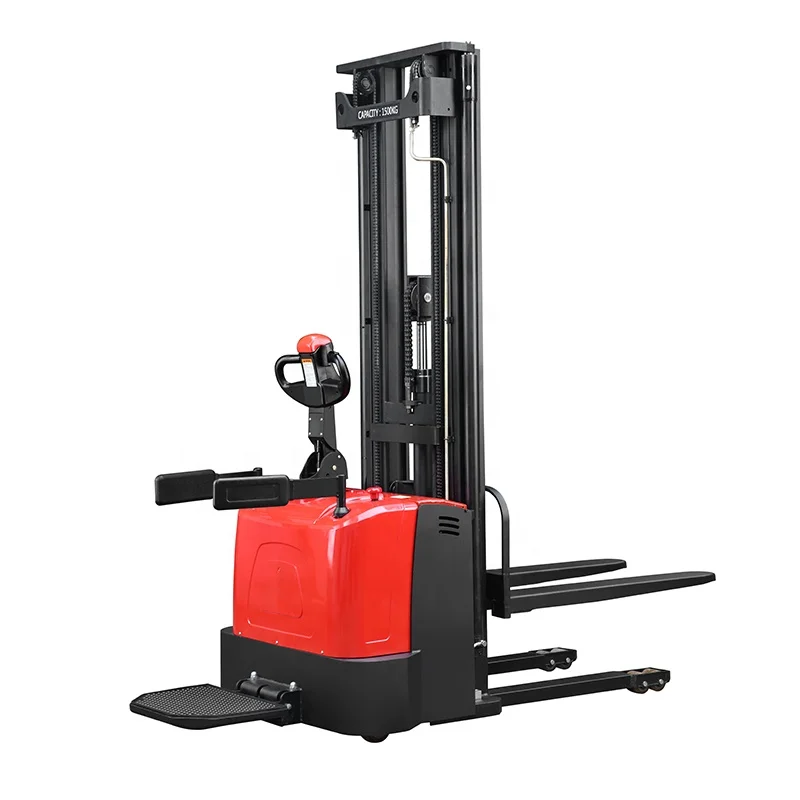

Related Products

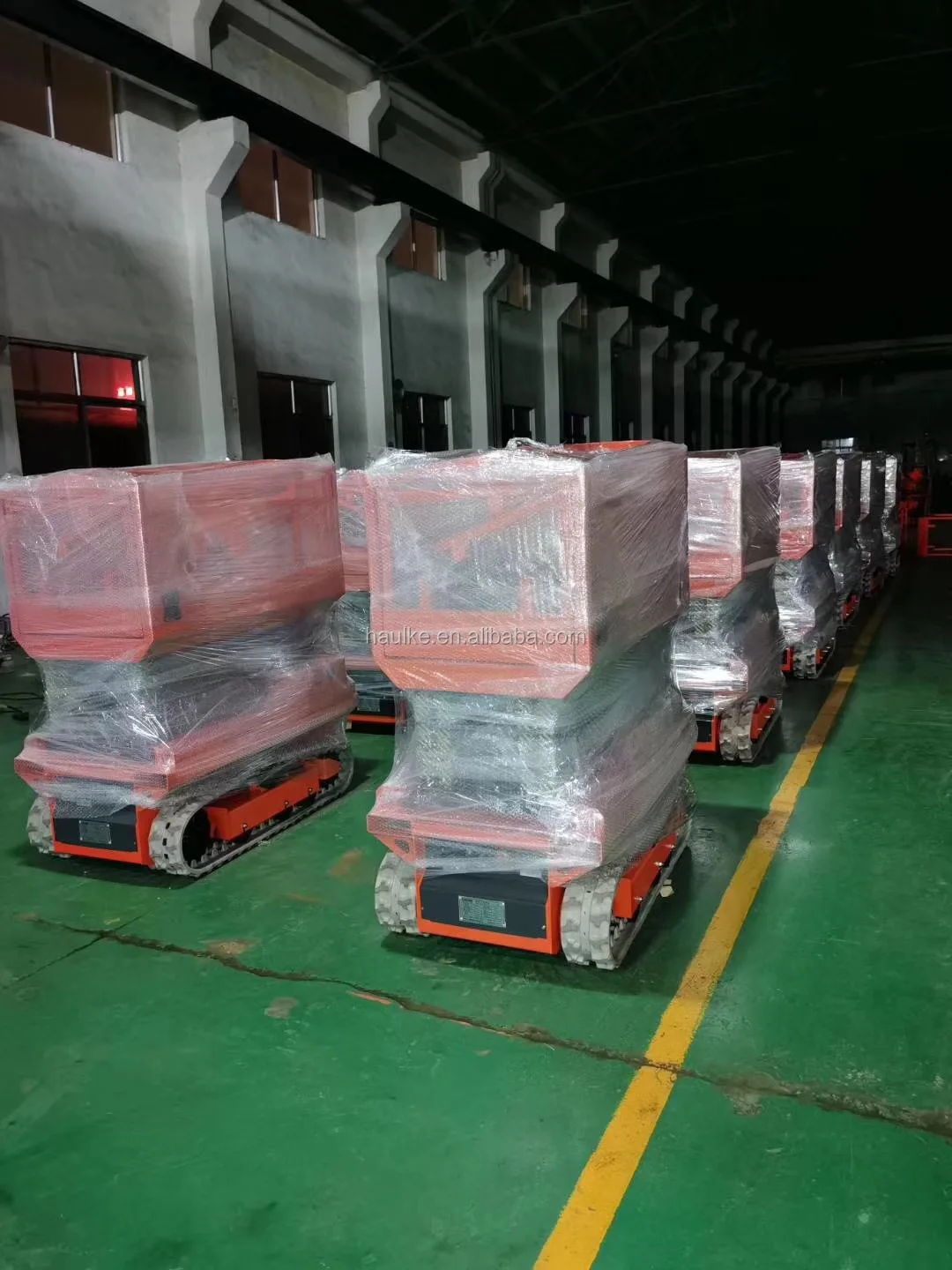

Packing&Shipping
